Re: Biscayne Resto Project


A Little Update..........The Biscayne had a 3.90 Posi and a Close Ratio Muncie in it .......Nice for Driving around town, but .....Not Practical for my kind Traveling.....So......After "Conferring" with Dr. Webster...It was decided that a 5 or 6 speed would require some Tunnel Surgery and I didn't want to do that.....So..We ordered a Richmond Super T-10 with a 2.88 First Gear, Hurst Shifter assy,New Clutch Disc (Fine Spline)and a 3.08 Ring and Pinion.......With the 2.88 and the 3.08 the ratio is about the same as the old combo, but....Now I can drive the car anywhere......there were some minor issues installing the shift gate to get it to come thru the floor in the correct spot, Back-up Light Switch Hardware that was different (Thanks Crash)...and had to get the Driveshft Shortened, and I also put the correct Shift Boot in while it was apart .......Here are some Pic's from the change over

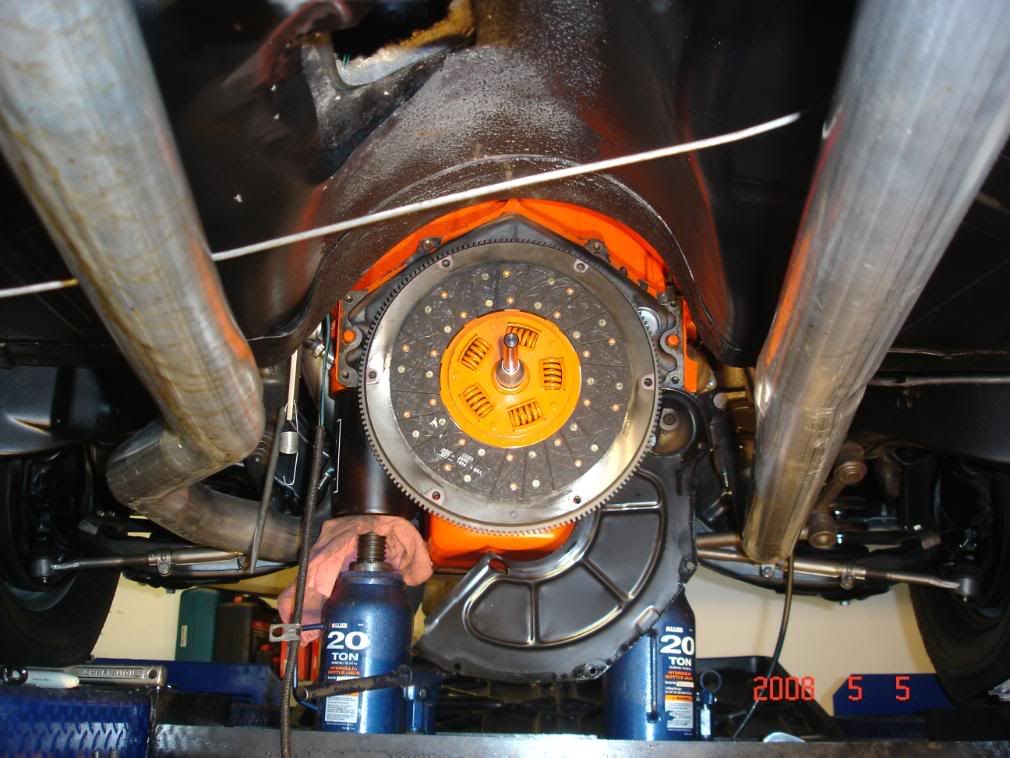

Changeing the Clutch Disc.......


http://i13.photobucket.com/albums/a2...t/DSC09027.jpg

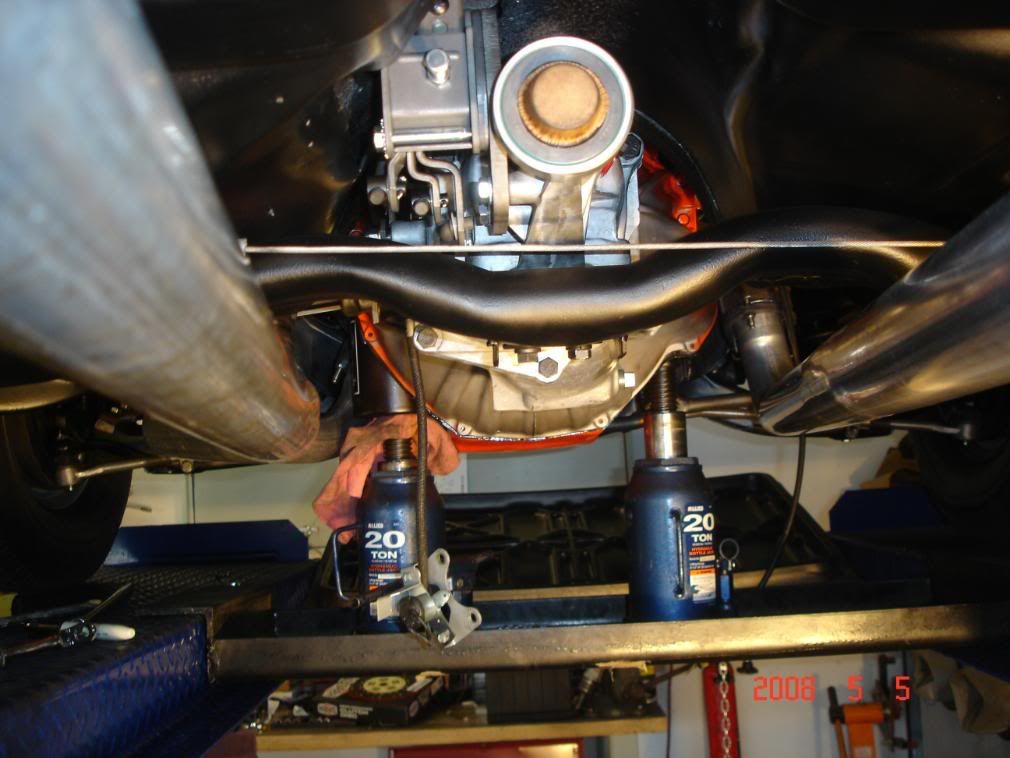

Even though the trans "Bolted" in....It was about 3/4" longer than the Muncie and required shortening the Driveshaft

http://i13.photobucket.com/albums/a2...t/DSC09028.jpg

http://i13.photobucket.com/albums/a2...t/DSC09029.jpg

Had to make a couple of Adaptor Plates to get the Shift gate in the Proper Place......Had to move it forward and down about a 1/2" in both directions

http://i13.photobucket.com/albums/a2...t/DSC09034.jpg

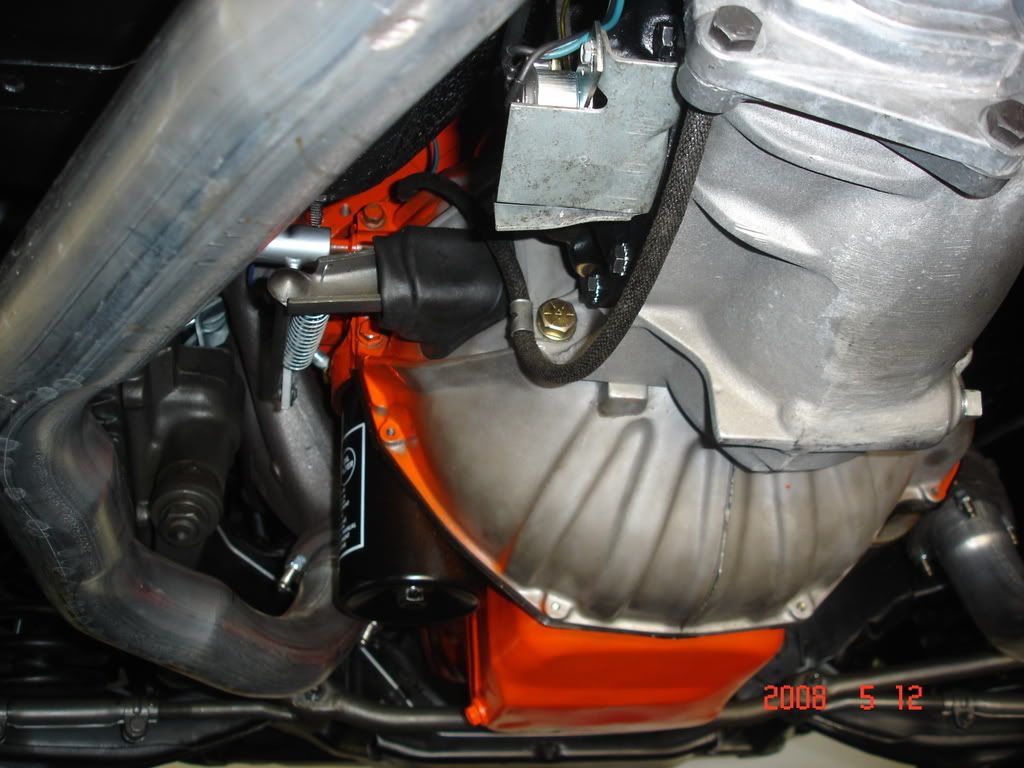

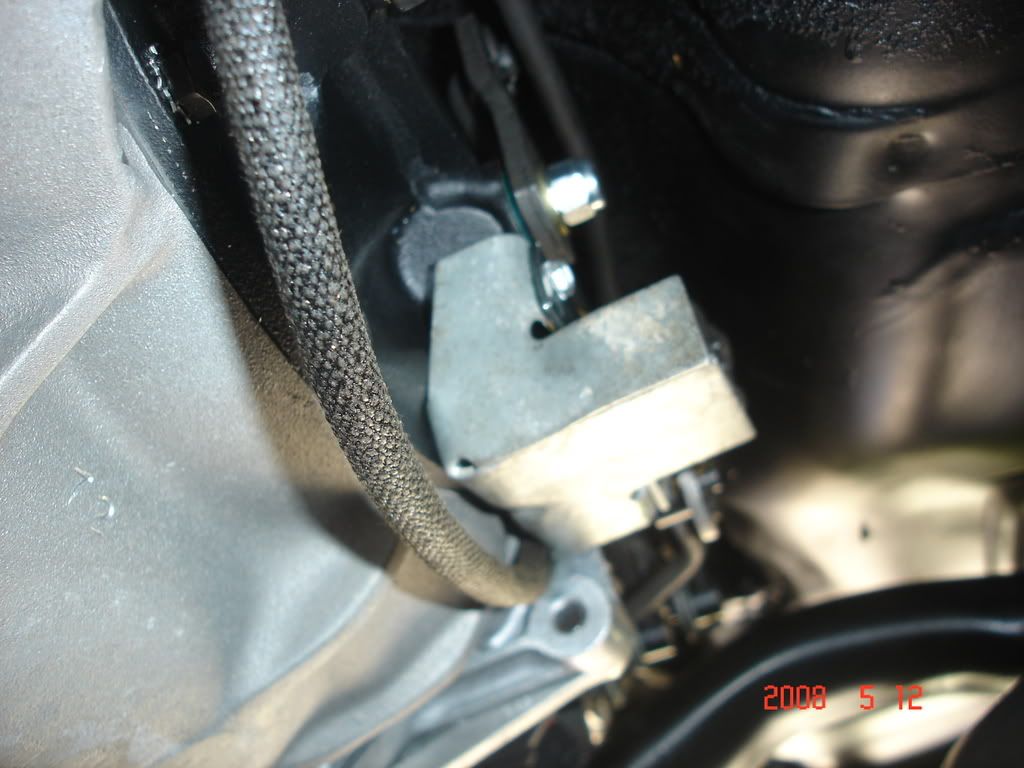

The T-10 has a different Sideplate so the Back-up light Switch mounting plate needed to be replaced with a later model GM unit...

http://i13.photobucket.com/albums/a2...t/DSC09053.jpg

http://i13.photobucket.com/albums/a2...t/DSC09054.jpg

Continued.........

Re: Biscayne Resto Project


First time I have seen a car jacked up by the oil filter.

Re: Biscayne Resto Project


Had to make a Adaptor to get the Stock Shift Arm to mount to the Hurst Gate and to Fine Tune the Position of the Arm Relative to the Seat.....

http://i13.photobucket.com/albums/a2...t/DSC09057.jpg

http://i13.photobucket.com/albums/a2...t/DSC09060.jpg

Intalled with the Correct Boot.........Now ....I can Actually Shift the car and don't have to worry about the shifter "Jamming" in the middle of Nowhere....(Roodhouse)

http://i13.photobucket.com/albums/a2...t/DSC09062.jpg

Drive Shaft installed after Shortening.....

http://i13.photobucket.com/albums/a2...t/DSC09055.jpg


Just got a couple of little things to finish up.....Got the Correct 66 Radiator Spacer, and a Big Tank Harrison that I just picked up from the Radiator Shop, and a correct Fan Shroud.......I'll be putting those parts in later this Week........

Ken

Re: Biscayne Resto Project


[ QUOTE ]
First time I have seen a car jacked up by the oil filter.

[/ QUOTE ]

I do a "Lot" of First time "Stuff"........Go back to Drinking your Coffee......... https://www.yenko.net/ubbthreads/imag...iggthumpup.gif

Re: Biscayne Resto Project


[ QUOTE ]
Intalled with the Correct Boot.........Now ....I can Actually Shift the car and don't have to worry about the shifter "Jamming" in the middle of Nowhere....(Roodhouse)

[/ QUOTE ]

https://www.yenko.net/ubbthreads/imag...lins/smirk.gif IF that ever happens, you'll be in good hands,................ and we know how to fix the problem. https://www.yenko.net/ubbthreads/imag...mlins/grin.gif https://www.yenko.net/ubbthreads/imag...lins/beers.gif

Now go wipe the gear lube off the exhaust pipes. That stuff stinks when it burns.

Re: Biscayne Resto Project


[ QUOTE ]
[ QUOTE ]
Intalled with the Correct Boot.........Now ....I can Actually Shift the car and don't have to worry about the shifter "Jamming" in the middle of Nowhere....(Roodhouse)

[/ QUOTE ]

https://www.yenko.net/ubbthreads/imag...lins/smirk.gif IF that ever happens, you'll be in good hands,................ and we know how to fix the problem. https://www.yenko.net/ubbthreads/imag...mlins/grin.gif https://www.yenko.net/ubbthreads/imag...lins/beers.gif

Now go wipe the gear lube off the exhaust pipes. That stuff stinks when it burns.

[/ QUOTE ]

That's another thing.....The "Old" Muncie had leaking seals around the Shift Forks......The New one is "Dry".....Leak Gone....... https://www.yenko.net/ubbthreads/imag...iggthumpup.gif

https://www.yenko.net/ubbthreads/imag...mlins/flag.gif

Re: Biscayne Resto Project


Note to Ken......Put oil in the trans.

Re: Biscayne Resto Project


[ QUOTE ]
Note to Ken......Put oil in the trans.

[/ QUOTE ]

LOL

Re: Biscayne Resto Project


When I ordered the 4 Core 427 replacement Radiator from U.S. Radiator, I assumed it would come as a " Factory Correct" unit........well......It was correct and worked very well except for one thing.....It came with "Small" tanks.....When I talked to U.S. about this.....they informed me that they didn't have any Tooling to produce the correct "Factory Big Tanks" and we went round and round about this Issue........Bottom line is they told me I had to find a "Old" Big Tank and they would use those Tanks and build me a New one.......I found one at the Jefferson Swap meet earlier in the year and was going to send it back to them for refurbishing........But...Instead I got hooked up with a Local Radiator Shop that was supposed to have a owner that "Get's It"..........Dropped it off and explained that I wanted a "Brand New" appearing recored Radiator assy........He called a week later and said it was finished........Lets just say that it was "Perfect" from a Functional point of view......Appearance......LOL......Spent 4 hours with paint remover getting the paint and runs removed so I could wire brush and Scotchbrite the Rust and Dirt that he just Painted over on the Side Frames......After cleaning and Repainting it turned out O.K........But......Why??......"And".....I got charged twice as much as U.S. wanted .........Live and Learn.....Don't people understand "Quality" anymore.....Anyhow....enough of the "Rant".......Here are some before and after Pic's.......I also replaced the Radiator Spacer with a 66 Unit.....the one that was in the car was a later model unit (67 up) that had a Embossed Rib in it.....and I now have the correct Fan Shroud that was put on at the same time.....Also changed the Speedo gear so the Speedometer reads correct after the Gear change......Done!!!

Before........Small Tank and Ribbed Spacer

http://i13.photobucket.com/albums/a2...t/DSC06644.jpg

After.........Big Tank and Correct Spacer

http://i13.photobucket.com/albums/a2...t/DSC09949.jpg

http://i13.photobucket.com/albums/a2...t/DSC09951.jpg


Correct Fan Shroud........

http://i13.photobucket.com/albums/a2...t/DSC09950.jpg

Done..........

Ken

Re: Biscayne Resto Project


I see you found the correct bench seat 4 speed boot. Looks NOS. Got an extra one??? Where did you get it???? Andrew.
