76 Trans Am Day 2ish Survivor
I purchased this car about 6 weeks ago for inventory. The job hazard I have now, I fall in love with these cars. This one is no exception. Bruce featured the car here............https://www.yenko.net/forum/showthread.php?t=156544.
I decided to slow down a little bit, as Tracey and I have become rather fond of the car. It has some Day 2 adds the original owner performed to the car before he parked it in 1995. I thought I'd carry on with a few items while fixing the few items that needed attention. I was able to fit PMD center caps to my 200S wheels........ https://i1043.photobucket.com/albums...psrtiok2b7.jpg Found an NOS Thrush crossover muffler. I'll make the car a dual exhaust like it should be, attached to the Casler headers the OO added in 1980. I have an appointment to get the pipes bent this Thursday over by a buddy. We should be able to use the original tailpipes. https://i1043.photobucket.com/albums...psvwgcvbnd.jpg I tried to save the original headliner. I just has shrunk too much and cannot be properly fitted to the cardboard. I found original material courtesy of a SYC member. That should be here soon. https://i1043.photobucket.com/albums...pskb3na2a2.jpg https://i1043.photobucket.com/albums...psdtlktklh.jpg I'll post some pics after a few things are done. I'm in the process of rubbing in the #7 |
I have been working on Trans Am most of today. Here is what an hour of rubbing with rags and lacquer thinner has yielded. Any other suggestions for the cracks, crevices, brake lines, etc?
Like many cars, this thing was Ziebart coated when new. https://i1043.photobucket.com/albums...psrzjwrhh7.jpg https://i1043.photobucket.com/albums...psfrkn2b5q.jpg |
----Just me but I don't think I would use lacquer thinner. Try some thing like wax and grease remover, or just kerosene. Eventually the L-thinner will eat thru that beautiful primer, and it really does appear beautiful. Also, use plastic scrapers (you may already be doing this).....Bill S
|
A diesel fuel-soaked rag works great. I used it to clean the bottom of our 73 SD455.
|
I buy a gallon metal container of WD-40 and the plastic spray bottle that is made for it. Get a soft plastic bristle brush . Spray the WD-40 and let it sit a few minutes , spray it again and use the plastic brush. Keep the brush clean by washing it out with the WD-40 . It will take a while to get all the undercoating off but this will not harm any paint or primer. Any paint daubs or stencils will not go away. Get some plastic scrapers that are not sharp and those will help with the thick crap.. 5 gallons used on my 1970 GS , but it got Archival Elite at BCA Nats.. Some things are worth the effort..lol..
|
This is the result of the #7 rub down. This is strictly 3 coats of #7, no machine work. Personally, I like to avoid the machine work when I can...........
https://i1043.photobucket.com/albums...psqlu867zi.jpg https://i1043.photobucket.com/albums...psm11bim9y.jpg |
Well done! Did you let it soak? I did on my 75fj and it worked really well. Did you clay bar?
|
Quote:
|
Eagle One Mitts are great,you'll never clay bar again.
|
Quote:
x1000 Ever since you guys recommended it here earlier this year I have been using it. Have done all our cars in the fleet over the summer and it's unbelievable how well it works. Last week I did our sons 2004 Envoy hand me down with 190k miles that gets driven a lot and sat out all summer without getting washed very much. The original paint looked like new afterwards. |
Quote:
|
Where can u get these eagles
|
Amazon
|
Just type in Eagle One surface prep mitt in the eBay search box.
I paid $10 total for one shipped to me,but their prices fluctuate throughout the year. |
I've had some time as of late to work on this car. I had a growl in the transmission, so I knew I had that had to come out. So, pull the trans, send the flywheel out to be machined and have the clutch balanced along with it........and get cleaning the floor pans while the trans is out the exhaust is off.

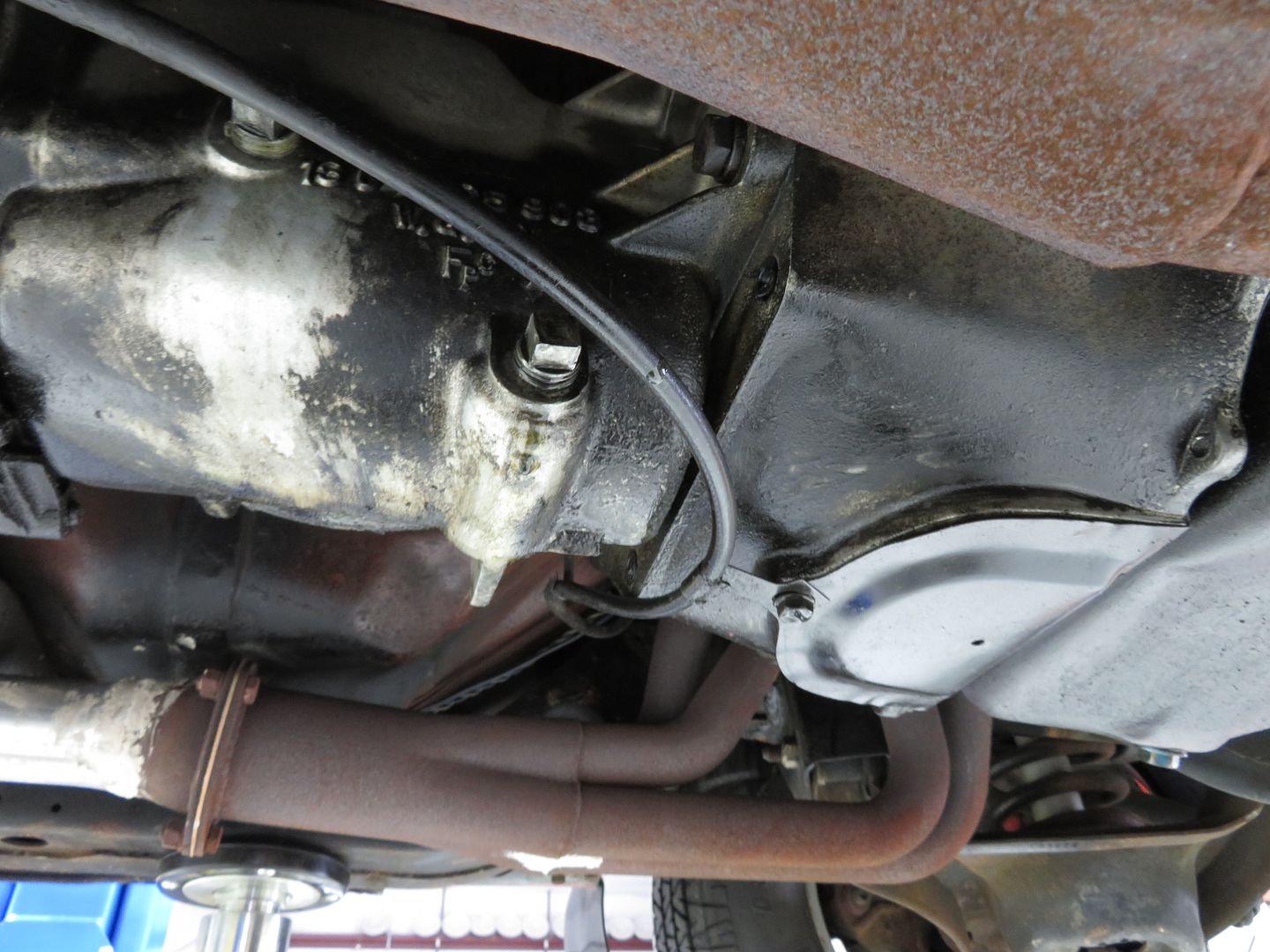

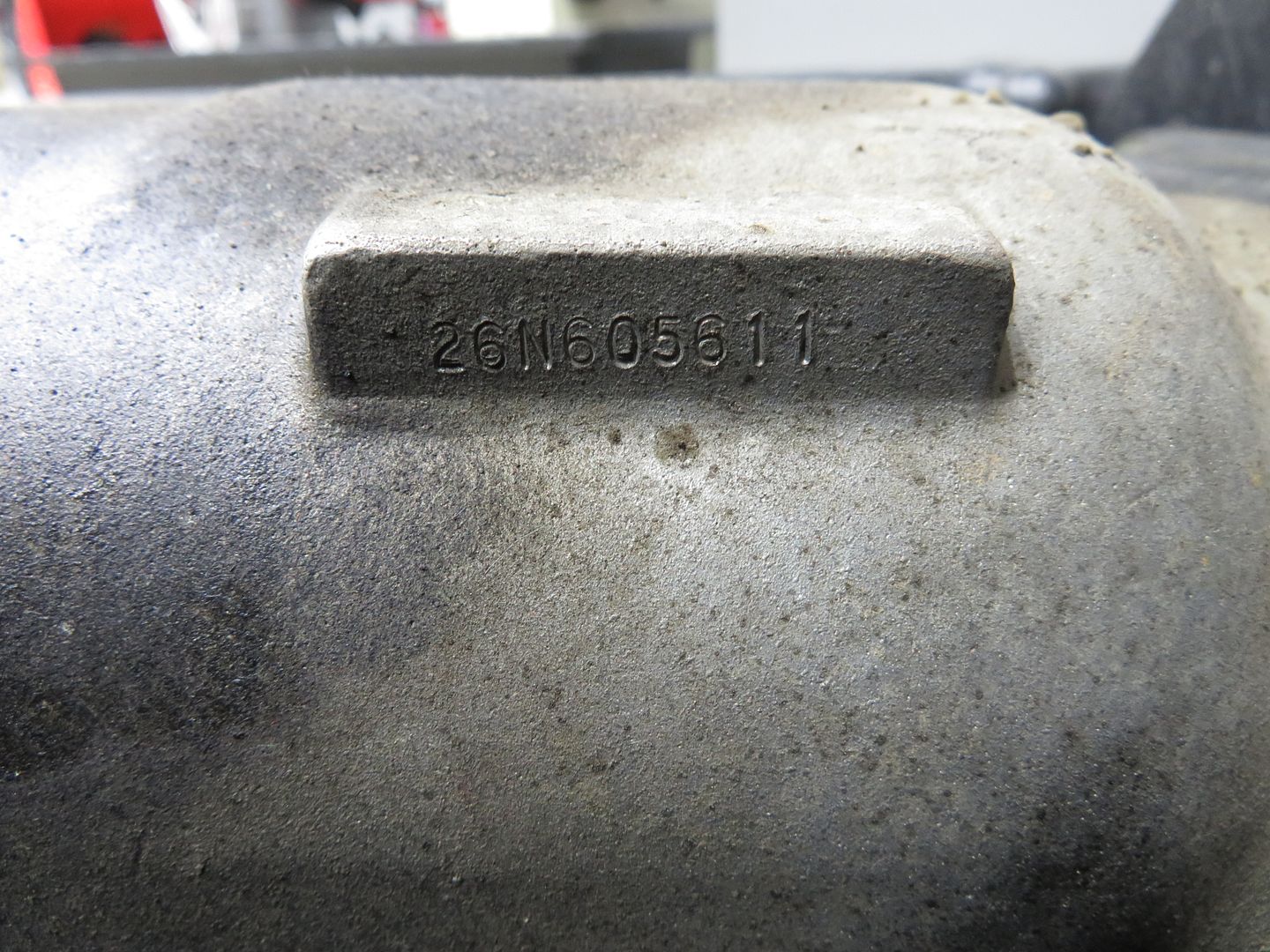

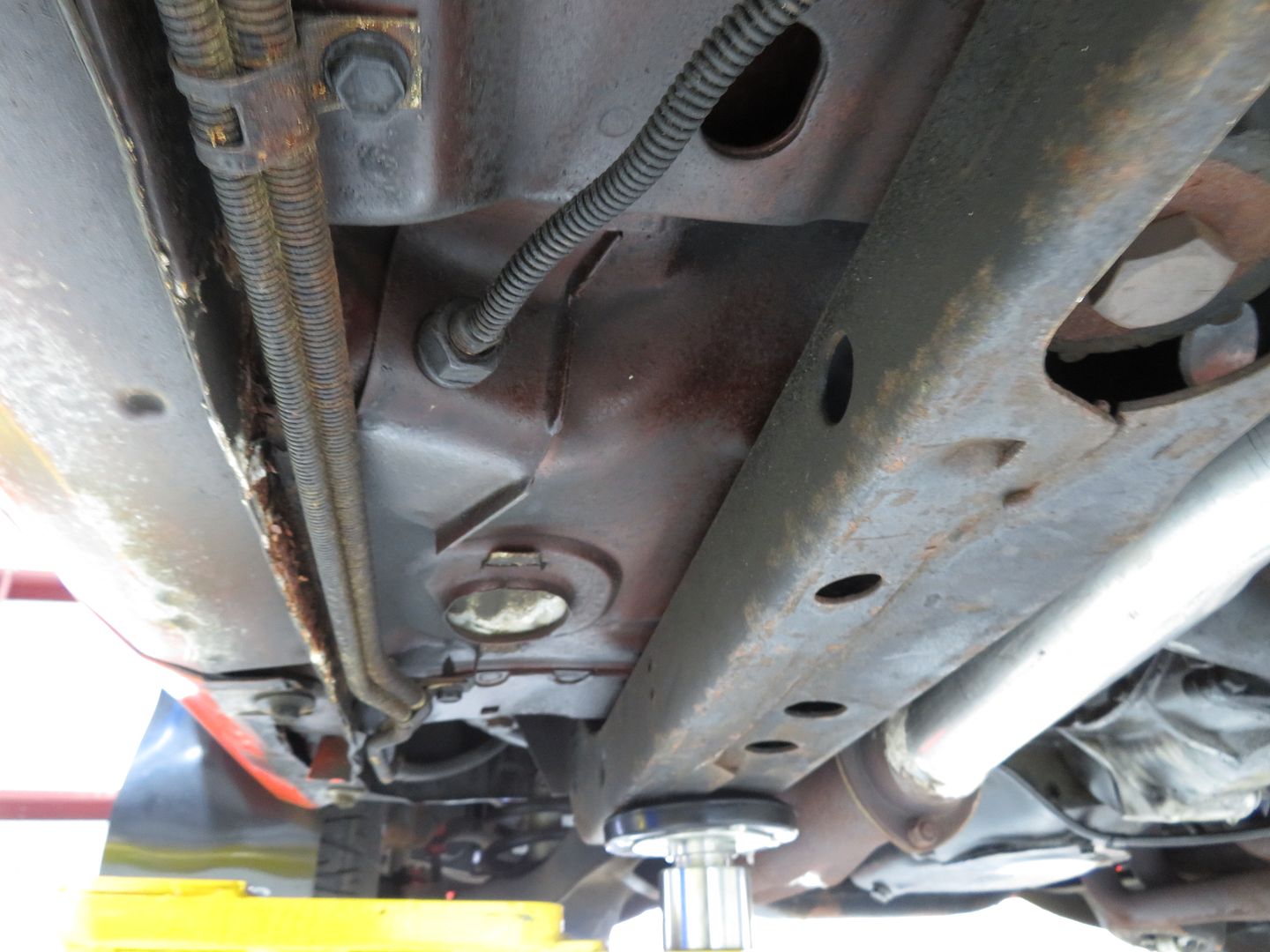

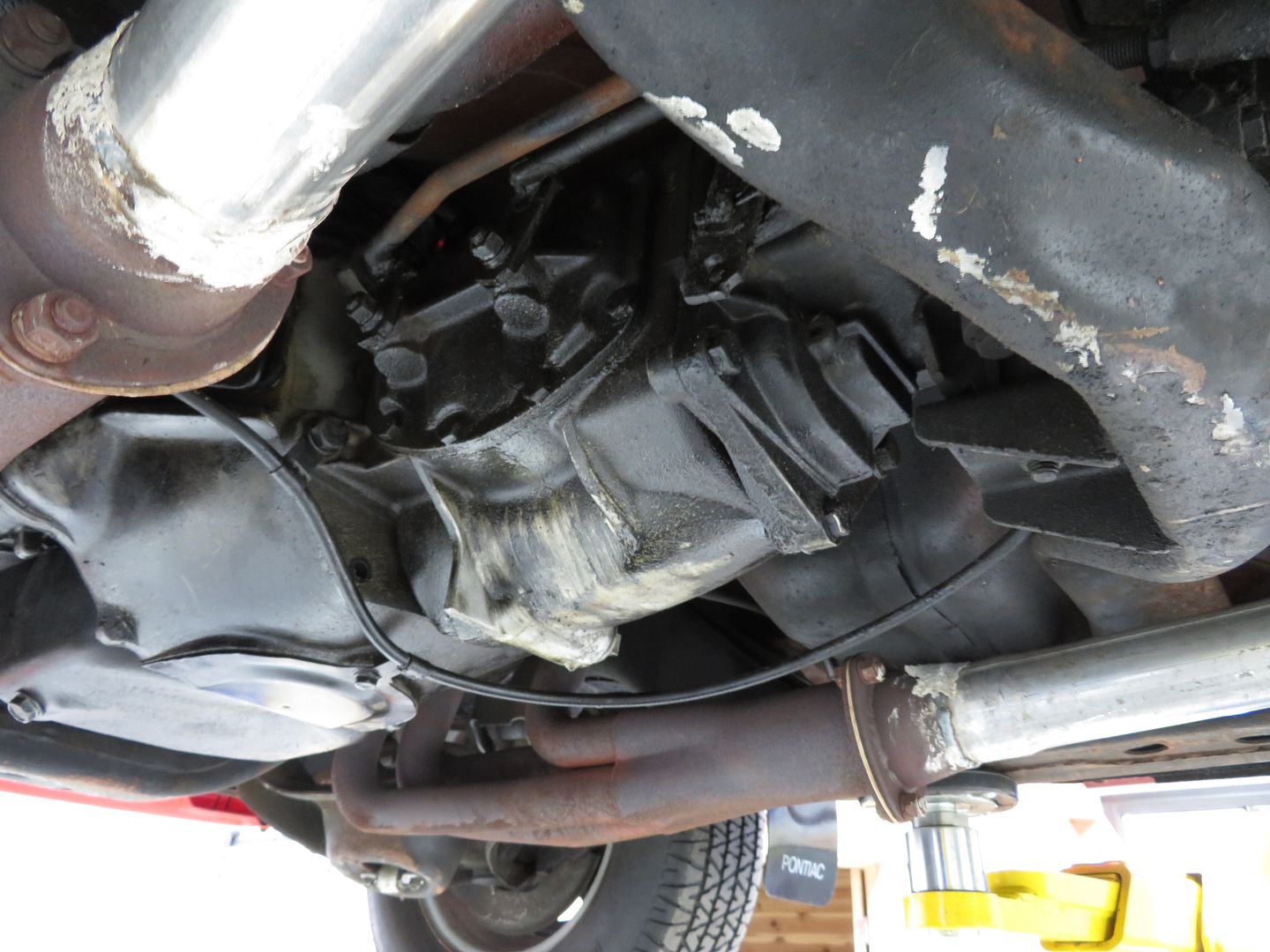

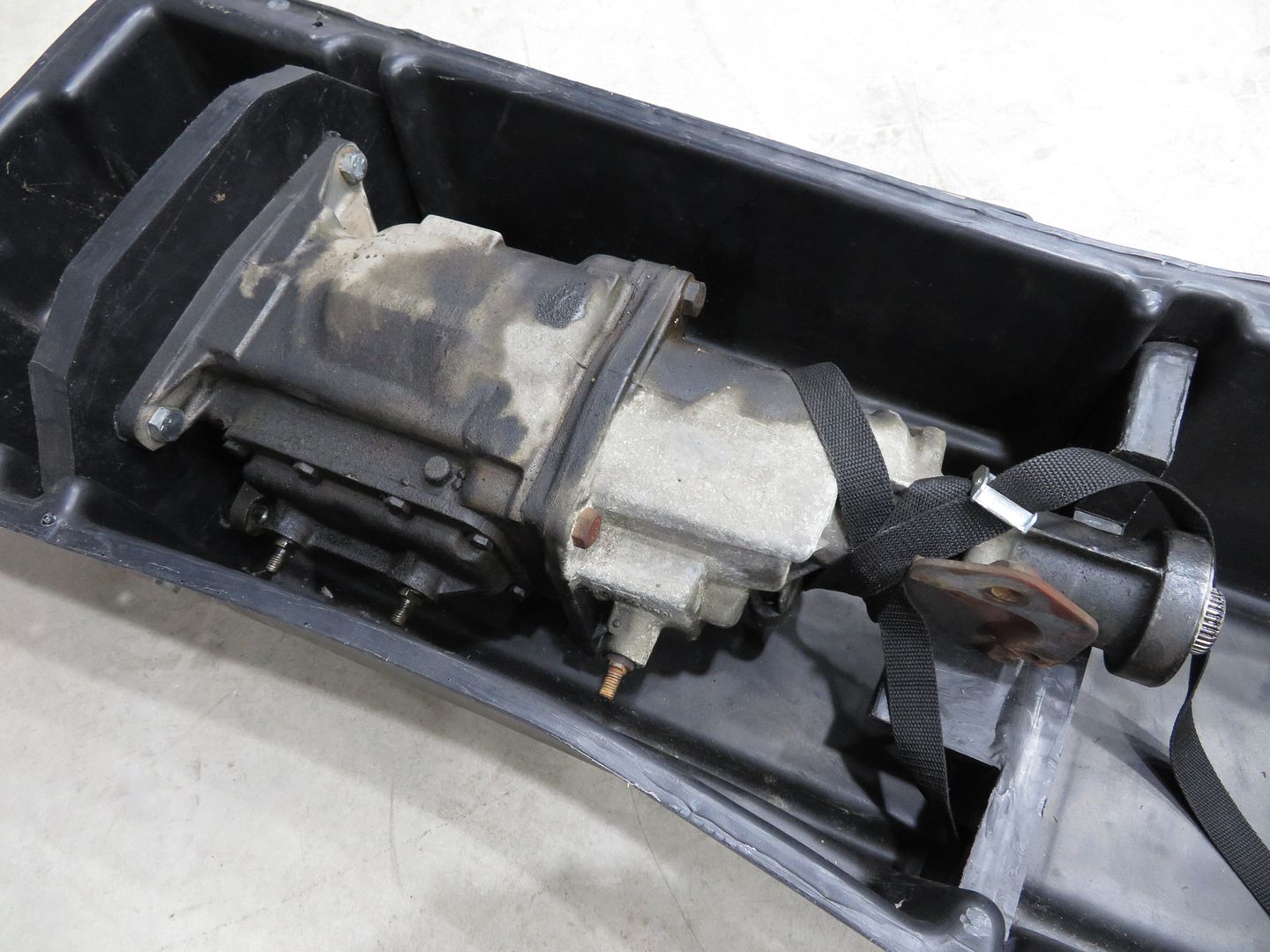

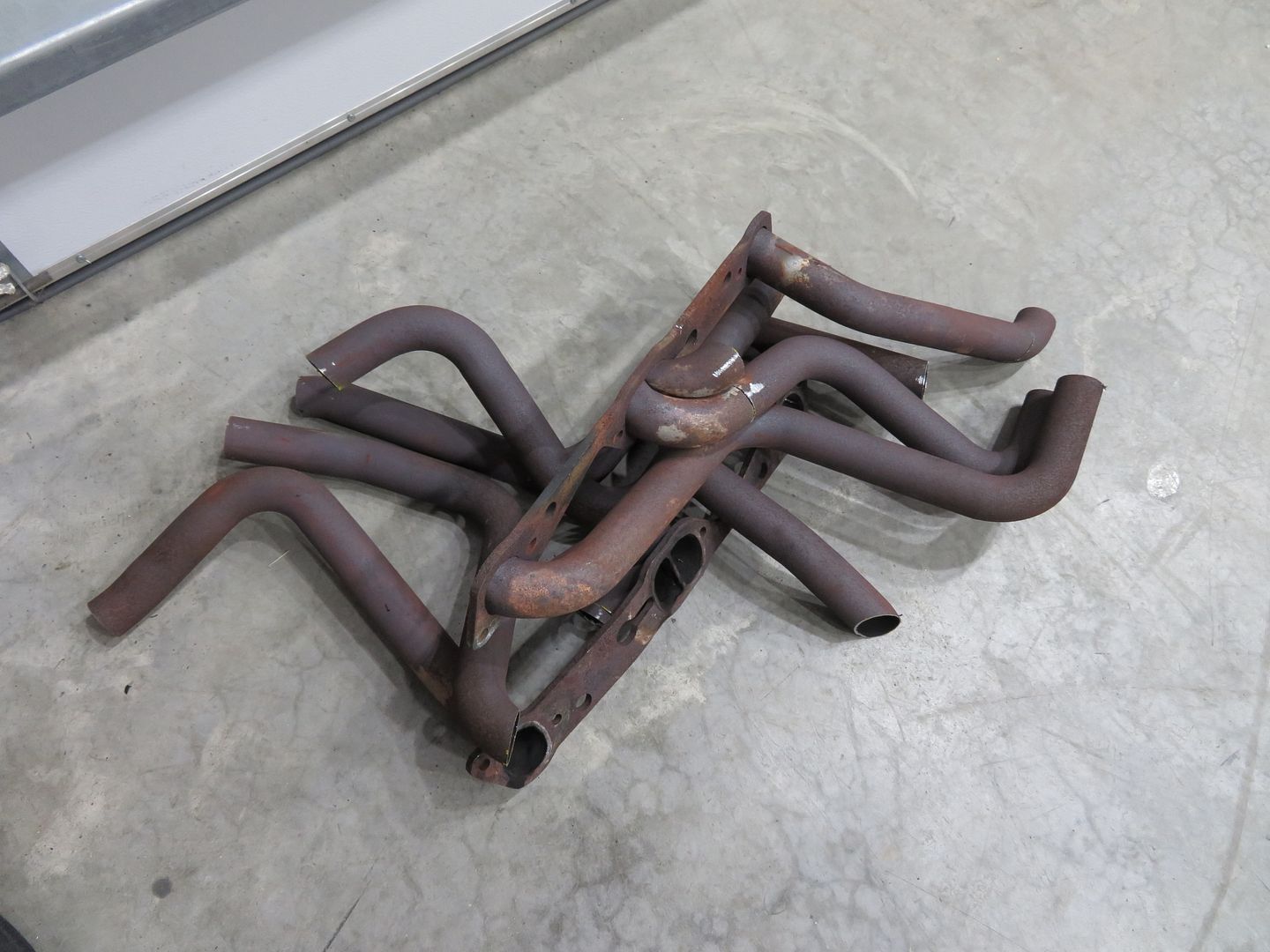

I elected to replace the headers (tons of leaks) with the original exhaust manifolds and put a stock system on it from a 74. Trans is out by Crash right now for some love! https://i1043.photobucket.com/albums...psolwxnwrz.jpg https://i1043.photobucket.com/albums...psokwkhgtk.jpg https://i1043.photobucket.com/albums...pskwceuxwy.jpg https://i1043.photobucket.com/albums...ps59qtijdv.jpg https://i1043.photobucket.com/albums...psdacwyc5x.jpg Worst set of headers to get at the bolts.............cut them out! https://i1043.photobucket.com/albums...psjt2metr1.jpg |
The clutch and flywheel came back. In all of that, I found the source of a vibration. The original flywheel was out a fair amount! Balanced that along with the clutch to the flywheel, and begin to reassemble.

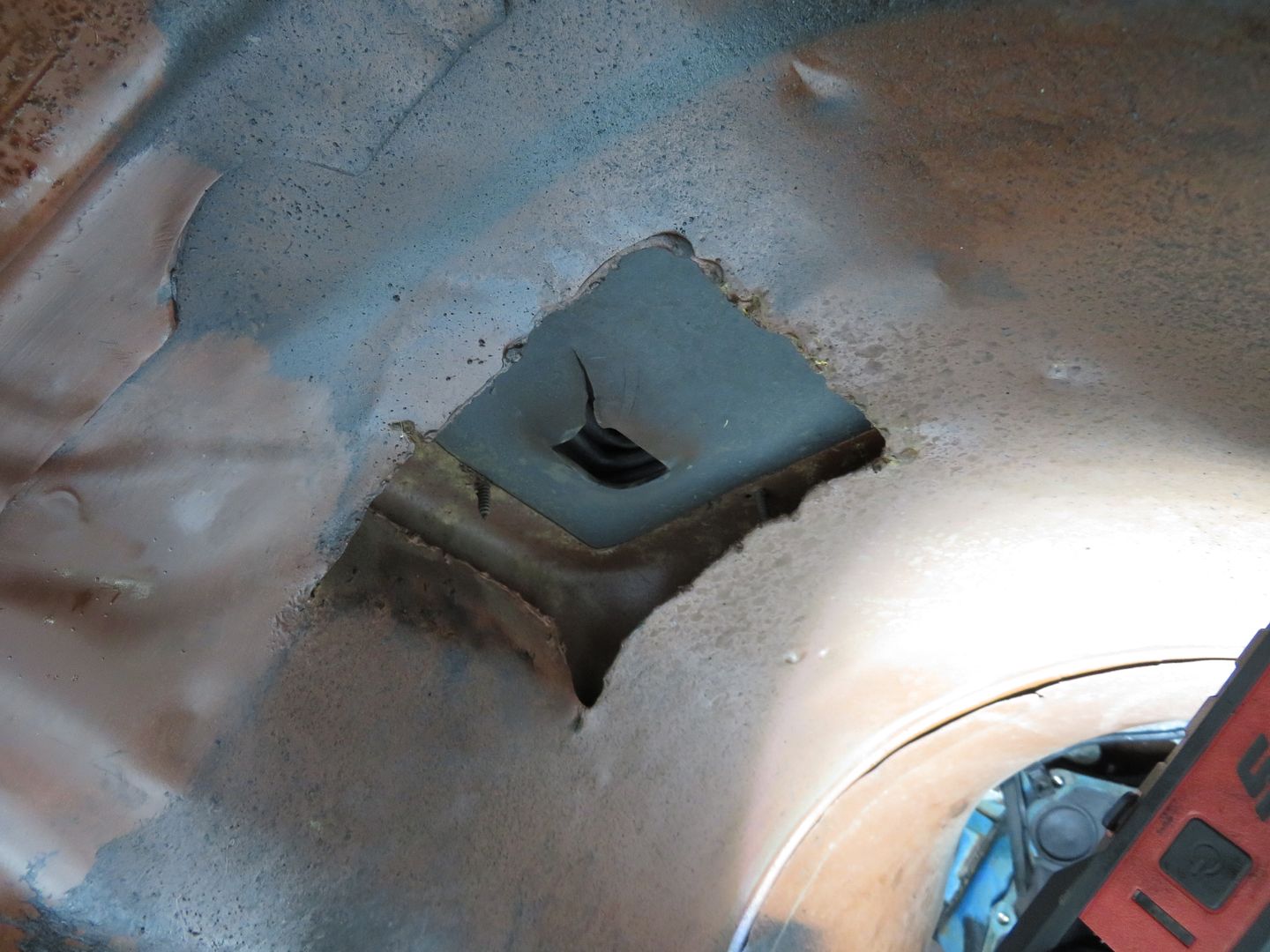

Along the same lines, it is remarkable how far out the original bellhousing was!. The initial measurements to check for being concentric had it off by .015! Got that straightened out........now it should go together like butter. https://i1043.photobucket.com/albums...psxrur1v7f.jpg Man, GM is crude............ https://i1043.photobucket.com/albums...psik8oyzjy.jpg |
If you haven't bought the exhaust manifolds yet, I would highly recommend getting a set of the repro ram air manifolds. They are very close to what those headers were in terms of flow and they don't leak like headers. It's what we did with the Gramma car.
http://forums.maxperformanceinc.com/...gramma&page=12 |
Quote:
|
Phase 1 of undercoating removal.....................
Results tomorrow. https://i1043.photobucket.com/albums...pspp6lrgwc.jpg |
Nice work so far! What did you end up spraying on there?
|
Quote:
|
|
Nice job!
|
Very impressive ! Some great info here ..thx guys
|
Looks great. Gojo? I would have never thought....
|
Quote:
|
That is amazing, nice work! I'll remember that!
|
..
|

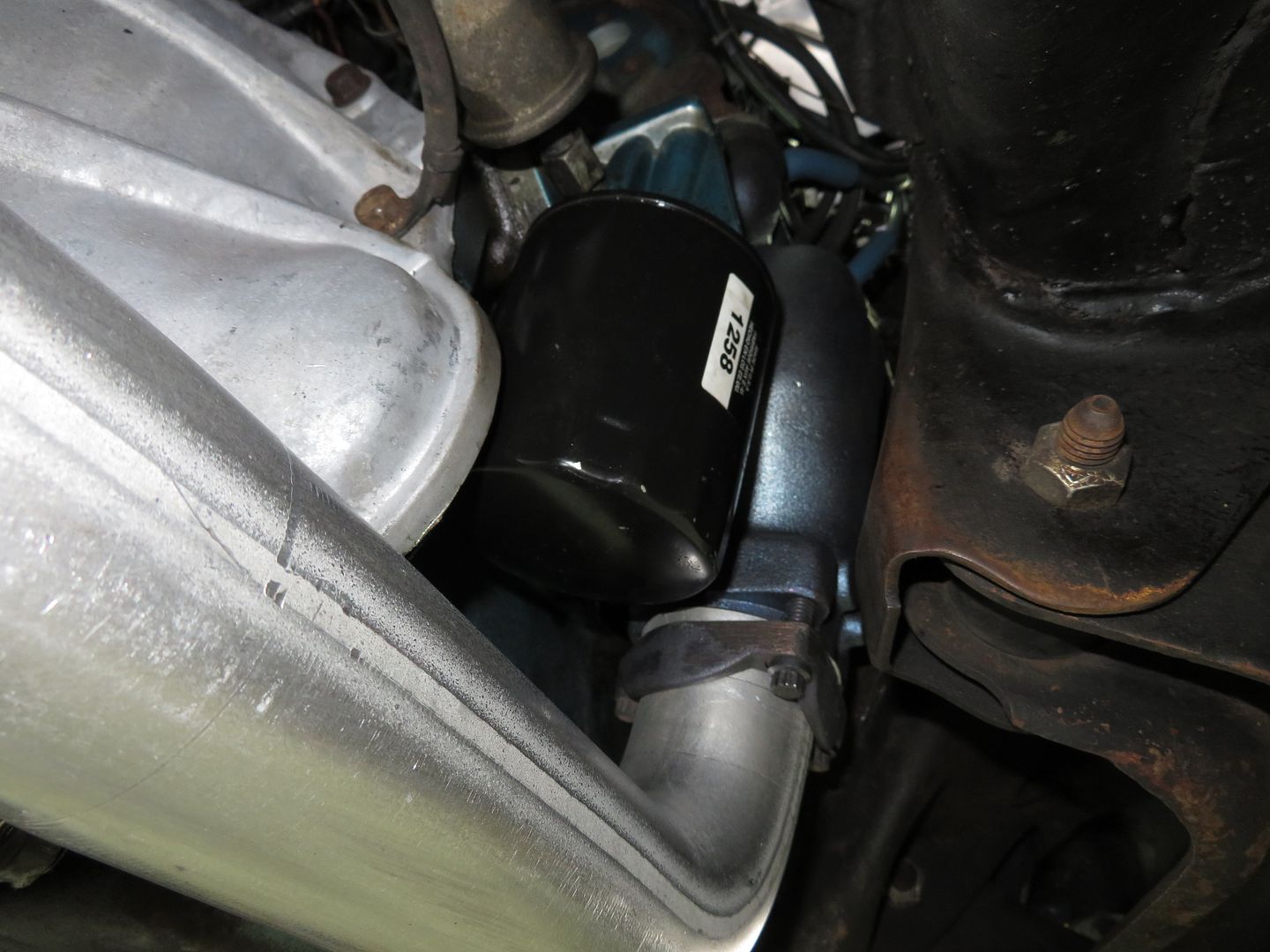

I got the trans back from Crash a couple of weeks ago, and all of the new exhaust parts came in. On the advice of NJSteve, I purchased the Pypes system along with the Ram Air Restoration manifolds. Just waiting for the exhaust tips and the car will be for the most part, finished.
https://i1043.photobucket.com/albums...psrekf8lsr.jpg https://i1043.photobucket.com/albums...pse5ukbpnb.jpg https://i1043.photobucket.com/albums...psbvqnuazu.jpg https://i1043.photobucket.com/albums...psuexiyzwh.jpg https://i1043.photobucket.com/albums...ps3t5zz2ub.jpg https://i1043.photobucket.com/albums...ps9b2pizjb.jpg |
----Wow! Love that underbody! With those exhaust manifolds and that exhaust set-up you should put "HO" on the shaker after the 455!!!
|
In my 1978 Dealer Album, it shows we’re any sound deadener would be used. Heck a 1976 one
|
Double check your Ram Air PCs, they sent one side to me that was wrong, never made it rite, hung up the phone when we talked about it. GTO have a diff pattern on the ears. They sent me a GTO driver side manifold.
|
Quote:
|
Quote:
C'mon Tim - you're teasing us now - need some pictures and video..... |
|
Quote:
|
Quote:
|

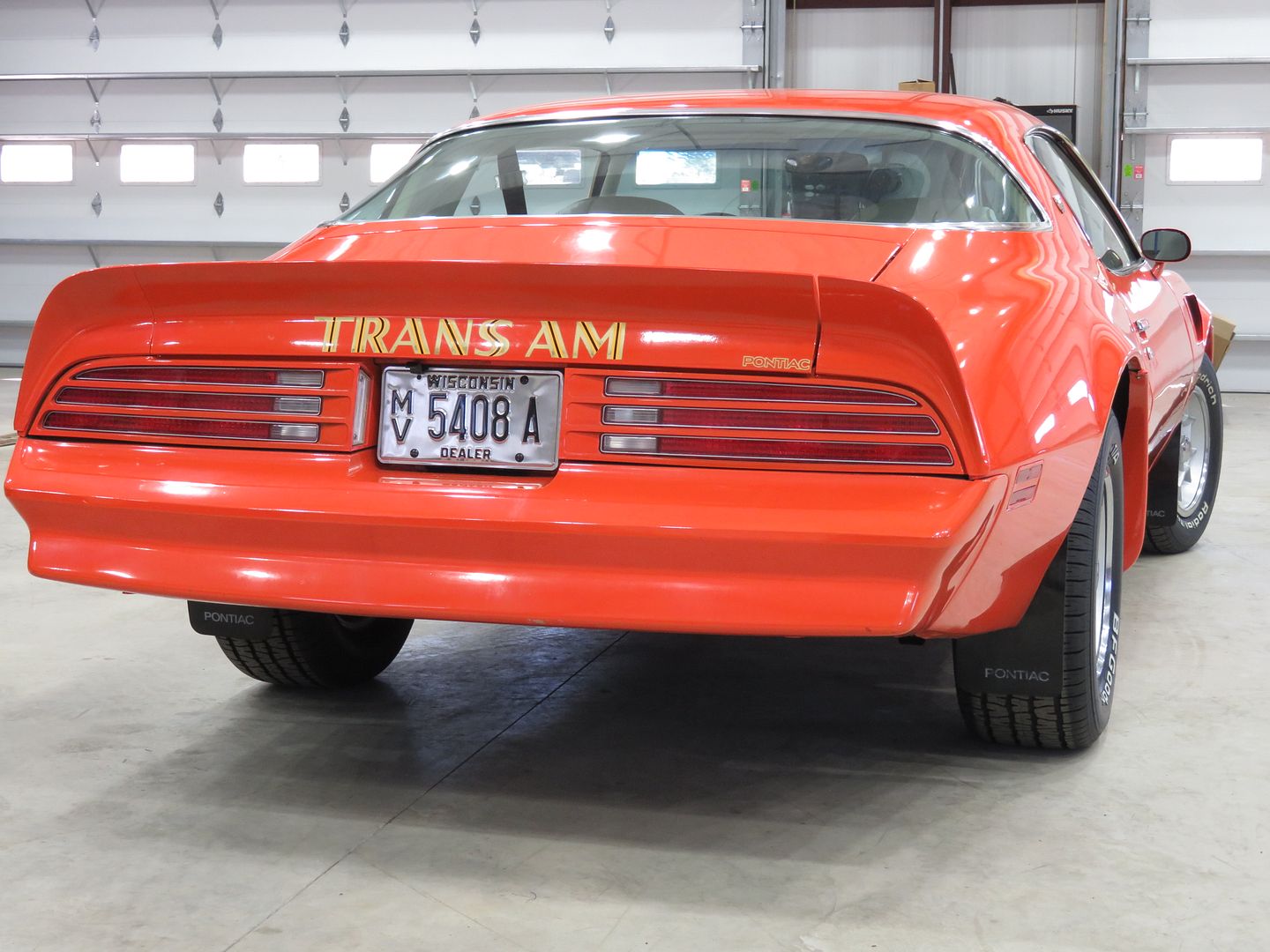

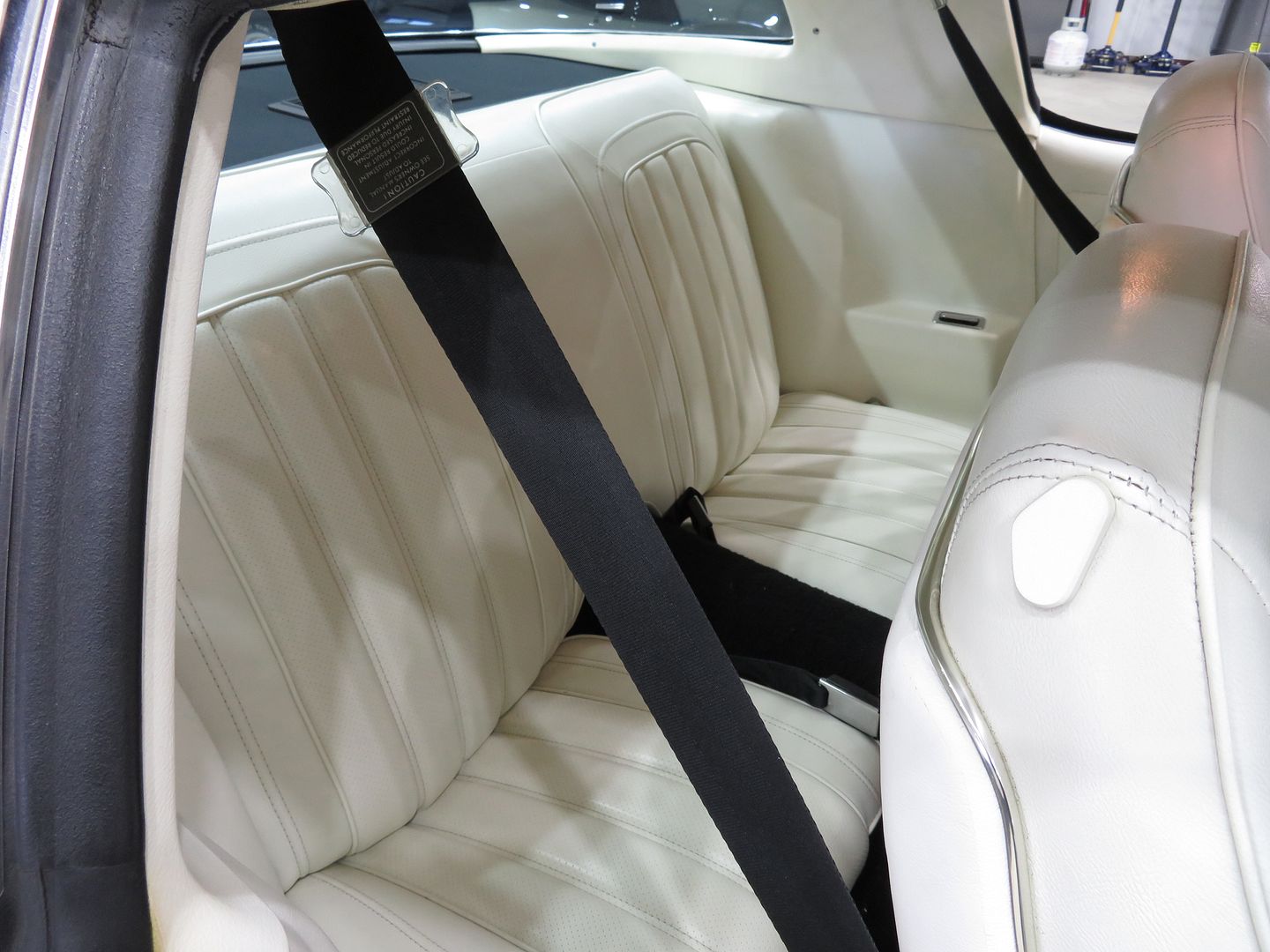

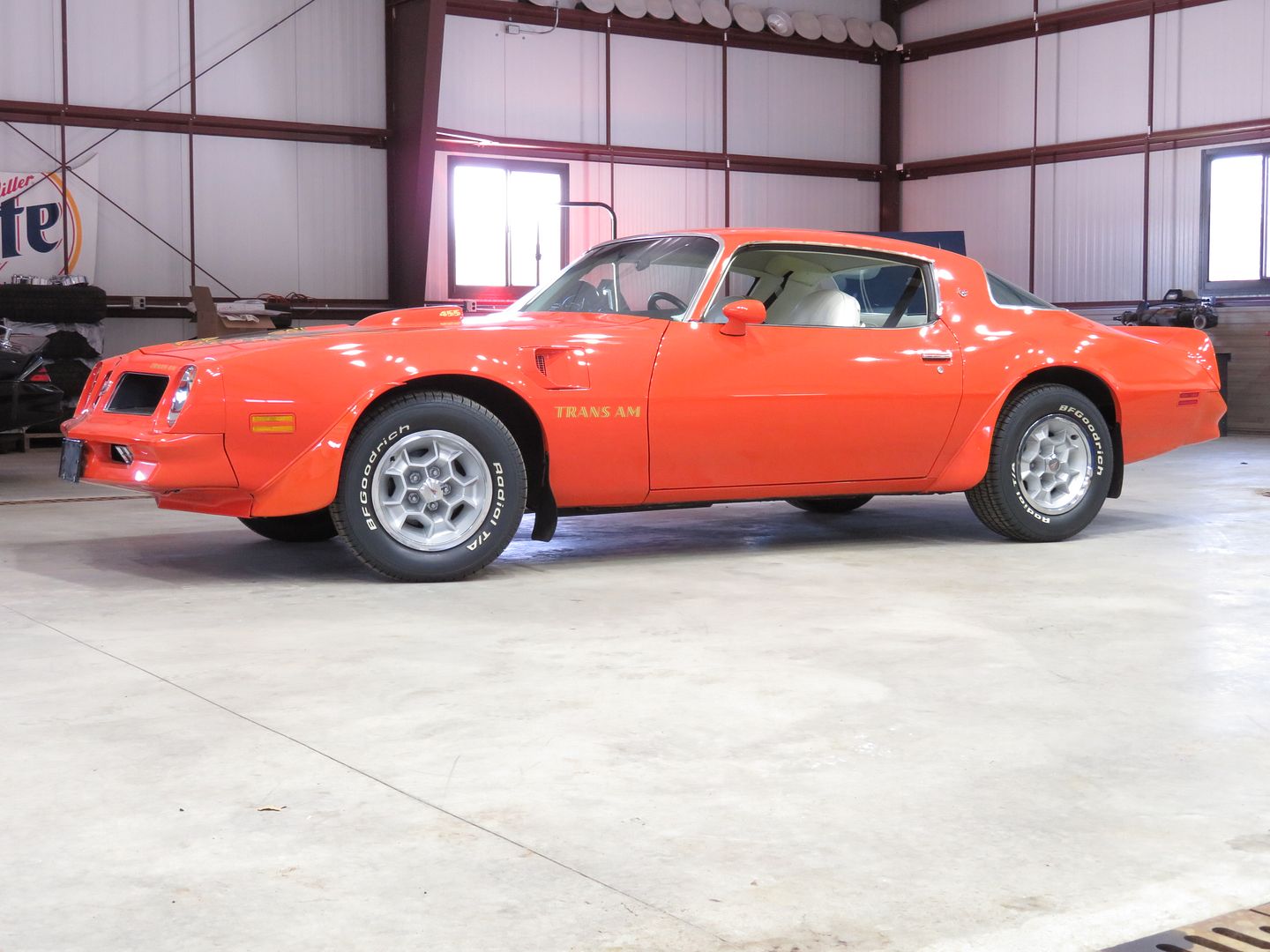

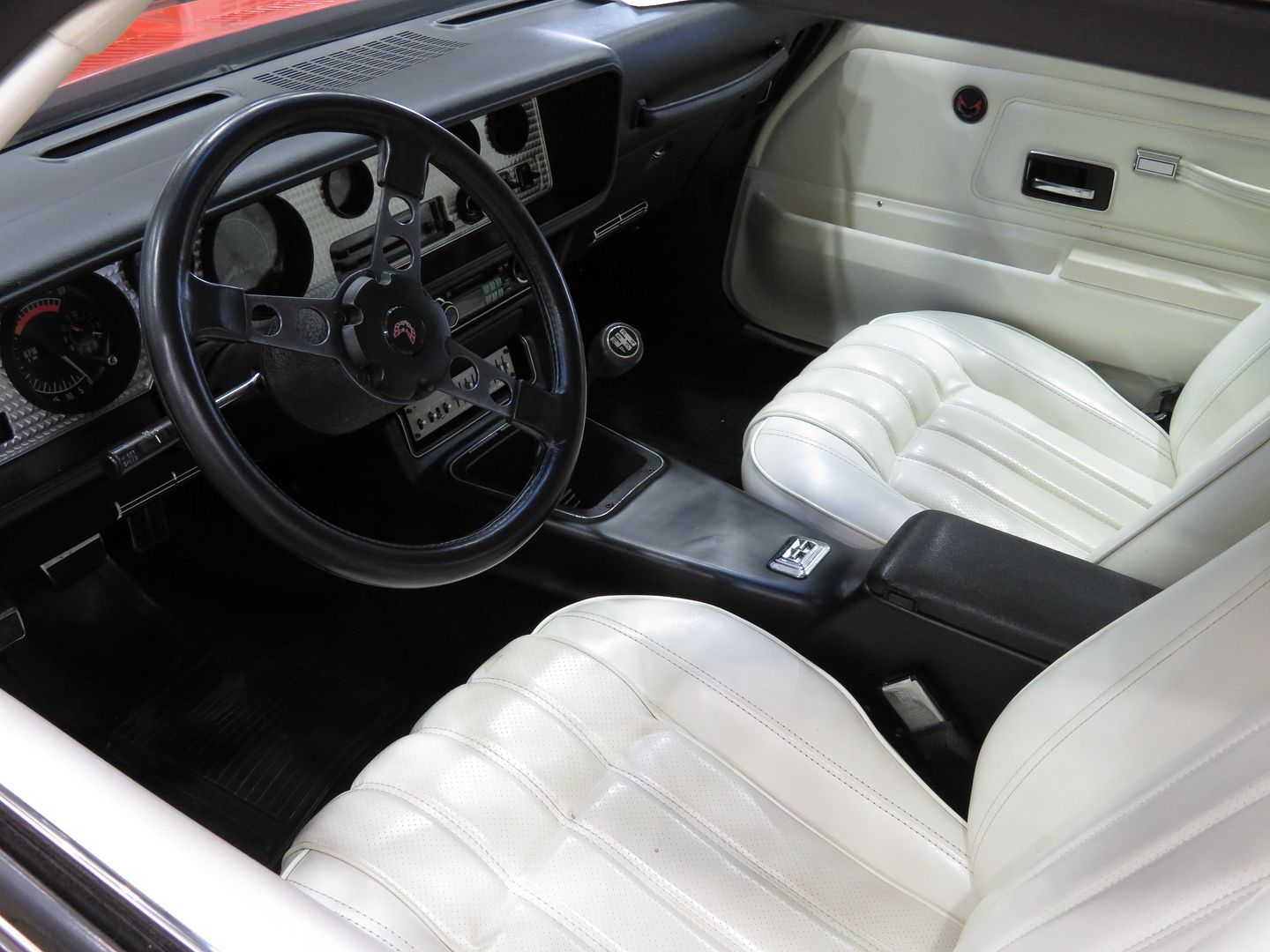

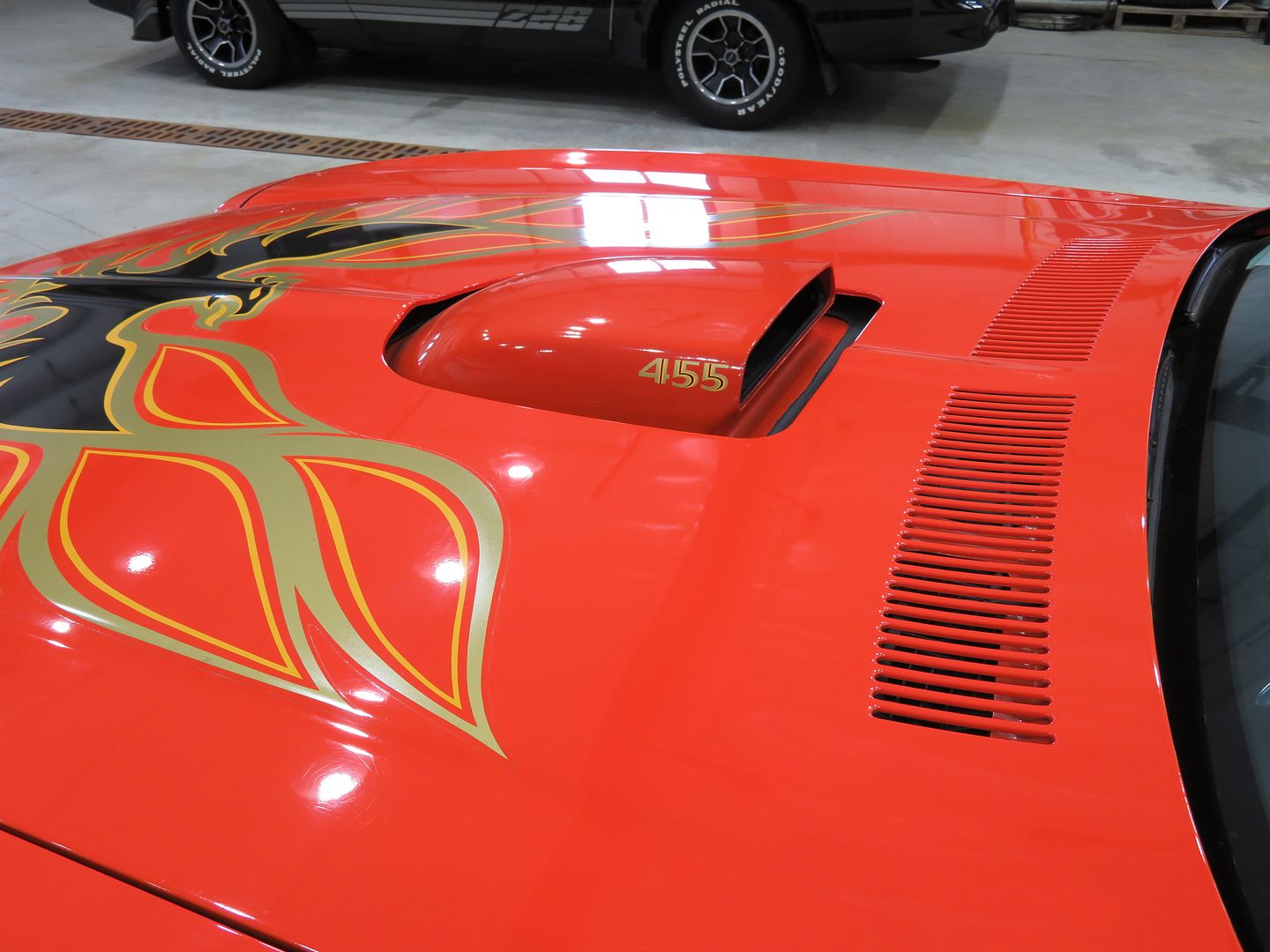

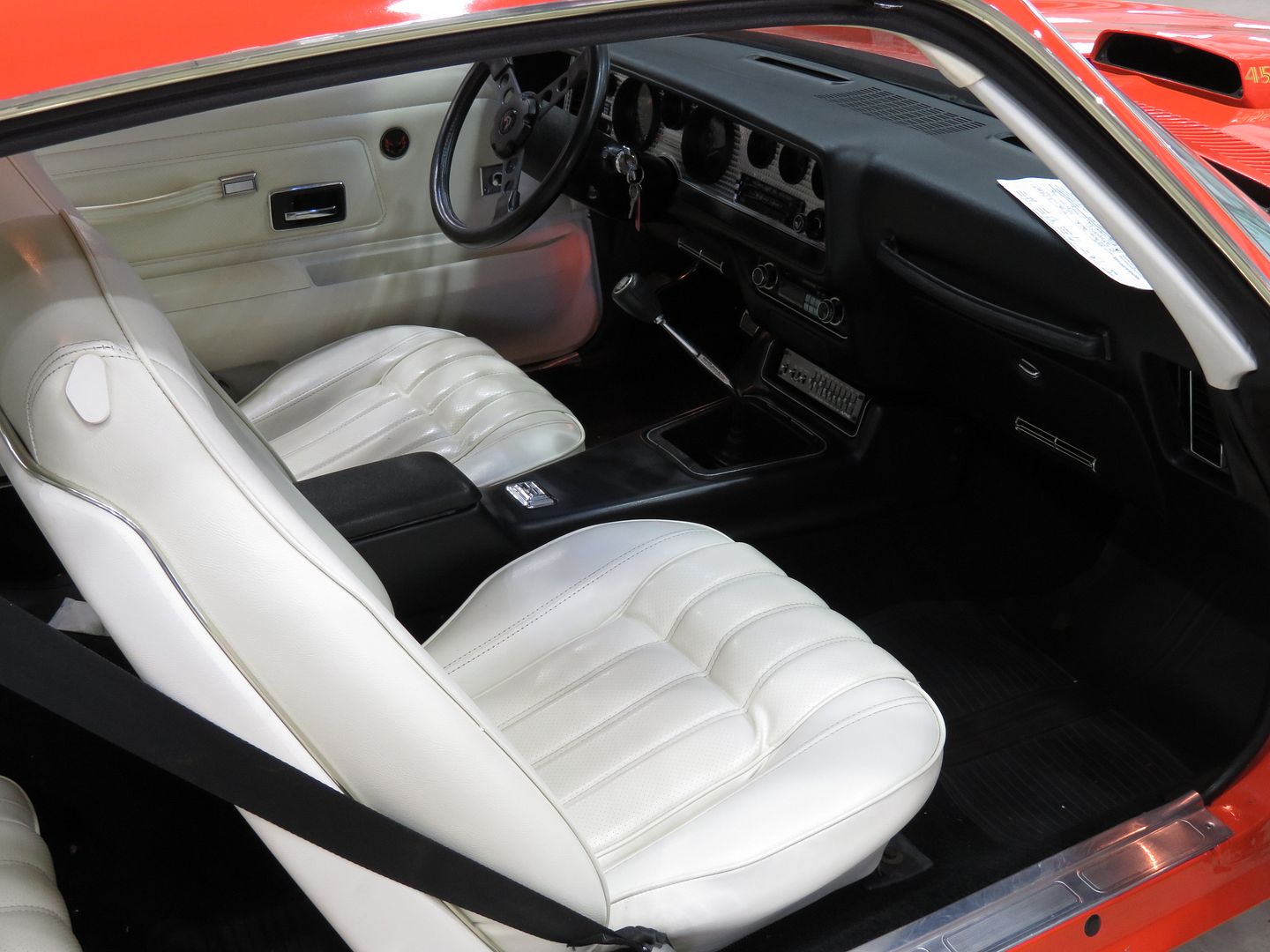

Some pics to hold you over Jake :) I'll get cooking on a vid
https://i1043.photobucket.com/albums...pswbgx1f6v.jpg https://i1043.photobucket.com/albums...psgwsbsows.jpg https://i1043.photobucket.com/albums...psumt2n8fc.jpg https://i1043.photobucket.com/albums...psmz8zylij.jpg https://i1043.photobucket.com/albums...psg7hfg75f.jpg https://i1043.photobucket.com/albums...psrhvf6y2q.jpg https://i1043.photobucket.com/albums...ps9b2pizjb.jpg https://i1043.photobucket.com/albums...psfd0afgnt.jpg |
My neighbor had the exact same color combo on a '76 Firebird. Trust me, the T/A package makes a world of difference on that vehicle.
|
