Proper rad for L-78 nova


I presently dont have the correct rad in my nova. I have been looking on the internet at a few different sites to find a proper looking repalcement. Classic industries has two listed, a 3 row, and a 4 row. My GM docs dont list anything about a HD rad being installed, so am I correct in thinking that a 3 row, was installed in my car originally?? Any links or part numbers would help me out, so that I can get the correct looking rad for my Nova. Thanks in advance.

Re: Proper rad for L-78 nova


If this is for a '69 M-21,pretty sure a 3 row is what yours originally came with.
<span style="font-style: italic">Harrison</span> part# 3017837,chevrolet suffix code ZD.The core holds 4.8 qts.&amp; measures out @ 16.97&quot; high X 23&quot; wide X 1.98&quot; deep.
Same one used in the '68-70 M/T 396 Nova &amp; '69 M/T SS camaro w/any 396cid.,but without A/C,or HD cooling.

Re: Proper rad for L-78 nova


All 69-70 L78 Novas came with a 3 core rad, regardless if Auto or 4spd, there may be a couple of assembly line freaks out there with a curve neck or 4 core. I've never seen one

Re: Proper rad for L-78 nova


There are a few choices in the aftermarket for replacement radiators...prices vary with quality for sure.

Original units are hard to come by and command a premium if the seller knows what they have. If you go the OEM route you should know there is a date code on the pass. side tank that indicates the month of production. A real factory radiator is hard to find...the proper date for your car, even harder! Most survivor radiators have been re-cored at some time and may actually be a 4 core now...the tanks are where the money is and it is a bonus if the original ZD tag and top rail are in place.

Hope this helps..wilma

Re: Proper rad for L-78 nova

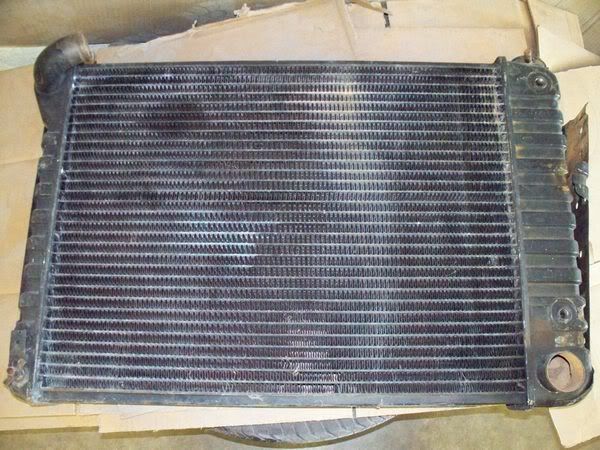

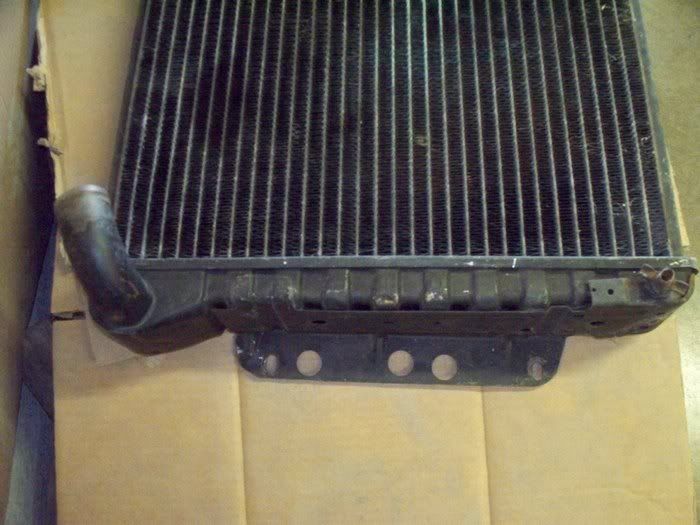

here is a pic of my assembly line &quot;freak&quot;, a late 69 production turbo 400 L-78 nova, born with curved neck radhttp://i617.photobucket.com/albums/t..._radiator1.jpghttp://i617.photobucket.com/albums/t..._radiator2.jpghttp://i617.photobucket.com/albums/t..._radiator3.jpghttp://i617.photobucket.com/albums/t..._radiator4.jpg

Re: Proper rad for L-78 nova


Wilma

As you say, prices vary with quality. If you where going to purchase an aftermarket radiator, what would you buy, so that it had the correct look and proper fit?? And well I got you here, how about the proper bolts for the radiator support bracket?? Is there some where to get the correct bolts for this? I realize they are 2 different bolts with 2 different part #. I have put the part # in e-bay, and found them, but they want to sell you a hand full, and I only need 1 of each. Your help is always appreciated. And thanks to the replys on this subject. I will be ordering one once I have these questioned answered. Thanks again

Re: Proper rad for L-78 nova


http://www.usradiator.com/chevrolet-...-radiator.html

http://www.camaros.com/

I have purchased several units from US Radiator and they are first quality...made in USA. They have several options..all good values. Camaro Specialties offers the show quality &quot;Harrison&quot; imprint replacement...it is pricey, and I'm not sure if it is an exact duplicate...never did a comparison..perhaps others have. There are other low-grade replacement units available..but, I've never considered them an option. As for the hardware...I would check with Wayne Bushey at NNN...he can probably help you. www.nnnova.com 717-252-4192


wilma

FYI: I just saw an original ZD tag unit sell on Team Camaro for $500..that's a steal...it is worth twice that in my book...so, there are values out there.

Re: Proper rad for L-78 nova


Thats a bummer about the one on team camaro, I would of last looked on sunday, then traveled to camp on monday, and been real busy since!!

I see they have 3 different options to choose from. Please tell me which one you have purchased. All your hardware, fanshroud, etc just went right together with no problems? Thanks again for your time Wilma. You have been alot of help with this post, and with my Nova.

Re: Proper rad for L-78 nova


I'm pretty sure I got the High Efficiency unit....but, I think it came in a 4 core style. The 1st gen Camaro is the same as Nova...they list a 4 core for Camaro...give them a call and discuss the details. As for the shroud and other items you will need...Wayne at NNN has all that stuff and it works fine with these radiators.

Hope this helps.

Re: Proper rad for L-78 nova


I have everything else, fan shroud clips, shroud, etc for the BB set up, the rad and the 2 bolts are the last things for the proper details under the hood. I will call them tomorrow, and see what they have to say. I have a friend going to barrett jackson, maybe he can bring it back with him. If not I will get it shipped to Arizona, and my aunt can bring it back to canada when it warms up enough for her. Have yourself a good evening [img]<<GRAEMLIN_URL>>/3gears.gif[/img]
