1969 Camaro Power Brake Booster....

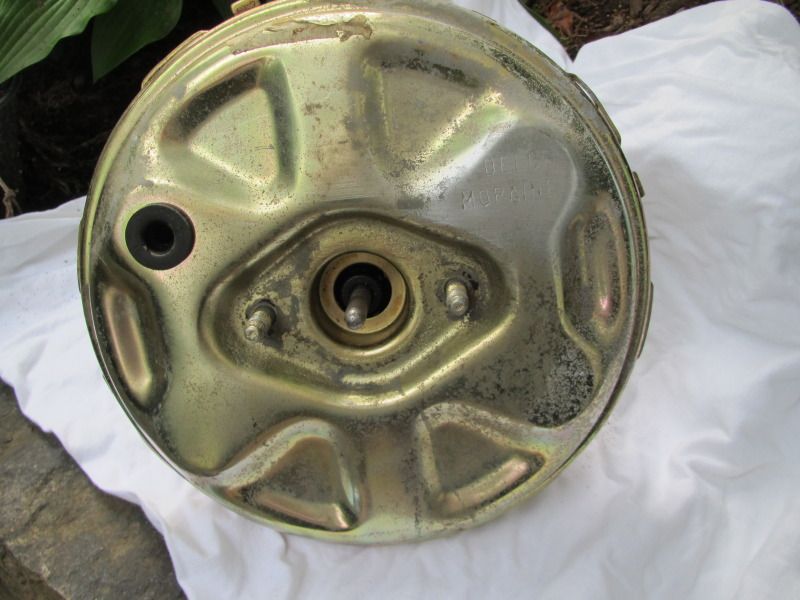

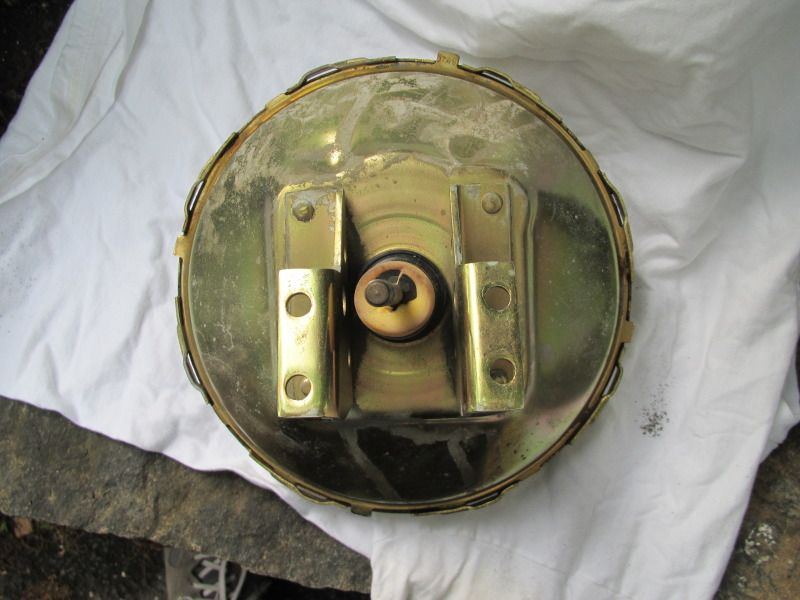

Can you guys tell me if this is an original booster or a reproduction.

Thanks,
Dave

http://img.photobucket.com/albums/v4...6/IMG_2276.jpg

http://img.photobucket.com/albums/v4...6/IMG_2277.jpg

http://img.photobucket.com/albums/v4...6/IMG_2278.jpg

Re: 1969 Camaro Power Brake Booster....


0749 is not a 69 camaro for sure!

not sure what it is and if it was a 69 camaro the Delco stamp should be on the other side upside down.

Re: 1969 Camaro Power Brake Booster....


Looks like a OE unit to me. Not all were stamped 180* and upside down. Some were not stamped all. EZ to spot a Chi-Neez one. half the cars restored now have the El cheepo ones installed.
Easiest way to tell is to compare the "Triangle shaped stamped in stiffeners. The repops are very sharp at the bottom with a distinct hard line, the OE ones have a nice smooth radius.
Next time you watching a auction on TV zero in on the under hood shots, you'll be amazed. [img]<<GRAEMLIN_URL>>/shocked.gif[/img]

http://i.ebayimg.com/00/s/MTYwMFgxNj...nPg~~60_58.JPG

Re: 1969 Camaro Power Brake Booster....


Mike, you are a smart cookie! Amazing how much the Chi-Neez restored cars go for in some of these auctions.

Re: 1969 Camaro Power Brake Booster....


I've also noticed that the &quot;DELCO MORAINE&quot; is very crisp on repos and somewhat less distinct on OE. I too have seen upright/right side &quot;D..M..&quot; stamps on correct OE boosters.

I guess you are right Sammy, Mikey is a &quot;smart cookie&quot; [img]<<GRAEMLIN_URL>>/biggthumpup.gif[/img]

Re: 1969 Camaro Power Brake Booster....


Check out the &quot;O&quot; in Delco. Repops have a rounder O.

Re: 1969 Camaro Power Brake Booster....


That's true,among other subtleties.
Vintage used an 0.
Todays Repro uses an O.

Re: 1969 Camaro Power Brake Booster....


Here is my original booster which has never been off the car and faded to a silver color.

Re: 1969 Camaro Power Brake Booster....


what is an 0749 booster......am i confused?? Thats not the date, correct??

Re: 1969 Camaro Power Brake Booster....


Eddie - seems like its a 1967/1968 booster for a power assisted drum brake car? Was there even such thing?

Dan

http://www.firstgencamaro.com/suspension.html
