Buildsheets


I just completed a buildsheet book for 1973-82 Corvettes and was asked the question about musclecar plants that may have used a similar General Motors Assembly Division manifest...or buildsheet.

I know Chevelles plants in their transition from Chevrolet Motor Division management to GMAD management between 1965 and early 1970s began to use the GMAD manifest but curious about other GM car lines during that period that may have also used this buildsheet format.

The format would have been landscape versus either portrait or the envelope size buildsheet I believe I have seen by the Nova group.

Re: Buildsheets


There are recent post, today in this forum on Eaton fan clutches that show other GM build sheet formats.

Question I posed was if those formats were the same as Corvette, can you post the 73 format and do you have formats from earlier years?

Re: Buildsheets


I'm not quite sure I understand what you are looking for - Ditto on posting a sample of what you are after.

I've been with GM in engineering/assembly/new product launch for 34 years so I have a pretty good selection. There is also quite a bit of knowledge surrounding vintage build sheets/manifests useds by Pontiac Motor Division, starting in about 1961 on.

Here's a sample of a Pontiac Michigan built car, in 1965:

http://i23.photobucket.com/albums/b3...uildsheet2.jpg



K

Re: Buildsheets

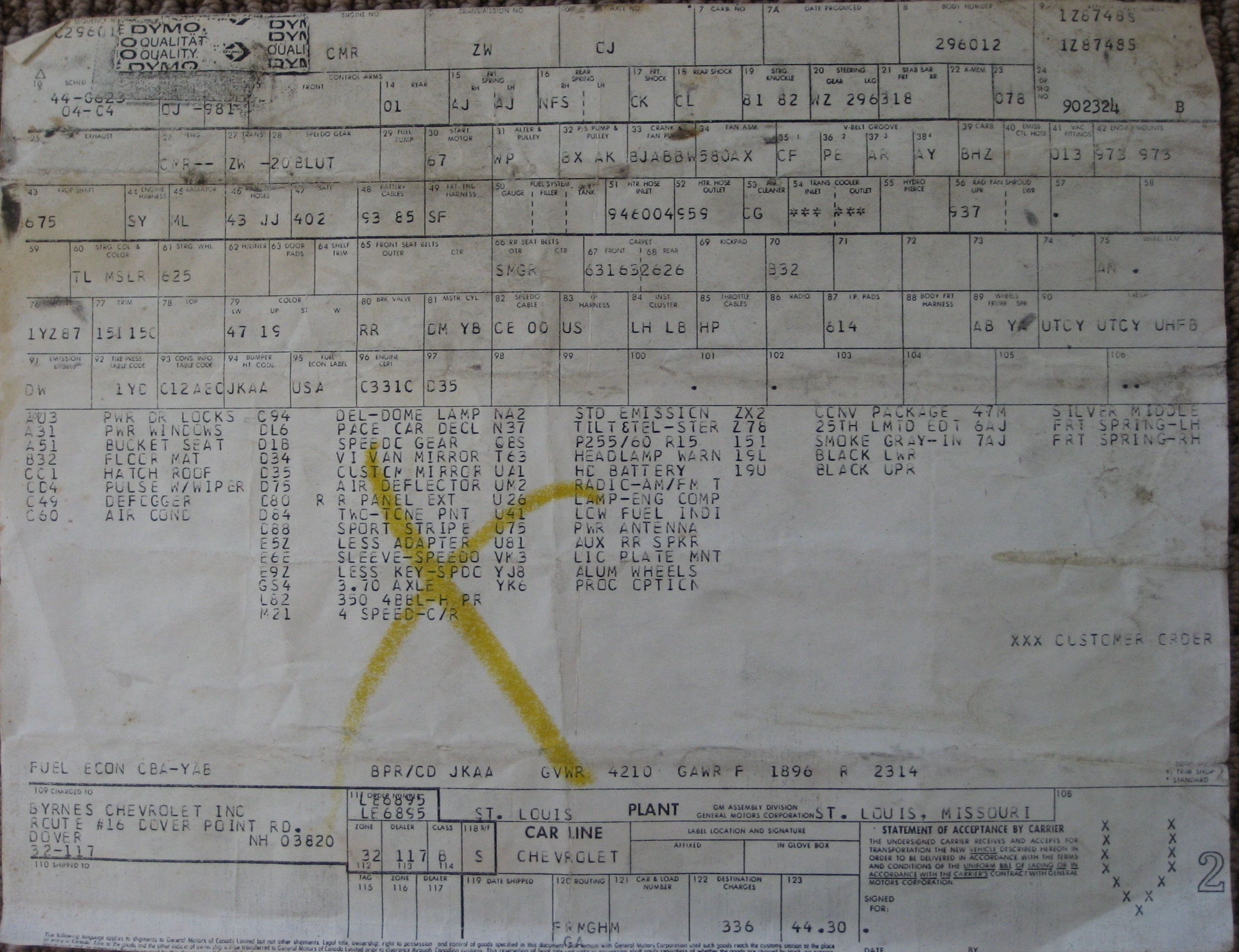

The manifest below is what I am referring to as the GMAD landscape style buildsheet introduced in 1973 at the St Louis assembly plant. These were glued to Corvette gas tanks during chassis buildup.

http://www.hunt4cleanair.net/Images/VIN_2324.jpg

Re: Buildsheets


like this https://www.yenko.net/ubbthreads/pics...6-imgp2540.jpg

Re: Buildsheets


Yep! Looks like the 69 M22 COPO Chevelle

Re: Buildsheets


The most documented COPO........

Albert even has the checksheet used on the assembly line as they checked for leaks.

Ryan

Re: Buildsheets


Help me out here...what on the buildsheet tells us its a COPO? I see Albert lists 9566AA.

Re: Buildsheets


Engine Code Rear end Code are unique to COPO's.

Re: Buildsheets


Not to steal the thread. I have a broadcast sheet on my 69 COPO camaro. The only place on the sheet that shows anything, is in the bottom left of the sheet. By itself, is 9651BA. And my car is a automatic car.BBBenny
