Bad Factory Welds

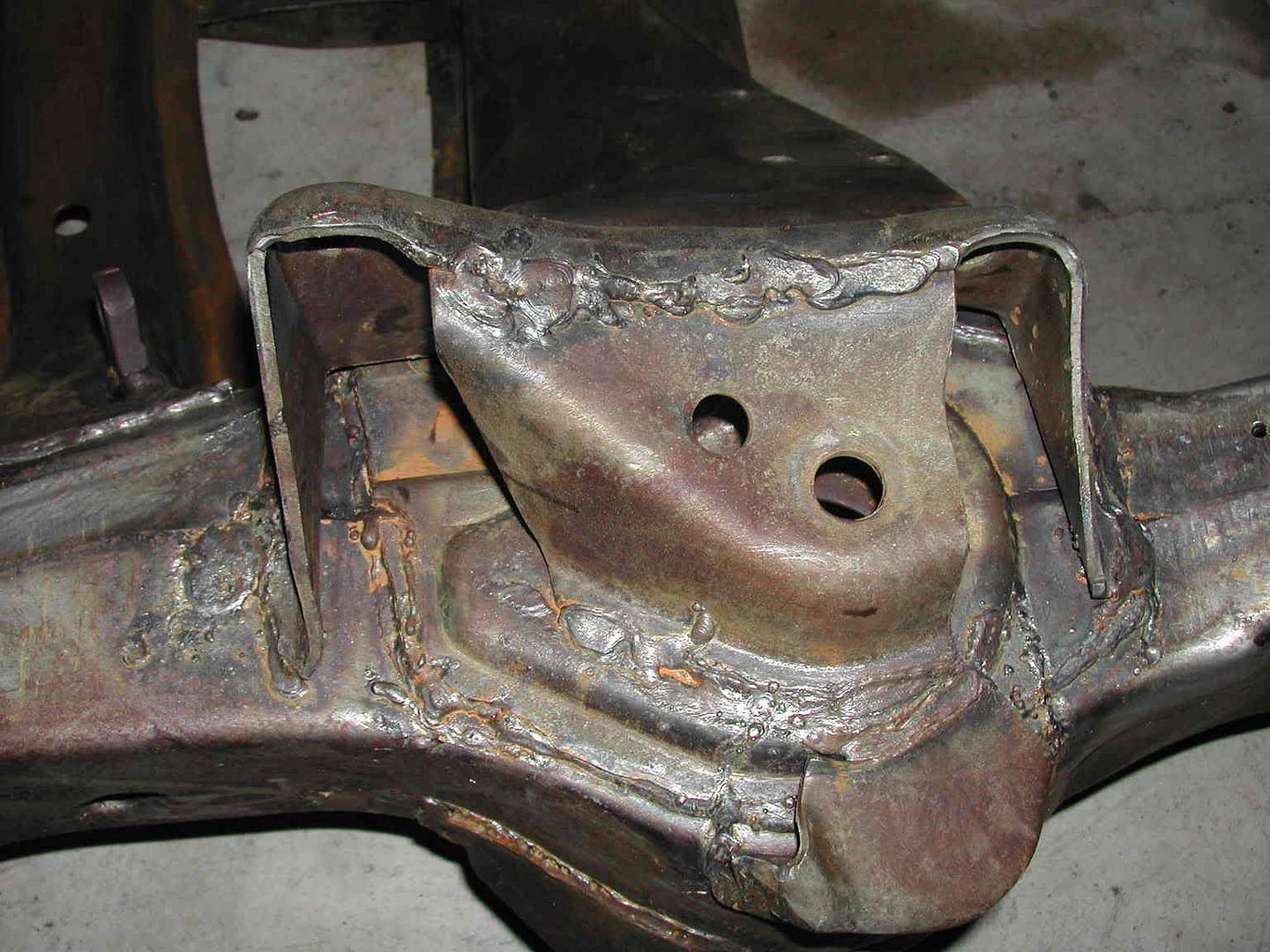

After waterblasting my 69 Camaro front subframe, I noticed how bad the welds were with lots of spatter. I think the welder must have been new or mad that day. Does anyone else have welds that look this bad? Is this typical? Check it out.
http://i3.photobucket.com/albums/y86...6/DSCN0070.jpg http://i3.photobucket.com/albums/y86...6/DSCN0067.jpg Paul 69 Camaro SS L78, M21, 4.10's |
Re: Bad Factory Welds
Factory welds are always pretty bad on subframes... I have yet to see one that didn't look like it was welded left handed with a coat hanger while the guy was blindfolded... The held together for 35 years though, so looks aren't everything! When you get some fresh pain on there it will look alot better!
|
Re: Bad Factory Welds
1 Attachment(s)
Like camarojoe says, all subframes have poor looking welds as far as asthetics go. Take a little time with an angle grinder and a box of Roloc discs and clean up all of the welds and remove all of the slag, expecially around the crossmembers and along the outsides of the frame. This will make for a much nicer looking subframe once painted or powdercoated.......RatPack...........
|
Re: Bad Factory Welds
Hey Hot Rod, What do you want for $3.00 an hour? https://www.yenko.net/ubbthreads/imag...mlins/haha.gif https://www.yenko.net/ubbthreads/imag...mlins/haha.gif Do what Rat Pack tells ya. Will look good! https://www.yenko.net/ubbthreads/imag...mlins/wink.gif
|
Re: Bad Factory Welds

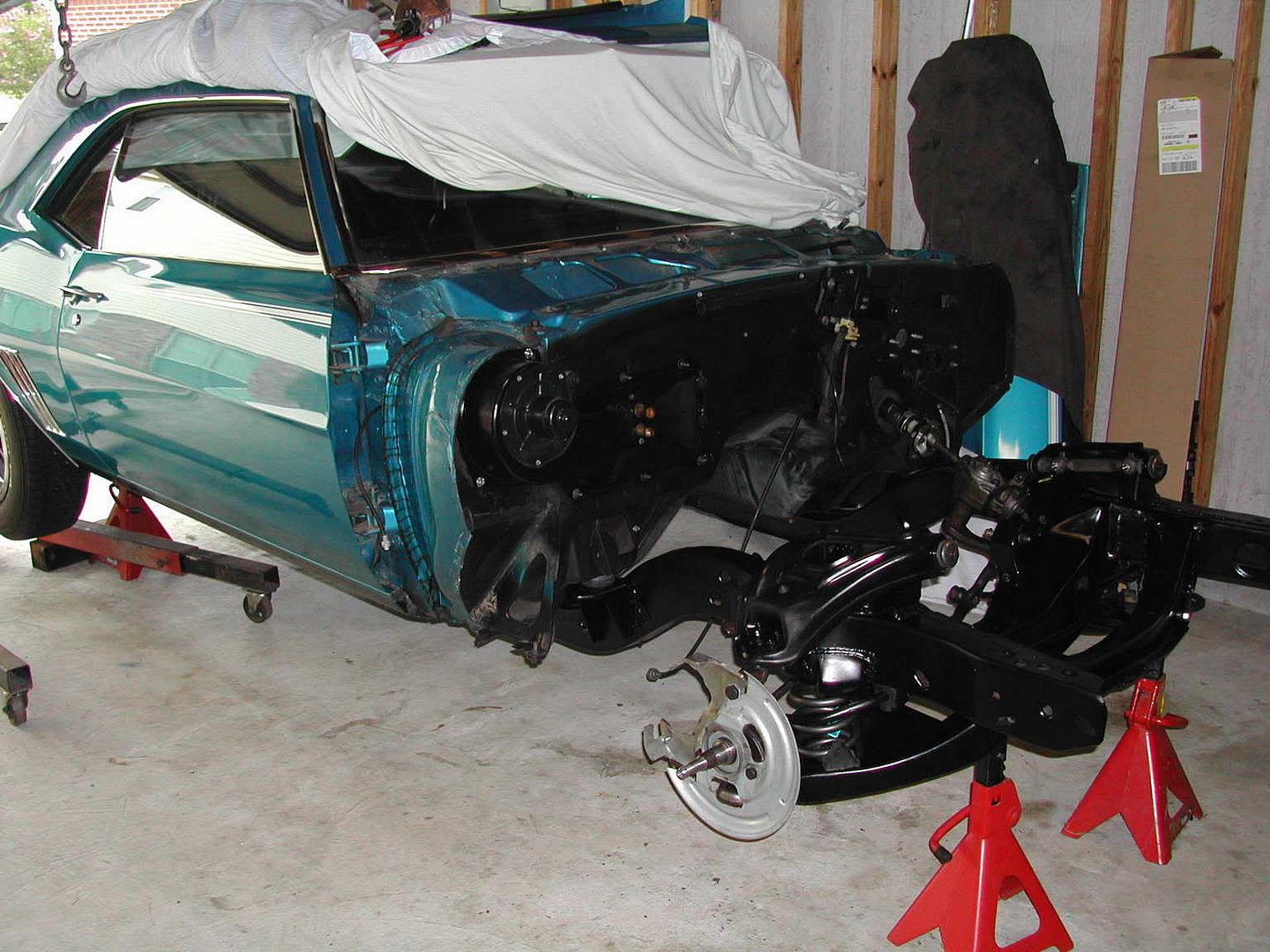

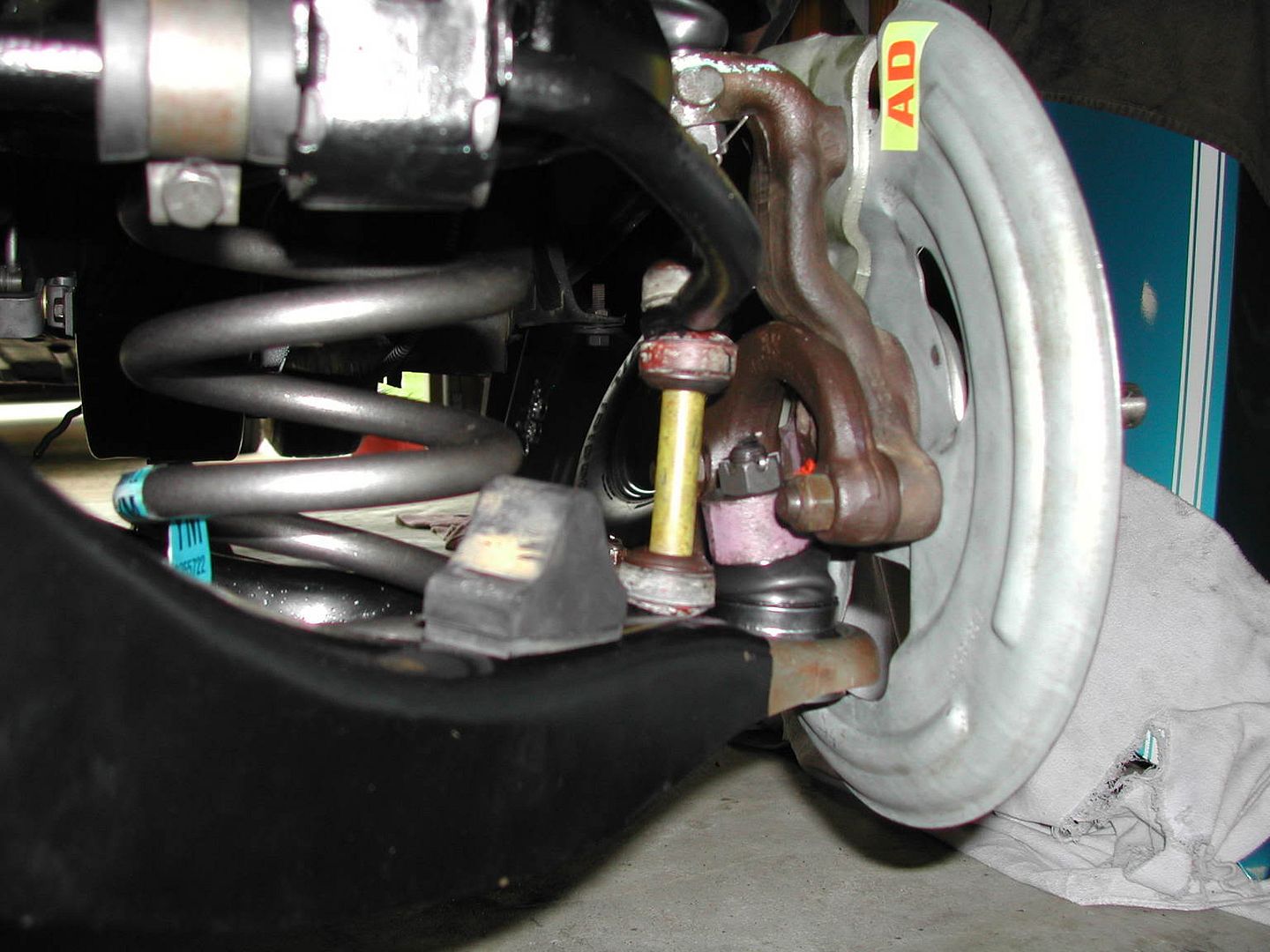

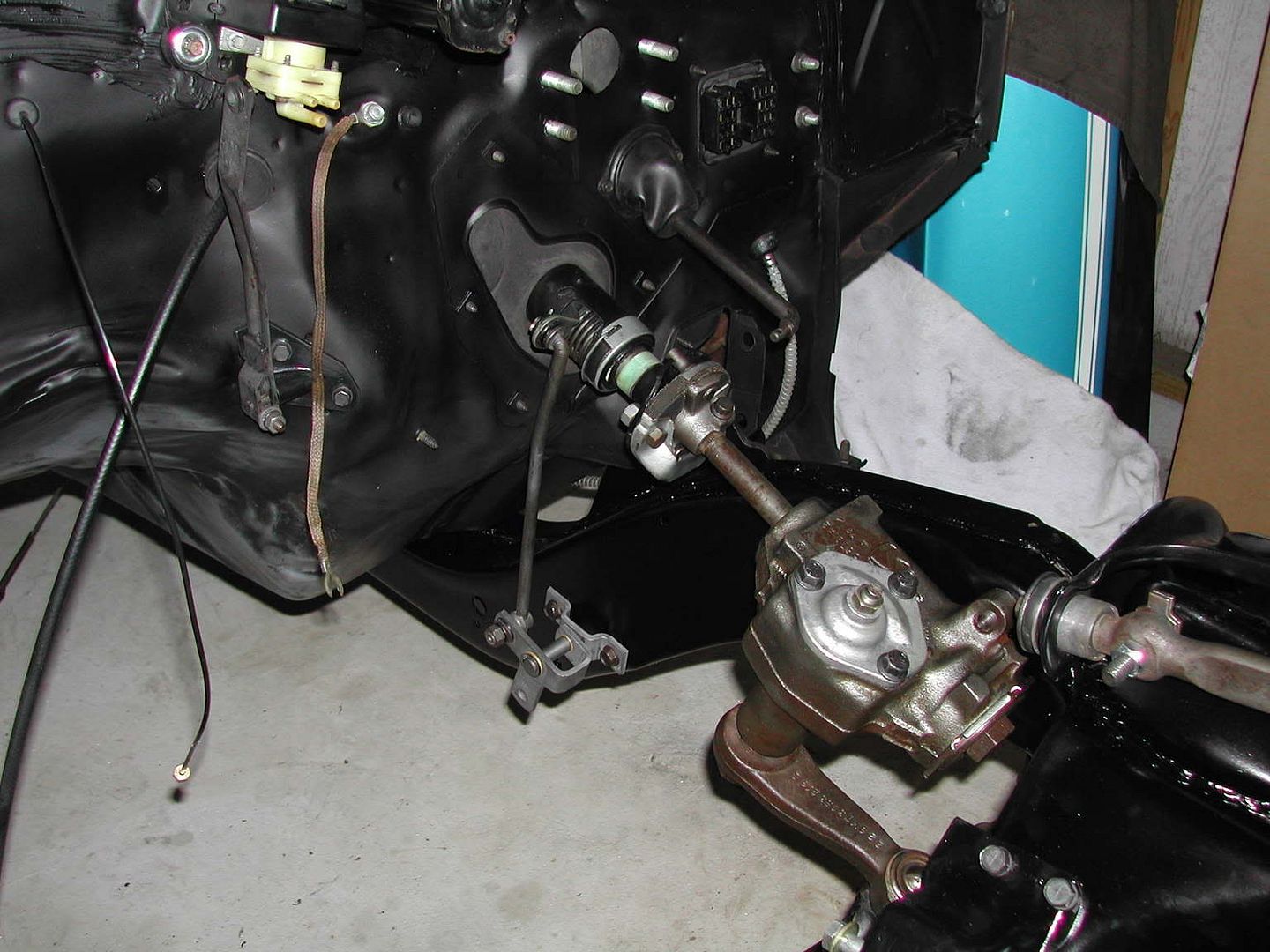

Looks much better now:
http://i3.photobucket.com/albums/y86...6/DSCN0080.jpg http://i3.photobucket.com/albums/y86...6/DSCN0087.jpg http://i3.photobucket.com/albums/y86...6/DSCN0093.jpg Just cleaned up the factory components plus a few NOS items. More to come. Paul 69 Camaro SS L78 M21 4.10's 20K miles |
Re: Bad Factory Welds

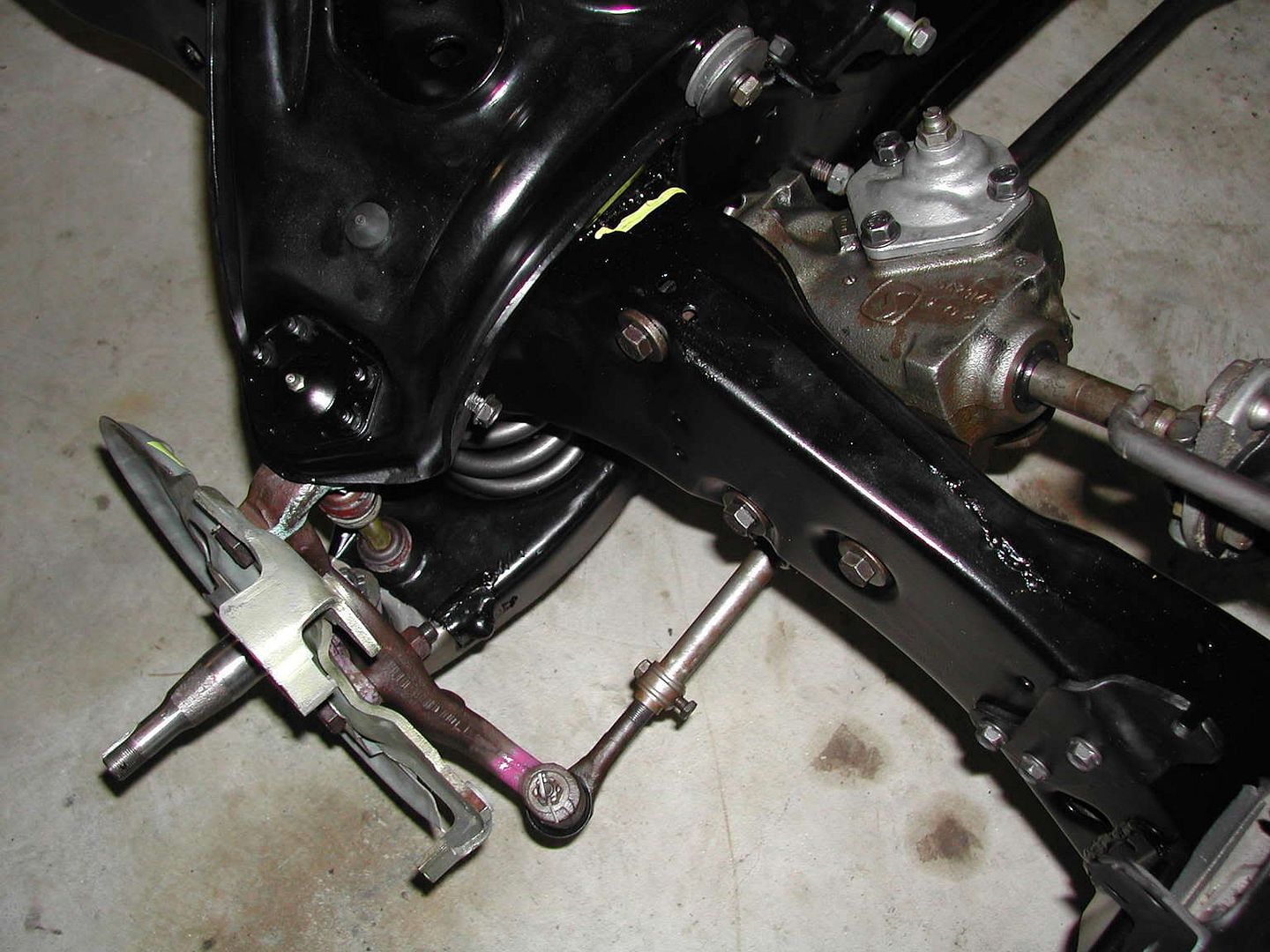

A few more:
http://i3.photobucket.com/albums/y86...6/DSCN0083.jpg http://i3.photobucket.com/albums/y86...6/DSCN0085.jpg Paul 69 Camaro SS L78 M21 4.10's 20K miles |
Re: Bad Factory Welds
Great pictures, nice car! Keep em coming. Sam
|
Re: Bad Factory Welds
Engine assembly started. Here are some pics:
http://i3.photobucket.com/albums/y86...6/DSCN0483.jpg http://i3.photobucket.com/albums/y86...6/DSCN0484.jpg Aug 69 dated 854 CE block Paul |
Re: Bad Factory Welds
|
Re: Bad Factory Welds
http://i3.photobucket.com/albums/y86...6/DSCN3593.jpg
End play check. http://i3.photobucket.com/albums/y86...6/DSCN3595.jpg NOS GM L-78 Solid Cam |
