69 smog question


WHere does the vacumn from the diverter valve connect to the source..carb?? There is a port but it is used to supply vacumn to the choke poll off. All the pics I have are cars with the air cleaner on. Ready to hook mine up. Thanks

ALbert

Re: 69 smog question


That's the correct vacuum port to use for both the Diverter & the choke pull off.
It should be under the front bowl where it meets the intake.
They used a white 3 way plastic Tee to coordinate all 3 hoses.
In 1970 they added a TCS solenoid,so they used a 4 way Vacuum tee.

Re: 69 smog question


[ QUOTE ]
That's the correct vacuum port to use for both the Diverter & the choke pull off.It should be under the front bowl where it meets the intake.
They used a white 3 way plastic Tee to coordinate all 3 hoses.
In 1970 they added a TCS solenoid,so they used a 4 way Vacuum tee.


[/ QUOTE ]

Rick..any source for that "T"??

ALbert

Re: 69 smog question


I have found my local hardware store sells a damn good match to the original.
I have some 3 ways and 4 ways here,if you want I can send you a digital pic later tomorrow?

Re: 69 smog question


Anyone got a good clear image of the "T" with the vacuum
lines installed? I see white 3-way T's on eBay from time
to time, but I thought they were 1970 components.

Steve

Re: 69 smog question


[ QUOTE ]
I have found my local hardware store sells a damn good match to the original.
I have some 3 ways and 4 ways here,if you want I can send you a digital pic later tomorrow?

[/ QUOTE ]

Rick, that would be great thanks..no real hurry..just wrappimg up loose ends.

ALbert

Re: 69 smog question


http://img.photobucket.com/albums/v6...cshose0007.jpg

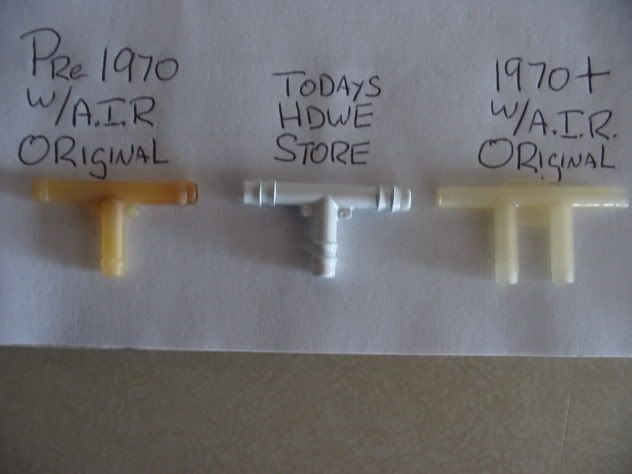

The middle store bought is much whiter and has an extra rib at each end,but is the same measurement as the original.

Re: 69 smog question

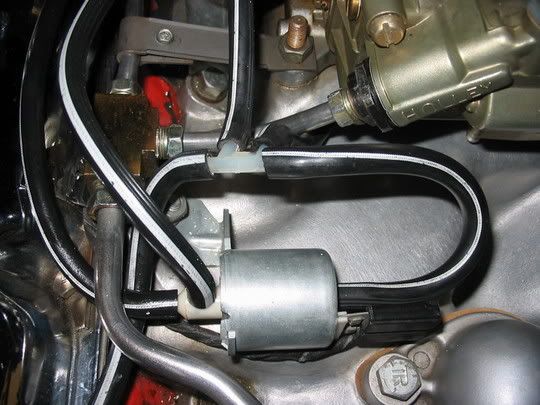

Distributor-> .....Choke pull off--->
http://img.photobucket.com/albums/v6...cshose0006.jpg
------------> <-----Diverter Valve hose w/1970 4way Tee

Re: 69 smog question

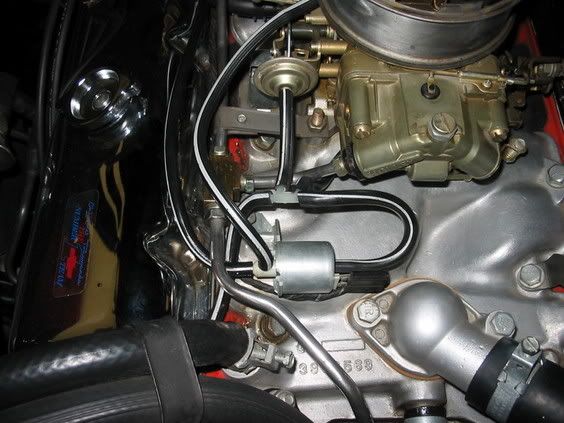

http://img.photobucket.com/albums/v6...cshose0005.jpg
1970 again farther back

Re: 69 smog question


Thanks Rick..found the "white" one in the middle at the local store..done deal!.

ALbert
