#1
01-27-2016, 04:47 AM
|
||||
|
||||
Cragar GT 15x6 5bolt,4-3/4 versus 14x6 5bolt,4-3/4

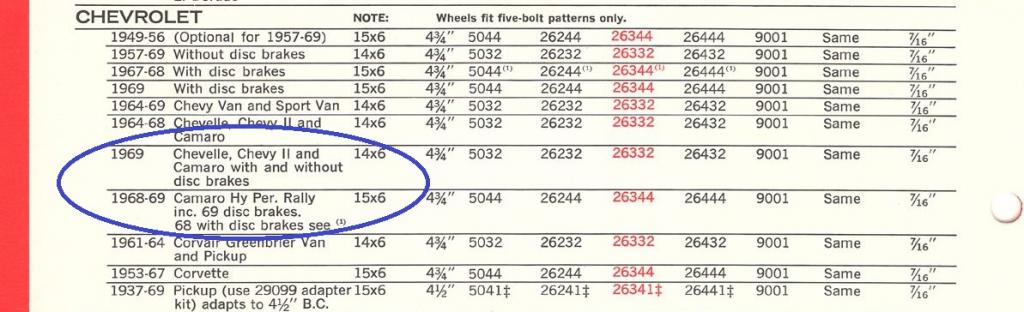

The 1969 Cragar GT Factory literature (see attached) lists a 14x6 rim for a 69 Camaro with or without disc brakes or 15x6 rim for a 69 Camaro disc brake option. However the 15x6 rim is only listed for a 68 Camaro disc brake application.
My assumption at this point is that the overall dimension of a 68 Camaro caliper when installed on the rotor is larger than the 69 Camaro caliper installed therefore requiring the larger 15x6 rim and according to notation 1 requires the corresponding spacer adapter kit 29100 for clearance. Can anyone confirm if a 14x6 Cragar GT rim will or will not fit a 68 Camaro with disc brakes?
__________________
"Day 2 Grocery Getter" 68 SSRS 427 Dana Camaro
|
|
#2
01-27-2016, 05:36 AM
|
|||
|
|||
|
Re: Cragar GT 15x6 5bolt,4-3/4 versus 14x6 5bolt,4-3/4
Your assumptions are correct. The 14 I checked wheel will not clear the 67-68 4 piston calipers. That why 15 inch wheels are more expensive.
__________________
1970 GTO JUDGE RAM IV 23,000 miles 1969 GTO convert RAM AIR 4spd 1964 GTO convert survivor
|
|
#3
01-27-2016, 12:25 PM
|
||||
|
||||
|
Re: Cragar GT 15x6 5bolt,4-3/4 versus 14x6 5bolt,4-3/4
That makes perfect sense.
__________________
"Day 2 Grocery Getter" 68 SSRS 427 Dana Camaro
|
|
|
|
