#1
12-14-2018, 08:49 AM
|
||||
|
||||
1969 chevelle body to frame bushings
Can anyone tell me the difference between buying a hardtop set of body bushings to the convertible set! Also any recommendations on who sells the best set. Thanks
__________________
1969 SS 396 300 deluxe post car 1969 SS 396 300 deluxe hardtop 1969 SS 396 chevelle 1978 chevy shortbed step side 1983 chevy shortbed 1985 chevy shortbed If a hammer and duct tape wont fix it u have electrical problems!
|
|
#2
12-14-2018, 09:19 AM
|
||||
|
||||
|
I believe the convertible has two more bushings vs the hard top.
Ground up sells a nice kit with the fasteners: https://www.ss396.com/chevelle/DCC-1...hevelle&year=0
|
|
#3
12-14-2018, 11:02 AM
|
||||
|
||||
|
Quote:
Check out my thread as Cutlass has very few bolted bushings. Ryan W31
__________________
 1969 Beaumont 350 Auto White Sold 1969 Beaumont 307 Auto Green Sold 1969 Chevelle SS 396-L35 Auto Blue Sold 1969 Oldsmobile Cutlass 'S' Sports Coupe W31
|
|
#4
12-14-2018, 02:03 PM
|
|||
|
|||
|
The vert kit has two extra bushing that goes towards the front.
|
|
#5
12-14-2018, 02:40 PM
|
|||
|
|||
|
Quote:
|
|
#6
12-15-2018, 01:13 AM
|
||||
|
||||
|
Well both my hardtops have a body bushing on each side that’s visible from under the hood with the inner fender wells out!
__________________
1969 SS 396 300 deluxe post car 1969 SS 396 300 deluxe hardtop 1969 SS 396 chevelle 1978 chevy shortbed step side 1983 chevy shortbed 1985 chevy shortbed If a hammer and duct tape wont fix it u have electrical problems!
|
|
#7
12-15-2018, 02:35 PM
|
||||
|
||||
|

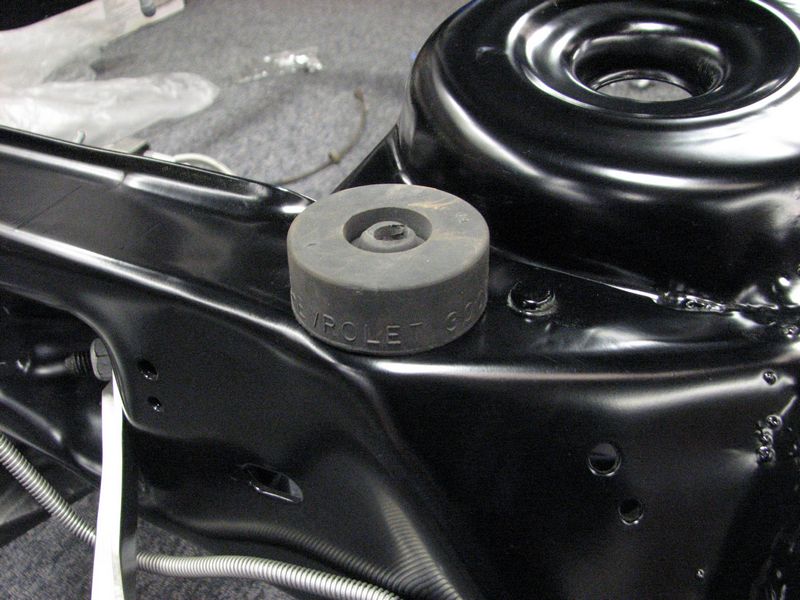

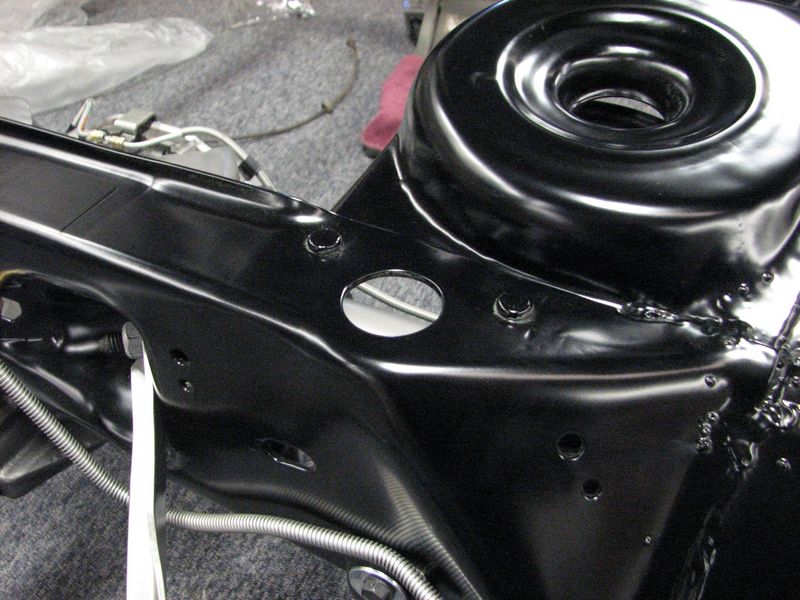

The frames are the same as far as the front and rear halves go. Only the center sections differ between the coupe and convertible and both have two front mounting locations in the frame (see photo). However, the coupe only uses one of those mounts (the outside one) whereas the convertible incorporated both (see photo of convertible body on frame).
__________________
Rick Nelson Musclecar Restoration and Design, Inc (retired) www.musclecarrestorationanddesign.com https://www.youtube.com/watch?v=62r-6vgk2_8 specialized in (only real) LS6 Chevelle restorations Last edited by SS427; 12-15-2018 at 02:41 PM.
|
|
#8
12-15-2018, 02:40 PM
|
||||
|
||||
|

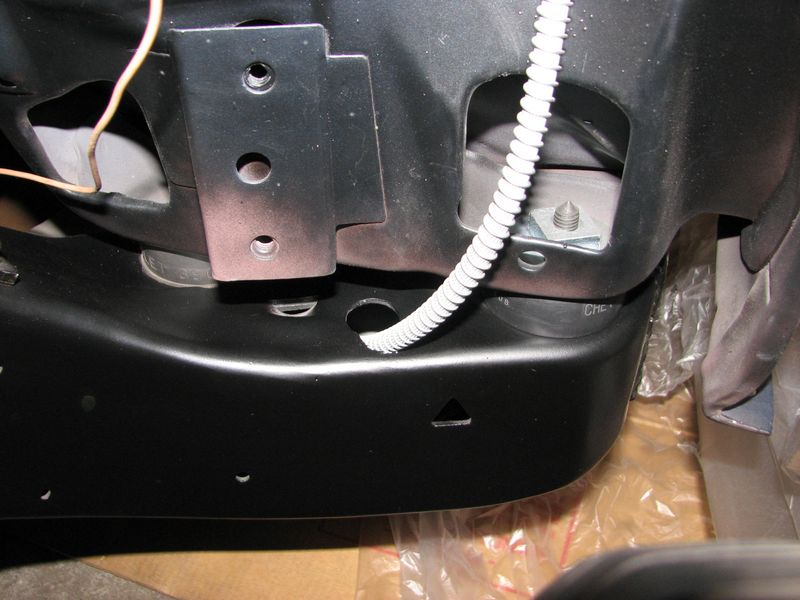

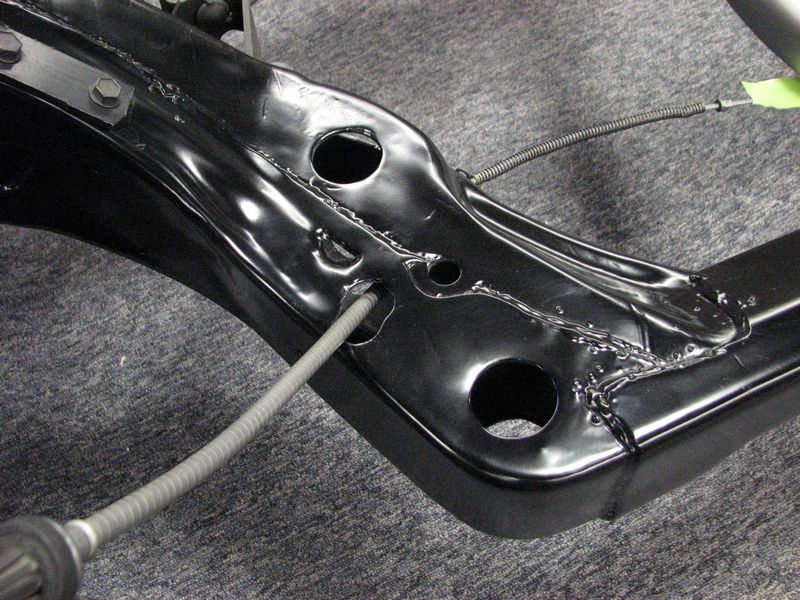

Similarly, the rear sections are also the same between the two cars. The couple (1st photo) does not use this mount whereas the convertible (2nd photo) would use this solid mount in addition the rest of the coupes mounts.
__________________
Rick Nelson Musclecar Restoration and Design, Inc (retired) www.musclecarrestorationanddesign.com https://www.youtube.com/watch?v=62r-6vgk2_8 specialized in (only real) LS6 Chevelle restorations
|
|
#9
12-16-2018, 11:14 PM
|
||||
|
||||
|
Exactly the info I was looking for thanks!
__________________
1969 SS 396 300 deluxe post car 1969 SS 396 300 deluxe hardtop 1969 SS 396 chevelle 1978 chevy shortbed step side 1983 chevy shortbed 1985 chevy shortbed If a hammer and duct tape wont fix it u have electrical problems!
|
|
|
|
