#1
03-01-2019, 06:08 PM
|
|||
|
|||
1963 Chevrolet 409 on the dyno

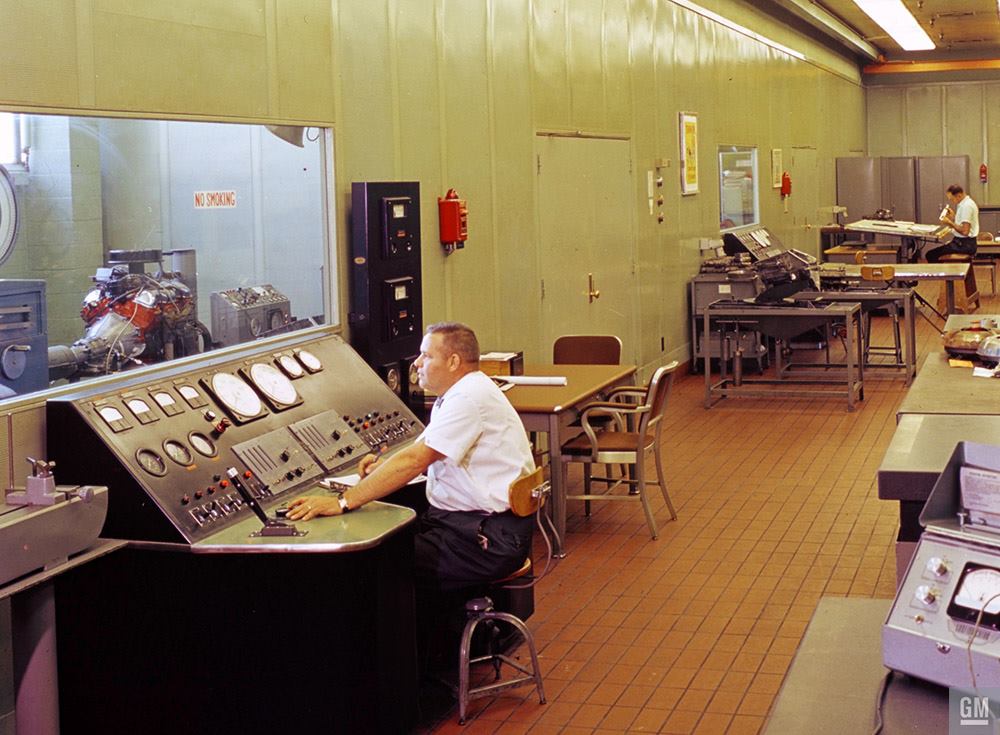

Another great photo posted today by GM Media Archives, this one shows a 1963 Chevrolet 409 on the engine dyno at Chevrolet Engineering.
__________________
1959-1980 Pontiac Window Sticker Reproductions : PontiacWindowStickers.com DVD's for Musclecar fans! MusclecarFilms.com
|
| The Following 4 Users Say Thank You to StealthBird For This Useful Post: | ||
|
#2
03-01-2019, 06:18 PM
|
|||
|
|||
|
coool pic... color in 1963 !!!
Interesting that it says no smoking inside dyno room...wonder if smoking as allowed outside of dyno room ...signs of the times...
|
|
#3
03-01-2019, 06:32 PM
|
|||
|
|||
|
Great vintage picture. I am sure Duntov had some of his experimental engines on this dyno. Engines that never made production, i have pictures of those beasts. Chevy Hemi engine Duntov designed and tested.
|
|
#4
03-01-2019, 07:49 PM
|
|||
|
|||
|
That big ol' lever to the operator's left...does that mean the engine is at full throttle?
__________________
1959-1980 Pontiac Window Sticker Reproductions : PontiacWindowStickers.com DVD's for Musclecar fans! MusclecarFilms.com
|
|
#6
03-01-2019, 08:20 PM
|
||||
|
||||
|
Cool picture - interesting that is hooked up to a transmission too.
|
|
#7
03-01-2019, 09:22 PM
|
||||
|
||||
|
Way cool pic!
__________________
Dave Dykstra 1968 Camaro Palomino Ivory/Ivy Gold interior -Delivered to Courtesy Chevrolet, Los Angeles, CA 2013 Corvette Grand Sport 60th Anniversary Edition Arctic White/Diamond Blue interior -Delivered to Bill Jacobs Chevrolet, Joliet, IL NCRS#66003 Speed has never killed anyone. Suddenly becoming stationary, that’s what gets you. – Jeremy Clarkson. Dykstra Motorsports
|
|
#8
03-01-2019, 10:07 PM
|
||||
|
||||
|
'
Very cool pic, trans is a PG also quite the induction setup. Note the second window w/ dyno console further along the wall before the guy @ the drafting table using a slide-rule also Chevy food and napkins to the right.  ~ Pete .
__________________
I like real cars best...especially the REAL real ones!
|
|
|
|
