  #1
Old 01-01-2021, 02:15 PM
XXXGoldL34M20's Avatar
XXXGoldL34M20 XXXGoldL34M20 is offline
Senior Member

Join Date: Dec 2009
Location: Great White North
Posts: 4,082
Thanks: 132
Thanked 258 Times in 172 Posts
Arrow 1970 Camaro GM Saginaw 5679142 Manual Steering Box Superb Condition

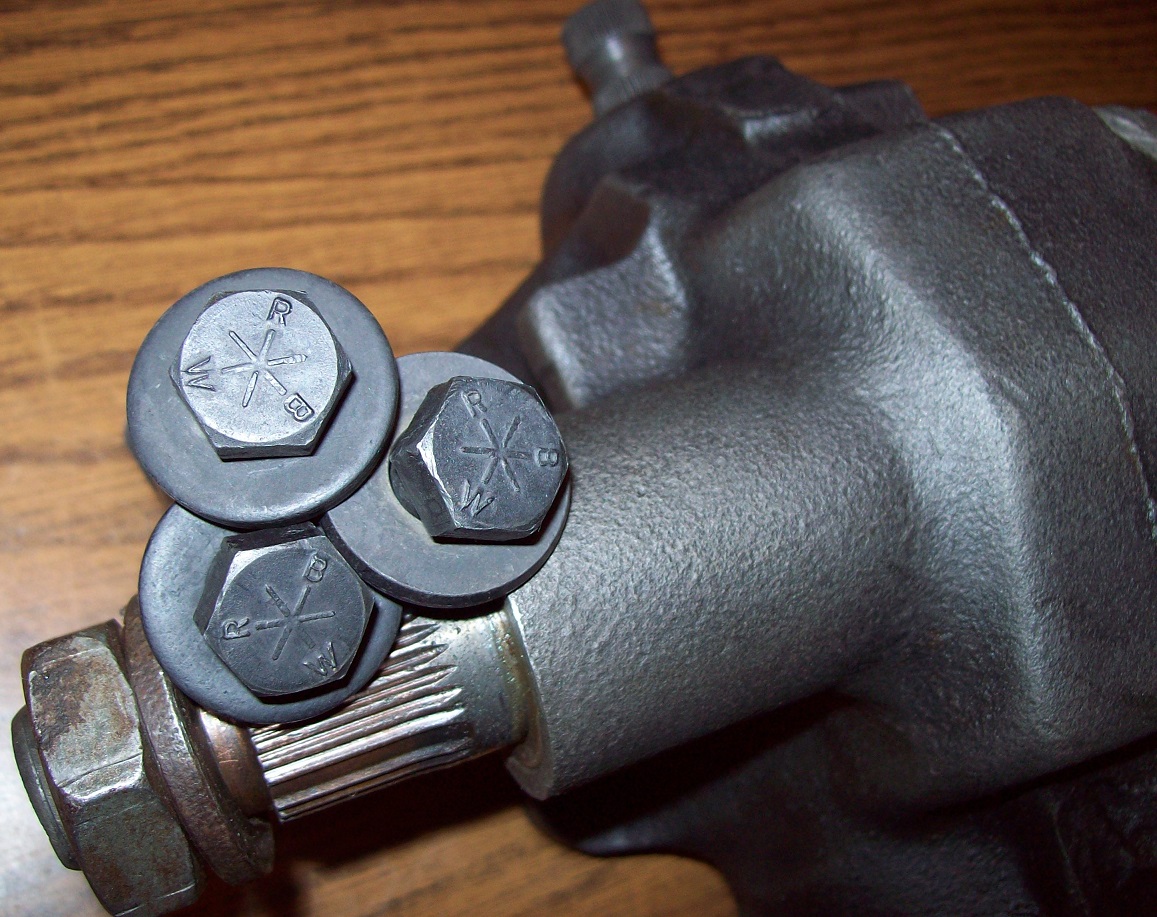

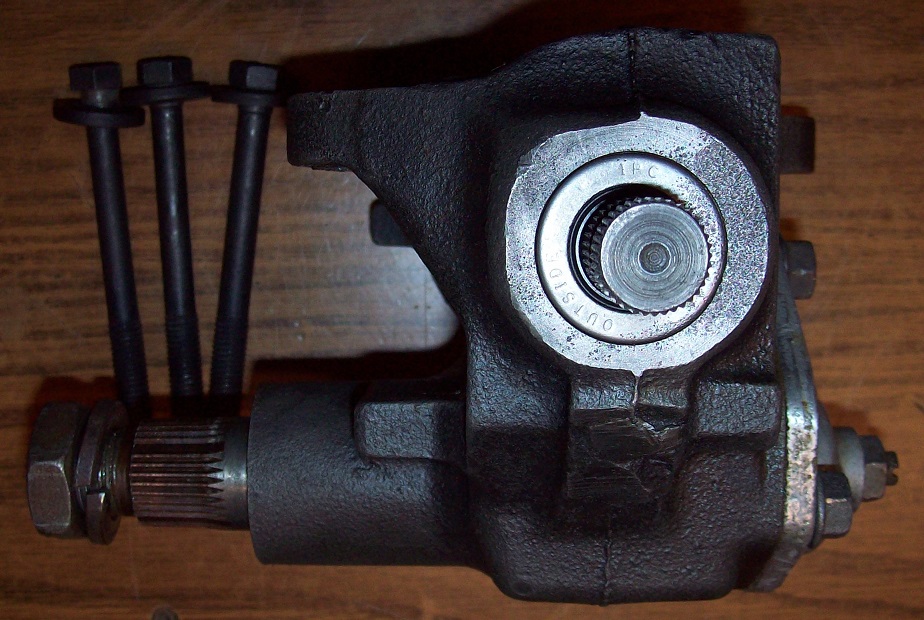

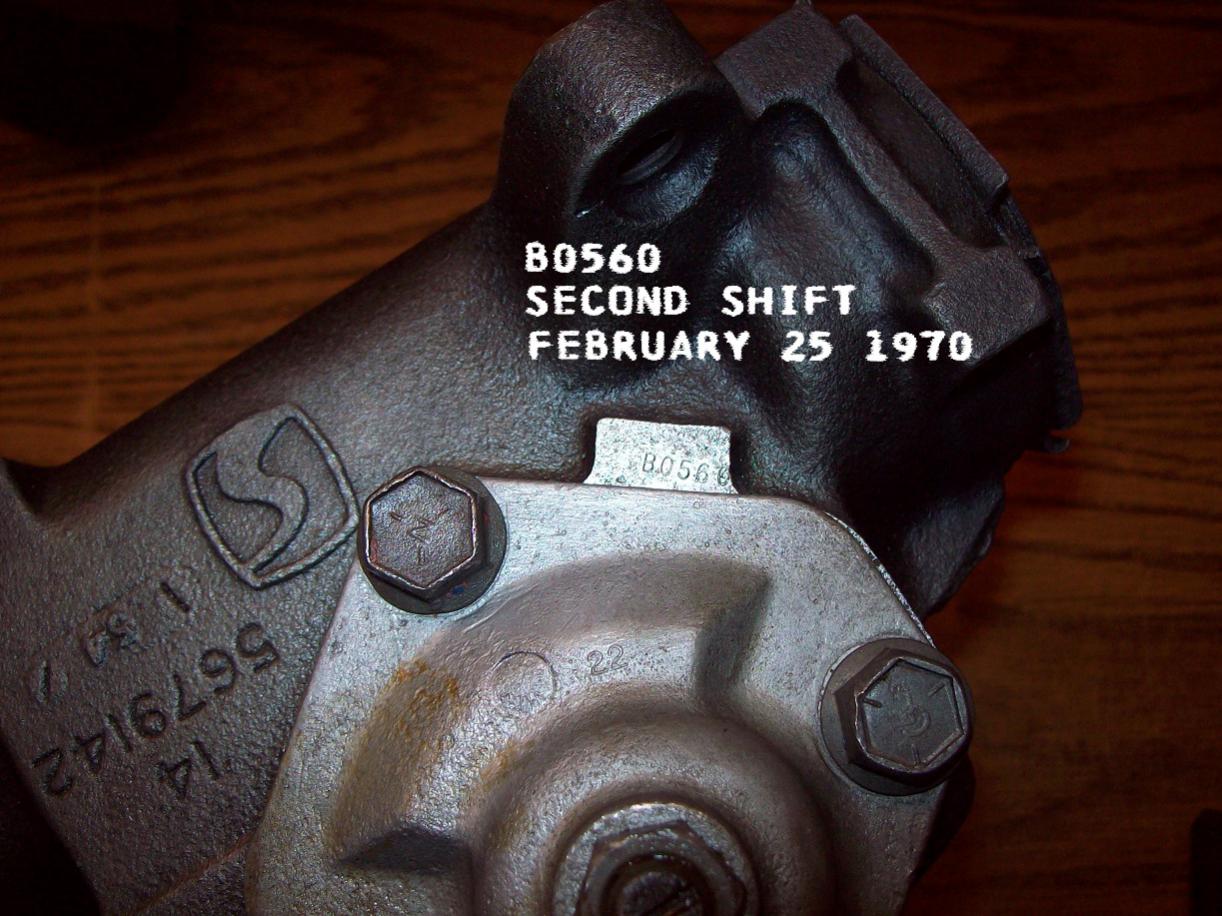

-GM Saginaw 5679142 Manual steering box in super clean condition that needs nothing and the date code is great with a stamp of B0560 (Second shift of February 25 1970) even the casting date is just two days before this date marked 54 (February 23 1970). Spins tight and smooth with just your fingers and unit includes all 3 original "RBW" Bolts with thick washers and also the big nut and washer for the pitman arm. I cleaned out the OLD dried up grease and put a 1/4 fill of Grease for now (Will need to be filled 3/4 full through bottom hole screw before use). A new Paper gasket was also installed. Tough to find a better assembly line "Born With" box.
$250 USD Plus $20 Shipping, Paypal "Friends"

Revised & Edited, Fits 1969 Camaro only as it has the short shaft.

Now *SOLD*
Attached Images

__________________
"NOSTALGIA It takes us to a place were we ache to go again"

Last edited by XXXGoldL34M20; 02-15-2021 at 07:00 PM. Reason: Incorrect INFO
Attachments - The Supercar Registry 006.JPG 005.jpg 004.JPG 003.JPG
O Garage vBulletin Plugins by Drive Thru Online, Inc.
Click here to view all the pictures posted in this thread...
  #2
Old 01-01-2021, 02:34 PM
XXXGoldL34M20's Avatar
XXXGoldL34M20 XXXGoldL34M20 is offline
Senior Member

Join Date: Dec 2009
Location: Great White North
Posts: 4,082
Thanks: 132
Thanked 258 Times in 172 Posts
Default

UPDATE >>> My BAD
This is the shorter input shaft for a 1970 Camaro, Title should read 1970 Camaro not Chevelle.
__________________
"NOSTALGIA It takes us to a place were we ache to go again"

Last edited by XXXGoldL34M20; 01-01-2021 at 02:44 PM.
  #3
Old 01-01-2021, 08:58 PM
BCreekDave BCreekDave is offline
Senior Member

Join Date: Sep 2016
Location: Dayton Ohio
Posts: 927
Thanks: 317
Thanked 450 Times in 252 Posts
Default

Quote:
Originally Posted by XXXGoldL34M20 View Post
UPDATE >>> My BAD
This is the shorter input shaft for a 1970 Camaro, Title should read 1970 Camaro not Chevelle.
Might want to check again. The 70 Camaros had the long shaft also. 69 Camaros had a short shaft. Probably 70 novas also.
__________________
70Z28 04B Norwood Forest Green-white Stripes Black DeLuxe Interior
Owned since 1978 - First Car

Last edited by BCreekDave; 01-01-2021 at 09:04 PM.
The Following User Says Thank You to BCreekDave For This Useful Post:
XXXGoldL34M20 (01-01-2021)
  #4
Old 01-01-2021, 10:07 PM
XXXGoldL34M20's Avatar
XXXGoldL34M20 XXXGoldL34M20 is offline
Senior Member

Join Date: Dec 2009
Location: Great White North
Posts: 4,082
Thanks: 132
Thanked 258 Times in 172 Posts
Thumbs up

Quote:
Originally Posted by BCreekDave View Post
Might want to check again. The 70 Camaros had the long shaft also. 69 Camaros had a short shaft. Probably 70 novas also.
The good news is I have an Extra Long Shaft I kept for years in Stock and I will most likely swap out this short one for a long one so I can sell it to my 1970 Chevelle clients soon.
I'll try to sell it to a 1969 Camaro owner first for now.
thanks for the info.
__________________
"NOSTALGIA It takes us to a place were we ache to go again"
