**k92** · #1 10-22-2005, 01:09 AM

Has anyone with a 1970 Leeds Chevelle seen any green inspection paint on the tie rods?What other colors/locations for paint have you found?

**Mr70** · #2 10-22-2005, 07:44 AM

Yes...it was common,as well as green on the Center link connections and Blue on the 4:10 rear yoke.

**SS427** · #3 10-23-2005, 02:02 AM

Rob,

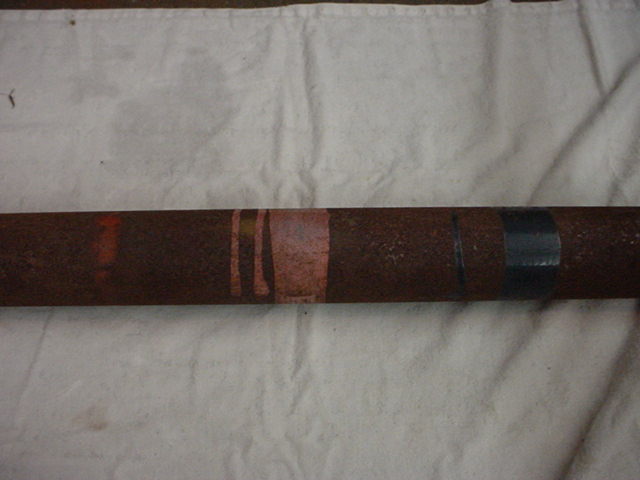

I sent you the CD showing many of the inspection marks I have come across. The interesting thing is they sometimes differ from plant to plant which I did not expect. In addition to what you found on the tie rod ends, I seem to always find orange on the tie rod adjusting sleeve. You had also asked me about drive shafts. Attached is a photo of one of two original LS-6 shafts that I have. They are both very similar but are different from all the others that I have had. Instead of a pink/blue/pink stripe or blue/pink/blue, these both have VERY large pink and blue stripes and both have a smaller orange band. I have never seen that before.
Rick
