Default TI distributor

I am wondering if this TI dist was also used on the rare ZR2 ls6 1971 corvette part number 1111074
dated aug 12/71 .

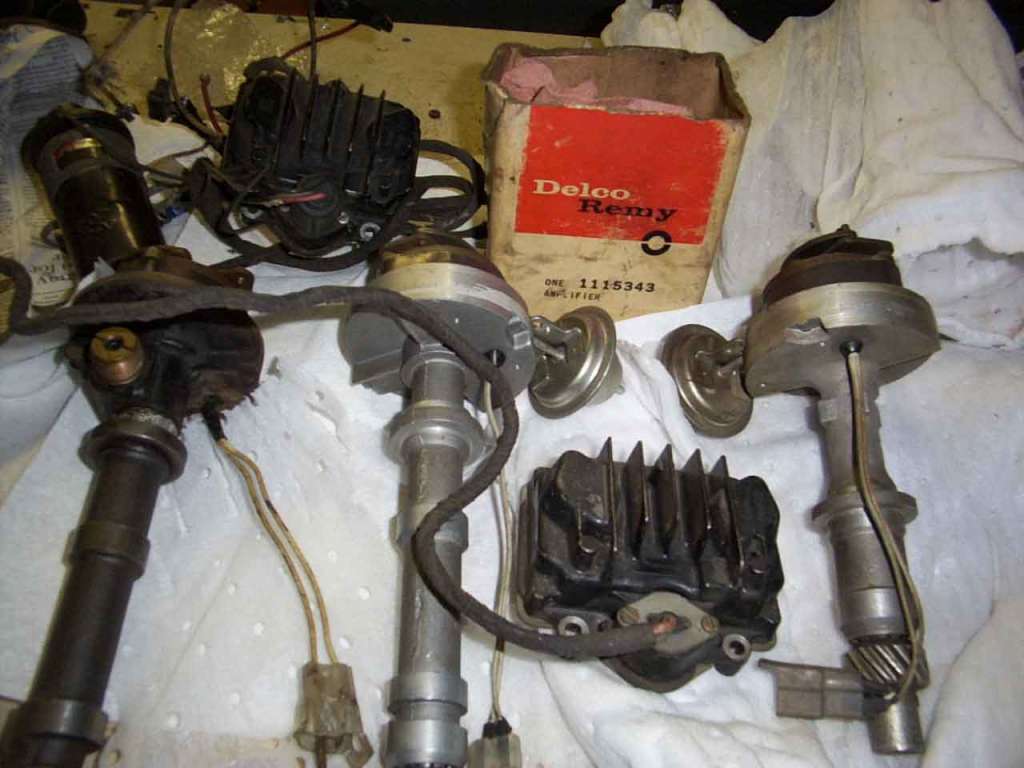

In the pic its the one in the middle.
PJ
Attached Images

Reply With Quote
Attachments - The Supercar Registry 306120-distributor1.jpg
O Garage vBulletin Plugins by Drive Thru Online, Inc.
Click here to view all the pictures posted in this thread...
  #2
Old 12-18-2007, 03:38 AM
HiHorse HiHorse is offline
Senior Member

Join Date: Apr 2006
Location: Ontario
Posts: 276
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: TI distributor

ZR2 included the M22 and used distributor# 1112076
Reply With Quote
  #3
Old 12-18-2007, 04:54 AM
Keith Tedford Keith Tedford is offline
Senior Member

Join Date: Jul 2000
Location: Ontario, Canada
Posts: 1,695
Thanks: 3
Thanked 55 Times in 12 Posts
Default Re: TI distributor

Does the 1115005 module apply to any of these? It has the three pronged female connector and looks like the one on the upper left of the picture.
__________________
Chevelleless after 46 years......but we did find a low mileage, six speed, silver 2005 Corvette. It will just have to do for now.
Reply With Quote
  #4
Old 12-18-2007, 05:59 AM
John Brown's Avatar
John Brown John Brown is offline
Yenko Contributing Member

Join Date: Mar 2002
Location: South Bend, Indiana
Posts: 2,820
Thanks: 455
Thanked 510 Times in 243 Posts
Default Re: TI distributor

1115005 was good for pre January 68 cars. After that GM went too 1115343 for Chevrolets. The internals were the same but the 1115343 has an extended wiring harness attached to the cast pot metal housing. Read the story here.
__________________
......................
John Brown

This isn't rocket surgery.....
Reply With Quote
  #5
Old 12-18-2007, 08:55 AM
olredalert olredalert is offline
Yenko Contributing Member

Join Date: Dec 2002
Location: Marine City, Mi.
Posts: 9,320
Thanks: 31,906
Thanked 4,412 Times in 1,874 Posts
Default Re: TI distributor

------PJ,,,I dont know about the part numbers but a 1971 Corvette distributer weather TI or not would have had a mechanical tach drive like the distributor on the left.......Bill S
Reply With Quote
  #6
Old 12-18-2007, 10:02 AM
mssl72's Avatar
mssl72 mssl72 is offline
Yenko Contributing Member

Join Date: Apr 2003
Location: Southern California
Posts: 2,566
Thanks: 805
Thanked 718 Times in 388 Posts
Default Re: TI distributor

PJ,
The 1111074 is the TI distributor for 1966 L72 full size and the 1966 396/375 Chevelle's. The one you have is a service replacement. The original factory issued ones were cast iron.
__________________
Mark
1966 L72, 4spd Caprice
1974 Z28, M40 Camaro
Reply With Quote
  #7
Old 12-18-2007, 07:13 PM
P.J. P.J. is offline
Senior Member

Join Date: May 2004
Location: Ontario Canada
Posts: 1,320
Thanks: 0
Thanked 1 Time in 1 Post
Default Re: TI distributor

Thanks for your input
I read all the info on this topic
and now I am more confused than before to re install the TI distributor for my 68 Camaro.
I have the dist,the coil,and the amp. I also have the original wiring harness It would look BOSS if I reunite it with the car after 40 years.
BUT am I going to have a trouble free system or will it be
a temperamental nightmare
I now have the original distributor with the Petronix electronic ignition. It works great.
PJ
Reply With Quote
  #8
Old 12-19-2007, 03:43 AM
Jeff H Jeff H is offline
Senior Member

Join Date: Feb 2001
Location: Ewing, NJ
Posts: 2,454
Thanks: 0
Thanked 80 Times in 24 Posts
Default Re: TI distributor

I think some places offer a modern conversion done to the amp because that was the weak spot. I think there was a place called TI Specialty but their website is down now so I don't know if he is still in business.
__________________
69 Z28 JL8, #'s match - being restored
Reply With Quote
