#1
04-30-2009, 07:25 AM
|
||||
|
||||
69 Camaro U63 Radio Capacitor
Does any one have original picture's of the U63 radio capacitor as installed at the factory for 69 Camaro ?
Looks like this. PN # 3906187  A question I have is this, if you look at the installation shown in the 69 Camaro Assy Manual, U63/u69 sheet A5 the leed that goes into the blower would need to be much longer than the one in the picture  # 3906187 is shown in the assy manual. Thanks Mike
|
|
#2
06-11-2009, 04:22 PM
|
||||
|
||||
|
Re: 69 Camaro U63 Radio Capacitor
FYI...I found the answere to my own question last week.

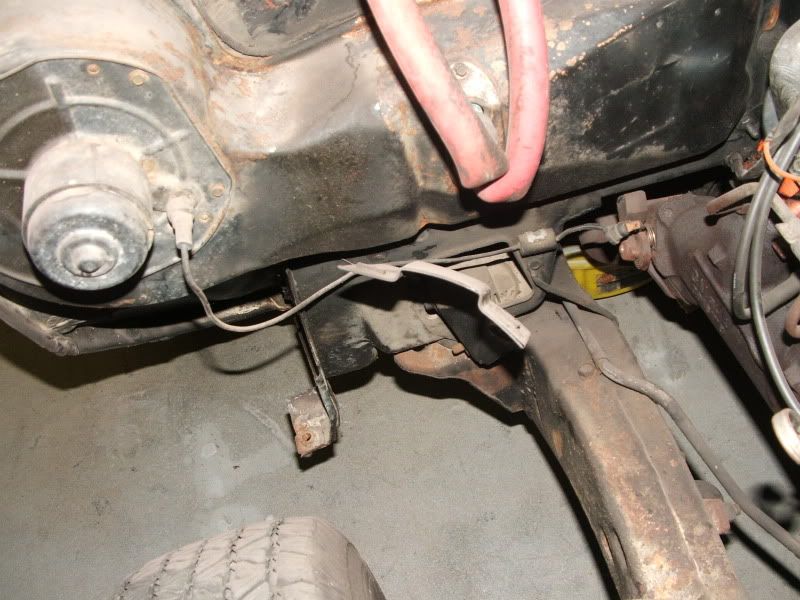

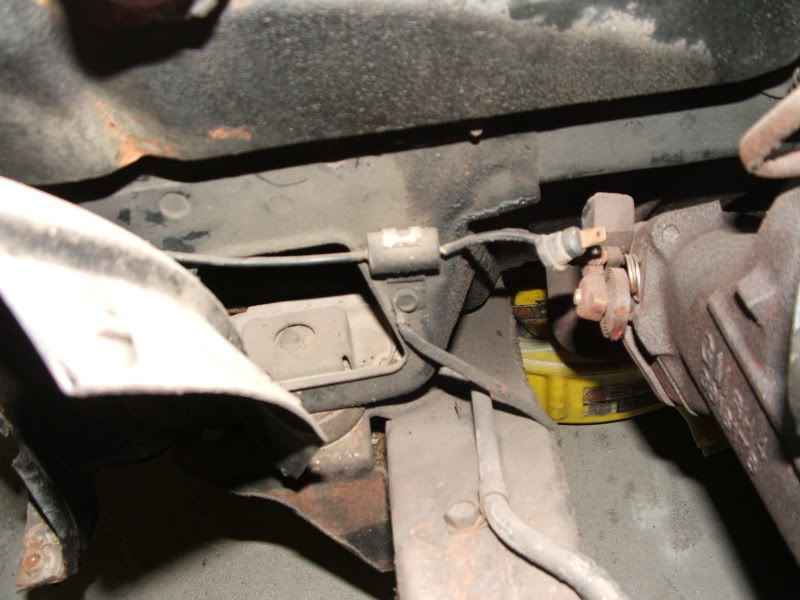

These shots are from a not messed with 68 Camaro. As I have suspected for some time most of the NOS Capacitors for sale now, like the picture of the one in my first post, do not have a long enough leed on the blower side to be installed as per the Assy. manual.
|
|
|
|
