Default Spark Plug Wire Ink Stamp

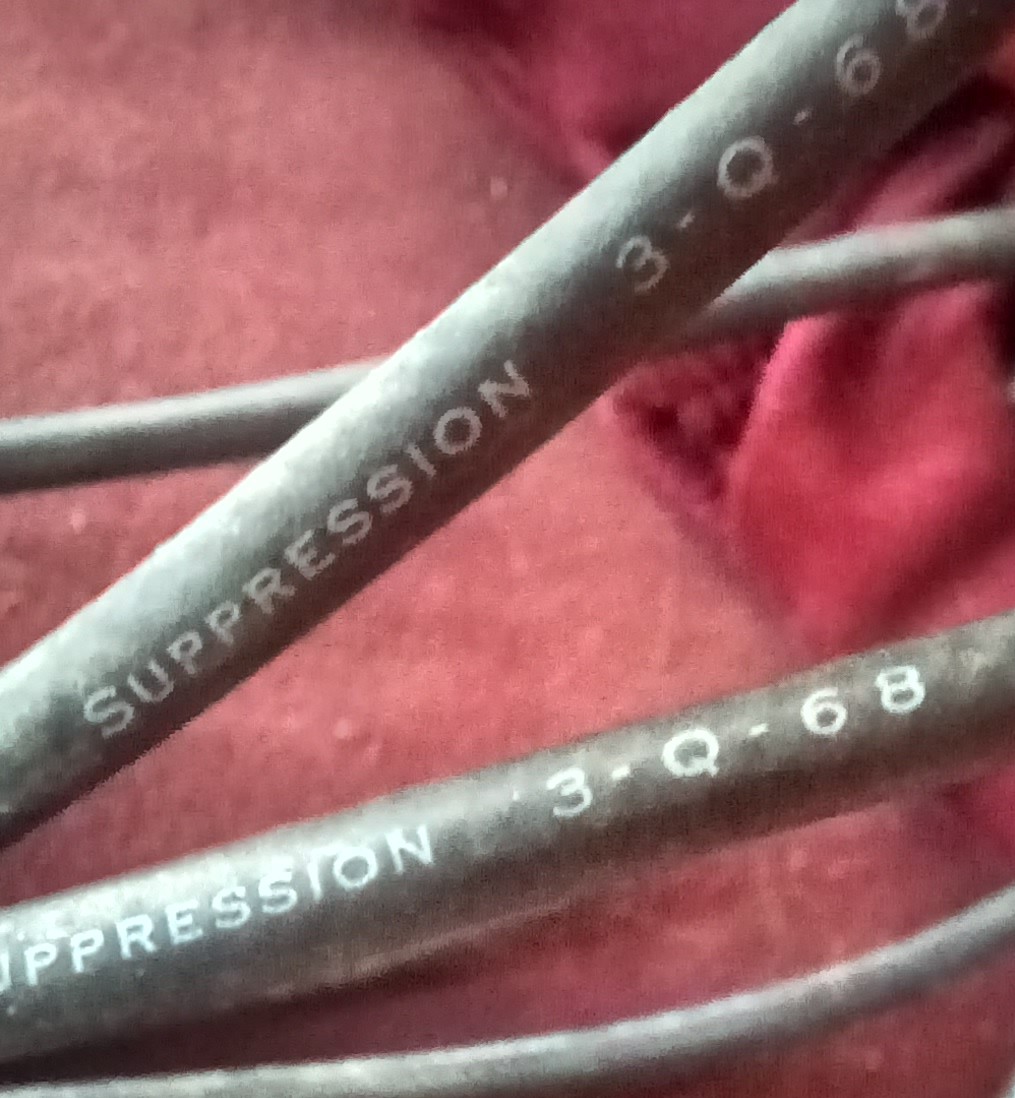

Has anyone here bought one or had one made? Looking for a better plug wire than what is offered by reproduction wires, to say nothing for getting the date closer.

Thanks,
Tim
Reply With Quote
Attachments - The Supercar Registry obpw1q69rf.jpg 3q68 wires.jpg 3q68 wires 4.jpg 3q68 wires 3.jpg
O Garage vBulletin Plugins by Drive Thru Online, Inc.
Click here to view all the pictures posted in this thread...
  #2
Old 02-19-2025, 03:03 PM
daveg's Avatar
daveg daveg is offline
Yenko Contributing Member

Join Date: Jun 2024
Location: NW WI
Posts: 275
Thanks: 48
Thanked 418 Times in 119 Posts
Talking

Cannot answer your question but we are neck deep in this issue also.

We need 1Q69 or 4Q68 and are 4 short going NOS.
Longest ones are hardest.
All we have so far are 1Q69.

Another issue is some do, and some do not have lightning bolts.
The fake set we put on temporarily has them.

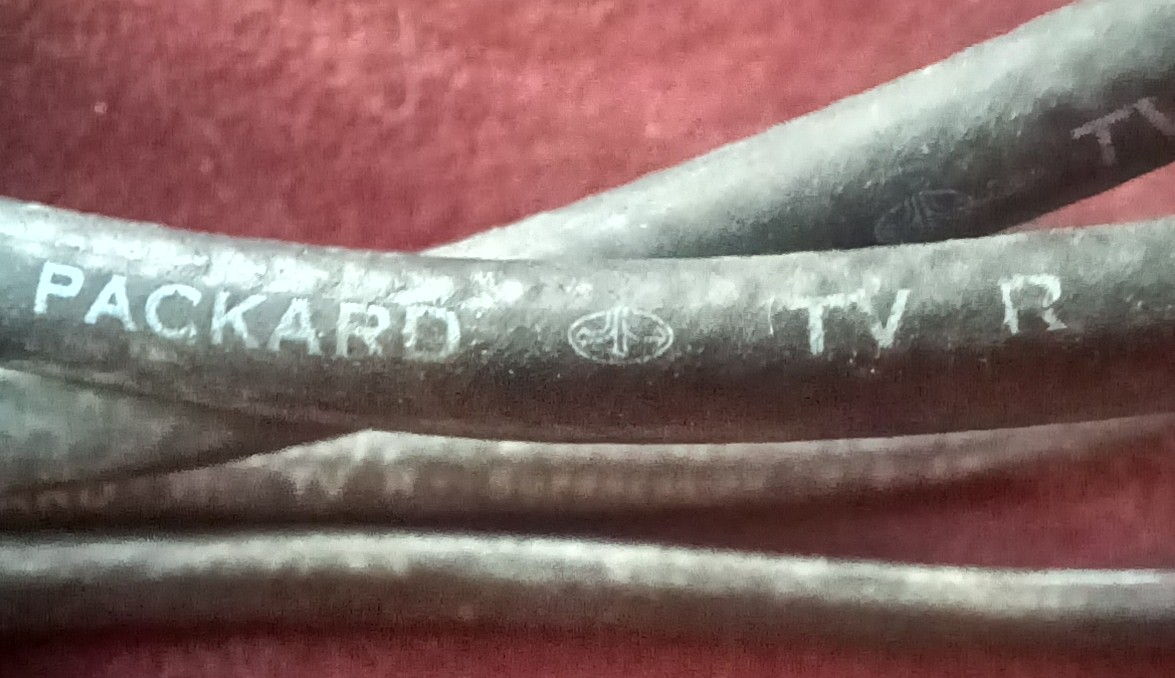

First pic is fake set

Second pic is a complete NOS set for a 72 BB with lightning bolts.
Note proper grey plug end boots.
Does not have the one 45* plug end like a 69 set would have.

Love this minutia.

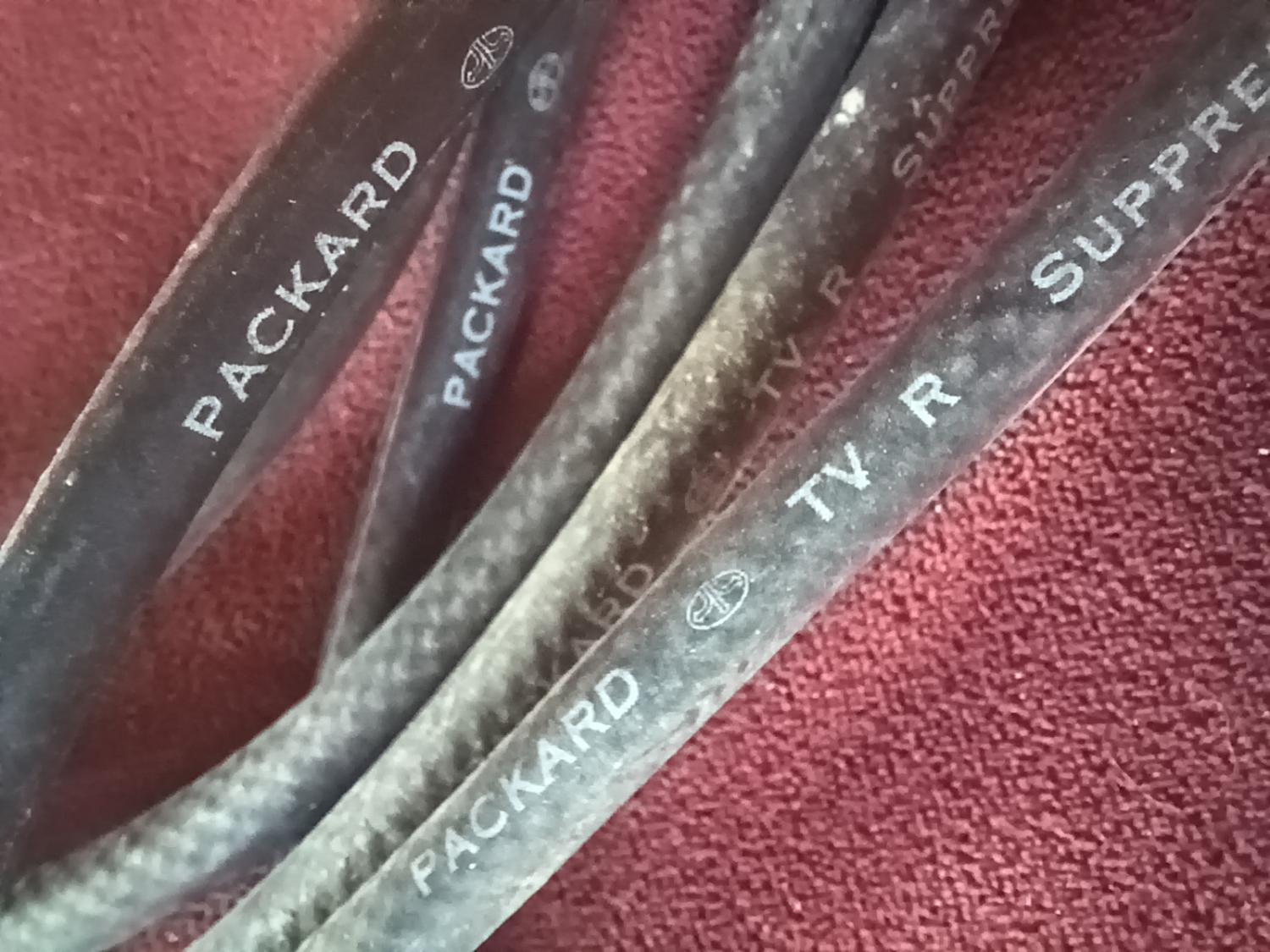

Pics 3 and 4 a NOS early 67 set without lightning bolts. Have others but these were the only complete sets.
Attached Images

Reply With Quote
The Following 2 Users Say Thank You to daveg For This Useful Post:
napa68 (02-20-2025), olredalert (05-19-2025)
  #3
Old 05-19-2025, 01:07 AM
daveg's Avatar
daveg daveg is offline
Yenko Contributing Member

Join Date: Jun 2024
Location: NW WI
Posts: 275
Thanks: 48
Thanked 418 Times in 119 Posts
Default

A little update.

Dist cap info thread currently going brought out a pics of an original 70 Z28 and wires match this set of mine.

Will use these now and they are NOS.
Attached Images

Reply With Quote
The Following 3 Users Say Thank You to daveg For This Useful Post:
dykstra (05-19-2025), olredalert (05-19-2025), RPOLS3 (05-19-2025)
  #4
Old 05-19-2025, 12:54 PM
Burd's Avatar
Burd Burd is offline
Yenko Contributing Member

Join Date: Feb 2018
Location: Just Off Woodward
Posts: 1,512
Thanks: 131
Thanked 406 Times in 241 Posts
Default

Look on eBay, but not for your car, look for wires that fit an engine no one wants, a friend found 3 sets, we had to cut all 8 wires. But that’s ok. All you need is a good crimper. The guy selling had no idea what he had, they were cheap.
He found 3 sets of 1977 date coded wires. The color is rite and it has the tidies that go into the ring.
__________________
It's only Orig once

I spend a lot of money on Wine, Women and Cars, I waste all the rest.

Last edited by Burd; 05-19-2025 at 12:59 PM.
