Default "smooth bottom" cowl induction air cleaner???

i just pulled out a "smooth bottom" cowl induction air cleaner and compared to to some of my service replacement ones and noticed that the air horn in in the wrong position. when sitting on my 69 z28, this air horn in at the 4 or 5 o'clock position. this is not right. all my others are opposite. any help?? thanks
Reply With Quote
Attachments - The Supercar Registry 91054-P10100271.JPG 91053-P10100261.JPG 91052-P1010025.JPG 91051-P1010024.JPG
O Garage vBulletin Plugins by Drive Thru Online, Inc.
Click here to view all the pictures posted in this thread...
  #2
Old 07-26-2004, 08:02 PM
Tommy_Mathison Tommy_Mathison is offline
Senior Member

Join Date: Dec 2001
Location: Menomonie, WI
Posts: 820
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: "smooth bottom" cowl induction air cleaner???

any help would be apriciated........... thanks
Reply With Quote
  #3
Old 07-26-2004, 09:37 PM
Mr70's Avatar
Mr70 Mr70 is offline
Yenko Contributing Member

Join Date: Jan 2001
Location: Illinois
Posts: 20,896
Thanks: 70
Thanked 3,491 Times in 1,417 Posts
Default Re: "smooth bottom" cowl induction air cleaner???

Can you post some pix?
Reply With Quote
  #4
Old 07-26-2004, 10:31 PM
Supercar_Kid Supercar_Kid is offline
Senior Member

Join Date: Mar 2003
Location: Pittsburgh, PA
Posts: 1,214
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: "smooth bottom" cowl induction air cleaner???

Hard to tell for sure w/o seeing some pics, but my guess is you're actually looking at the air cleaner base for a 67-8 small block Camaro. They were the same diameter as a '69 CI units and shared the similar "flat bottom" stamping, however the air snorkle is situated on the opposite side because of the 67-8 alternator orientation. These 67-8 air cleaners used a large diameter lid to create a closed element design, the 69 CI type used the 14" lid that sits inside the base. FYI, a 69 type CI flange and seal will actually fit right on the 67-8 base unit and can be used with the 14" lid and element, which could be cool if you were trying to retro fit a CI setup on a 67-8 Camaro, just a thought. Happy hunting for a 69 flat bottom, they're getting very rare and very expensive these days. Hope this helps.
Reply With Quote
  #5
Old 07-26-2004, 11:02 PM
Tommy_Mathison Tommy_Mathison is offline
Senior Member

Join Date: Dec 2001
Location: Menomonie, WI
Posts: 820
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: "smooth bottom" cowl induction air cleaner???

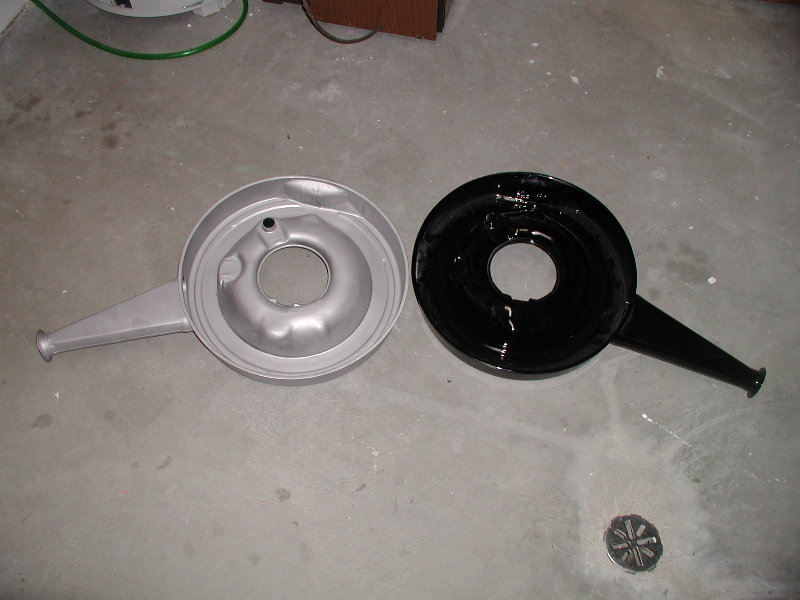

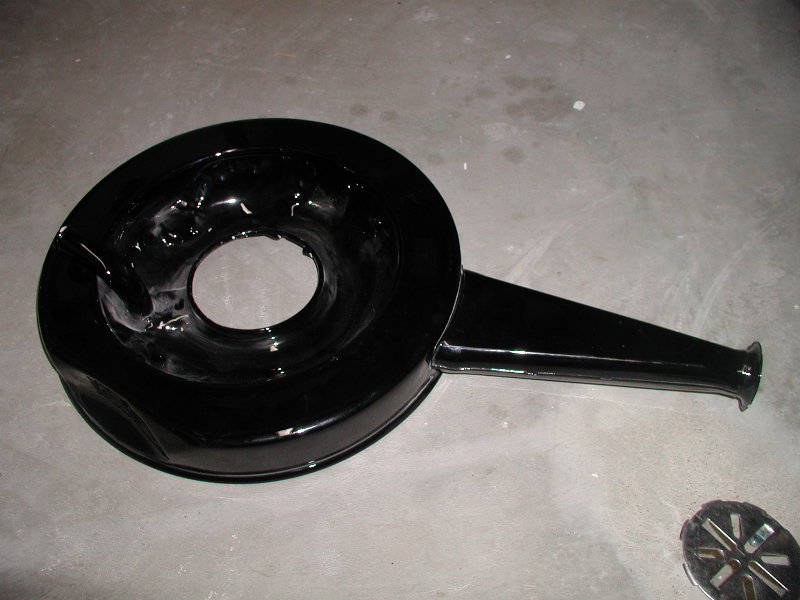

here are 4 pics, on the left is a NOS 69 service replacement air cleaner (has been sandblasted) and on the right is the mystery flat bottom air cleaner that i am trying to identify. they are totally identical except for the position of the air horn and one on the right is a flat bottom and the left is not.
Reply With Quote
  #6
Old 07-26-2004, 11:03 PM
Tommy_Mathison Tommy_Mathison is offline
Senior Member

Join Date: Dec 2001
Location: Menomonie, WI
Posts: 820
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: "smooth bottom" cowl induction air cleaner???

1
Attached Images

__________________
Tommy Mathison
Reply With Quote
  #7
Old 07-26-2004, 11:04 PM
Tommy_Mathison Tommy_Mathison is offline
Senior Member

Join Date: Dec 2001
Location: Menomonie, WI
Posts: 820
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: "smooth bottom" cowl induction air cleaner???

2
Attached Images

__________________
Tommy Mathison
Reply With Quote
  #8
Old 07-26-2004, 11:04 PM
Tommy_Mathison Tommy_Mathison is offline
Senior Member

Join Date: Dec 2001
Location: Menomonie, WI
Posts: 820
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: "smooth bottom" cowl induction air cleaner???

3
Attached Images

__________________
Tommy Mathison
Reply With Quote
  #9
Old 07-26-2004, 11:05 PM
Tommy_Mathison Tommy_Mathison is offline
Senior Member

Join Date: Dec 2001
Location: Menomonie, WI
Posts: 820
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: "smooth bottom" cowl induction air cleaner???

last one... hope this helps.
Attached Images

__________________
Tommy Mathison
Reply With Quote
  #10
Old 07-27-2004, 12:06 AM
camarojoe's Avatar
camarojoe camarojoe is offline
Senior Member

Join Date: Sep 2003
Location: PA
Posts: 5,305
Thanks: 237
Thanked 264 Times in 119 Posts
Default Re: "smooth bottom" cowl induction air cleaner???

I tend to agree with my brother, that "flat bottom" one is actually not a cowl induction air cleaner. Its a closed element pre-69 air cleaner with the cowl induction style lid. I got stung with one of these myself once, not realizing what it was until after I bought it. All CI air cleaners have the snorkel pointing towards the passenger side fenderwell when installed... what you have is an earlier non-CI, closed element air cleaner with the original lid swapped.
__________________
Joe Barr
Reply With Quote
