SW tack help

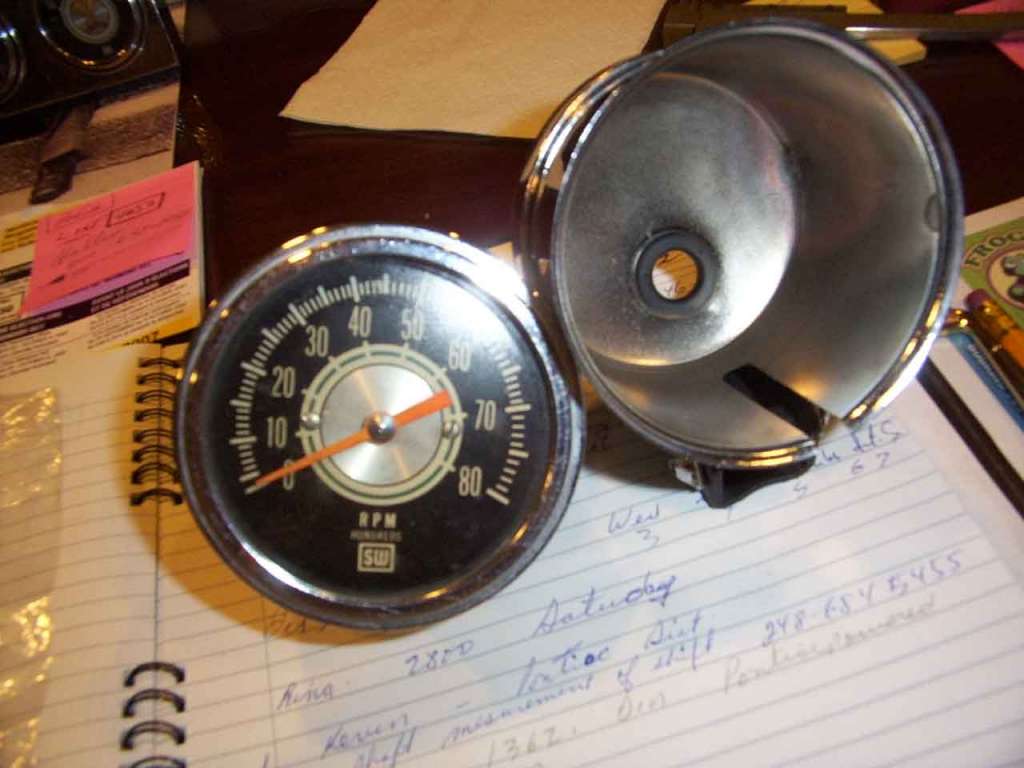

I need to wire my ST warner tack correctly does anyone have
a drawing of the wiring set up for this tack. thanks PJ
|
|
#4
10-10-2007, 04:47 AM
|
|||
|
|||
|
Re: SW tack help
PJ...I have a wiring diagram of a greenline tach and sender...I'll make copies tomorrow and try to scan it tomorrow night.
__________________
 <span style="font-weight: bold"> (__{B}_____]]]]~~~~</span>Don't mess with old farts - age and treachery will always overcome youth and skill! Bullshit and brilliance only come with age and experience.
|
|
#6
10-10-2007, 05:00 AM
|
|||
|
|||
|
Re: SW tack help
PJ...does this tah take a remote sending unit or is it wired right to the coil ???
__________________
<span style="font-weight: bold"> (__{B}_____]]]]~~~~</span>Don't mess with old farts - age and treachery will always overcome youth and skill! Bullshit and brilliance only come with age and experience.
|
|
#7
10-11-2007, 12:56 AM
|
|||
|
|||
|
Re: SW tack help
Bob

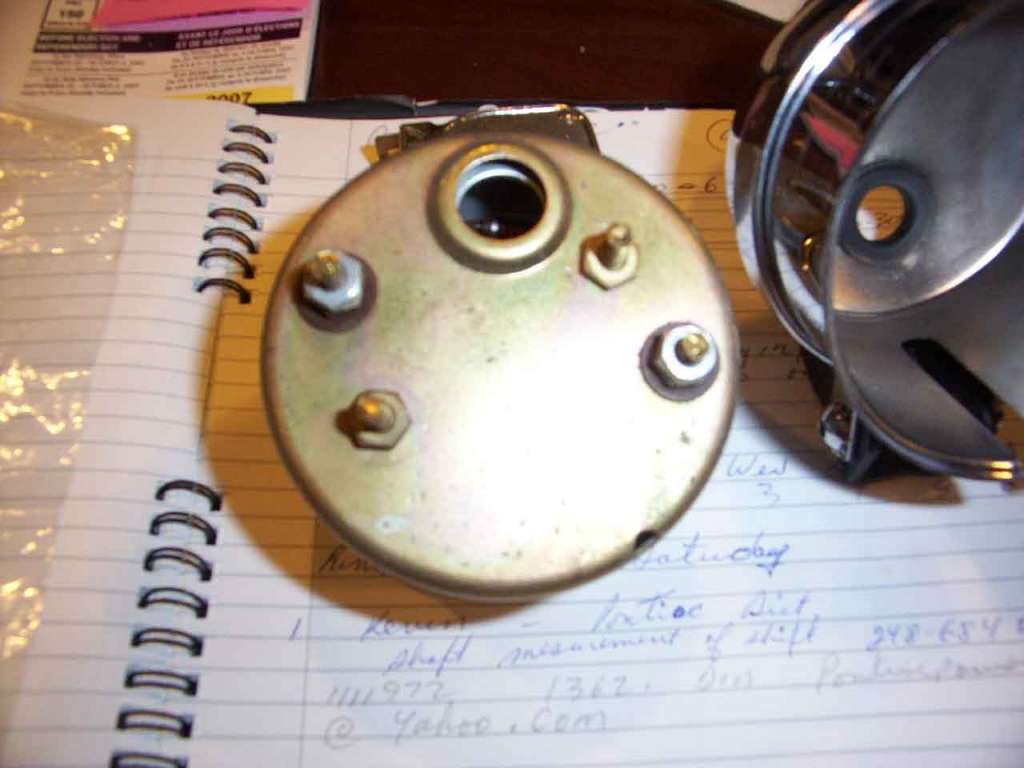

I dont know if the tack has been converted.I notice that the screws on the back have been ground so as to let the nuts go on easier so it might be hooked up right to the coil?? What s the best way to test it. PJ
|
|
#8
10-11-2007, 01:03 AM
|
|||
|
|||
|
Re: SW tack help
If I remember correctly that style tach never required a sender, it is direct hook up. That is according to a thread about 6 months back. A member claimed they had one and it was direct hook up. I have never had one so I can't say for sure.
Jason
|
|
#9
10-11-2007, 03:07 AM
|
|||
|
|||
|
Re: SW tack help
...i think i got the hook-up instructions somewhere...i'll look...
__________________
I don't think it was coincidence that the Great Depression happened during Prohibition...
|
 |
|
|
