Default Poured Concrete Foundation Question???

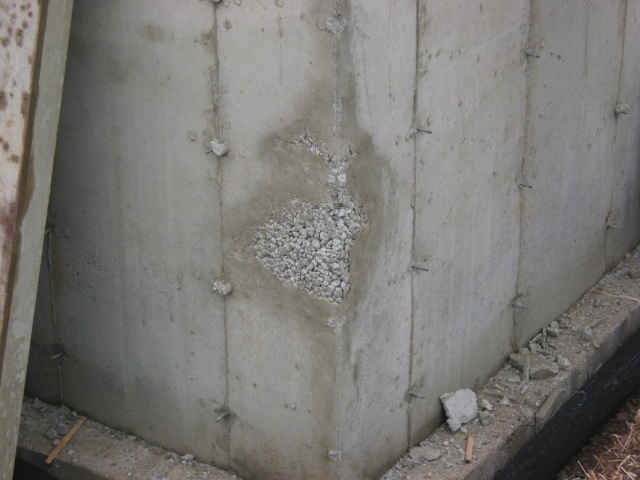

They are getting ready to pour our foundation walls, so I went over to the site today to check out a few of the other houses in the project that have already been poured. Most of them have at least one area where it appears that the concrete was not mixed properly and you can see the aggregate on the outside surface (the other side of the wall looks "normal"). I've attached a pic to show what I mean. Is this a problem? If so, can it be fixed? I have no building experience and appreciate any help that members can provide FWIW, the walls are 10 inches thick...
Attached Images

__________________
Mark
Reply With Quote
Attachments - The Supercar Registry 294081-IMG_5131.JPG 293961-IMG_5179-small.JPG 293915-IMG_5219.JPG
O Garage vBulletin Plugins by Drive Thru Online, Inc.
Click here to view all the pictures posted in this thread...
  #2
Old 10-08-2007, 08:58 AM
427king 427king is offline
Yenko Paid Member

Join Date: Aug 2006
Location: Graceland
Posts: 3,136
Thanks: 0
Thanked 2 Times in 2 Posts
Default Re: Poured Concrete Foundation Question???

I believe that is called "honeycombing" and it should be repaired or filled in with a coat of hydraulic cement ,THEN sealed with rubberized coating . Just went through the same thing.
Reply With Quote
  #3
Old 10-08-2007, 09:15 AM
Zedder's Avatar
Zedder Zedder is online now
Yenko Contributing Member

Join Date: Sep 2002
Location: Ontario, Canada
Posts: 3,316
Thanks: 97
Thanked 633 Times in 346 Posts
Default Re: Poured Concrete Foundation Question???

Thanks 427King...Like I said, I have no clue about this stuff, but just about every foundation I looked at today had at least one area like that. They do seal the foundations with some sort of tar-like stuff and then cover that with a membrane that looks like black "bubble wrap".
__________________
Mark
Reply With Quote
  #4
Old 10-08-2007, 02:54 PM
Salvatore Salvatore is offline
Yenko Contributing Member

Join Date: Nov 2002
Location: Pennsylvania
Posts: 9,908
Thanks: 3
Thanked 229 Times in 193 Posts
Default Re: Poured Concrete Foundation Question???

Not really a big deal. Sometimes that happens when the forms are a little loose in that area or the mixture does not get vibrated in that area as good. One thing about having a house built is that you see everything good and bad and alot of stuff doesn't matter but if you see it you get nervous. Good luck with the project, and try not to beat yourself up to bad. It will all work out. Sam
Reply With Quote
  #5
Old 10-08-2007, 03:40 PM
iluv69s iluv69s is offline
Yenko Contributing Member

Join Date: Apr 2007
Location: usa
Posts: 2,499
Thanks: 65
Thanked 315 Times in 131 Posts
Default Re: Poured Concrete Foundation Question???

Hey Mark, I own a civil engineering firm and small construction co....I also helped build a college football stadium that was all poured concrete...this is very common..typical engineered structures are overdesigned and overbuilt just for such instances...if the void(s) are relatively small I would not worry about it..if they are large, i would definitely point them out to the contractor...We did fill the voids by hand at the stadium, but that was more of a cosmetic fix...at this point, filling the voids is going to add little structural value...just make sure that the area is sealed/waterproofed very well....but typically, it is just that the concrete was not vibrated well enough in that area...it's usually nothing to worry about!!

Congrats and Good Luck on the new house!!

P.S. are you putting in a basement access to store the Z'sss????
Max

also ...didn't you have a 67 cowl plenum a little while back?? did you sell it?? it was kinda rich for me right then, but are you interested in any trades/cash?? is there anything you need for your cars??
Reply With Quote
  #6
Old 10-08-2007, 07:25 PM
Zedder's Avatar
Zedder Zedder is online now
Yenko Contributing Member

Join Date: Sep 2002
Location: Ontario, Canada
Posts: 3,316
Thanks: 97
Thanked 633 Times in 346 Posts
Default Re: Poured Concrete Foundation Question???

Thanks guys...I really appreciate you taking the time to respond. Yeah Sam, it's great to see it getting built, but there is no doubt that I will sweat some of the small stuff that I see! It doesn't help that I have no clue about construction

No Max, I couldn't swing anything larger than a 3 bay garage (and still feed my family) given the costs around here. Most houses on our street are in the Million $$ range and we actually have one of the largest lot at 65 x 115 ft! So I got a 20 x 20 garage with 12 foot ceilings that can accomodate 2 lifts in the future for 4 cars total and a smaller 9 x 20 ft separate bay for the tools, bikes, garden stuff etc. I've attached a pic for you to see the layout. It does have a walk out basement which we can use for a really nice family room in the future.

Yes, I sold the cowl plenum and just about all of my car related stuff to various members on the site. I only have a few things left that I will list in the next week or two. I am going in another direction with my car hobby, so I don't think I'll need too much garage space. Thanks again guys
Attached Images

__________________
Mark
Reply With Quote
  #7
Old 10-08-2007, 07:37 PM
SS427's Avatar
SS427 SS427 is offline
Yenko Contributing Member

Join Date: Jul 2001
Location: Pleasant Plains, IL
Posts: 10,298
Thanks: 3,002
Thanked 4,397 Times in 1,116 Posts
Default Re: Poured Concrete Foundation Question???

[ QUOTE ]
It does have a walk out basement which we can use for a really nice family room in the future.

[/ QUOTE ]

....or a climate controlled restored car display room....
__________________
Rick Nelson
Musclecar Restoration and Design, Inc (retired)
www.musclecarrestorationanddesign.com
https://www.youtube.com/watch?v=62r-6vgk2_8
specialized in (only real) LS6 Chevelle restorations
Reply With Quote
  #8
Old 10-08-2007, 07:56 PM
Zedder's Avatar
Zedder Zedder is online now
Yenko Contributing Member

Join Date: Sep 2002
Location: Ontario, Canada
Posts: 3,316
Thanks: 97
Thanked 633 Times in 346 Posts
Default Re: Poured Concrete Foundation Question???

LOL Rick! It cost me a fully loaded kitchen to get that other bay from my wife...I can't imagine what it would cost me to get a basement showroom!
__________________
Mark
Reply With Quote
  #9
Old 10-09-2007, 04:17 AM
Xplantdad's Avatar
Xplantdad Xplantdad is offline
Moderator

Join Date: Sep 2004
Location: AZ
Posts: 32,485
Thanks: 7,575
Thanked 5,785 Times in 1,984 Posts
Default Re: Poured Concrete Foundation Question???

[ QUOTE ]
I am going in another direction with my car hobby, so I don't think I'll need too much garage space. Thanks again guys

[/ QUOTE ]

Are you gonna have a driver? You 'owe me' a video...LOL
__________________
Bruce
Choose Life-Donate!
Reply With Quote
  #10
Old 10-09-2007, 05:39 AM
Zedder's Avatar
Zedder Zedder is online now
Yenko Contributing Member

Join Date: Sep 2002
Location: Ontario, Canada
Posts: 3,316
Thanks: 97
Thanked 633 Times in 346 Posts
Default Re: Poured Concrete Foundation Question???

I haven't forgotten Bruce! Yeah, the plan right now is to have one nice "everyday" car to take to work, family outings, etc. One nice modern (Z06) "Supercar" for my "alone" time on the weekends, for dates with the wife and to enjoy with my 7 year old son who is just getting the bug. And one nice, but not too nice, "old" car so as not to forget my roots The "old" car will definitely get driven My time frame is to get this done by next summer so the house will be done and the grass/driveway completed by then. It's a dirt bowl over there now! Here's a shot of the "everyday" car (truck really). I picked it up last week
Attached Images

__________________
Mark
Reply With Quote
