WANTED - 1974 z/28 air cleaner

[Jonesy]

Wanted 1974 z/28 dual snorkel air cleaner. This is a one year only air cleaner. Similar to the 70-73 dual snorkel.

Please PM me if you can lead me to one or have one for sale.

Thanks

[BARN FIND]

Is that the one that is for a quadrajet that is slightly smaller diameter than the 70-72 with the pipe out of the bottom right/rear? If so I may have a bottom (no lid).

[mssl72]

PM sent

[Jonesy]

I am not sure exactly what the difference is. It is for the quadrajet.

Thanks for the PM Mark.

[BARN FIND]

TOP


BOTTOM

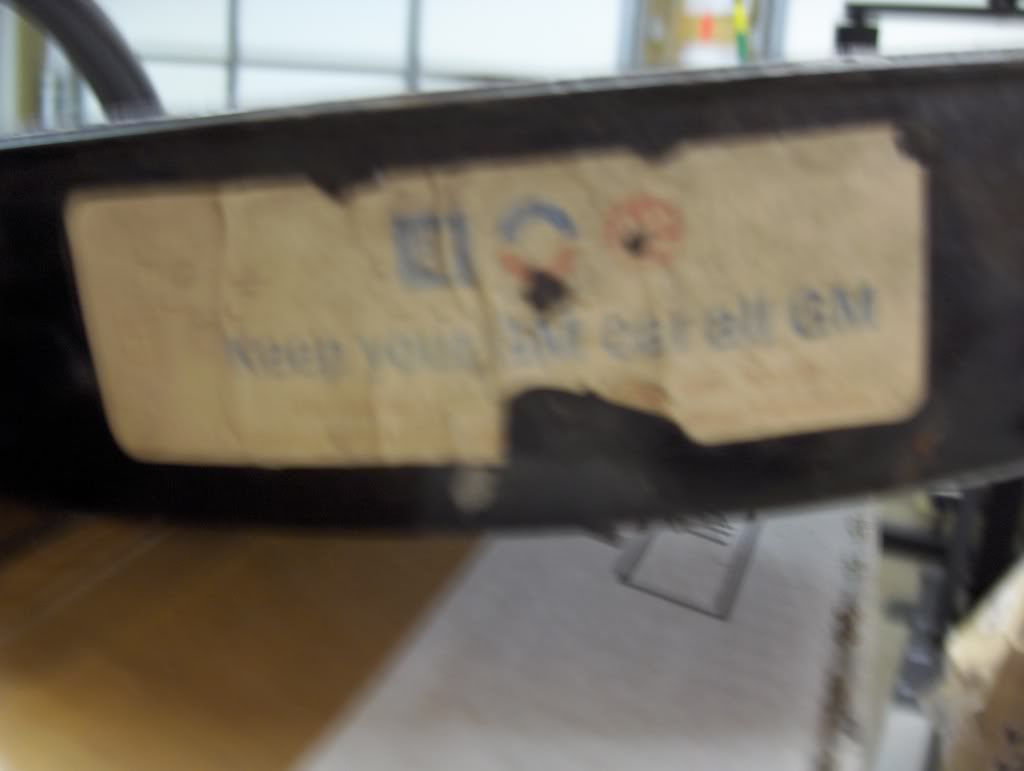

SIDE w/decal


Possible 74 on left, OE 70 on right

[Jonesy]

Thanks alot for the pics. So would the lid be different in diameter or the same as 70-73??

[BARN FIND]

[ QUOTE ]
Thanks alot for the pics. So would the lid be different in diameter or the same as 70-73??

[/ QUOTE ]

That is why I asked about the size, I am not sure if it is a correct for a 1974 Z28, I got it with a 1974 Camaro I bought 10 years ago in Georgia. The lid for the 70 Z is to large for it but I didn't get a lid with it.

[mssl72]

Ok, here are some pictures of a '74 Z28 air cleaner. The snorkles measure just a hair over 2 3/4" long, when measured down the middle of the snorkle, from the body to the end. The overall diameter is 15 1/4". There weren't any decals applied to the lid from the factory.






This air cleaner was an early version that was used on non-HEI cars. HEI was introduced in January 1974. The larger diameter of the HEI distributor forced Chevy to make a bigger "dent" in the air cleaner body for clearance. This difference may have forced a different part number to be applied to the HEI version, but I don't know if that is a fact.
I hope this helps.

[Jonesy]

Ray, your base doesnt look like the right one.
Mark, those are great pics and info. I read on the 2nd gen site the the air cleaner is the same for HEI. I am definately interested in buying yours. I'll take it to PM.

[Paul_S]

Ray's air cleaner looks to be one for a 'vette.
