Default Question about VIN stampings

I was looking at some partial VIN stampings and it sure looks like the partial VIN on the engine is also the exact same stamp used on the hidden VIN's on the body. Is this a known fact? I know the transmission VIN and engine VIN should be the exact same stamp but I wasn't sure if the engine/trans stamp would match the hidden VIN as well.
__________________
69 Z28 JL8, #'s match - being restored
Reply With Quote
Attachments - The Supercar Registry 179175-DSCF0254.JPG 179172-DSCF0252.JPG 179170-DSCF0251.JPG 178290-firewallvin3.JPG
O Garage vBulletin Plugins by Drive Thru Online, Inc.
Click here to view all the pictures posted in this thread...
  #2
Old 12-25-2005, 03:15 AM
njsteve's Avatar
njsteve njsteve is offline
Yenko Contributing Member

Join Date: Nov 2003
Location: NJUSA
Posts: 8,372
Thanks: 8
Thanked 2,772 Times in 851 Posts
Default Re: Question about VIN stampings

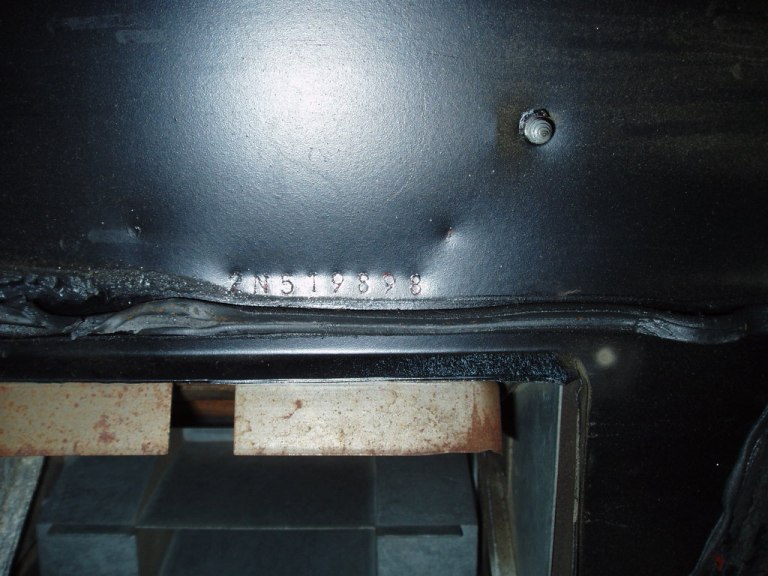

It is usually the same sequence. See the attached photo of a 72 Trans Am. It goes Year, Plant, Vin sequnce: "2N519898"
Attached Images

Reply With Quote
  #3
Old 12-25-2005, 03:37 AM
retengw31 retengw31 is offline
Senior Member

Join Date: Feb 2003
Location: Brighton, MI
Posts: 129
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: Question about VIN stampings

I can help out a litle on Oldsmobiles built in Lansing plant from 1968-1973 when I was a process engineer on the final assembly line. Among many other things, VIN stamping on the frames was one of my responsibilities.

All the Olds cars built then were body/frame and the only hidden VIN stamps were on the top frame rails on the drivers side in two places. One was near the transmission crossmember and the other was behind the rear wheel. In each case, it was a 9 digit alphanumeric with the division (Olds was number 3), the year (8 for 68, etc.), the plant code (Lansing was M), and the 6 digit sequential number starting with 100000. This same number was hand stamped on the engine block and the transmission casing with a BFH. Only other place the VIN appeared in the car was on the VIN plate that was rivetted to the upper I/P and the blue sticker/label in the door jambs after 1970(I think).

I think that policy also applied to other GM divisions with body frame cars, not sure what they did on unibody and partial frame cars (like Camaro/Nova, etc.)
__________________
1966 442- L69 4 speed
1968 Ramrod W31- bought new
1968 442 W30-real thing,but a little different
1975 Delta Royale convertible-
Reply With Quote
  #4
Old 12-25-2005, 05:38 AM
Jeff H Jeff H is offline
Senior Member

Join Date: Feb 2001
Location: Ewing, NJ
Posts: 2,454
Thanks: 0
Thanked 80 Times in 24 Posts
Default Re: Question about VIN stampings

I know the sequence is the same but I'm wondering if they physically used the same gang stamp to hit all the areas that needed the partial VIN. So if there was something odd about one of the digits it would look exactly the same on all the stamps(ie they used an "I" instead of a "1"). So would they stamp the engine/trans and then hit the top of the cowl and firewall by the heater box all with the same stamp before changing the gang stamp for the next car?
__________________
69 Z28 JL8, #'s match - being restored
Reply With Quote
  #5
Old 12-25-2005, 06:28 AM
Lynn Lynn is online now
Yenko Contributing Member

Join Date: Feb 2005
Location: Oklahoma
Posts: 7,763
Thanks: 89
Thanked 3,568 Times in 1,505 Posts
Default Re: Question about VIN stampings

JohnZ could certainly give us a definitive answer on this, but I will go out on a limb and say the two body stamps were from the same unit. However, the partial VIN on engine and trans were a smaller font, so could not be the same. I want to say 3/16 on the body numbers and 1/8 on the engine/trans. I am almost certain JohnZ recently posted something about the body stampings on the team camaro site. It was a type of roll stamp and done by machine, not with a gang holder like engine and trans.

I just went out in the garage and looked at my body stampings and they appear identical, except the one under the blower fan is upside down. The fifth digit on mine is somewhat out of place about the same amount on both of mine.

Lynn
Reply With Quote
  #6
Old 12-25-2005, 10:28 PM
Pacecarjeff's Avatar
Pacecarjeff Pacecarjeff is offline
Yenko Contributing Member

Join Date: Sep 2005
Location: Ft. Lauderdale, FL
Posts: 360
Thanks: 18
Thanked 23 Times in 8 Posts
Default Re: Question about VIN stampings

The hidden body stamps are different then the engine and trans stamps.

The Engine and Transmission stamps should be identical to each other.
They were stamped by the same guy at the same time.
Reply With Quote
  #7
Old 12-25-2005, 11:00 PM
njsteve's Avatar
njsteve njsteve is offline
Yenko Contributing Member

Join Date: Nov 2003
Location: NJUSA
Posts: 8,372
Thanks: 8
Thanked 2,772 Times in 851 Posts
Default Re: Question about VIN stampings

I guess I misunderstood your initial question. While the alpha numeric information will be the same, the stamps that imprint them are definitely different in both size and font.
Reply With Quote
  #8
Old 12-25-2005, 11:34 PM
COPO COPO is offline
Yenko Contributing Member

Join Date: Mar 2000
Location: Atlanta, GA & the Middle East
Posts: 3,022
Thanks: 400
Thanked 377 Times in 201 Posts
Default Re: Question about VIN stampings

Is that true on all full frame cars, the body doesn't have hidden VINs and they are only on the frame as outlined in the post above by dehw31? I though Chevelles had hidden VINs on the body like Camaros.
Reply With Quote
  #9
Old 12-26-2005, 04:57 PM
Keith Tedford Keith Tedford is offline
Senior Member

Join Date: Jul 2000
Location: Ontario, Canada
Posts: 1,695
Thanks: 3
Thanked 55 Times in 12 Posts
Default Re: Question about VIN stampings

The transmission and engine were done with the same hand stamp. The frame and firewall were done with the roller type stamp. The numbers were changed manually so sometimes numbers were installed upside down and "6" and "9" got mixed up along with whatever other mistakes that could be made. I maintained these units in the Oshawa truck plant for many years. Hand stamping the firewall with that many numbers would cave the sheet metal in and just would not work. The roller type stamps for the sheet metal could act up some times and not index properly but worked pretty well for the most part when properly maintained. Our Baltimore built '69 had no VIN numbers on the frame, just some frame manufacturer's numbers.
__________________
Chevelleless after 46 years......but we did find a low mileage, six speed, silver 2005 Corvette. It will just have to do for now.
Reply With Quote
  #10
Old 12-26-2005, 06:02 PM
SS427's Avatar
SS427 SS427 is offline
Yenko Contributing Member

Join Date: Jul 2001
Location: Pleasant Plains, IL
Posts: 10,304
Thanks: 3,045
Thanked 4,440 Times in 1,123 Posts
Default Re: Question about VIN stampings

Charlie,
Full frame cars also have VIN's stamped on the frame and firewall. It depends on the plant and body style as to where they are found. Chevelles also have them stamped on the firewalls and frame though I seldom find any VIN stampings on Chevelle frames. Also, at least one plant routinely does not stamp the firewall on the Chevelle and stamps the VIN under the dash panel instead as I recently was informed.
Rick
__________________
Rick Nelson
Musclecar Restoration and Design, Inc (retired)
www.musclecarrestorationanddesign.com
https://www.youtube.com/watch?v=62r-6vgk2_8
specialized in (only real) LS6 Chevelle restorations
Reply With Quote
