#2
|
||||
|
||||
![]()

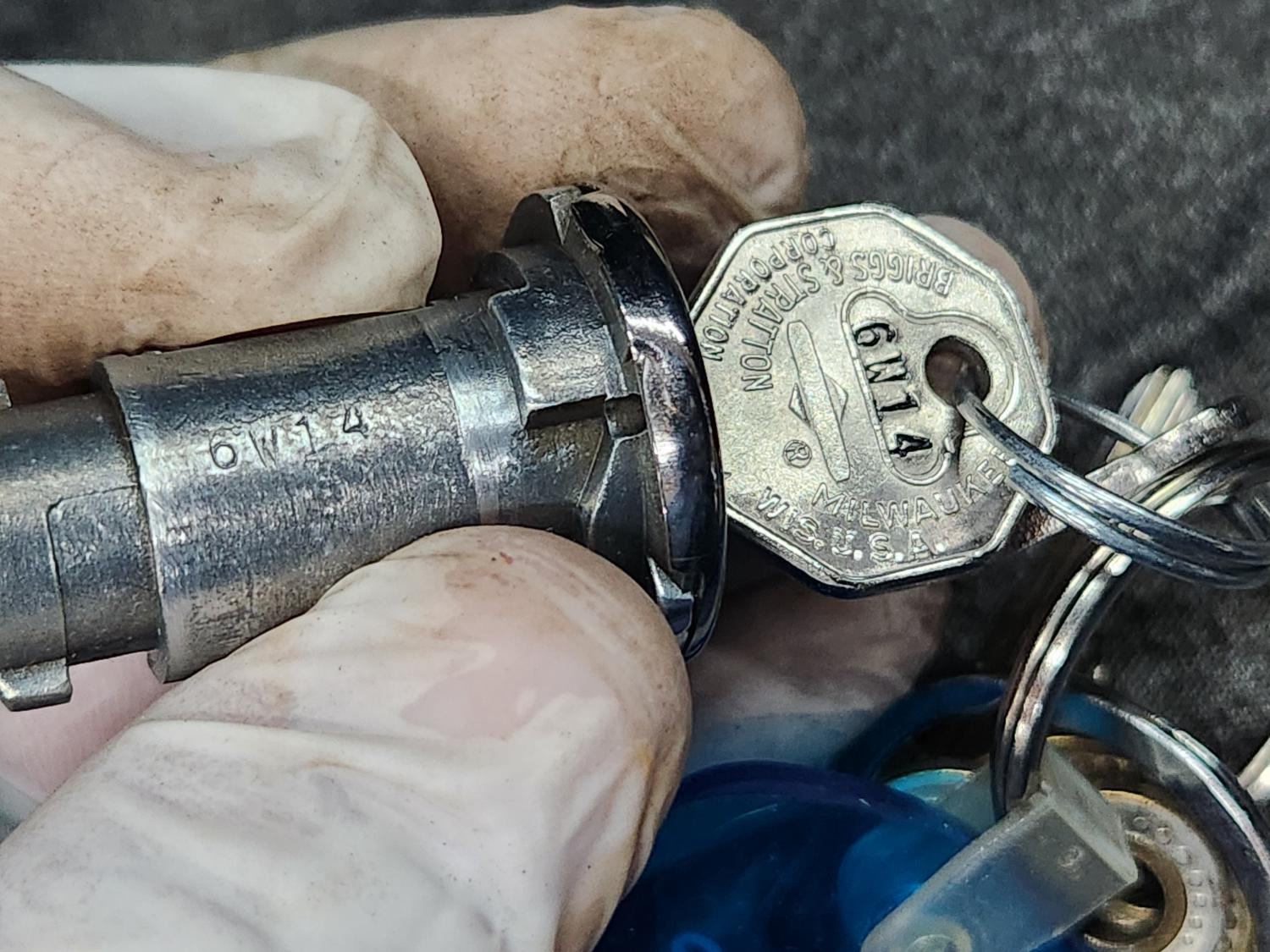

I rebuilt the internal mechanisms for the LH door glass and LH quarter window, installed a new vent window channel as the Old one was destroyed. The glass was banging around getting scratches over the years. I used a bolt in style roller to replace the busted large roller. Jesser's classic keys rebuilt my lock cylinders and they also made keys stamped to match which is cool because the key codes are original to the sales documentation. I adjusted the door and it no longer needs to be slammed shut. A gentle push and it catches. This is with original door hinges so I'm happy.
I installed the water shields and didn't forget to tuck them in at the bottom. After that I installed the door panel with the handle springs in between the panel and mechanism. Door panel, handles, handle washers, arm rest are all original gm. I can see the light at the end of the tunnel. |
The Following 18 Users Say Thank You to jbtech For This Useful Post: | ||
1967 4K (07-05-2023), 1967Z28 (07-06-2023), 69M22Z (07-05-2023), big gear head (07-24-2023), Chuck_Burg (07-05-2023), Dave Rifkin (07-06-2023), dykstra (07-10-2023), John (07-10-2023), juliosz (08-01-2023), L78_Nova (07-05-2023), L_e_e (07-05-2023), olredalert (07-06-2023), PeteLeathersac (07-05-2023), RPOLS3 (07-06-2023), scuncio (07-24-2023), Steve Shauger (07-06-2023), SuperNovaSS (07-06-2023), Too Many Projects (07-05-2023) |
#3
|
||||
|
||||
![]()

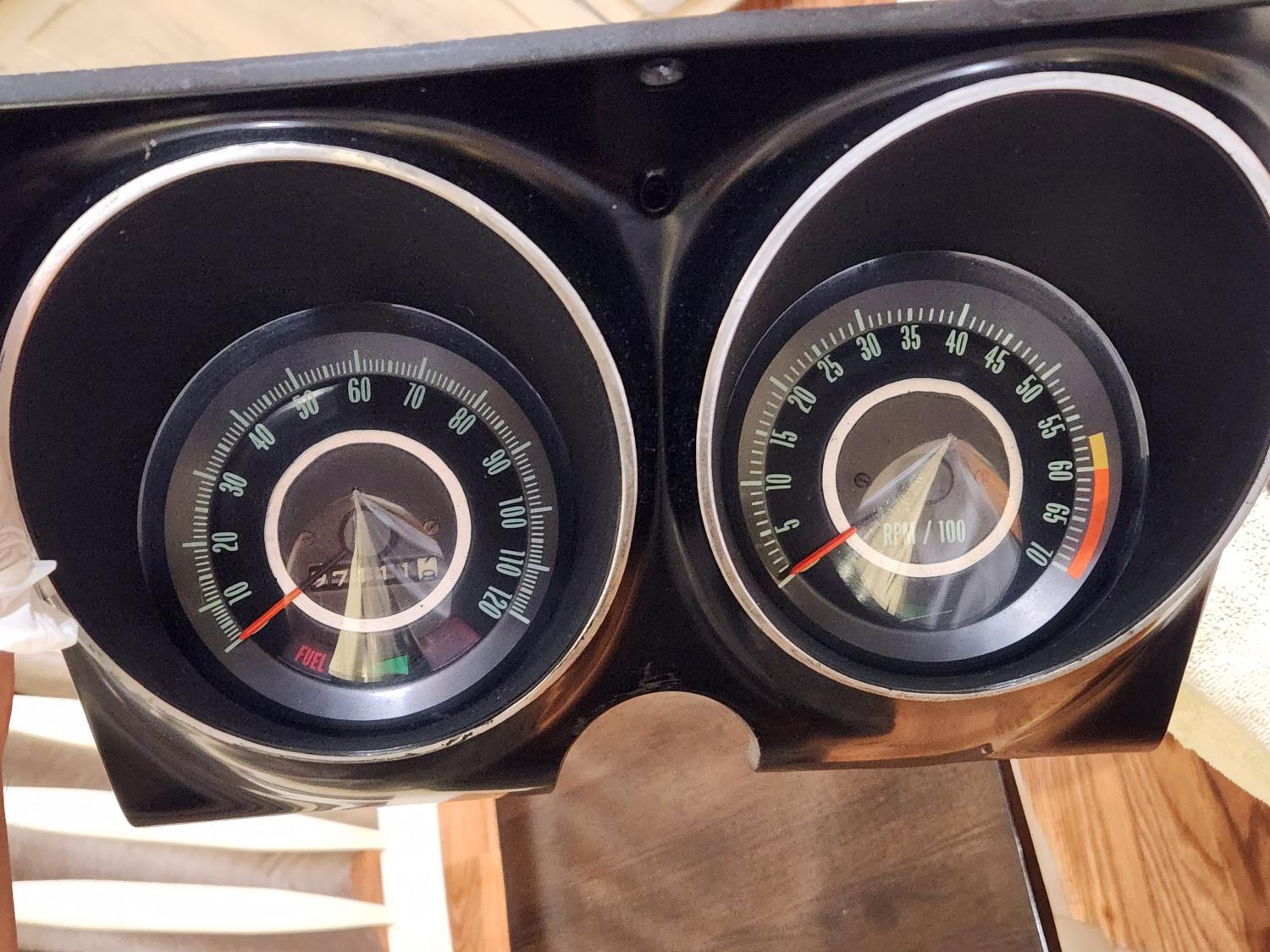

Disassembled, cleaned, and reassembled the original cluster assembly. A little over 97K original miles.
I swapped the black housing to a better condition spare original gm one I had on the shelf. I also swapped the circuit board as the original was fried. I installed all new bulbs and can't wait to see it lit up. Last edited by jbtech; 07-24-2023 at 12:12 PM. |
The Following 12 Users Say Thank You to jbtech For This Useful Post: | ||
1967Z28 (07-24-2023), 1crossram (07-24-2023), 69M22Z (07-28-2023), big gear head (07-24-2023), dustinm (08-02-2023), dykstra (07-24-2023), juliosz (07-24-2023), olredalert (07-24-2023), PeteLeathersac (07-24-2023), RPOLS3 (07-24-2023), Steve Shauger (07-24-2023), SuperNovaSS (07-25-2023) |
#4
|
||||
|
||||
![]()

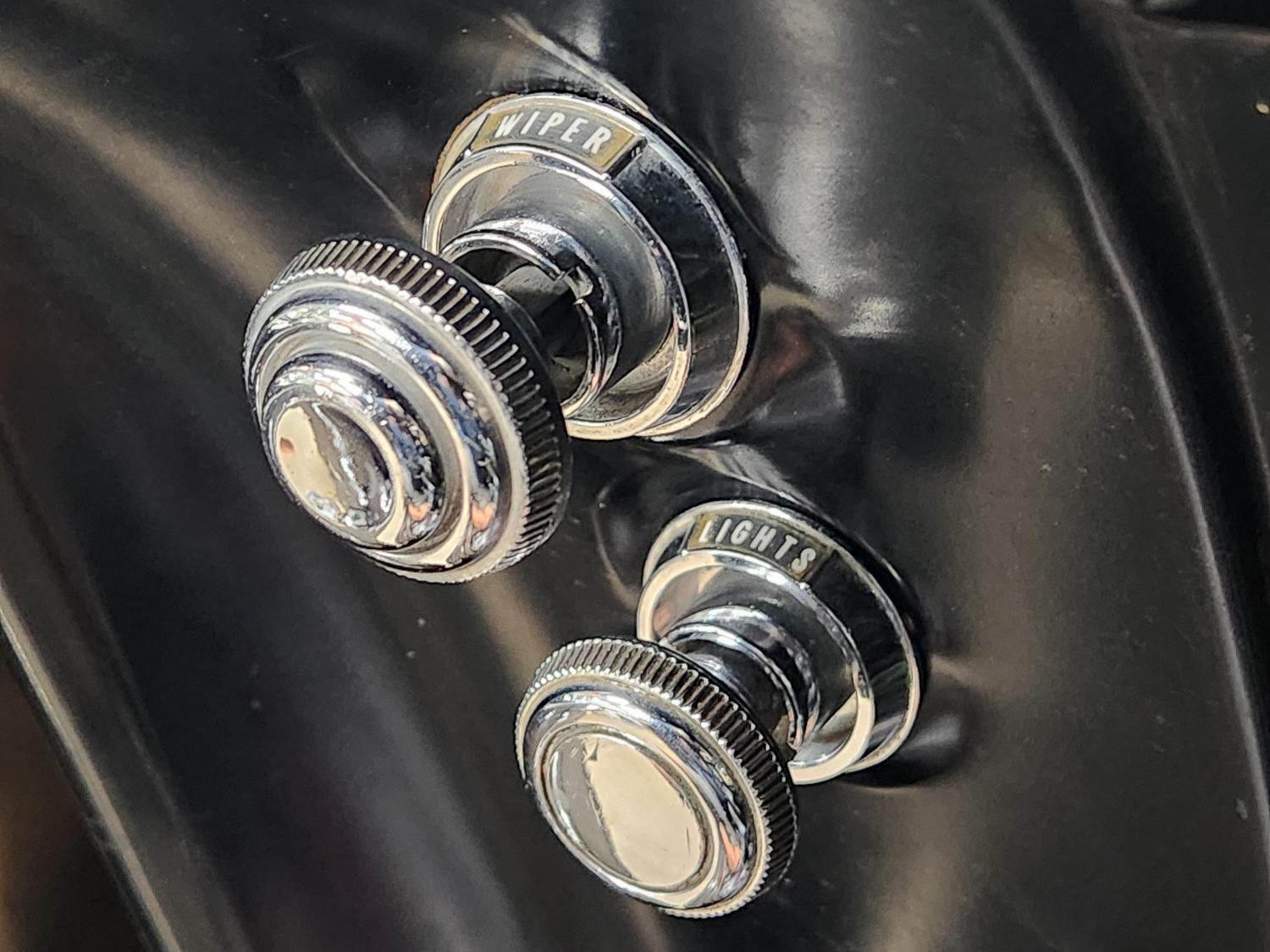

Original GM dash switches installed. I sorted through a box, weeding out any damaged bezels or repop parts. The lighter is NOS. The ignition switch is the original coded "born with" rebuilt assembly. I used the specialized tools to reinstall without damage.
|
The Following 7 Users Say Thank You to jbtech For This Useful Post: | ||
1967Z28 (07-29-2023), 69M22Z (07-28-2023), big gear head (07-27-2023), Copo_Cartel (07-30-2023), dykstra (09-27-2023), scuncio (07-27-2023), Too Many Projects (07-28-2023) |
#5
|
||||
|
||||
![]()
Gauges are in.
In 67 the low fuel lamp socket needs to be installed below the circuit board as the fuel module sends a positive signal. I believe a previous owner didn't realize this and fried the board. This also explains the fried wire coming from the original console harness. |
The Following 4 Users Say Thank You to jbtech For This Useful Post: | ||
#6
|
||||
|
||||
![]()
Trim plate, radio cover plate, ash tray assembly installed. All used original GM parts cleaned with soap and water before install.
|
The Following 12 Users Say Thank You to jbtech For This Useful Post: | ||
1967Z28 (07-29-2023), 69M22Z (07-28-2023), big gear head (07-28-2023), BJCHEV396 (08-04-2023), Dave Rifkin (07-30-2023), dykstra (07-28-2023), gtomike1967 (07-28-2023), Hawkeye (07-28-2023), napa68 (07-30-2023), olredalert (07-28-2023), SuperNovaSS (07-28-2023), Too Many Projects (07-28-2023) |
#7
|
||||
|
||||
![]()
It all looks great, Jose.
__________________
Mitch 1970 Chevelle SS 1966 Chevelle SS 1967 Camaro ss/rs 1938 Business coupe, street rod 2000 FXSTS, original owner, 13k miles |
The Following User Says Thank You to Too Many Projects For This Useful Post: | ||
jbtech (07-30-2023) |
#9
|
||||
|
||||
![]()
I cleaned, replaced grease fittings where needed, greased and installed tie rods, and idler arm. The original spare tie rods I used were in great shape.
|
The Following 4 Users Say Thank You to jbtech For This Useful Post: | ||
#10
|
||||
|
||||
![]()
Coming along nicely!!
![]()
__________________
Dave Dykstra 1968 Camaro Palomino Ivory/Ivy Gold interior -Delivered to Courtesy Chevrolet, Los Angeles, CA 2013 Corvette Grand Sport 60th Anniversary Edition Arctic White/Diamond Blue interior -Delivered to Bill Jacobs Chevrolet, Joliet, IL NCRS#66003 Speed has never killed anyone. Suddenly becoming stationary, that’s what gets you. – Jeremy Clarkson. Dykstra Motorsports |
The Following User Says Thank You to dykstra For This Useful Post: | ||
jbtech (07-31-2023) |
![]() |
