  #11
Old 12-04-2008, 05:53 AM
Andy Andy is offline
Senior Member

Join Date: Apr 2000
Location: Cleveland, Georgia
Posts: 403
Thanks: 149
Thanked 201 Times in 63 Posts
Default Re: ZL-1 City

[ QUOTE ]
Like to see what I could make with some mods?? The 302 in my new 67 Z28 race car makes 475hp. I'll have to post dyno sheets.
Enjoy,

Jerry

[/ QUOTE ]

Where did your 302 peak out, close to 8,000? How much tq did you get out of it? Got a dyno sheet for it? A friend of mine is considering building a 302 for his 3rd Gen IROC Z and wanted to see the curves on a well built 302.
__________________
Andy
1967 Camaro 406 4 speed
1969 C/10 383 5 speed
1969 D300 318 4 speed
1969 Super Bee 383 4 speed
1972 K/5 350 Turbo 350
1972 Duster 340 727
1974 'Cuda 340 4 speed
Reply With Quote
  #12
Old 12-04-2008, 06:09 AM
Chris_69_SS Chris_69_SS is offline
Senior Member

Join Date: Mar 2006
Location: Montreal, home of the Expos
Posts: 182
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: ZL-1 City

Very NICE!
__________________
1969 Chevelle SS 396
Oshawa Built L34/M20
Shhh....11.30's @ 121mph
Reply With Quote
  #13
Old 12-04-2008, 04:48 PM
Jerry@CHP Jerry@CHP is offline
Banned

Join Date: Feb 2005
Location: Eldersburg, Maryland
Posts: 351
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: ZL-1 City

Eric,

Funny story. I received a phone call this past summer. A guy called me looking for a 67 Z28 and wanted to know if I knew of any for sale. One thing led to another. Next thing he tells me that his late brother was invloved with racing. Did I know John Lingenfelter? I almost fell out of my chair! This was his younger brother, Charlie. I told him that his older brother was one of the "icons" of racing and that I thought JL was one of the most respected people in motorsports. What a small world.

Charlie owns or rents a suite at the new Charlotte race track and invited me there when ever I get to race at that facility. I plan on going there this coming spring as NHRA now has a national event there.

In my business, you never know who is going to call you.

Jerry
Reply With Quote
  #14
Old 12-04-2008, 05:17 PM
Jerry@CHP Jerry@CHP is offline
Banned

Join Date: Feb 2005
Location: Eldersburg, Maryland
Posts: 351
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: ZL-1 City

Andy,

Will post 302 dyno sheet data when I get home. I am out of town now on a Camaro inspection trip. I do remember that the 302 in my 67 Z28 did pull strong numbers up to 8000 or 8200rpm. Torque was in the low 300 range but I'll get the data for you. One thing that I have learned over the past 10-15 years is changing the lobe center on these engines makes a big difference in hp. Remember, in Stock Eliminator we have a glass ceiling and that's why you tweek everything that you can. After many years of research, it pays off. That is why we have built a big following for engine rebuilding and restoration. All of our customer base who we have done engines for have a big smile on their face!

I'll also post the dyno sheet on another 396-375 hp L78 engine that I just finished last week. All stock including a 3863143 camshaft with my little tricks paid off on this one too. Made 446 peak hp at like 6100 rpm. More than many get out of an L72 engine. And this was done on Bub's dyno which is on the conservative side.

More later,

Jerry
Reply With Quote
  #15
Old 12-04-2008, 05:51 PM
Chevy454 Chevy454 is offline
Senior Member

Join Date: Mar 2000
Location: Alton, MO, USA
Posts: 11,923
Thanks: 0
Thanked 8 Times in 8 Posts
Default Re: ZL-1 City

[ QUOTE ]
I'll also post the dyno sheet on another 396-375 hp L78 engine that I just finished last week. All stock including a 3863143 camshaft with my little tricks paid off on this one too. Made 446 peak hp at like 6100 rpm. More than many get out of an L72 engine. And this was done on Bub's dyno which is on the conservative side.

[/ QUOTE ]
Jerry: on these dyno pulls, what exhaust are you running? Headers or manifolds??
Reply With Quote
  #16
Old 12-04-2008, 05:53 PM
Jerry@CHP Jerry@CHP is offline
Banned

Join Date: Feb 2005
Location: Eldersburg, Maryland
Posts: 351
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: ZL-1 City

Headers with mufflers.
Reply With Quote
  #17
Old 12-05-2008, 12:03 AM
Andy Andy is offline
Senior Member

Join Date: Apr 2000
Location: Cleveland, Georgia
Posts: 403
Thanks: 149
Thanked 201 Times in 63 Posts
Default Re: ZL-1 City

[ QUOTE ]
Andy,

Will post 302 dyno sheet data when I get home. I am out of town now on a Camaro inspection trip. I do remember that the 302 in my 67 Z28 did pull strong numbers up to 8000 or 8200rpm. Torque was in the low 300 range but I'll get the data for you. One thing that I have learned over the past 10-15 years is changing the lobe center on these engines makes a big difference in hp. Remember, in Stock Eliminator we have a glass ceiling and that's why you tweek everything that you can. After many years of research, it pays off. That is why we have built a big following for engine rebuilding and restoration. All of our customer base who we have done engines for have a big smile on their face!

I'll also post the dyno sheet on another 396-375 hp L78 engine that I just finished last week. All stock including a 3863143 camshaft with my little tricks paid off on this one too. Made 446 peak hp at like 6100 rpm. More than many get out of an L72 engine. And this was done on Bub's dyno which is on the conservative side.

More later,

Jerry

[/ QUOTE ]

Thanks for the info. I look foward to seeing the sheets. I was considering a 302 build for my 67 Camaro, because I love high winding small blocks, but I decided on a 406 because I like torque an the ability to fry the tires from a roll too. My motor ended up making 505 hp and 506 ft lbs @ 5200/5300 respectively with a hydrualic flat tappet and a set of 195 AFRs.



View Video on FQuick
__________________
Andy
1967 Camaro 406 4 speed
1969 C/10 383 5 speed
1969 D300 318 4 speed
1969 Super Bee 383 4 speed
1972 K/5 350 Turbo 350
1972 Duster 340 727
1974 'Cuda 340 4 speed
Reply With Quote
  #18
Old 12-05-2008, 03:56 AM
Jerry@CHP Jerry@CHP is offline
Banned

Join Date: Feb 2005
Location: Eldersburg, Maryland
Posts: 351
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: ZL-1 City

Andy,

Here is sheet on the bone stock L78 that we did last week. First column is the torque and second is HP. I will dig for my 302 dyno sheets this evening after I get Camaro reports written.

Jerry
Attached Images

Reply With Quote
  #19
Old 12-05-2008, 04:56 AM
Andy Andy is offline
Senior Member

Join Date: Apr 2000
Location: Cleveland, Georgia
Posts: 403
Thanks: 149
Thanked 201 Times in 63 Posts
Default Re: ZL-1 City

Thats impressive for a stock cam/heads. Making power all the way to 6200.
__________________
Andy
1967 Camaro 406 4 speed
1969 C/10 383 5 speed
1969 D300 318 4 speed
1969 Super Bee 383 4 speed
1972 K/5 350 Turbo 350
1972 Duster 340 727
1974 'Cuda 340 4 speed
Reply With Quote
  #20
Old 12-05-2008, 05:53 AM
Jerry@CHP Jerry@CHP is offline
Banned

Join Date: Feb 2005
Location: Eldersburg, Maryland
Posts: 351
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: ZL-1 City

Andy,

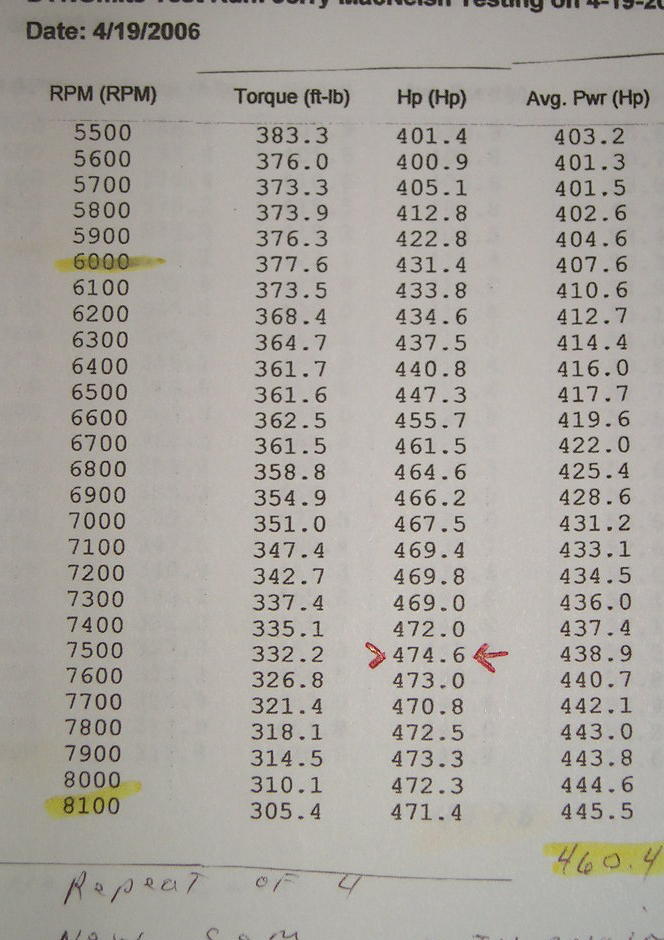

Found the sheets on the 302 that's in my car now. Pulled engine to 8100rpm. Note that this engine pulled exceptional HP up to 8000rpm with no signs of giving up. The torque is better than I remembered too. Stock "O" rocker arms, stock head castings and camshaft that is slightly less than .485" lift.......and 11:to 1 pistons. I should also note that the new car was on the rev limiter going through the traps at Maple Grove last month........8600rpm at 124.06 mph. Enjoy.

This is why we build so many stock restoration engines for customers now. Our work in the world of Stock Eliminator has paid off in more ways that one.

Jerry
Attached Images

Reply With Quote
