Does it have multi leaf or mono leaf perches. I do not see the mount for the 67 traction bar

[cook_dw]

Can you post a pic of the axle tubes going into the center section? BTW Im not a fan of the stamping but I could be wrong at this point..

[Kurt S]

Looks like a 67 axle. Should have monoleaf perches.
Is there evidence a radius rod bracket was attached? http://www.camaros.org/radiusrod.shtml

[Fast67VelleN2O]

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: ssl78</div><div class="ubbcode-body">Does it have multi leaf or mono leaf perches. I do not see the mount for the 67 traction bar </div></div>

It's an October of 1966 rear end. 1967 did not have the traction bar at that point yet.

[rafbody]

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: Fast67VelleN2O</div><div class="ubbcode-body"><div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: ssl78</div><div class="ubbcode-body">Does it have multi leaf or mono leaf perches. I do not see the mount for the 67 traction bar </div></div>

It's an October of 1966 rear end. 1967 did not have the traction bar at that point yet. </div></div>

If the stamped assembly date is correct it is a January 1967 assembled rear end and should have had the bracket for the rod.

[Fast67VelleN2O]

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: rafbody</div><div class="ubbcode-body">

If the stamped assembly date is correct it is a January 1967 assembled rear end and should have had the bracket for the rod. </div></div>

Were the perches and brackets added to the housing during assembly when the assembly was stamped? I would assume that wasn't the case.

[Blownrsz]

It does not have the bracket for the traction bar. I'll get pics of the the spring mounts.

[Kurt S]

By that date, a 4.10 axle should have a bracket.

[Blownrsz]

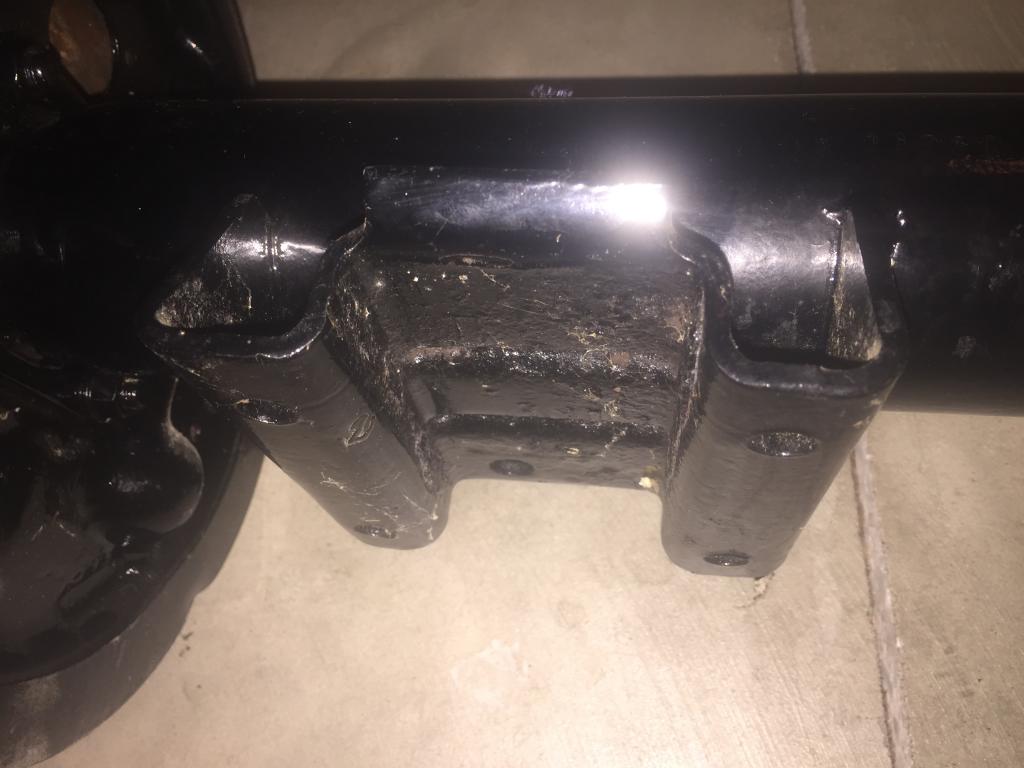

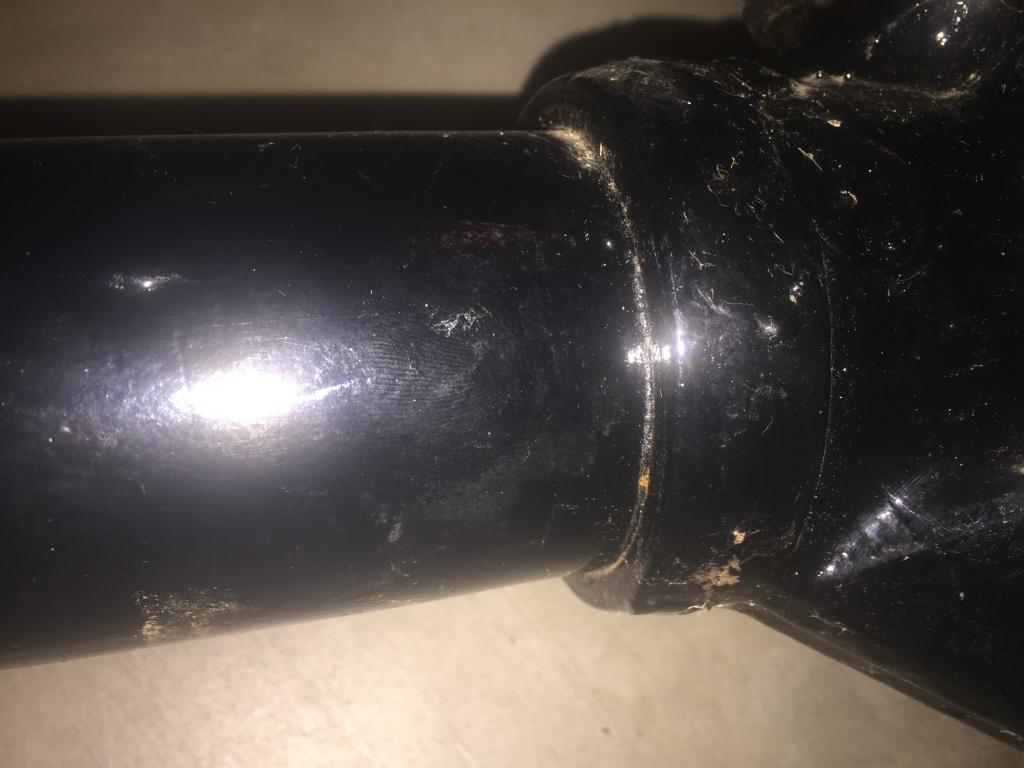

Here are the axle tubes and the spring mounts

[Blownrsz]

After a lot closer inspection it looks like the traction bar bracket had been removed.
