I doubt any production ZL1 engine got near 575 hp. We worked with Bill Porterfield back in the '90s on a ZL1 dyno comparison. With a good tune up, open headers, no AIR pump, air cleaner or alternator it did 523 hp.

http://www.camaros.org/copo.shtml

Camaro High Performance has rebuilt several. With racing oil and modern rings, they see 550+hp.
__________________
Learning more and more about less and less...
Reply With Quote
  #2
Old 05-07-2020, 11:19 PM
Flying Undertaker Flying Undertaker is offline
Senior Member

Join Date: Dec 2017
Location: Northeast Ohio
Posts: 258
Thanks: 63
Thanked 103 Times in 66 Posts
Default 4-30-20 day for the 430 CanAm aluminum big block Chevy

Quote:
Originally Posted by William View Post
I doubt any production ZL1 engine got near 575 hp. We worked with Bill Porterfield back in the '90s on a ZL1 dyno comparison. With a good tune up, open headers, no AIR pump, air cleaner or alternator it did 523 hp.

http://www.camaros.org/copo.shtml

Camaro High Performance has rebuilt several. With racing oil and modern rings, they see 550+hp.
I just had my '69 ZL-1 engine built by Brian Tilburg at Tilburg Racing in Trout Run, PA. All original 052 engine block that was bored .030 by previous owner. All NOS GM internals used, even .030 over GM pistons. Dynoed in Apr. 2019 (2nd pull) at 601 hp @ 6700 rpm limit that I had specified because of the age and rarity of the block. Brian said that the camshaft was still pulling hard, and had not reached its peak on the curve. He said it would have maybe 15-20hp more by 7300, as he had done several ZL-1's for NHRA Stock Eliminator AA/SA cars before. Race break-in oil and modern rings used. I have both dyno sheets. Same conditions as one stated above; good tune up, open headers, no air pump, no air cleaner or alternator!

Last edited by Flying Undertaker; 05-07-2020 at 11:23 PM. Reason: addition at bottom
Reply With Quote
The Following 2 Users Say Thank You to Flying Undertaker For This Useful Post:
Arrowsmith (05-08-2020), EZ Nova (05-08-2020)
  #3
Old 05-08-2020, 06:33 PM
EZ Nova EZ Nova is online now
Senior Member

Join Date: Mar 2004
Location: Ontario, Canada
Posts: 1,013
Thanks: 32
Thanked 225 Times in 137 Posts
Default

Quote:
Originally Posted by Flying Undertaker View Post
I just had my '69 ZL-1 engine built by Brian Tilburg at Tilburg Racing in Trout Run, PA. All original 052 engine block that was bored .030 by previous owner. All NOS GM internals used, even .030 over GM pistons. Dynoed in Apr. 2019 (2nd pull) at 601 hp @ 6700 rpm limit that I had specified because of the age and rarity of the block. Brian said that the camshaft was still pulling hard, and had not reached its peak on the curve. He said it would have maybe 15-20hp more by 7300, as he had done several ZL-1's for NHRA Stock Eliminator AA/SA cars before. Race break-in oil and modern rings used. I have both dyno sheets. Same conditions as one stated above; good tune up, open headers, no air pump, no air cleaner or alternator!
Ya you would have probably made more power 5-700RPM more. Those cam were rumored to pull well into the 7500/7800 RPM range, just not sure they were making more power or just hanging on better without the drop?

I looked at my ZL1 dyno sheet, @ 6700 I was at 785.1 Hp but it should have been higher. And you "probably" left 50 or so Hp on the table with you deal using the GM piston design and not pulling to 73/7500 range. Modern piston with 1/16 rings or better rings and not the 5/16 would have picked it up nicely too.

THEN one can look at the heads/valves and see what "could" be found there? I don't know what you did with your stuff, like better modern valve, back cut and valve job, but there is POWER there too.
__________________
'58 Apache pick up restomodding with twin turbo 522
'78 Z28 4sp being restored
'78 Z28 32,000 survivor, Og Yellow paint, AC.
'70 W30 convert TRIBUTE
'70 CANADIAN Nova SS396 L78 Pro Street
'69 CANADIAN Nova SS 396/350 hp
'67 CANADIAN Nova SS 427 10 sec. driver
'66 CANADIAN Nova SS Race Car
'69 FIREBIRD Tubbed Racecar
'61 CANADIAN Pontiac Bubble top 409+/4sp (SOLD)
'31 ALL STEEL Chevy P.U. GONE (EX-WIFES NOW)
Reply With Quote
  #4
Old 05-08-2020, 10:52 PM
Flying Undertaker Flying Undertaker is offline
Senior Member

Join Date: Dec 2017
Location: Northeast Ohio
Posts: 258
Thanks: 63
Thanked 103 Times in 66 Posts
Default 4-30-20 day for the 430 CanAm aluminum big block Chevy

Quote:
Originally Posted by EZ Nova View Post
Ya you would have probably made more power 5-700RPM more. Those cam were rumored to pull well into the 7500/7800 RPM range, just not sure they were making more power or just hanging on better without the drop?

I looked at my ZL1 dyno sheet, @ 6700 I was at 785.1 Hp but it should have been higher. And you "probably" left 50 or so Hp on the table with you deal using the GM piston design and not pulling to 73/7500 range. Modern piston with 1/16 rings or better rings and not the 5/16 would have picked it up nicely too.

THEN one can look at the heads/valves and see what "could" be found there? I don't know what you did with your stuff, like better modern valve, back cut and valve job, but there is POWER there too.
EZ Nova: That's some nice power for the ZL-1 Combo. Mine was totally stock, no headwork, ALL NOS GM factory stock internals with stock stroke and a .030 overbore. I was very happy with the results as it will be a trailer queen. If I were building one for power, I'd use a new ZL-1 block with some aftermarket heads with
headwork, pocket porting, etc., a bigger cam and a holley dominator! Don.
Reply With Quote
  #5
Old 04-30-2020, 05:37 PM
RALLY RALLY is offline
Yenko Contributing Member

Join Date: Feb 2008
Location: MI
Posts: 1,150
Thanks: 56
Thanked 198 Times in 130 Posts
Default

Quote:
Originally Posted by JoeC View Post
4-30-20 day 430 CanAm aluminum big block Chevy

Even to this day, the 430 BB Chevy is not very well known. I see different info on these engines but from what I can tell, Chevy made the CanAm 430 from about 1968 to 1972.

The aluminum CanAm cast iron sleeve block used a large 4.440 in. bore siamese cyls design.
In 1968 it used a short stroke 3.47 in. crank to get 430 cu. in. and about 700hp on gas.

There was some info printed that the 430 Chevy was considered as a production engine for 1970 but was cancelled along with other 1970 engine options.

In 1969, it was available as a 430 cu in and also with 427 or 454 cranks to get a 465 or 495 cu in and over 750hp.

Chevy also built a Can Am block without the cast iron sleeves and they can go over 500 cu in.

Chevy engineering used the Can Am engine for research using the same siamese cyls design on the 400 cu in small block production engine.

The Alu engine block with no cast iron sleeves design was used in the Vega engine. They used a special cast iron coated piston to control wear.

The CanAm BB Chevy engine dominated CamAm racing late 60's to early 70's beating Ferrari, Porsche, and Ford, all who had more expensive exotic engines.

The 430 CamAm engine would rev like a 302 and was about the same weight installed.

Bill Grumpy Jenkins ran a CamAm engine in his 68 Camaro match racer and used that same 68 Camaro CanAm set-up to win the first ever Pro Stock race in 1970. Bill also ran the 430 in his 69 and 70 Camaro along with other engines.

A few other drag racers used the 430 Chevy.

here is a picture of Joe Frankel who ran one in a 69 Camaro back in the day and had "430 CanAm" painted on the door
I remember Bill Jenkins saying he switched to the CanAm Block because it was better than the ZL-1 Block. ZL-1 had bad core shift and blowby ring seal was bad. Jenkins just didnt like that Block period.
Reply With Quote
  #6
Old 04-30-2020, 05:42 PM
dykstra's Avatar
dykstra dykstra is offline
Yenko Contributing Member

Join Date: Oct 2009
Location: Washington, IL
Posts: 2,621
Thanks: 29,925
Thanked 2,627 Times in 1,252 Posts
Default

Very cool!!
__________________
Dave Dykstra
1968 Camaro Palomino Ivory/Ivy Gold interior
-Delivered to Courtesy Chevrolet, Los Angeles, CA
2013 Corvette Grand Sport 60th Anniversary Edition
Arctic White/Diamond Blue interior
-Delivered to Bill Jacobs Chevrolet, Joliet, IL
NCRS#66003

Speed has never killed anyone. Suddenly becoming stationary, that’s what gets
you. – Jeremy Clarkson.



Dykstra Motorsports
Reply With Quote
  #7
Old 04-30-2020, 06:04 PM
Carleen's Avatar
Carleen Carleen is offline
Yenko Contributing Member

Join Date: Aug 2007
Location: Sweden
Posts: 977
Thanks: 1,926
Thanked 802 Times in 255 Posts
Default

430
Attached Images

Reply With Quote
  #8
Old 04-30-2020, 06:09 PM
Carleen's Avatar
Carleen Carleen is offline
Yenko Contributing Member

Join Date: Aug 2007
Location: Sweden
Posts: 977
Thanks: 1,926
Thanked 802 Times in 255 Posts
Default

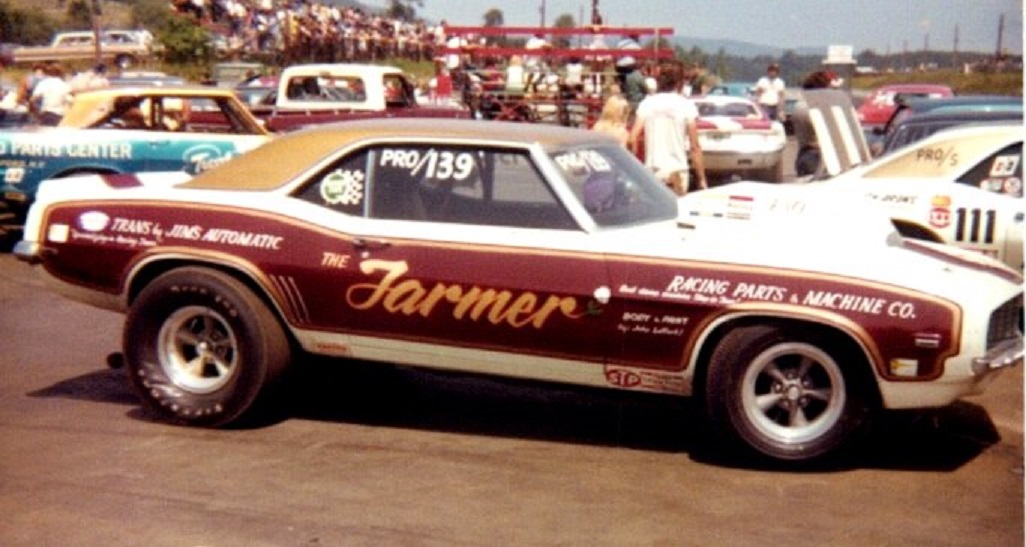

Farmer
Attached Images

Reply With Quote
The Following 3 Users Say Thank You to Carleen For This Useful Post:
JoeC (04-30-2020), markinnaples (05-02-2020), PeteLeathersac (05-01-2020)
  #9
Old 04-30-2020, 06:17 PM
Carleen's Avatar
Carleen Carleen is offline
Yenko Contributing Member

Join Date: Aug 2007
Location: Sweden
Posts: 977
Thanks: 1,926
Thanked 802 Times in 255 Posts
Default

1968 EXP 0-326711 430 Can Am
Attached Images

Reply With Quote
  #10
Old 05-01-2020, 03:30 AM
bugsy bugsy is offline
Yenko Contributing Member

Join Date: Jun 2008
Location: Pa USA
Posts: 564
Thanks: 5
Thanked 115 Times in 68 Posts
Default

Anyone remember the 69 nova with the can-am engine in it at mecum harrisburg a few years ago. Supposedly had yenko documentation or connection with yenko.
