  #1
Old 04-06-2023, 05:57 PM
dannystarr dannystarr is offline
Senior Member

Join Date: Jan 2014
Posts: 511
Thanks: 0
Thanked 582 Times in 172 Posts
Default New Shop

I was wrong about the eve height, it is 12 feet not 10'-8". Not sure what I was thinking.

Got the insulated 10' X 10' metal doors installed. I could have saved a few hundred bucks if I got the plastic backs. Went with ALL metal. Nice spring steel door stops for all 4.

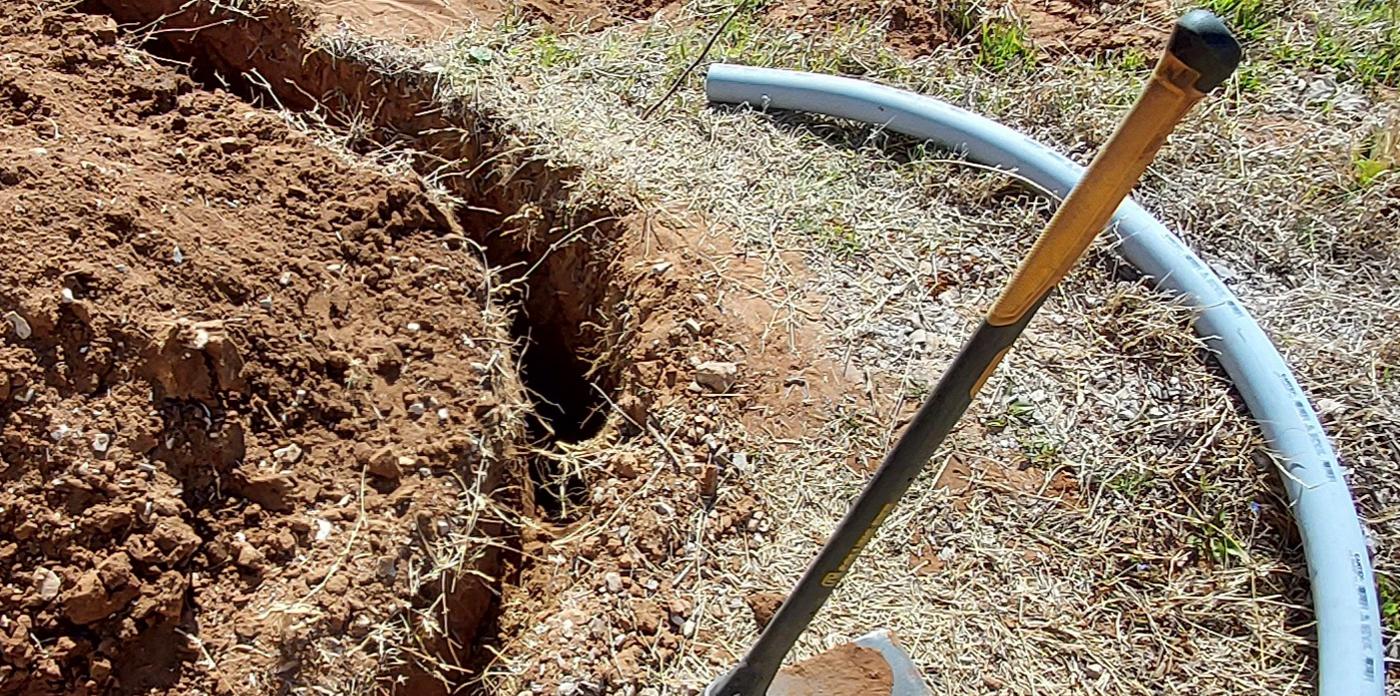

Starting electrical. Got the main 200amp service panel tied into the meter in the old shop, tested 246 volts. 123 on each leg. Zero Volts on the neutral. Dug/picked a 50-foot ditch about 22 inches deep to run power to new shop. Fun with 2 torn rotator cuffs. Neighbor helped a few feet. Pulled the wire through 10 feet at a time. Then slid a 10-foot length over the wire and glued and dropped in the ditch and so on. Pulled last stretch into the new shop and tied into 100amp subpanel. Turned on breaker in old shop and this panel also tested good. Buried the ditch and getting ready to start pulling wire for lights. Lights first, so I can see what I am doing. Then outlets, future door openers, 2 lifts etc... I hung a couple lights as a clearance test. I was lucky that the lights clear the doors by a couple inches. So I hung the last 6. Danny
Attached Images


Last edited by dannystarr; 04-06-2023 at 05:59 PM.
Reply With Quote
The Following 4 Users Say Thank You to dannystarr For This Useful Post:
67 Nova Boy (05-05-2023), 69M22Z (04-06-2023), dykstra (04-06-2023), Xplantdad (04-06-2023)
  #2
Old 04-06-2023, 06:01 PM
dannystarr dannystarr is offline
Senior Member

Join Date: Jan 2014
Posts: 511
Thanks: 0
Thanked 582 Times in 172 Posts
Default New Shop

power etc.
Attached Images

Reply With Quote
The Following 4 Users Say Thank You to dannystarr For This Useful Post:
67 Nova Boy (05-05-2023), 69M22Z (04-06-2023), dykstra (04-08-2023), PeteLeathersac (04-06-2023)
  #3
Old 04-06-2023, 08:40 PM
dannystarr dannystarr is offline
Senior Member

Join Date: Jan 2014
Posts: 511
Thanks: 0
Thanked 582 Times in 172 Posts
Default New Shop

Not much room for 30 feet of the 50 for a trencher. Too close to building. I wish I could have.

FYI on the electrical... Got a couple questions on neutrals and grounds in the panel.

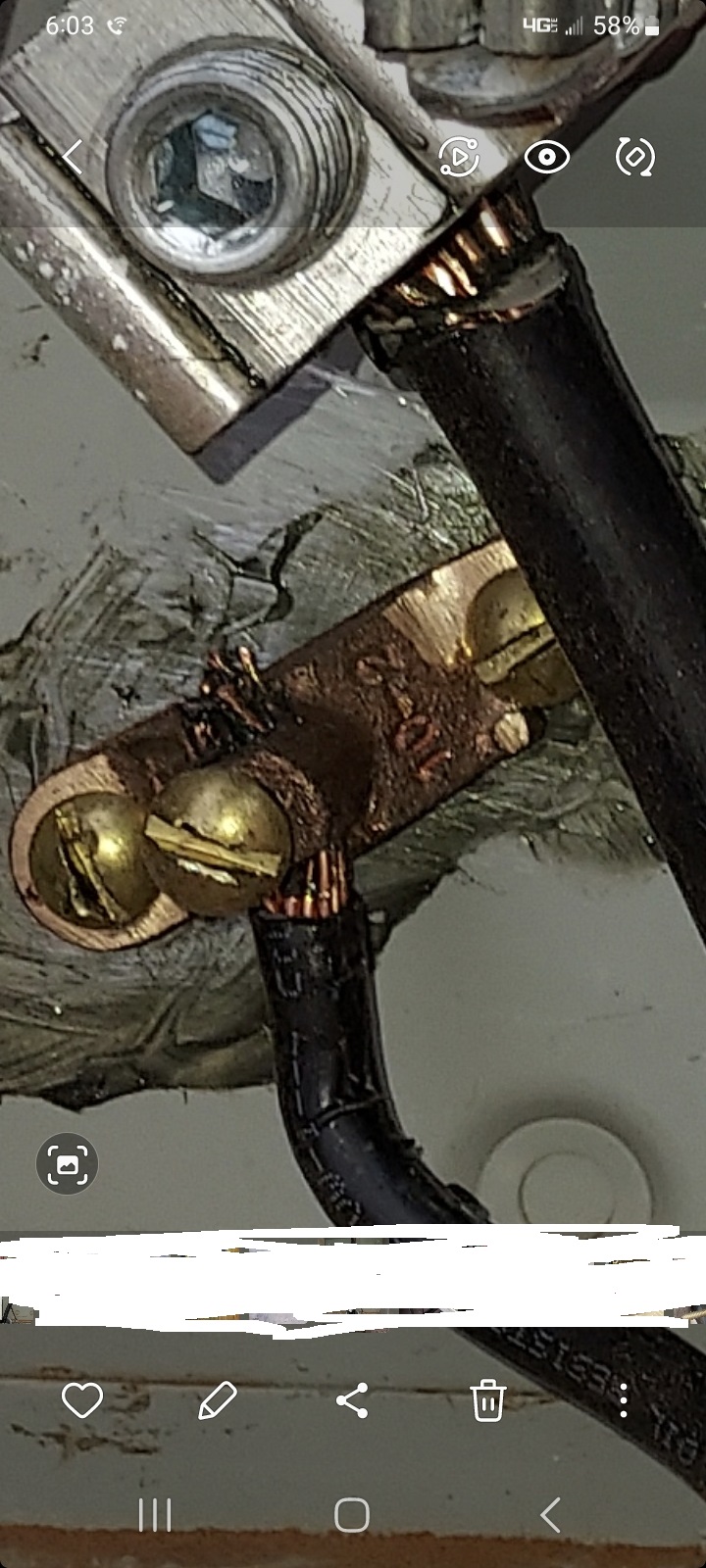

Only the main service panel has the green grounding screw to bond the neutral and grounds together. Sub panel is NOT bonded and has separate ground and neutral bars. This is the way I was taught years ago. NEVER bond the sub panel due to neutral return issues. Stray voltage has nowhere to go properly and tracks off and bleeds into other circuits. Which is not good. Needs a clear path back to the source.

I ended up tieing into the meter panel by myself. I just had the power company come out and disconnect at the transformer. Then I made my connections, torqued them down, installed the meter and called them back. 15 minutes later they popped it back on and "Bobs your Uncle" I had power. That way I could move all around in there, and push wires from inside the building blindly, without worrying about them going up into the hot legs from the pole and lighting me up at 75 THOUSAND volts. Danny
Attached Images

Reply With Quote
The Following 3 Users Say Thank You to dannystarr For This Useful Post:
67 Nova Boy (05-05-2023), dykstra (04-06-2023), olredalert (04-06-2023)
  #4
Old 06-18-2022, 06:34 AM
COPO COPO is offline
Yenko Contributing Member

Join Date: Mar 2000
Location: Atlanta, GA & the Middle East
Posts: 3,022
Thanks: 400
Thanked 377 Times in 201 Posts
Default

Wow nice work. A shame you had to go back and fix all of the rebar work from the concrete guys, but the old saying if you want something done right, do it yourself seems to apply in this case.

Should be a great shop once completed. congrats
Reply With Quote
  #5
Old 06-20-2022, 05:29 AM
SuperNovaSS SuperNovaSS is online now
Yenko Contributing Member

Join Date: Sep 2001
Location: Santa Cruz, CA
Posts: 6,562
Thanks: 392
Thanked 700 Times in 364 Posts
Default

Looks great Danny! I remember talking shops with you a couple years ago. I’m hoping to get final inspection on mine this coming week.


It looks like your building frame is all welded construction, is that the case?

Jason

Last edited by SuperNovaSS; 06-20-2022 at 05:45 AM.
Reply With Quote
  #6
Old 06-20-2022, 01:59 PM
Lynn Lynn is offline
Yenko Contributing Member

Join Date: Feb 2005
Location: Oklahoma
Posts: 7,780
Thanks: 91
Thanked 3,586 Times in 1,512 Posts
Default

Very nice. Probably what I should have done instead of rehabbing a 100+ year old coal warehouse.
__________________
Don't believe everything you read on the internet ... Ben Franklin
Reply With Quote
  #7
Old 06-20-2022, 03:16 PM
x77-69z28's Avatar
x77-69z28 x77-69z28 is offline
Yenko Contributing Member

Join Date: Apr 2008
Location: long island, new york, usa
Posts: 2,153
Thanks: 3,016
Thanked 442 Times in 240 Posts
Default

Looks great Danny! Mine should be breaking ground in a couple of weeks! I went with a Morton 42X48. I recently downsized from two houses to one and lost a 2 car garage!
Buddy
__________________
69 camaro Z-28 burnished brown X-77 bought 1978
70 camaro Z28 forest green M40 black vinyl roof PROJECT
99 camaro SS Hugger Orange 6speed no t-tops 1 of 54
11 cts-v black diamond edition wagon 556hp GONE
15 camaro Z/28 white AC brand new
Reply With Quote
  #8
Old 06-20-2022, 07:03 PM
flyingn's Avatar
flyingn flyingn is offline
Yenko Contributing Member

Join Date: Jan 2006
Location: Cinnaminson , NJ
Posts: 2,174
Thanks: 5,945
Thanked 647 Times in 259 Posts
Default

looks beautiful..
__________________
Frank Szymkowski

1987 Mustang GT convertible, scarlet red/titanium, white top and white/red leather, 5 speed, 3.08, factory EQ

1969 GTO Judge Warwick blue/blue, RAIII, 4 speed, tach/gauges, safe t track, flip headlights, 3.55's, ps and radio.
Reply With Quote
  #9
Old 06-21-2022, 11:36 AM
dykstra's Avatar
dykstra dykstra is offline
Yenko Contributing Member

Join Date: Oct 2009
Location: Washington, IL
Posts: 2,637
Thanks: 30,033
Thanked 2,631 Times in 1,256 Posts
Default

Very cool!!!!
__________________
Dave Dykstra
1968 Camaro Palomino Ivory/Ivy Gold interior
-Delivered to Courtesy Chevrolet, Los Angeles, CA
2013 Corvette Grand Sport 60th Anniversary Edition
Arctic White/Diamond Blue interior
-Delivered to Bill Jacobs Chevrolet, Joliet, IL
NCRS#66003

Speed has never killed anyone. Suddenly becoming stationary, that’s what gets
you. – Jeremy Clarkson.



Dykstra Motorsports
Reply With Quote
  #10
Old 06-21-2022, 09:48 PM
dannystarr dannystarr is offline
Senior Member

Join Date: Jan 2014
Posts: 511
Thanks: 0
Thanked 582 Times in 172 Posts
Default Steel pictures

Thanx guys excited to get a sense of completion. Need to do all the electrical, I will do it all myself, except the tie-in to the meter at the pole. Having an electrician do that. A little knowledge is a dangerous thing. Then spray-in insulation. Then I think I am going to plywood the entire back wall. So if ya want to hang something up ANYWHERE, there will be wood. Maybe paint it an off white, light color, not brite white. Neon lights, shelving etc. on that back wall will be much easier.
I designed the building with NO sky Lights or windows. That's why they make light fixtures. Another access for crooks. I know if they want in, they are in, but why make it a little easier.
Jason,

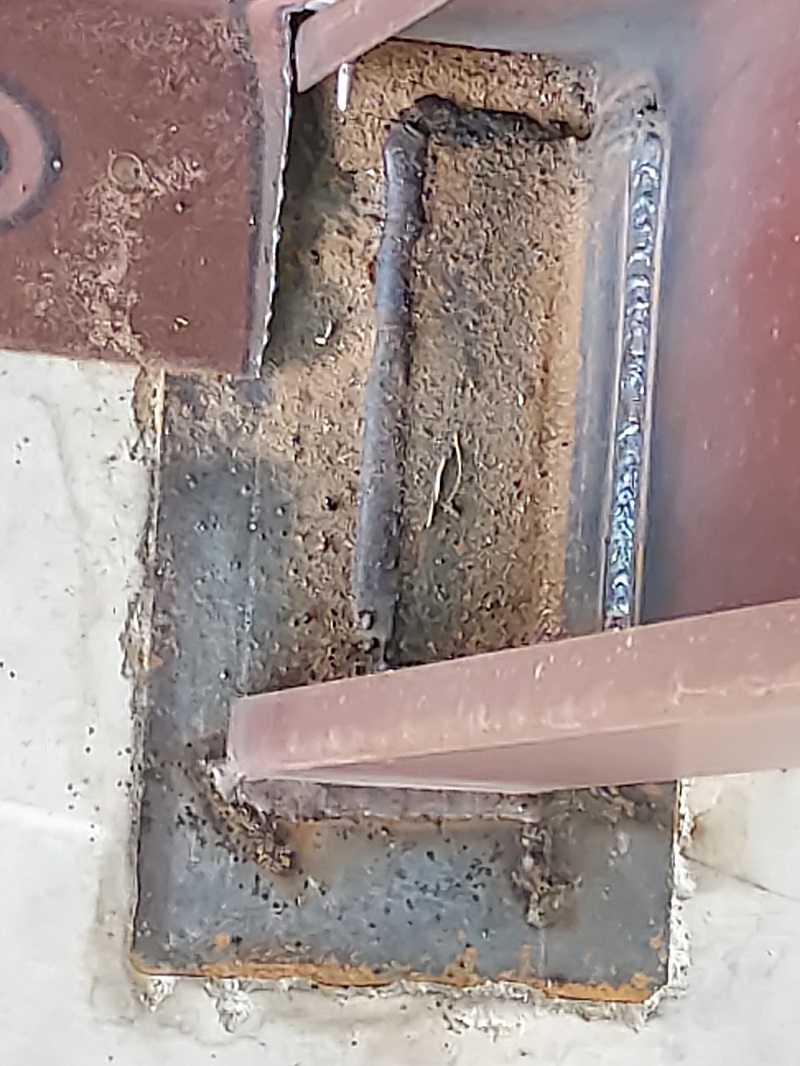

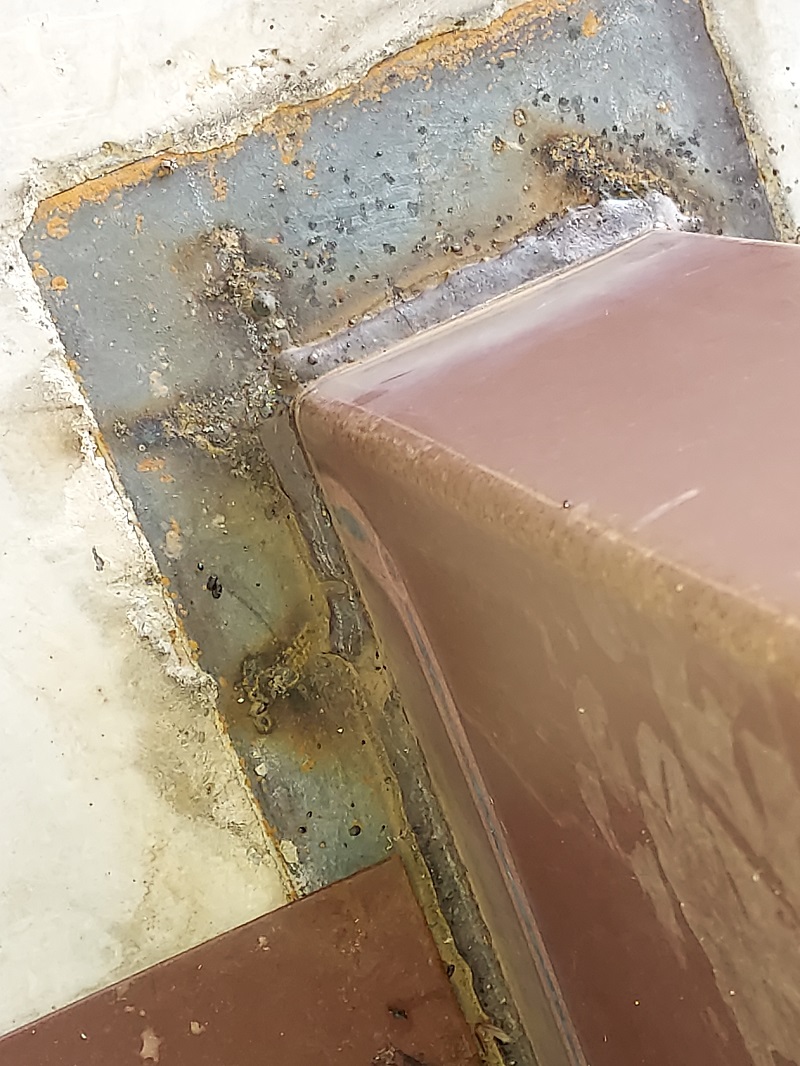

Yes this is an all steel building. We sunk in the steel plates as the pour set-up, and leveled them both directions. I beams get welded to those. 9" I beams, purlins etc. all steel. 26 Gauge siding. They did a nice job. They ended up nailing a 2 X 2 all around the edges except at concrete openings. Then after stripping forms, there is a little step there. This allowed the siding to drop down an 1-1/2" onto the little step. Helps with vermin etc. I can see light, so I will caulk it with good exterior window mastic all the way around on the inside. Then when they spray insulation, it will lock it in well. They spent 2 days on brackets, and cutting angles for the top roof gable supports. And welding the prefab. Then it all went up in a couple days. You can see in the picture the little angled supports that the top beams sit on, on both sides on the inside. They could have left those alone. But they beat them up with a single jack and welding them up also. This building is very strong. Danny
Attached Images

Reply With Quote
The Following User Says Thank You to dannystarr For This Useful Post:
67 Nova Boy (05-05-2023)
