#1
09-02-2018, 03:07 PM
|
||||
|
||||

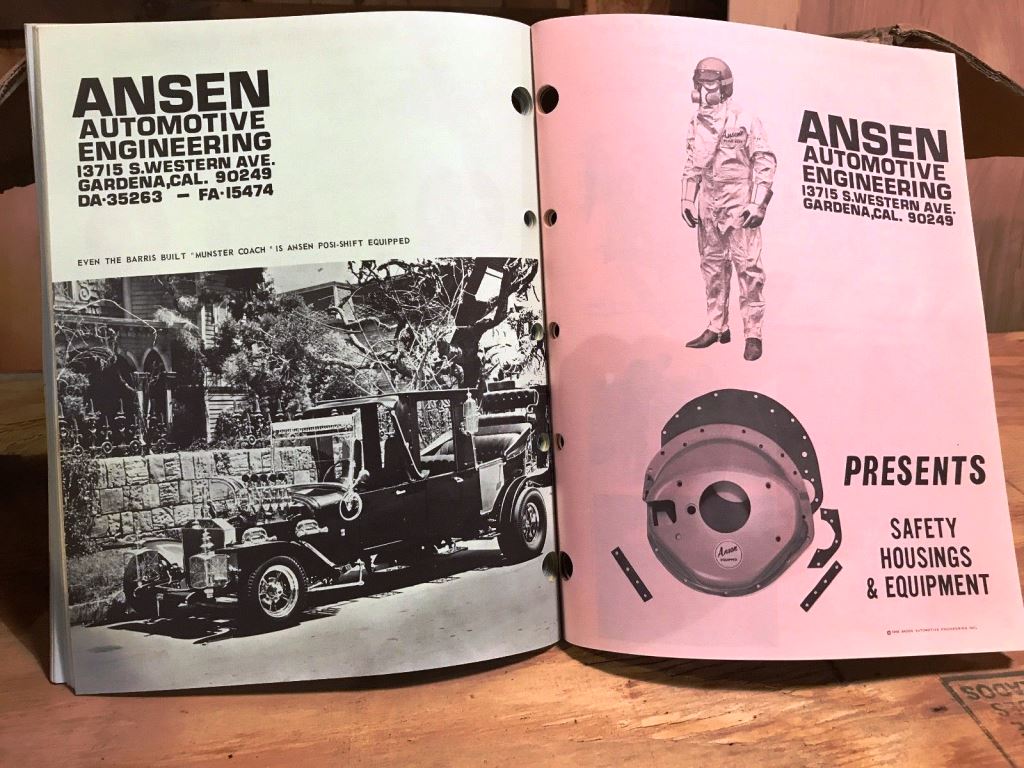

Yes, the scattershield in question is manufactured by Ansen. Here is a picture of the scattershield in a 1970 Ansen Hi-Performance Catalog and this style of unit maybe in the older catalogs as well.
|
|
#2
09-02-2018, 07:41 PM
|
|||
|
|||
|
So it is pretty certain that the shield in wheelhops photos is an Ansen?
Mine looks very close except it has a notch in the edge that is die-stamped at about the 10 o'clock position and mine is from the late 60's so no "Hecho". Any idea what the notch was for? Mine does clear a 168 tooth flywheel. Other than that it looks about identical. It has the two flat areas with the two holes near the trans mounting area. I was told they are for an early style frame mount system?
__________________
70Z28 04B Norwood Forest Green-white Stripes Black DeLuxe Interior Owned since 1978 - First Car
|
|
#3
09-02-2018, 08:12 PM
|
||||
|
||||
|
The 10 o'clock notch sounds like it may have been to clear a bolt on bracket that supported the inner end of a clutch cross shaft. Bolt on brackets were used in about the same time frame as the bolt on motor mounts that the holes in the lower bellhousing area you mentioned earlier were used. Is there a spot adjacent to that 10 o'clock notch that looks flat where a bracket might have been positioned?
__________________
...................... John Brown This isn't rocket surgery.....
|
|
#4
09-03-2018, 02:17 AM
|
|||
|
|||
|
Wow, that's cool. Thanks for the I.D. help and the catalog and pictures!
__________________
69 Chevelle SS L88 "Day-2" Lemans Blue 69 Chevelle SS L34 postsedan project-Azure Turquoise
|
|
#6
09-06-2018, 07:33 PM
|
||||
|
||||
I bought this scattershield awhile back from a gentleman from this site. nos that had been in his garage he never used it. it came to me in its original box with blockplate and hardware. the blockplate was bare metal and is 1/8 of an inch thick. going in next weekend
__________________
|
|
#7
04-14-2020, 01:23 AM
|
|||
|
|||
|
just picked up this Lakewood Scatter-shield and there appears to be a faint #1502 stamped on it.
Here is before and after powdercoating pics.
__________________
