Center line wheels??

[bbbentley]

Originally Posted by NorCam

I beg to differ. While there have been numerous copycat attempts of the original Centerline wheel over the years...the "Spun Aluminum" design has never been equaled or matched. IMHO, there's only ever been one Centerline auto drag wheel, and all copy attempts have really missed the mark? Probably due to a patent on the original design.

With all due respect, the Centerline is not a spun aluminum wheel. In fact , that is what “ revolutionized” it from it’s Cragar counterpart. It is a forged stamped wheel and its advantage over the “trick” wheel is that the CL has equal metal thickness over the entire stamping and stronger being forged along with the stronger alloy used over itsCragar counterpart.

[JRC99]

I do see the differences now. They're a cheaper alternative if you're on a budget (because used Centerlines are like $800, vs. $400 for the ARs), but yeah, the real McCoy is better.

[NorCam]

I was told the halves were forged and then spun in order to achieve the smoothed steps. Maybe that was bad info I got on the process? In either case...they're light and they are still the best looking rivet style aluminum rim out there.

Thanks for the education Bentley.

[NorCam]

Maybe it was the rotary process that led to me being told the forgings were spun before being pressed. I've seen pictures of the 2 story press used to forge the wheels and it was pretty cool. I'm assuming the pictures and the process details below are the technologies that were used for the Auto Drag and Convo Pro designs?


CENTER LINE'S ROTARY FORGED TECHNOLOGY
Patent # 4,936,129

Center Line has designed a rotary forging press, the only one of its kind in the world, to compress a solid billet of aluminum with 4,000 tons of force, at 300 revolutions per minute. Not only does this process rearrange the aluminum molecules, but it also aligns them in a circular pattern thereby adding strength. As a result, the rotary forged wheel has a much tighter grain structure and is significantly lighter weight than a cast wheel which requires greater mass due to its inherent porosity.

1. The aluminum billet is run through the oven and heated to 900 degrees.


2. The nearly red-hot billets are transferred from the oven into the rotary forging press.


3. Spinning at 300 revolutions per minute, the billet is compressed into the die with 4,000 tons of force. This process forges the aluminum molecules into a tight grain structure arranged in a circular pattern thereby allowing Center Line to build incredibly light-weight, strong wheels.


4. The beginnings of a wheel in its forged state just as it is about to be removed from the rotary forging press.


5. Next, the aluminum forging must be split-spun to form the rim thereby completing the structure of a one-piece rotary forged wheel.

[bbbentley]

The Cragar “trick” was spun aluminum. And that is why it was stated to not use on the street. It was fine in straight line use, but repetitive turning would pull the lug nuts through the wheel, along with stress cracks and bending or warping the rim. C-lines could run on the street and tubeless, I don’t believe tricks could run tubeless either?
Listen, I am no expert on these wheels. When I was 18, in 1979, I had the dream job of an 18 year old gear head. And that job was working in a speed shop! Between reading catalogs and talking to reps, I picked up what I know. I was a sponge for this information.

[Verne_Frantz]

Originally Posted by bbbentley

The Cragar “trick” was spun aluminum. And that is why it was stated to not use on the street. It was fine in straight line use, but repetitive turning would pull the lug nuts through the wheel, along with stress cracks and bending or warping the rim. C-lines could run on the street and tubeless, I don’t believe tricks could run tubeless either?
Listen, I am no expert on these wheels. When I was 18, in 1979, I had the dream job of an 18 year old gear head. And that job was working in a speed shop! Between reading catalogs and talking to reps, I picked up what I know. I was a sponge for this information.

I had tricks on my '62 with tubeless tires. Never had a problem. Always held air.

Verne



Grady now owns the Cragars and slicks

[NorCam]

Originally Posted by Verne_Frantz

I had tricks on my '62 with tubeless tires. Never had a problem. Always held air.

Verne

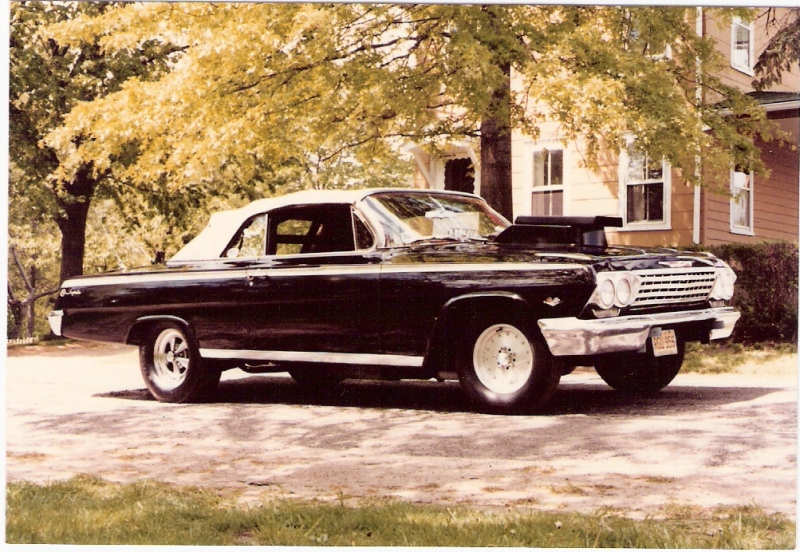

Attachment 105821

Grady now owns the Cragars and slicks

Now that was a sweet 62 Verne. I assume you moved it along somewhere...or do you still have it.

[Verne_Frantz]

Still have it. Replaced the hood, got rid of the roll bar and it's back on the street with an '09.

Verne

[chevyman0429]

Iv got a set like these but held together with hex head bolts instead of the rivets. Are these center lines

[bbbentley]

Originally Posted by chevyman0429

Iv got a set like these but held together with hex head bolts instead of the rivets. Are these center lines

No
