Default LT1 return spring attachment?

hi
need a bit of help

wondering how the return spring is attached for 1970 4555 carb on a 4spd car.

i understand that at the back it goes thru the hole in the throttle bracket but where does it go at the front?

any help and pictures would be helpful

please send info to this e-mail

margaret@stamphaven.ca

thanks
chris
__________________
1970 citrus Yenko Nova
Reply With Quote
  #2
Old 05-20-2019, 12:49 PM
SS427 SS427 is offline
Yenko Paid Member

Join Date: Jul 2001
Location: Pleasant Plains, IL
Posts: 9,071
Thanks: 411
Thanked 722 Times in 306 Posts
Default

Email sent. From a Camaro but believe they are in the same location. Hope it helps.
__________________
Rick Nelson
Musclecar Restoration and Design, Inc
www.musclecarrestorationanddesign.com
https://www.youtube.com/watch?v=62r-6vgk2_8
specializing in REAL LS6 Chevelle restorations
Reply With Quote
The Following User Says Thank You to SS427 For This Useful Post:
madden (05-20-2019)
  #3
Old 05-20-2019, 01:42 PM
70 Forest Green Zee's Avatar
70 Forest Green Zee 70 Forest Green Zee is offline
Yenko Paid Member

Join Date: Mar 2006
Location: Schaumburg IL
Posts: 1,322
Thanks: 10
Thanked 26 Times in 16 Posts
Default

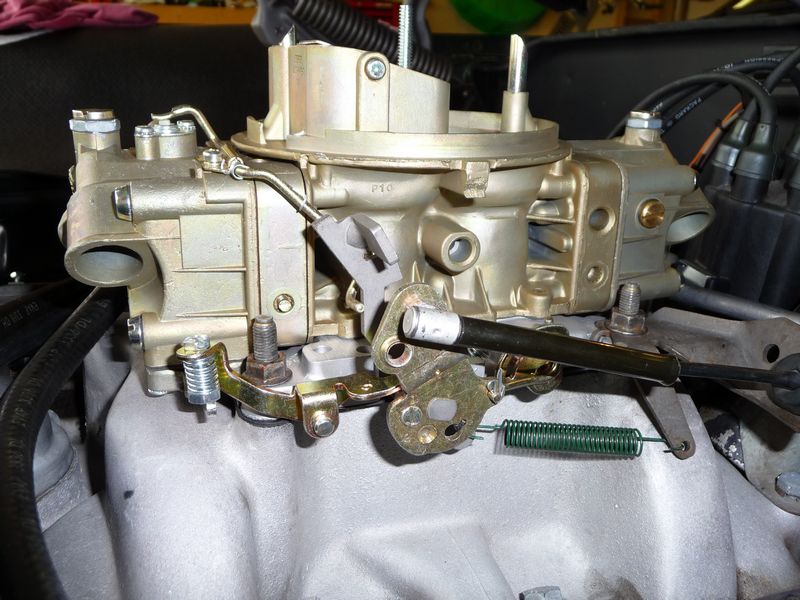

This is from a 1970 Z28 4489 Holley. The 4489 was specific to NA9 Calif emissions but I'm pretty sure the return spring connects the same as non Calif emissions carbs. Hope this helps.
Attached Images

__________________


1970Camaro Z28
Reply With Quote
The Following User Says Thank You to 70 Forest Green Zee For This Useful Post:
madden (05-20-2019)
  #4
Old 05-20-2019, 04:33 PM
GrumpyJeff's Avatar
GrumpyJeff GrumpyJeff is offline
Senior Member

Join Date: Jan 2017
Location: Lancaster PA
Posts: 170
Thanks: 5
Thanked 32 Times in 24 Posts
Default

Quote:
Originally Posted by 70 Forest Green Zee View Post
This is from a 1970 Z28 4489 Holley. The 4489 was specific to NA9 Calif emissions but I'm pretty sure the return spring connects the same as non Calif emissions carbs. Hope this helps.
Yep, mines exactly like this also
Reply With Quote
The Following User Says Thank You to GrumpyJeff For This Useful Post:
madden (05-20-2019)
