  #191
Old 11-23-2022, 04:13 PM
L78_Nova's Avatar
L78_Nova L78_Nova is offline
Yenko Contributing Member

Join Date: Apr 2016
Location: Winnipeg
Posts: 610
Thanks: 10,512
Thanked 857 Times in 264 Posts
Default 1970 L-78 Nova Restoration; Saga of The Green Bastard

Being that the paint was fairly fresh (only three months since sprayed), I worked the sanding around the entire body for each grit allowing further time for the paint to gas off (evaporating out the solvents). As you get to the finer grits some shine begins to come back.

Name:  IMG_0660.jpg
Views: 951
Size:  157.5 KB

Name:  IMG_0664.jpg
Views: 900
Size:  189.5 KB

As I began to coarse polish, the Green Bastard reared it's ugly head again. For starters this paint was a Bear to bring up (get the shine back) and work out the stray scratches (I believe that was mostly resultant from the additive but this is a production type paint so not specifically formulated for polishing) I was working my way around the body and I noticed when I looked back at the first area completed it seemed to be not as nice as when first finished.
Note the "bumpy" look of the light reflection. (the reflection doesn't lie!)
Name:  LIGHT EX 0010.jpg
Views: 1079
Size:  106.8 KB
So I went back and resanded an area that was first completed.
Back to the drawing board... The best we can figure (along with the paintshop guys) is the paint was not yet fully cured. Due to the heavy application we think the drying process (cross linking) was actually still moving the surface around. This panel had been fully sanded out flat and polished out about 3 weeks earlier.

Name:  IMG_0842.jpg
Views: 919
Size:  119.0 KB

Name:  IMG_0843.jpg
Views: 913
Size:  118.6 KB
So... change in plan back to MY "normal" routine. Firstly start with 800 grit ! So I picked one area and re-worked it until I was satisfied.
The reflection doesn't lie !!
Name:  Light Ex 0020.jpg
Views: 996
Size:  105.6 KB
__________________
68 Acadian SS-350 auto/AC driver
70 Nova SS-396/375HP Bench Stick
72 Nova SS-350 5sp Mini Tubbed
67 Chevelle Conv. SS-427 clone
70 Chevelle SS-454 LS-5 M-22
Reply With Quote
The Following 3 Users Say Thank You to L78_Nova For This Useful Post:
big gear head (11-23-2022), Dave Rifkin (11-24-2022), dykstra (12-01-2022)
  #192
Old 11-23-2022, 04:32 PM
L78_Nova's Avatar
L78_Nova L78_Nova is offline
Yenko Contributing Member

Join Date: Apr 2016
Location: Winnipeg
Posts: 610
Thanks: 10,512
Thanked 857 Times in 264 Posts
Default 1970 L-78 Nova Restoration; Saga of The Green Bastard

Around this same time I was helping out a friend with his 70 SS 454 Chevelle.
The car had previous damage on one door that was poorly repaired.... and it bugged him bad. I stripped and bodyworked a (very solid) door for him which he sent out for paint and returned to me for polishing

Sanding and Polishing time start to finish for this door was about 8-10 hours.

By comparison, a Green Bastard door probably took me 30+ hours !!Name:  63926822219__15DAD63D-9AD2-4B93-9FAE-66E59D514E03.jpg
Views: 745
Size:  291.1 KB

Name:  IMG_0868.jpg
Views: 754
Size:  316.2 KB

Name:  63944648470__FB821D76-367F-49AD-8A4B-99BA7E88D3A8.jpg
Views: 752
Size:  165.2 KB

Name:  63944654775__B3D4070F-9F59-4AF6-9B20-B911E7F3E83F.jpg
Views: 733
Size:  175.6 KB

Only mistake... Forgot to screw in a mirror base for final blocking... when we attached the mirror it made a slight wiggle in the area directly below the base
__________________
68 Acadian SS-350 auto/AC driver
70 Nova SS-396/375HP Bench Stick
72 Nova SS-350 5sp Mini Tubbed
67 Chevelle Conv. SS-427 clone
70 Chevelle SS-454 LS-5 M-22
Reply With Quote
The Following 6 Users Say Thank You to L78_Nova For This Useful Post:
big gear head (11-23-2022), Dave Rifkin (11-24-2022), dykstra (12-01-2022), napa68 (11-23-2022), RPOLS3 (11-25-2022), Xplantdad (11-23-2022)
  #193
Old 11-24-2022, 03:26 AM
67since67's Avatar
67since67 67since67 is online now
Yenko Contributing Member

Join Date: Mar 2016
Location: Waterloo Iowa
Posts: 2,091
Thanks: 3,424
Thanked 5,200 Times in 1,202 Posts
Default

Quote:
Originally Posted by L78_Nova View Post
Around this same time I was helping out a friend with his 70 SS 454 Chevelle.
The car had previous damage on one door that was poorly repaired.... and it bugged him bad. I stripped and bodyworked a (very solid) door for him which he sent out for paint and returned to me for polishing

Sanding and Polishing time start to finish for this door was about 8-10 hours.

By comparison, a Green Bastard door probably took me 30+ hours !![
Only mistake... Forgot to screw in a mirror base for final blocking... when we attached the mirror it made a slight wiggle in the area directly below the base
Good grief, you could use that mirror for shaving!
Reply With Quote
The Following User Says Thank You to 67since67 For This Useful Post:
L78_Nova (11-25-2022)
  #194
Old 11-24-2022, 05:31 AM
Darth Darth is offline
Junior Member

Join Date: Jun 2012
Location: Morris, Manitoba Canada
Posts: 11
Thanks: 0
Thanked 5 Times in 5 Posts
Default

I think you need to go for counseling Gary. No individual in his right mind would be so fussy. You won't want to drive it. Another trailer queen.
Reply With Quote
The Following User Says Thank You to Darth For This Useful Post:
L78_Nova (11-25-2022)
  #195
Old 11-24-2022, 01:09 PM
L78_Nova's Avatar
L78_Nova L78_Nova is offline
Yenko Contributing Member

Join Date: Apr 2016
Location: Winnipeg
Posts: 610
Thanks: 10,512
Thanked 857 Times in 264 Posts
Default

Quote:
Originally Posted by Darth View Post
I think you need to go for counseling Gary. No individual in his right mind would be so fussy. You won't want to drive it. Another trailer queen.
C'mon.. You know I'll drive it... the convertible gets driven !!
But I probably do need counseling.
__________________
68 Acadian SS-350 auto/AC driver
70 Nova SS-396/375HP Bench Stick
72 Nova SS-350 5sp Mini Tubbed
67 Chevelle Conv. SS-427 clone
70 Chevelle SS-454 LS-5 M-22
Reply With Quote
  #196
Old 11-24-2022, 02:18 PM
L78_Nova's Avatar
L78_Nova L78_Nova is offline
Yenko Contributing Member

Join Date: Apr 2016
Location: Winnipeg
Posts: 610
Thanks: 10,512
Thanked 857 Times in 264 Posts
Default 1970 L-78 Nova Restoration; Saga of The Green Bastard

Miscellaneous parts cleanup and detail painting

Re-sprayed firewall (was not happy with the sheen)
Name:  misc 0003.jpg
Views: 736
Size:  209.7 KB

Name:  misc 0005.jpg
Views: 748
Size:  222.6 KB

Dash Top
Name:  misc 0011.jpg
Views: 769
Size:  213.4 KB

Name:  misc 0021.jpg
Views: 755
Size:  185.2 KB

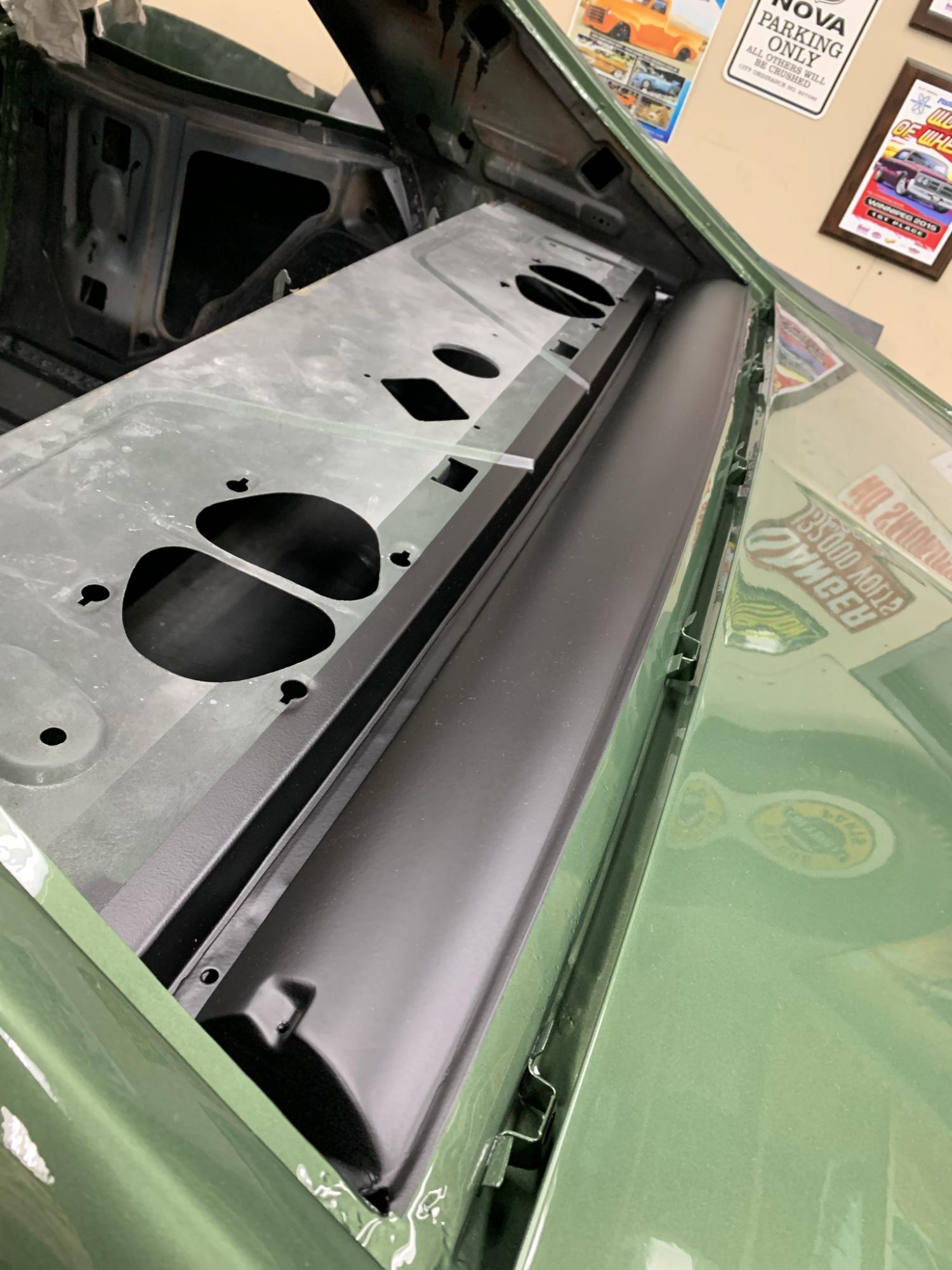

Rear Parcel ledge
Name:  misc 0030.jpg
Views: 761
Size:  249.2 KB

Name:  misc 0040.jpg
Views: 742
Size:  163.0 KB

Rear Parcel Corners
Name:  misc 0050.jpg
Views: 735
Size:  281.0 KB

Windshield pillars
Name:  misc 0060.jpg
Views: 751
Size:  159.2 KB
__________________
68 Acadian SS-350 auto/AC driver
70 Nova SS-396/375HP Bench Stick
72 Nova SS-350 5sp Mini Tubbed
67 Chevelle Conv. SS-427 clone
70 Chevelle SS-454 LS-5 M-22
Reply With Quote
The Following 2 Users Say Thank You to L78_Nova For This Useful Post:
big gear head (11-24-2022), Dave Rifkin (11-25-2022)
  #197
Old 11-24-2022, 02:28 PM
L78_Nova's Avatar
L78_Nova L78_Nova is offline
Yenko Contributing Member

Join Date: Apr 2016
Location: Winnipeg
Posts: 610
Thanks: 10,512
Thanked 857 Times in 264 Posts
Default 1970 L-78 Nova Restoration; Saga of The Green Bastard

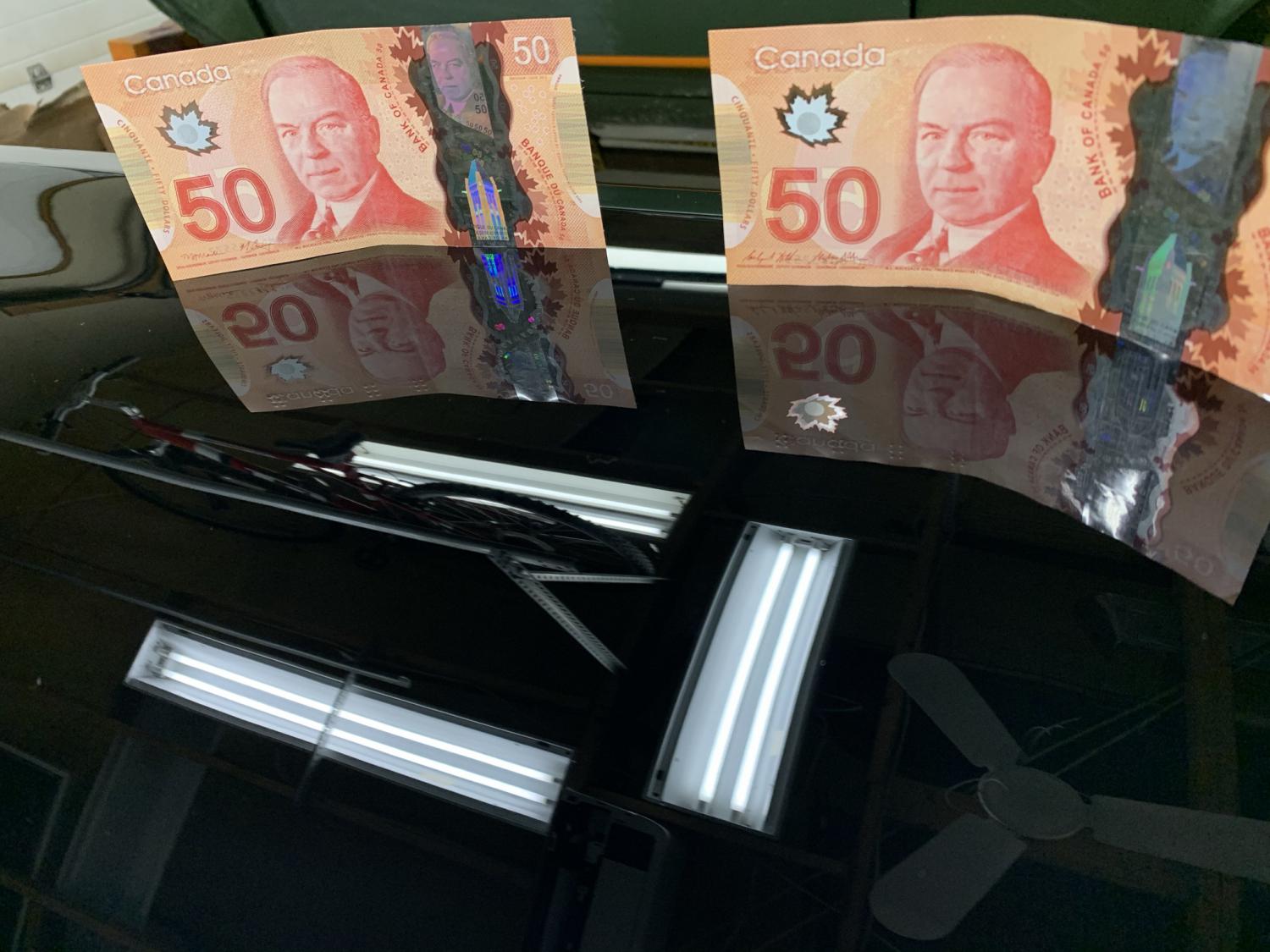

Finished up polishing the body (fenders-hood-1/4 WNDO moldings-cowl; will be later)... clearly I need a break !

Name:  Polish 0010.jpg
Views: 771
Size:  94.5 KB

Name:  Polish 0020.jpg
Views: 771
Size:  96.3 KB

Name:  Polish 0050.jpg
Views: 753
Size:  224.0 KB

Name:  Polish 0055.jpg
Views: 737
Size:  187.3 KB

Name:  Polish 0059.jpg
Views: 753
Size:  57.3 KB

Name:  Polish 0060.jpg
Views: 756
Size:  98.2 KB

Name:  Polish 0070.jpg
Views: 720
Size:  101.3 KB

Name:  Polish 0080.JPG
Views: 985
Size:  88.5 KB
__________________
68 Acadian SS-350 auto/AC driver
70 Nova SS-396/375HP Bench Stick
72 Nova SS-350 5sp Mini Tubbed
67 Chevelle Conv. SS-427 clone
70 Chevelle SS-454 LS-5 M-22
Reply With Quote
The Following 8 Users Say Thank You to L78_Nova For This Useful Post:
big gear head (11-24-2022), chevyman0429 (11-24-2022), Dave Rifkin (11-25-2022), dykstra (12-01-2022), L16pilot (12-01-2022), olredalert (11-24-2022), RPOLS3 (11-25-2022), Xplantdad (11-25-2022)
  #198
Old 11-24-2022, 02:59 PM
chevyman0429's Avatar
chevyman0429 chevyman0429 is online now
Yenko Contributing Member

Join Date: Nov 2008
Location: Clarkston, Mi
Posts: 1,729
Thanks: 354
Thanked 533 Times in 233 Posts
Default

Outstanding work. Cars gonna be amazing
__________________
1969 SS 396 300 deluxe post car
1969 SS 396 300 deluxe hardtop
1969 SS 396 chevelle
1978 chevy shortbed step side
1983 chevy shortbed
1985 chevy shortbed
If a hammer and duct tape wont fix it u have electrical problems!
Reply With Quote
The Following User Says Thank You to chevyman0429 For This Useful Post:
L78_Nova (11-24-2022)
  #199
Old 11-24-2022, 03:00 PM
Too Many Projects's Avatar
Too Many Projects Too Many Projects is offline
Yenko Contributing Member

Join Date: Oct 2020
Location: Town of Troy, WI
Posts: 5,031
Thanks: 2,635
Thanked 3,875 Times in 1,752 Posts
Default

Incredible !!

As for counseling, I think many of the people on this forum who strive for perfection and date coded/NOS parts need counseling..
I know a guy who has driven around this country, chasing NOS body panels for a 1967 Camaro..
MCACN 2023...you definitely have my vote.
__________________
Mitch
1970 Chevelle SS
1966 Chevelle SS
1967 Camaro ss/rs
1938 Business coupe, street rod
2000 FXSTS, original owner, 13k miles
Reply With Quote
The Following User Says Thank You to Too Many Projects For This Useful Post:
L78_Nova (11-24-2022)
  #200
Old 11-24-2022, 03:52 PM
L78_Nova's Avatar
L78_Nova L78_Nova is offline
Yenko Contributing Member

Join Date: Apr 2016
Location: Winnipeg
Posts: 610
Thanks: 10,512
Thanked 857 Times in 264 Posts
Default 1970 L-78 Nova Restoration; Saga of The Green Bastard

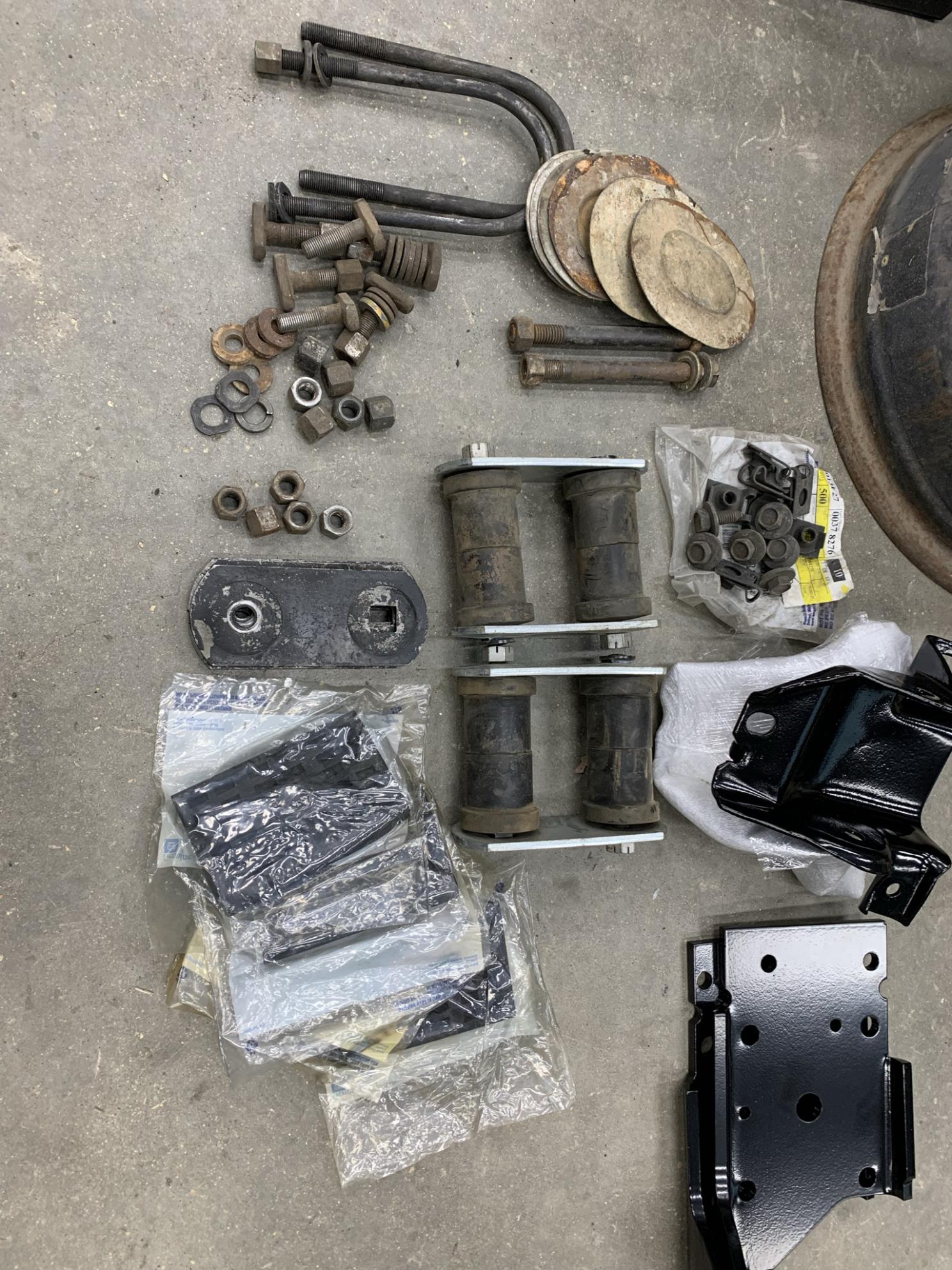

Finding... Sorting... and Cleaning parts

Name:  Parts 0010.jpg
Views: 973
Size:  456.6 KB

Name:  pARTS 0012.jpg
Views: 997
Size:  284.4 KB

Name:  Parts 0015.jpg
Views: 956
Size:  489.2 KB

Name:  Parts 0020.jpg
Views: 1045
Size:  236.1 KB

Name:  Parts 0030.jpg
Views: 942
Size:  177.5 KB

Name:  Parts 0040.JPG
Views: 1006
Size:  420.6 KB

Name:  Parts 0050.jpg
Views: 965
Size:  297.6 KB
__________________
68 Acadian SS-350 auto/AC driver
70 Nova SS-396/375HP Bench Stick
72 Nova SS-350 5sp Mini Tubbed
67 Chevelle Conv. SS-427 clone
70 Chevelle SS-454 LS-5 M-22
Reply With Quote
The Following 4 Users Say Thank You to L78_Nova For This Useful Post:
big gear head (11-24-2022), dykstra (12-01-2022), NorCam (11-25-2022), RPOLS3 (11-25-2022)
