Default Quadrajet Carb Stamping

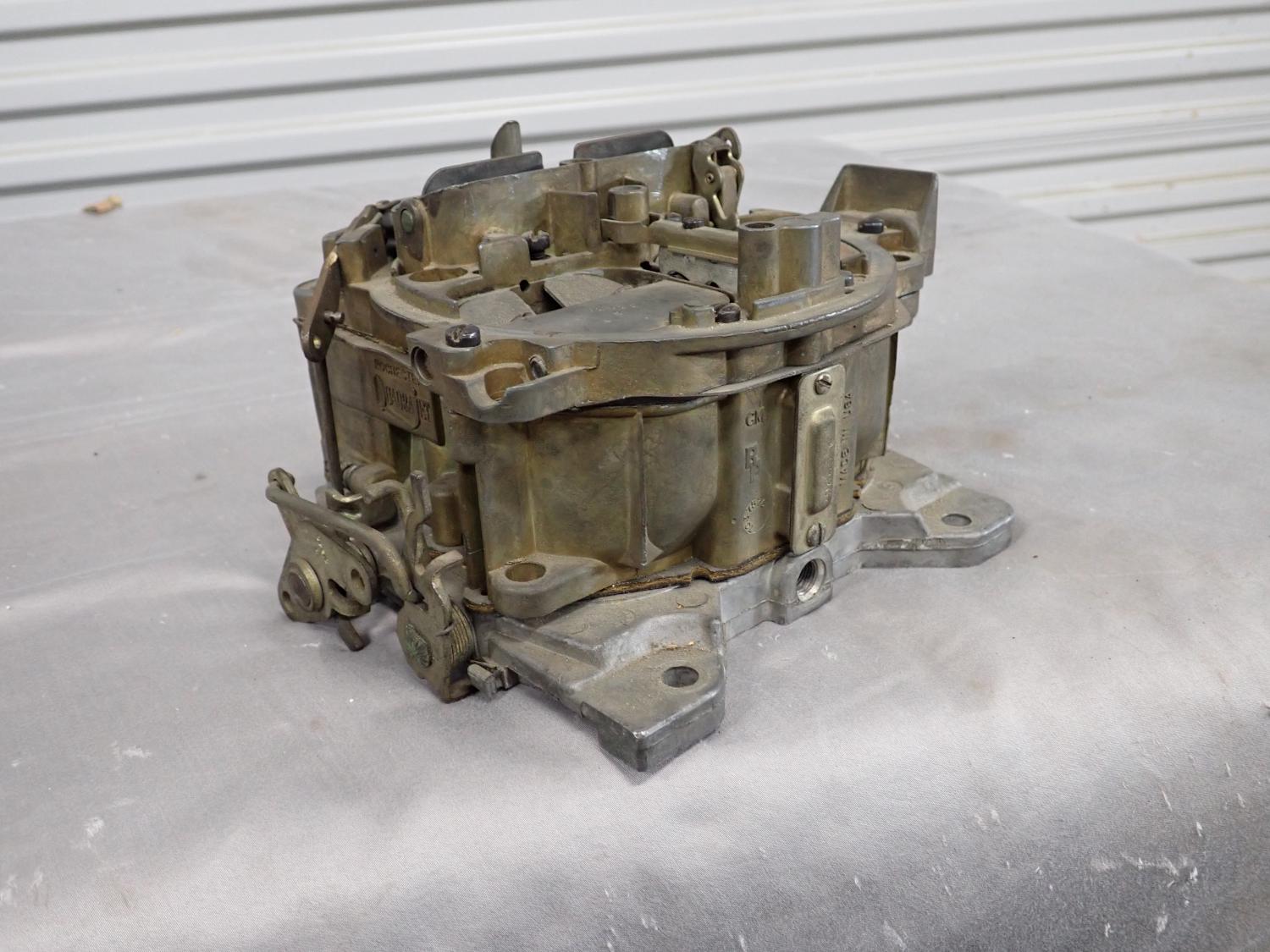

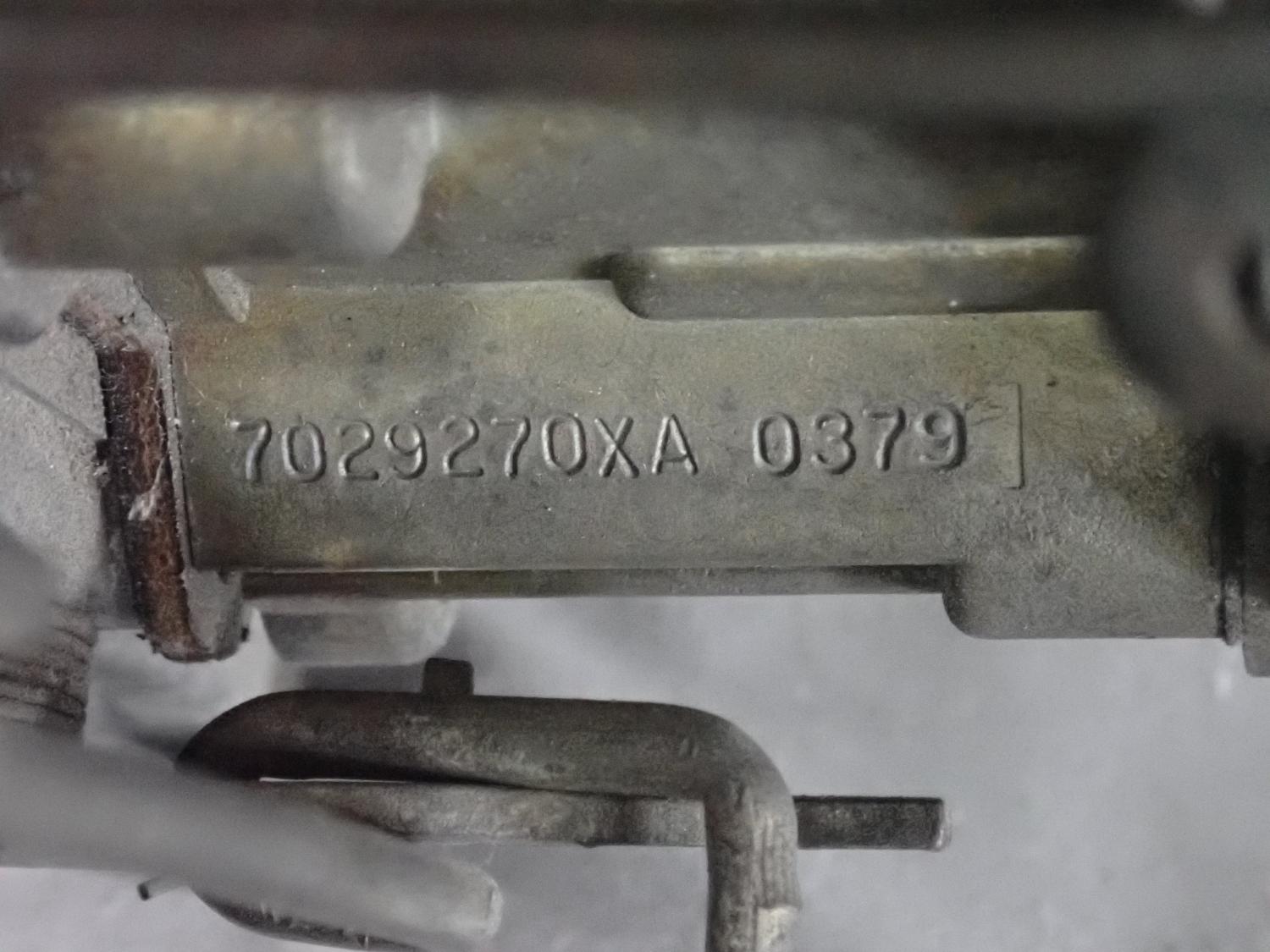

I recently picked up this 7029270 carb along with a bunch of other parts from a guy that was into cars in the 70s and 80s. The guy was in his 80's and said he pulled the carb off a 1969 Judge in 1982ish. On a side note, he said he sold the car for $1500 back them. The carb looks to be in good survivor condition except for the broken choke pull off. I am curious about the stamp since it is a different font than I am used to seeing on Chevrolet Q-jets. I know Holleys pretty well but Rochester carbs are not something I'm sure familiar with. I checked with a few guys that I feel are in the know and they said the stamp looks good. What do you guys think?


Thanks,

Jason
Attached Images

Reply With Quote
Attachments - The Supercar Registry P2211692.jpg P2211691.jpg P2211690.jpg P2211687.jpg
O Garage vBulletin Plugins by Drive Thru Online, Inc.
Click here to view all the pictures posted in this thread...
  #2
Old 02-22-2024, 01:35 AM
dvss1 dvss1 is offline
Yenko Contributing Member

Join Date: Mar 2006
Location: Crete Illinois
Posts: 567
Thanks: 9
Thanked 38 Times in 35 Posts
Default

Real carb and known date. Im surprised it doesnt have the big "R" ink stamp on that same side with part number.
Reply With Quote
  #3
Old 02-22-2024, 02:12 AM
68camaroz28 68camaroz28 is offline
Yenko Contributing Member

Join Date: Apr 2014
Location: PA
Posts: 246
Thanks: 41
Thanked 87 Times in 56 Posts
Default

There were carbs with everything (stampings) in one line from what I've read and there were more than one font. Not 100% sure what the XA broadcast code was but it seems correct for a GTO.
__________________
68,69&2015 Z/28's
69 L78 Nova Purchased new 32k miles
69 Restored Nova L34 Father/Son
Few Corvettes
Our 68 Z/28 Build thread- http://www.camaros.net/forums/showthread.php?t=182584
Reply With Quote
  #4
Old 02-22-2024, 02:13 AM
SuperNovaSS SuperNovaSS is offline
Yenko Contributing Member

Join Date: Sep 2001
Location: Santa Cruz, CA
Posts: 6,463
Thanks: 318
Thanked 620 Times in 323 Posts
Default

Thanks guys. I just wanted to be sure it was legit.

Jason
Reply With Quote
  #5
Old 02-22-2024, 02:24 AM
Big Block Bill Big Block Bill is offline
Yenko Contributing Member

Join Date: May 2004
Location: Elk Grove Village Illinois
Posts: 1,484
Thanks: 1,928
Thanked 692 Times in 290 Posts
Default

Jason,

I believe its a real stamping 1969 Pontiac Ram Air GTO carb and with the 39th. day of 1969 date, It should be worth $2500.00 - $3000.00 when correctly restored installing the missing choke rod, pull off ect. But what do I know? I'm a Chevy Guy. Eric Jackson would definitely know for sure.

Bill

Last edited by Big Block Bill; 02-22-2024 at 02:27 AM.
Reply With Quote
The Following User Says Thank You to Big Block Bill For This Useful Post:
VintageMusclecar (02-23-2024)
  #6
Old 02-22-2024, 03:32 AM
SuperNovaSS SuperNovaSS is offline
Yenko Contributing Member

Join Date: Sep 2001
Location: Santa Cruz, CA
Posts: 6,463
Thanks: 318
Thanked 620 Times in 323 Posts
Default

Thanks Bill. Yes, it’s a GTO Ram Air carb. I believe this specific model was used on Ram Ait IV automatic models. The choke pull off clearly needs replacement. The pics don’t really show it since it’s dirty but the carb is actually in quite nice survivor condition.


Thanks,

Jason
Reply With Quote
  #7
Old 02-22-2024, 12:02 PM
Big Block Bill Big Block Bill is offline
Yenko Contributing Member

Join Date: May 2004
Location: Elk Grove Village Illinois
Posts: 1,484
Thanks: 1,928
Thanked 692 Times in 290 Posts
Default

Quote:
Originally Posted by SuperNovaSS View Post
Thanks Bill. Yes, itís a GTO Ram Air carb. I believe this specific model was used on Ram Ait IV automatic models. The choke pull off clearly needs replacement. The pics donít really show it since itís dirty but the carb is actually in quite nice survivor condition.


Thanks,

Jason
I'll pull a Charley here: "Can I have it"?
Reply With Quote
The Following 2 Users Say Thank You to Big Block Bill For This Useful Post:
Bill Pritchard (02-22-2024), SuperNovaSS (02-22-2024)
  #8
Old 02-22-2024, 09:52 PM
Lee Stewart's Avatar
Lee Stewart Lee Stewart is offline
Senior Member

Join Date: Mar 2017
Location: ABQ, New Mexico
Posts: 36,633
Thanks: 3,506
Thanked 136,487 Times in 22,778 Posts
Default

Choose Your Quadrajet: Number Identification Guide

https://www.bing.com/search?q=Quadra...af9584&pc=U531
