Default 1970 Z28 Paperwork and Pad Stamp Opinions

A friend of mine asked me what I thought of the pad stamp, trim tag, and paperwork on this Z/28. I have my opinions and I am curious what everyone else thinks. Opinions?


Thanks,

Jason
Attached Images

Reply With Quote
The Following User Says Thank You to SuperNovaSS For This Useful Post:
PeteLeathersac (08-22-2023)
Attachments - The Supercar Registry WindowSticker.jpg TrimTag.jpg PadStamp.jpg OrderForm.jpg
O Garage vBulletin Plugins by Drive Thru Online, Inc.
Click here to view all the pictures posted in this thread...
  #2
Old 08-22-2023, 06:44 AM
COPO COPO is online now
Yenko Contributing Member

Join Date: Mar 2000
Location: Atlanta, GA & the Middle East
Posts: 2,984
Thanks: 376
Thanked 354 Times in 186 Posts
Default

Interesting a Norwood built car being sold new in LA when VN is very close by.
Reply With Quote
  #3
Old 08-22-2023, 08:29 AM
AnthonyS's Avatar
AnthonyS AnthonyS is offline
Yenko Advertising Member

Join Date: Dec 2017
Location: SoCal
Posts: 3,014
Thanks: 119
Thanked 602 Times in 364 Posts
Default

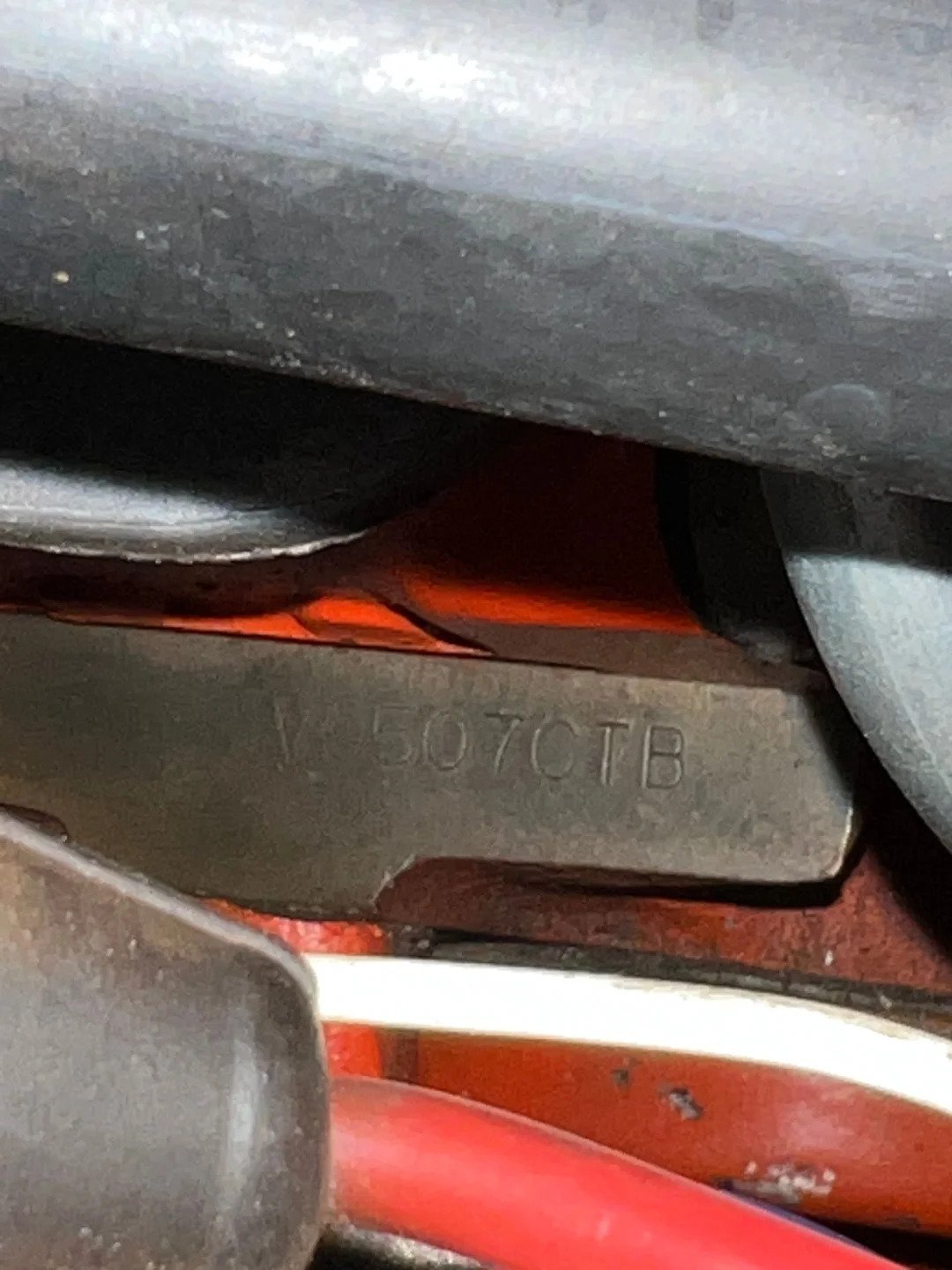

Hi Jason. Iím not an expert, but I have a CTB block (that I believe is genuine) in the garage and I think the suffix stamp looks different from the one pictured here. The gap in the C and particularly the BÖ I also agree that it would be unusual to have an OH built car sold new in CA, but Iíve also heard that sometimes that happened with low volume models and maybe even because of the unique build year in 1970.

My block, FYI for the stamp comparison:

https://www.yenko.net/forum/showthread.php?t=174868

Just MHO,
Anthony
Reply With Quote
  #4
Old 08-22-2023, 12:11 PM
BCreekDave BCreekDave is offline
Senior Member

Join Date: Sep 2016
Location: Dayton Ohio
Posts: 836
Thanks: 278
Thanked 383 Times in 215 Posts
Default

Seems kind of suspicious that a car sold into California is missing the mandatory NA9 evap equipment. Does it have it on the car? This probably would not have appeared on the sales form, but pretty sure it would be on the window sticker, which most likely is a fake one. Affirming this is the "Black Cloth Interior". This was only available with the Z87 Deluxe interior option which would have been on the sales order and the window sticker. Looks to be a "made up" window sticker that matches the options the car now has.
The CTB on the engine pad also looks a bit wrong to me, but I'm not an expert on this. My CTB engine suffix looks just like Anthony's. Note the B has equal size top and bottom bumps.
__________________
70Z28 04B Norwood Forest Green-white Stripes Black DeLuxe Interior
Owned since 1978 - First Car

Last edited by BCreekDave; 08-22-2023 at 01:39 PM.
Reply With Quote
  #5
Old 08-22-2023, 01:35 PM
L16pilot L16pilot is offline
Yenko Contributing Member

Join Date: Mar 2016
Location: Maryland
Posts: 414
Thanks: 502
Thanked 401 Times in 143 Posts
Default

I agree with the suspicions on the block stamp...especially the "B" which appears to be a different font than another known original stamp produced 2 days after the subject block. As for the paperwork, Dave noticed some key items, but in addition, note the date on the top of the hand written retail order. The date at the bottom appears to match the date at the top...but wouldn't the customer have written the date at the bottom when they signed?
__________________
Steve Nuwer

1970 Z28, Norwood 03A, 48 48, 723 Int, M20, COO, 2021 Legends Platinum restored
1970 L78, Norwood 04C, 17 17, 711 Int, M21, COO, born-with drivetrain project.
1972 Z28, Norwood 11C project, born-with drivetrain, 26 26, 775, M20, CGG project
1970 Z28, Norwood 05C, 48 G, 720 Int, M21, COZ, Original Unrestored (SOLD)
www.2ndGenZ.com
Reply With Quote
  #6
Old 08-22-2023, 02:53 PM
WILMASBOYL78's Avatar
WILMASBOYL78 WILMASBOYL78 is offline
Yenko Contributing Member

Join Date: Jul 2003
Location: new york
Posts: 8,121
Thanks: 1
Thanked 1,463 Times in 471 Posts
Post 1970 z28...

I will let the gurus deal with the engine pad and geography issues.

The sales invoice and order form are standard Reynolds & Reynolds documents used back then. The sales order would have been filled out by the salesperson and signed by the customer. You will note the salesperson's name appears at the top left and his signature is at the lower right.

The SA-131 invoice was a stock from which was crash printed and numbered by Reynolds for the dealer. You will note the dealer imprint and numbering are the same color...my recollection is the crash printing was done in black, but it has been a long time since I dealt with these forms??

Window sticker seems too clean and neat to be an original 50 plus year old document.

All that said, a Hugger Orange LT-1 Z28 with a 4.10 gear would be fun to own

-wilma
__________________
02 Berger 380hp #95
Lots of L78 Novas
Join National Nostalgic Nova!
70 Orange Cooler
69 Camaro
Reply With Quote
  #7
Old 08-22-2023, 03:50 PM
SuperNovaSS SuperNovaSS is offline
Yenko Contributing Member

Join Date: Sep 2001
Location: Santa Cruz, CA
Posts: 6,380
Thanks: 276
Thanked 551 Times in 290 Posts
Default

Thanks for all the replies guys. Keep them coming.



Jason
Reply With Quote
  #8
Old 08-22-2023, 04:20 PM
fsc66 fsc66 is offline
Senior Member

Join Date: Nov 2013
Location: Long Island, NY
Posts: 836
Thanks: 127
Thanked 336 Times in 173 Posts
Default Docs

Docs are are all reproductions

Paul
__________________
[email protected]
Reply With Quote
The Following 6 Users Say Thank You to fsc66 For This Useful Post:
Bill Pritchard (08-22-2023), L16pilot (08-22-2023), PeteLeathersac (08-22-2023), SS427 (08-23-2023), Steve Shauger (08-23-2023), SuperNovaSS (08-22-2023)
  #9
Old 08-22-2023, 04:29 PM
BCreekDave BCreekDave is offline
Senior Member

Join Date: Sep 2016
Location: Dayton Ohio
Posts: 836
Thanks: 278
Thanked 383 Times in 215 Posts
Default

Quote:
Originally Posted by fsc66 View Post
Docs are are all reproductions

Paul
Love the coffee stains.
__________________
70Z28 04B Norwood Forest Green-white Stripes Black DeLuxe Interior
Owned since 1978 - First Car
Reply With Quote
The Following User Says Thank You to BCreekDave For This Useful Post:
Bill Pritchard (08-22-2023)
  #10
Old 08-22-2023, 07:39 PM
lowmile lowmile is offline
Yenko Contributing Member

Join Date: Aug 2002
Location: Thomasville Ga.
Posts: 626
Thanks: 120
Thanked 120 Times in 53 Posts
Default

If he had sanded any harder on the cowl tag you'd have nothing to go by.
Reply With Quote
The Following User Says Thank You to lowmile For This Useful Post:
tom406 (08-22-2023)
