ZL-1 Engine Block Uncovered

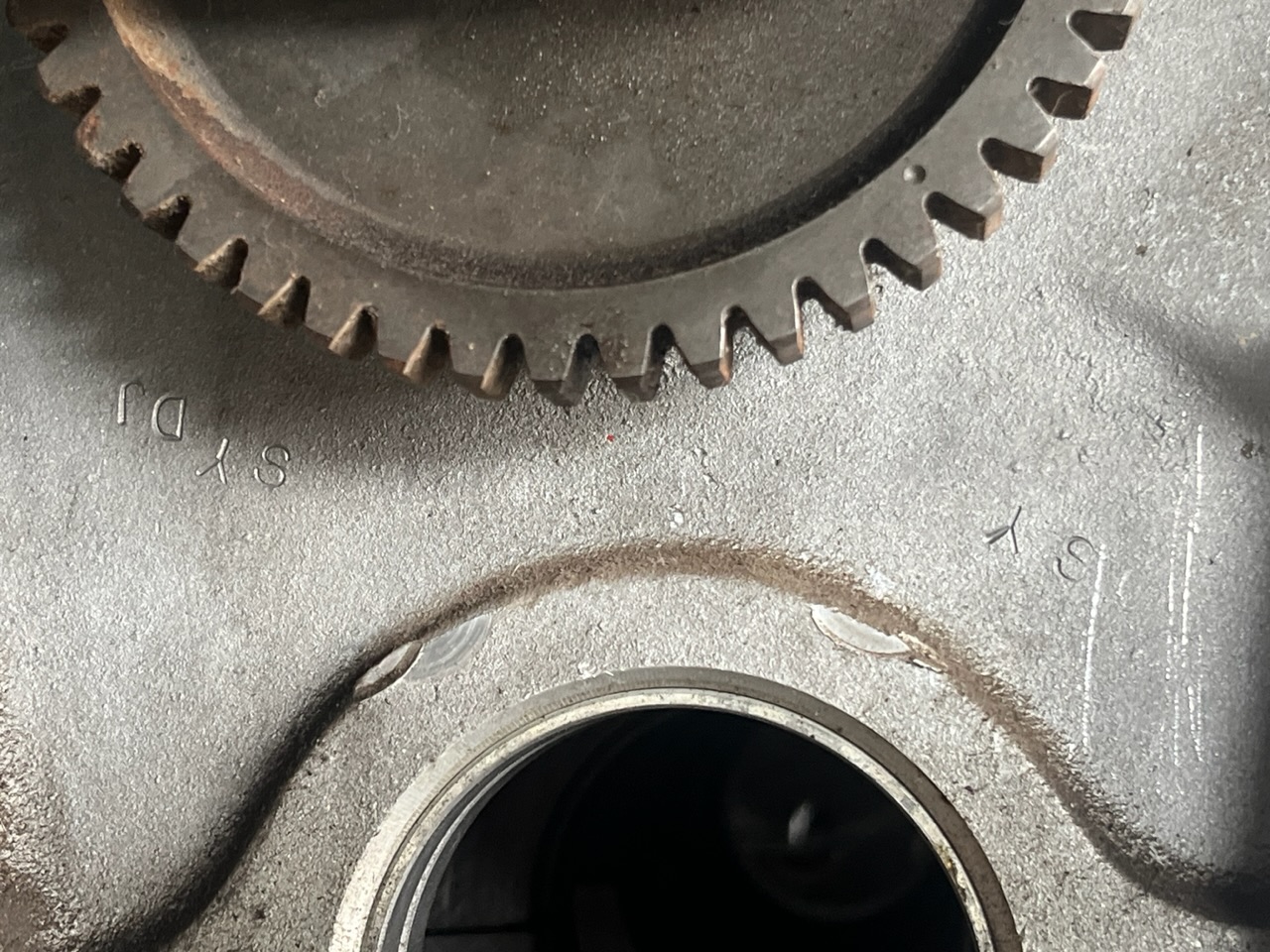

So I was at my friends place checking out his collection of rusty Chevrolet Performance cars, when he asked if I had ever seen his aluminum big block. I mentioned I had not, so it rolled it out from the corner. It is definitely cool, so I took some pictures of it and documented the numbers. Checking the numbers out today, it comes out as a 1969 ZL-1 engine Winters block. That was unexpected to say the least.

__________________
www.carsinbarns.blogspot.com
|
| The Following 4 Users Say Thank You to Devil For This Useful Post: | ||
|
#2
08-29-2023, 10:48 PM
|
|||
|
|||
|
Painted blue to try and disguise as a Ford engine?
 Did it have a production date and application code stamped on the passenger side front pad?
__________________
Bill Pritchard 69 Chevelle SS396 Post Sedan, Cortez Silver, L35 M20 Last edited by Bill Pritchard; 08-29-2023 at 10:53 PM.
|
|
#3
08-29-2023, 11:52 PM
|
||||
|
||||
|
If the stamp is is one of the missing 69 engines, now you are talkin big money.
Is it for sale?
__________________
1969 ZL1 COPO Camaro 11.60@120 F.A.S.T 21 1971 LS6 vette 12.20 @118 PSMCDR
|
|
#4
08-30-2023, 01:32 AM
|
|||
|
|||
|
Based on the casting date location, that's one of the blocks re-issued in the late '80s.
Missing sleeves.
__________________
Learning more and more about less and less...
|
| The Following 4 Users Say Thank You to William For This Useful Post: | ||
|
#6
08-30-2023, 12:41 PM
|
|||
|
|||
|
Quote:
My 1969 "052" ZL-1 block was painted orange when I got it as it was used in a dirt modified as a "cheater". It came out of northern Ohio around 2010.
__________________
'58 Apache pick up '78 Z28 4sp being restored '70 W30 convert TRIBUTE '78 Z28 32,000 survivor, Og Yellow paint, AC. '69 CANADIAN Nova SS 396/350 hp '67 CANADIAN Nova SS 427 10 sec. driver '66 CANADIAN Nova SS Race Car '61 CANADIAN Pontiac Bubble top 409+/4sp (SOLD) '31 ALL STEEL Chevy P.U. GONE (EX-WIFES NOW)
|
|
#7
08-30-2023, 12:57 PM
|
||||
|
||||
|
You can see the step at the bottom of the bores for the sleeves to sit on. I don't believe there is enough material between the cylinders to run it as it is.
__________________
Freddie 1969 Camaro RS/SS396 (427) 4 speed
|
| The Following 2 Users Say Thank You to big gear head For This Useful Post: | ||
69M22Z (08-31-2023), John Brown (08-30-2023) | ||
|
#9
08-30-2023, 01:45 PM
|
|||
|
|||
|

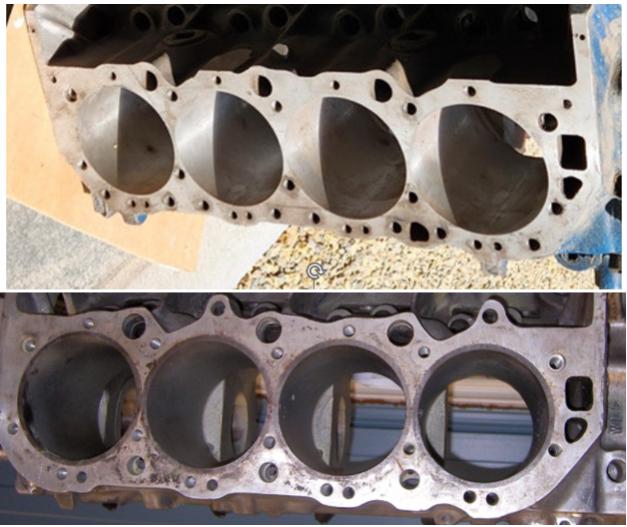

My block as is when I bought it:
__________________
'58 Apache pick up '78 Z28 4sp being restored '70 W30 convert TRIBUTE '78 Z28 32,000 survivor, Og Yellow paint, AC. '69 CANADIAN Nova SS 396/350 hp '67 CANADIAN Nova SS 427 10 sec. driver '66 CANADIAN Nova SS Race Car '61 CANADIAN Pontiac Bubble top 409+/4sp (SOLD) '31 ALL STEEL Chevy P.U. GONE (EX-WIFES NOW)
|
|
#10
08-30-2023, 01:49 PM
|
|||
|
|||
|
After "repairs" and set up for .904 Jesel solid roller lifters:
__________________
'58 Apache pick up '78 Z28 4sp being restored '70 W30 convert TRIBUTE '78 Z28 32,000 survivor, Og Yellow paint, AC. '69 CANADIAN Nova SS 396/350 hp '67 CANADIAN Nova SS 427 10 sec. driver '66 CANADIAN Nova SS Race Car '61 CANADIAN Pontiac Bubble top 409+/4sp (SOLD) '31 ALL STEEL Chevy P.U. GONE (EX-WIFES NOW)
|
| The Following 6 Users Say Thank You to EZ Nova For This Useful Post: | ||
69M22Z (08-31-2023), Carleen (08-30-2023), dykstra (08-30-2023), L78_Nova (08-30-2023), markinnaples (08-30-2023), ruralrte66 (08-30-2023) | ||
|
