Default Correct 1969 Big Block Starter W/ Auto Transmission?

Trying to piece this together. Iím trying to figure out what starter I need for a COPO car with an automatic trans. Iíve seen 1108430 listed for automatics and 1108418 for manuals. However, in trying to hunt for a 1108430, I canít find anything dated before 1970?

Anyone help shed some light on this for me?
Reply With Quote
Attachments - The Supercar Registry 30462C71-5836-47D5-A711-4681F862BCC7.jpg
Click here to view all the pictures posted in this thread...
  #2
Old 05-04-2021, 07:09 PM
X66 714's Avatar
X66 714 X66 714 is online now
Yenko Contributing Member

Join Date: May 2009
Location: It's a dry heat, Arizona
Posts: 1,218
Thanks: 1,022
Thanked 536 Times in 241 Posts
Default

FWIW My born with starter on my 8/28/1969 325hp with th400 is an 1108418. Don't know about COPOs though....Joe
__________________
See America's First, Chevrolet

1968 Z/28 Corvette Bronze. Black Hounds Tooth. 02E Los Angeles born 3/13/1968 pnt OO
1969 SS396 Yellow/Yellow 08E Norwood born 8/28/1969 pnt 76E
Reply With Quote
  #3
Old 05-04-2021, 08:37 PM
William William is offline
Yenko Contributing Member

Join Date: Jun 2001
Location: New Berlin WI USA
Posts: 1,957
Thanks: 86
Thanked 705 Times in 312 Posts
Default

Depends on which COPO.

The 1969 Chassis Service Manual lists 1108418 for all 396 engine/transmission combos. L72 was not listed but no reason to believe it would be different.

ZL-1 automatics substituted 1108400, possibly due to the higher compression.
__________________
Learning more and more about less and less...
Reply With Quote
The Following User Says Thank You to William For This Useful Post:
X66 714 (05-04-2021)
  #4
Old 05-04-2021, 09:39 PM
Krateness Krateness is offline
Junior Member

Join Date: Jul 2017
Posts: 22
Thanks: 0
Thanked 3 Times in 3 Posts
Default

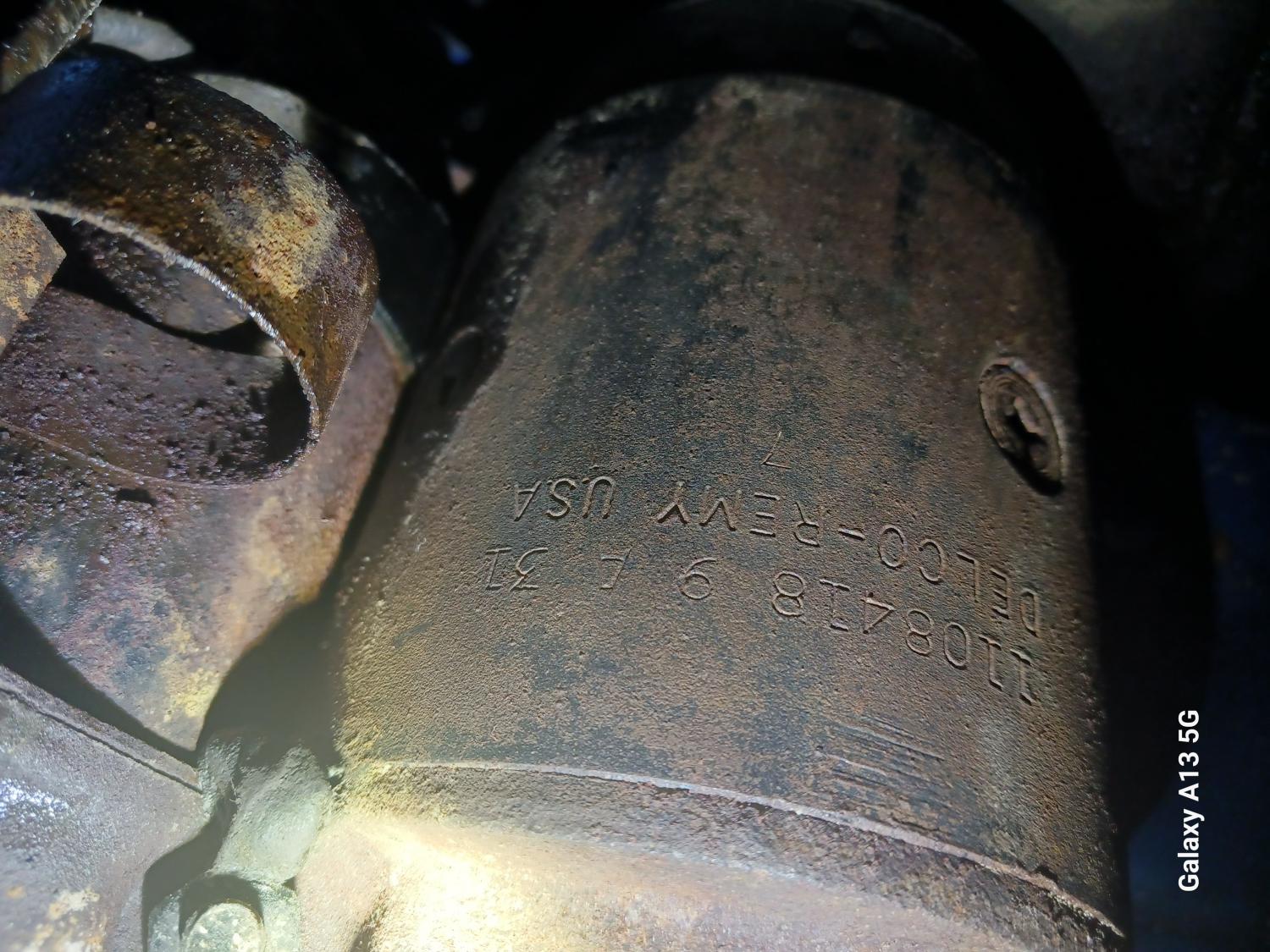

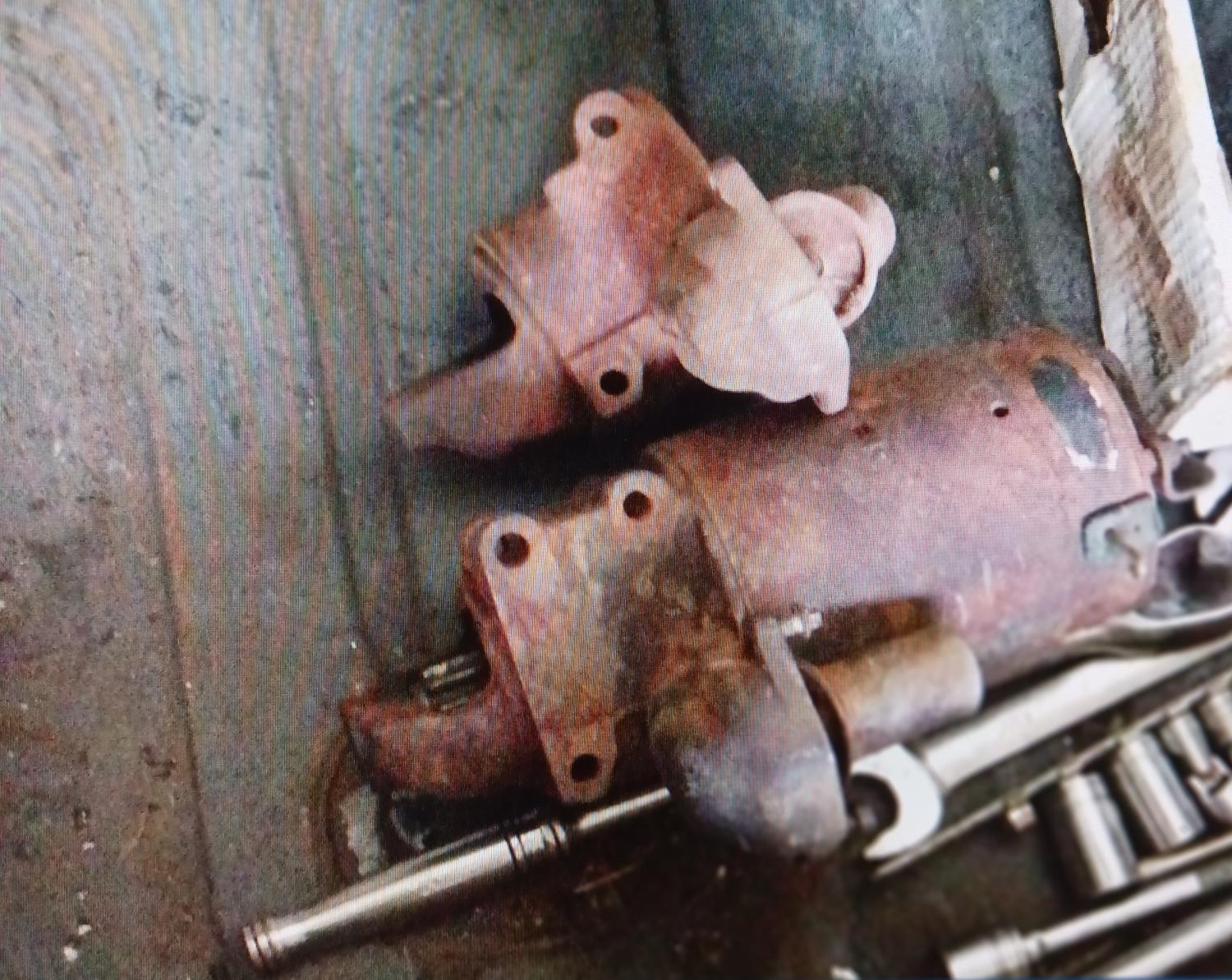

Thanks guys for the response, the car is a 427 COPO. I just read across it and was curious as if I had my thinking messed up. When the car was purchased it didnít have the original TH400 behind it. I just remembered it not being the correct 418 starter. I went out just note to check at what came off of it and of course itís a 430. However it is dated for 1974. Iíll probably just go ahead and snag a 418 and call it done.
Attached Images

Reply With Quote
The Following User Says Thank You to Krateness For This Useful Post:
L79Chevelle (05-09-2021)
  #5
Old 05-04-2021, 09:43 PM
Ralph Spears's Avatar
Ralph Spears Ralph Spears is offline
Senior Member

Join Date: Sep 2018
Location: Brookline Massachusetts
Posts: 154
Thanks: 58
Thanked 51 Times in 35 Posts
Default

I had a 1969 Corvette 427/435 M40 and it had 1108400 starter
Reply With Quote
  #6
Old 05-05-2021, 03:58 PM
crash crash is offline
Yenko Contributing Member

Join Date: Apr 2002
Location: Kenosha, Wi.
Posts: 665
Thanks: 0
Thanked 32 Times in 12 Posts
Default

My 1971 LS-5 4-speed Corvette has a 1108400 starter... Crash
Reply With Quote
  #7
Old 05-05-2021, 08:14 PM
William William is offline
Yenko Contributing Member

Join Date: Jun 2001
Location: New Berlin WI USA
Posts: 1,957
Thanks: 86
Thanked 705 Times in 312 Posts
Default

Corvettes are listed separately in the Chassis Service Manual.

Camaro, Chevelle and Nova w/396 engine list the same 1108418 starter.

B-body w/427 also shows the 1108418.
__________________
Learning more and more about less and less...
Reply With Quote
  #8
Old 05-06-2021, 05:23 PM
L78 Fred L78 Fred is offline
Yenko Contributing Member

Join Date: Oct 2011
Location: Lansdale PA
Posts: 650
Thanks: 93
Thanked 41 Times in 30 Posts
Default

What date 418 are you looking for?

Remember is should have the stainless heat shield as well- for both M40 and 4 speed
__________________
Fred
[email protected]
610-585-4155

WANTED:
1969 396/375 hp JH Vin N6352xx Mid April 69 block 272 casting
Always looking for dated L78 parts from Jan-Apr 69
Reply With Quote
  #9
Old 05-11-2021, 09:56 PM
Chrismag Chrismag is offline
Junior Member

Join Date: May 2021
Location: silver spring md
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Default

The 1969 Chassis Service Manual lists 1108418 for all engine/transmission combos. These were not listed but we should use stainless-steel shield.
Reply With Quote
