Default Blackjack Headers

I acquired a set of NOS Blackjack headers. The part number is 3017. Unfortunately, I canít find that number anywhere. Does anyone have an old catalog to match it up?

The story is, they were mocked up in a 1970 Chevelle but never used.

Thanks in advance, Kurt
Attached Images

__________________

1969 SS396 Post Sedan Delivered to Van-T Topeka KS
MCACN Day2 Concourse Gold Award

1968 Schwinn Orange Krate Original Paint
1970 Schwinn 3-Speed Deluxe Original Paint
Reply With Quote
Attachments - The Supercar Registry image.jpg image.jpeg F7910ABA-F1B0-48FA-AC4F-52CF6A801C52.jpeg 82DFCF95-51F5-40B8-AFD7-5D745782C842.jpeg
O Garage vBulletin Plugins by Drive Thru Online, Inc.
Click here to view all the pictures posted in this thread...
  #2
Old 10-19-2021, 04:11 AM
PeteLeathersac's Avatar
PeteLeathersac PeteLeathersac is offline
Yenko Contributing Member

Join Date: Jul 2005
Location: O' Canada
Posts: 11,933
Thanks: 13,848
Thanked 3,818 Times in 1,898 Posts
Default

'

Comparing w/ other Blackjack/Appliance Headers, they appear more Camaro like than 'Velle?
1'st pic below is your pipes compared w/ Nos '68-72 Velle pipes from this thread, note swept back angle of mid runners...
https://www.yenko.net/forum/showthread.php?p=1301952
2'nd pic is yours compared to 1'st Gen Pipes from this second linked thread, pass' side looks different for accessories perhaps but driver's almost the same other than pic angle?...
https://www.yenko.net/forum/showthread.php?p=1260298
Also of note in the second linked thread is Member Whitetop mentions he has a Blackjack Catalogue.
Best of luck!

~ Pete

.
Attached Images

__________________
I like real cars best...especially the REAL real ones!
Reply With Quote
The Following User Says Thank You to PeteLeathersac For This Useful Post:
69 Post Sedan (10-20-2021)
  #3
Old 10-19-2021, 04:19 PM
jbtech's Avatar
jbtech jbtech is offline
Yenko Contributing Member

Join Date: Apr 2020
Location: Prunedale, CA
Posts: 463
Thanks: 437
Thanked 828 Times in 177 Posts
Default

I have a catalog. Remind me in case I don't post the information tonight.
__________________
Jose Betancourt

67 Camaro L78
Reply With Quote
  #4
Old 10-19-2021, 05:16 PM
Chuck_Burg's Avatar
Chuck_Burg Chuck_Burg is offline
Yenko Contributing Member

Join Date: Feb 2019
Location: Long Beach, CA
Posts: 511
Thanks: 481
Thanked 854 Times in 237 Posts
Default

Hi Kurt! Those look identical to my Appliance CH4s, which are for 67-69 Camaro. You can see mine on my build thread.

https://www.yenko.net/forum/showthread.php?t=161440

Last edited by Chuck_Burg; 10-19-2021 at 08:46 PM. Reason: Typo
Reply With Quote
The Following User Says Thank You to Chuck_Burg For This Useful Post:
69 Post Sedan (10-20-2021)
  #5
Old 10-20-2021, 02:32 AM
rszmjt rszmjt is offline
Senior Member

Join Date: Nov 2004
Location: Calgary,Alberta,Canada
Posts: 262
Thanks: 5
Thanked 117 Times in 77 Posts
Default

Quote:
Originally Posted by Chuck_Burg View Post
Hi Kurt! Those look identical to my Appliance CH4s, which are for 67-69 Camaro. You can see mine on my build thread.

https://www.yenko.net/forum/showthread.php?t=161440
Chuck, I think your 100% correct, before Appliance headers changed to Blackjack the CH4 number was used, pretty sure the blackjack number is 3017, same header later issue.

I put a lot of those Appliance headers on in the early 70,s when I worked at a local Calgary speedshop JB,s Automotive , very nice headers very equal length too. I have a set of CH3 headers for a small block Camaro been saving them for years. FWIW when Blackjack took over they changed to that rotating lower flange.

Last edited by rszmjt; 10-20-2021 at 02:34 AM.
Reply With Quote
The Following 2 Users Say Thank You to rszmjt For This Useful Post:
69 Post Sedan (10-20-2021), NorCam (10-20-2021)
  #6
Old 10-20-2021, 05:16 PM
Chuck_Burg's Avatar
Chuck_Burg Chuck_Burg is offline
Yenko Contributing Member

Join Date: Feb 2019
Location: Long Beach, CA
Posts: 511
Thanks: 481
Thanked 854 Times in 237 Posts
Default

Good note on the rotating collector flange, which is probably an improvement. The Appliance headers have four hole square collector flanges.
Reply With Quote
  #7
Old 10-20-2021, 07:34 PM
rszmjt rszmjt is offline
Senior Member

Join Date: Nov 2004
Location: Calgary,Alberta,Canada
Posts: 262
Thanks: 5
Thanked 117 Times in 77 Posts
Default

Quote:
Originally Posted by Chuck_Burg View Post
Good note on the rotating collector flange, which is probably an improvement. The Appliance headers have four hole square collector flanges.
I personally don't like the rotating header flange, they tend to push out and split the gasket as there is quite a bulge where the flared sealing flange is, problem gets worse as the street hook up has the same deal.

I have Tig welded the flange both sides before and then ground and Roloxed off the flared bulge. I also noticed the quality of the bends and port flanges etc got worse when they changed to Blackjack name. JMO.

I put many different make headers on the 67-69 Camaros and Appliance was the only 1 that did not have any clearance issues with steering box/pitman arm or frame fuel line. etc. Wish they still were available.

Last edited by rszmjt; 10-20-2021 at 07:37 PM.
Reply With Quote
  #8
Old 10-20-2021, 09:10 PM
Chuck_Burg's Avatar
Chuck_Burg Chuck_Burg is offline
Yenko Contributing Member

Join Date: Feb 2019
Location: Long Beach, CA
Posts: 511
Thanks: 481
Thanked 854 Times in 237 Posts
Default

The Appliance fit in my 67 like a glove! I was very impressed when I installed mine.
Reply With Quote
  #9
Old 10-22-2021, 04:34 AM
jbtech's Avatar
jbtech jbtech is offline
Yenko Contributing Member

Join Date: Apr 2020
Location: Prunedale, CA
Posts: 463
Thanks: 437
Thanked 828 Times in 177 Posts
Default

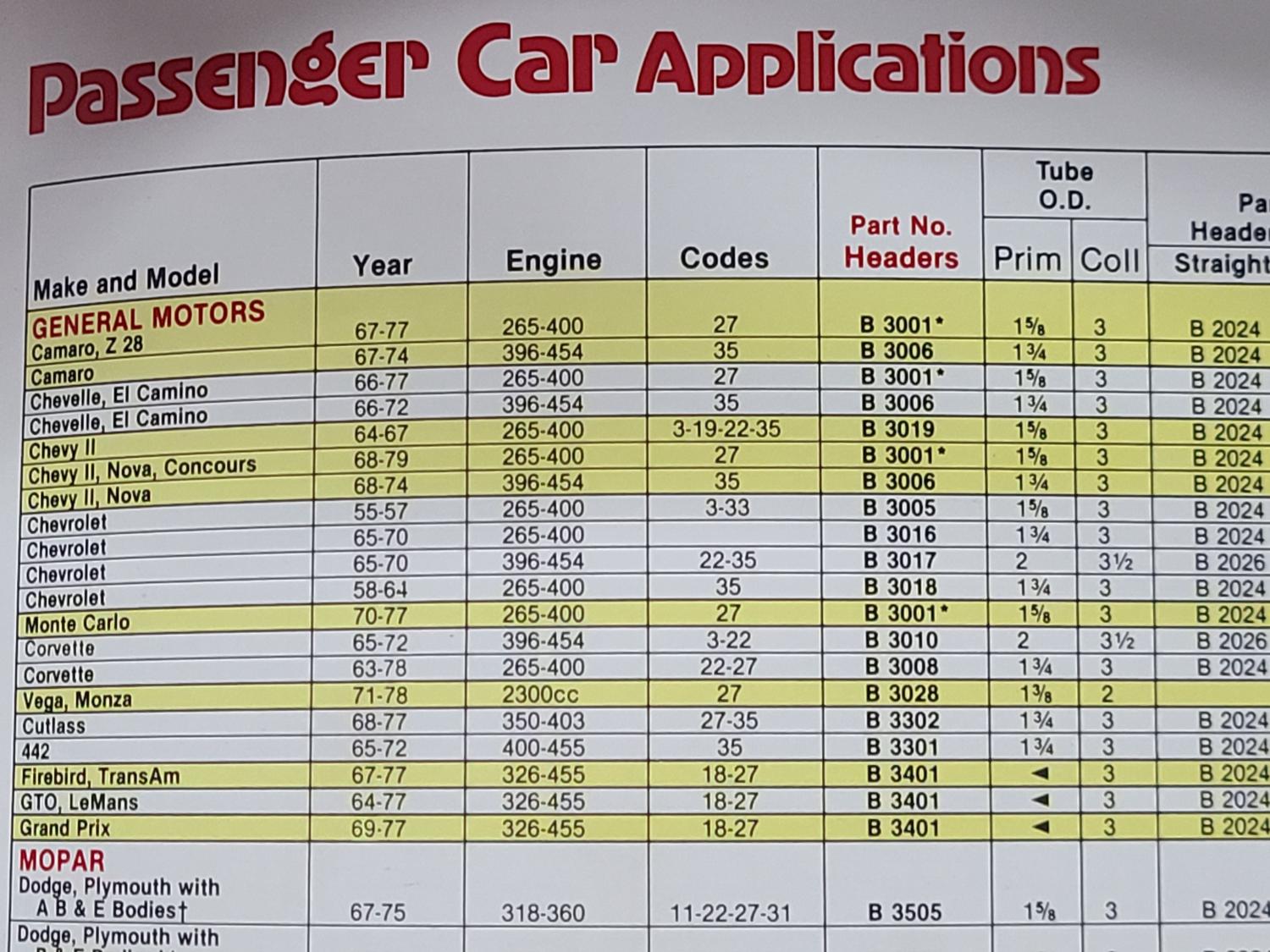

Enjoy.
Attached Images

__________________
Jose Betancourt

67 Camaro L78
Reply With Quote
The Following 3 Users Say Thank You to jbtech For This Useful Post:
69 Post Sedan (10-22-2021), Chuck_Burg (10-22-2021), PeteLeathersac (10-22-2021)
  #10
Old 10-22-2021, 06:33 PM
PeteLeathersac's Avatar
PeteLeathersac PeteLeathersac is offline
Yenko Contributing Member

Join Date: Jul 2005
Location: O' Canada
Posts: 11,933
Thanks: 13,848
Thanked 3,818 Times in 1,898 Posts
Default

'

WW also cool they're B-Body!
Note the 'Vette pipes are the only other application shown w/ 2" runners and 3-1/2" collectors.
As above, they're similar to F-Body so may swap/fit one or both applications?

~ Pete

.
__________________
I like real cars best...especially the REAL real ones!
Reply With Quote
The Following 2 Users Say Thank You to PeteLeathersac For This Useful Post:
69 Post Sedan (10-22-2021), Chuck_Burg (10-22-2021)
