NOS AC Delco Air Filters A212CW AND A212CX

[1969camarors427]

I bought these filters at a swap meet and the filter number is 6424613 and A212CX.
There are 2 different style boxes. The one AC box has on it Pontiac V-8 400 428 4BBL Hi Perf Engine 1967. The other 2 just have the numbers on them.
When I remove from the box The filters on the top have A212CW embossed into the filter but almost like a branded X after the CW. These 3 have a Diagonal square screen with a almost soldered mesh and a finer mesh (like a screen door)behind the diagonal one.
What is the proper style of mesh used in the 427 vette engines ect... I have found lots of info but all different info on what is correct. Thanks

[Mr70]

Hi George
AC designed those double mesh filters for Trucks & HDuty Industrial applications for Chevrolet/GMC,that were mainly around those conditions.
https://www.yenko.net/ubbthreads/ubbthrea...true#Post353144

A212CW single square mesh is what the Vettes used,in a Diagonal position.

[SBR]

The 65 thru 69 vette air filters used the AC 212CW filter. It was square mesh rotated 45 degrees with a smooth woven junction. The part # is embossed on the air filter.

[1969camarors427]

Hi Rick, I have some pictures of the boxes and filters, The one box is a older GM performance Box that comes with a decal that looks the same as the air cleaner box. The AC box has 1967 400 428 4 Barrel Hi Performance Engine 1967 on it in the gm writing? There is a A212CW on the filter. How can i post the pics. Thanks

[nova7579]

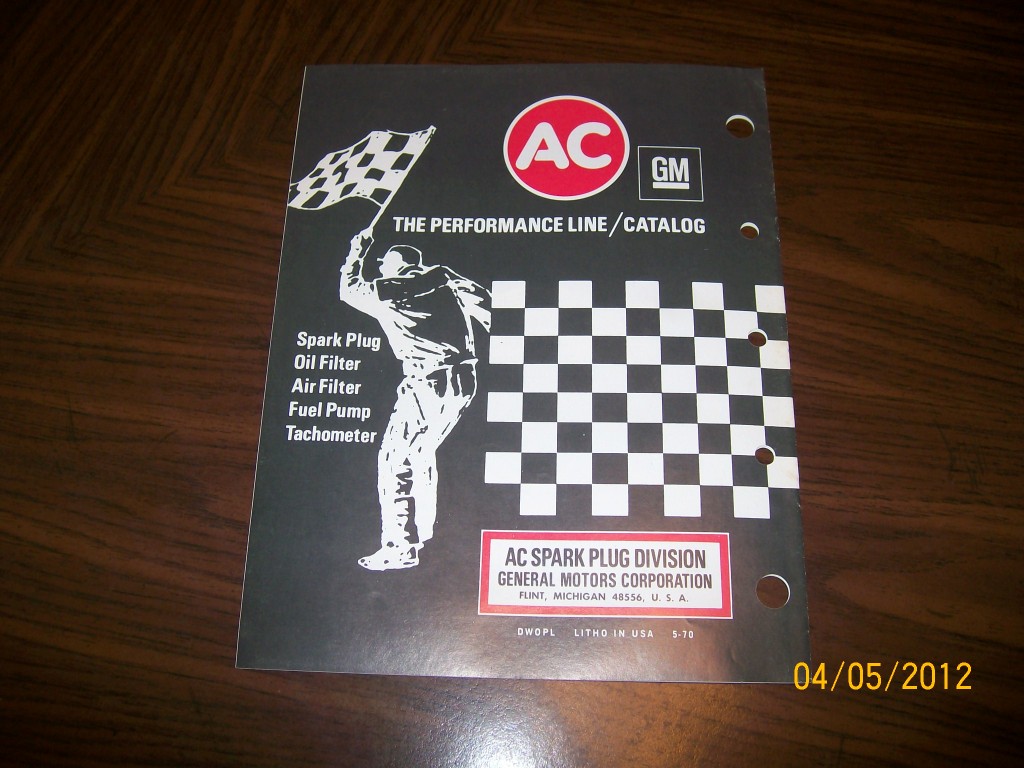

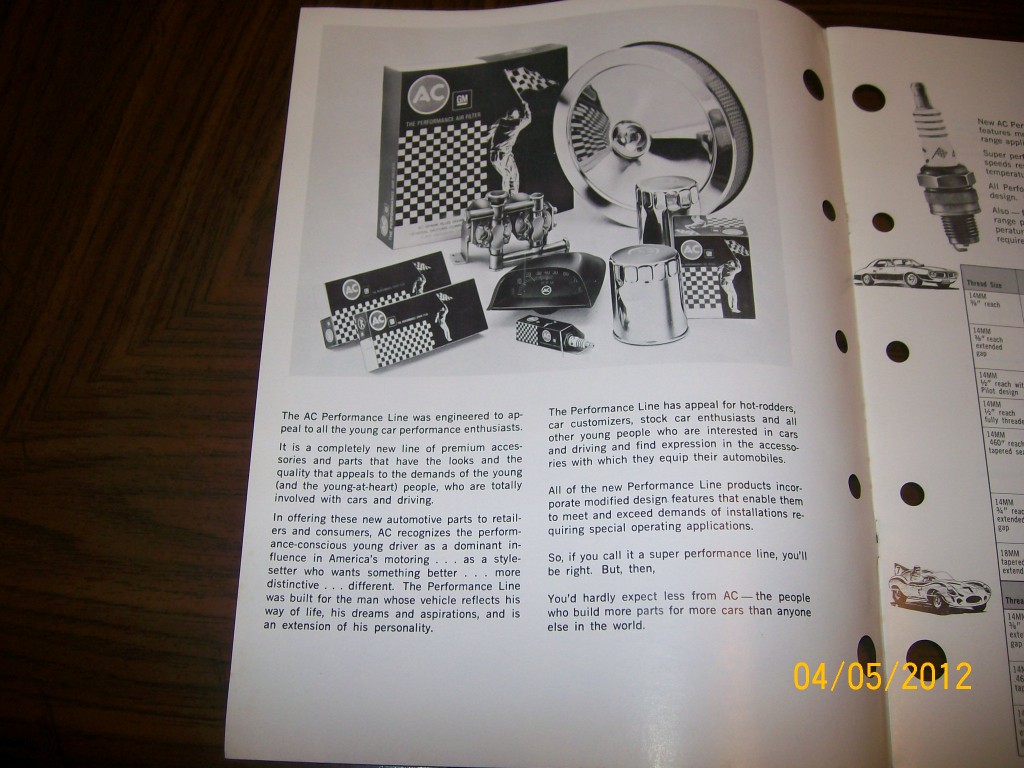

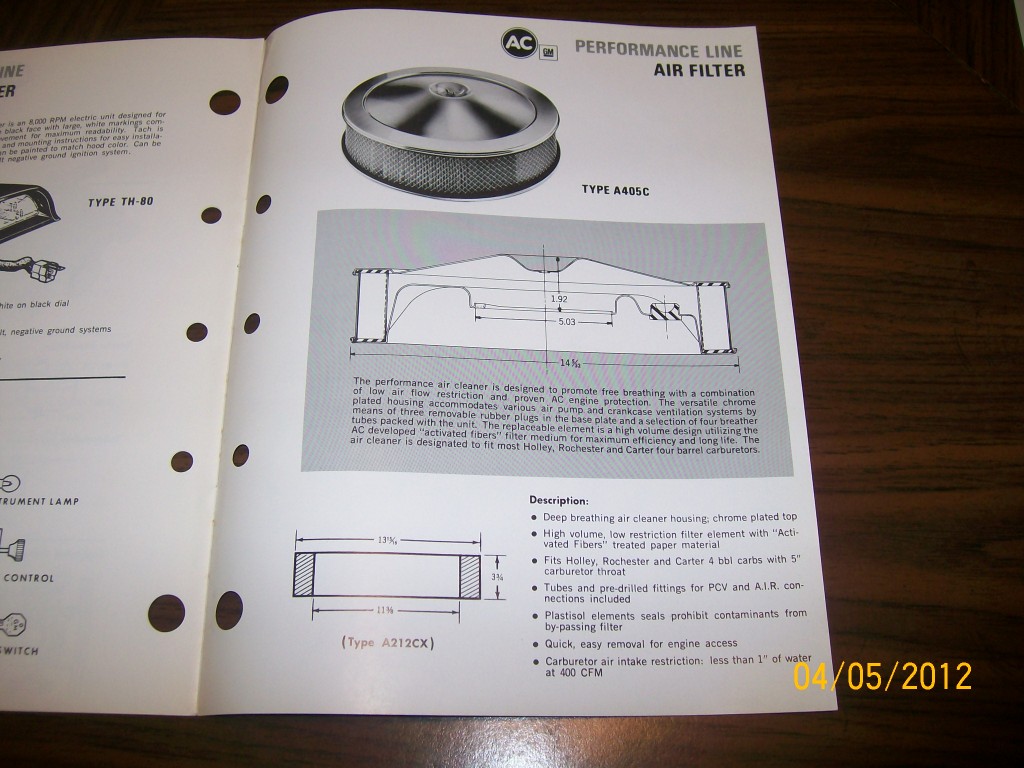

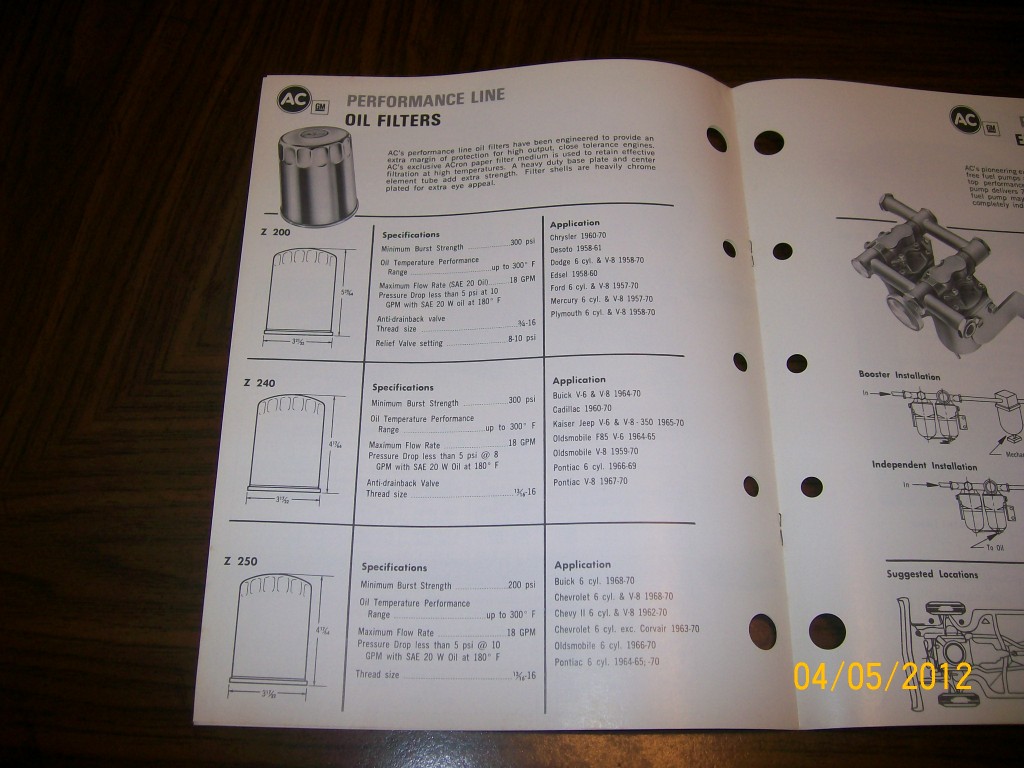

Here is the AC Performance line catalog circa 1971.
Brian

[turbojet427]

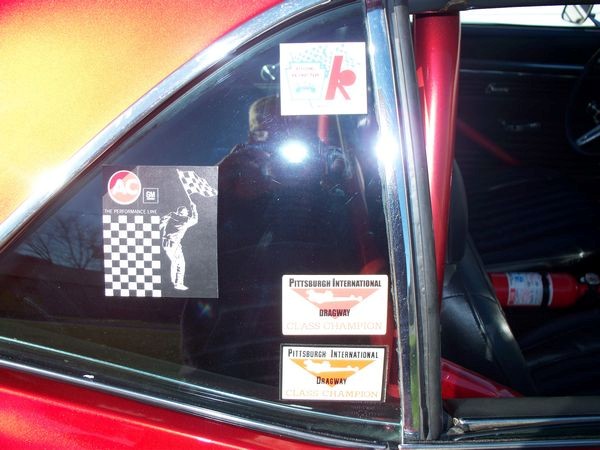

My Camaro has that AC performance logo on the quarter window!

[Salvatore]

A tough decal to get!

[1969camarors427]

pictures of the filters, the a212cx is a a212cw, looks like they just took a heated X and burnt it on. The box looks like it is dated 1967 and on the box it also has 400 428 hi perf engines 1967, see all pics ??

[John Brown]

From my old parts days, I recall some older A212 filters came with chrome wire mesh on the outside. Sorry I don't have a catalogue to confirm it.

[Argenparts]

I recognize these as the ones you sold about 6 months ago, last fall or so, original equipment on one year GTO, others it was the perf line filter, added screen on the outside and the big over molded X.
