Default Correct Color for 1970 Z28 Wheels

Fellow gearheads, Im doing a complete nut and bolt rotisserie resto on my 1970 4 speed RS Z28. Can anybody out there in cyberspace tell me the correct color for the original 15 inch spoked rims. A manufactor and paint code would be awesome. Thanks.
Reply With Quote
  #2
Old 09-09-2005, 01:20 PM
TDW TDW is offline
Yenko Paid Member

Join Date: Jan 2002
Location: Michigan USA
Posts: 1,888
Thanks: 6
Thanked 2 Times in 2 Posts
Default Re: Correct Color for 1970 Z28 Wheels

There is some good info on the wheel color at www.nastyz28.com
__________________
Tony
55 Nomad Gasser
70 SS 427 Nova
34 Ford Sedan..Hemi powered
Reply With Quote
  #3
Old 09-09-2005, 02:38 PM
70 copo's Avatar
70 copo 70 copo is offline
Yenko Paid Member

Join Date: Oct 2000
Location: chillicothe Ohio 45601
Posts: 2,123
Thanks: 1
Thanked 11 Times in 11 Posts
Default Re: Correct Color for 1970 Z28 Wheels

Do you want to shoot it out of a gun, or spray bomb em?

Products for both are on the market now and the color match is excellent. The trick to get the "look" is in the application. I have the PPG # also.

Phil
Reply With Quote
  #4
Old 09-09-2005, 03:14 PM
GM-26's Avatar
GM-26 GM-26 is offline
Yenko Paid Member

Join Date: Mar 2004
Location: Long Island, N.Y.
Posts: 818
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: Correct Color for 1970 Z28 Wheels

I am in the process of restoring my original wheels also and just this week I was trying to buy the paint. After calling all of my local paint suppliers, it seems that Ditzler Code #DDL-32961 has been discontinued. I tried the aersol can product that is on the market now and it was way too dark and not even close to the original color. I had used this Ditzler paint code a number of years ago and it was great. I don't know if the old paint code has been superceded by a new one.


__________________
Nick...
Reply With Quote
  #5
Old 09-09-2005, 03:50 PM
Hotrodpaul Hotrodpaul is offline
Senior Member

Join Date: Mar 2005
Location: Houston, TX
Posts: 764
Thanks: 0
Thanked 2 Times in 2 Posts
Default Re: Correct Color for 1970 Z28 Wheels

In fact, I will be painting mine soon. Here is a shot of my 70 Z28 original spare tire/rim, showing the color.



I will drop it by my local PPG distributor and have them match it. There is also a rough like texture to it, simulating a cast mag wheel.

Anyone know where you can get the trim rings?

Paul
__________________
70 Camaro LA Z-28 03B Citrus Green LT-1 M-40 3.73's
69 Camaro X-77 Z-28 10C Cortez Silver M-21 3.73's Deluxe Project X
69 Camaro X-77 Z-28 01B Garnet Red w/Black top, M-20 3.73 Deluxe Houndstooth
Reply With Quote
  #6
Old 09-09-2005, 06:10 PM
olredalert olredalert is offline
Yenko Paid Member

Join Date: Dec 2002
Location: Marine City, Mi.
Posts: 4,815
Thanks: 3
Thanked 19 Times in 19 Posts
Default Re: Correct Color for 1970 Z28 Wheels

--------Couldnt help but notice the extra flashing inside the center hole of your spare, if thats what it is. Interesting that this would make it thru the entire manufacuring, painting, and then tire-mounting process. And then........never get touched by the past owners. Amazing, really!!!................Bill S
Reply With Quote
  #7
Old 09-09-2005, 07:24 PM
1970RSZ28 1970RSZ28 is offline
Junior Member

Join Date: Sep 2005
Location: Wine Country
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: Correct Color for 1970 Z28 Wheels

Phil, I want to paint them with a HVLP spray gun and its important that the product has a catalyst for durability. I would appreciate it if you could get me the PPG paint code. I tried the Dupont code from nastyZ28.com and my local automotive paint shop didnt recognize that code as a current Dupont number. Thanks.
Reply With Quote
  #8
Old 09-09-2005, 08:30 PM
CamarosRus CamarosRus is online now
Senior Member

Join Date: Apr 2000
Location: Auburn,WA (between Sea&Tac)
Posts: 2,215
Thanks: 9
Thanked 4 Times in 4 Posts
Default Re: Correct Color for 1970 Z28 Wheels

This below LINK explains everything about reconditioning Z-28 wheels.......including the name of a Nevada PPG supplier.
http://www.geocities.com/MotorCity/G...eel/wheel.html

I just called my PPG supplier in the Seattle area, and they have all the components to mix the Original LAQUER ONLY formula. THe Suede additive gives the paint its rough texture. This was to simulate real cast wheels ala American Torque Thrust.
The Original Laquer paint has no clear coat and did not hold up well, if washed regularly with cleaners and brushes.
Any other type paint or powder coating might look GOOD, but not Correct Original Factory Look.

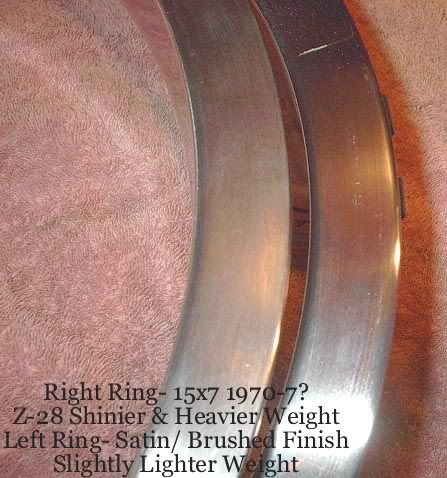

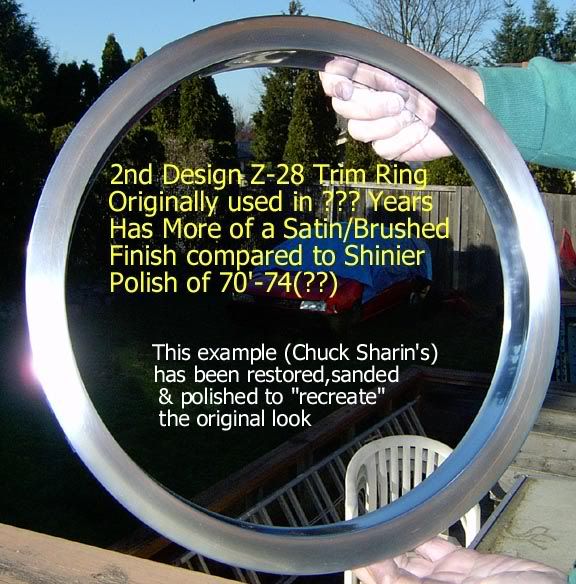

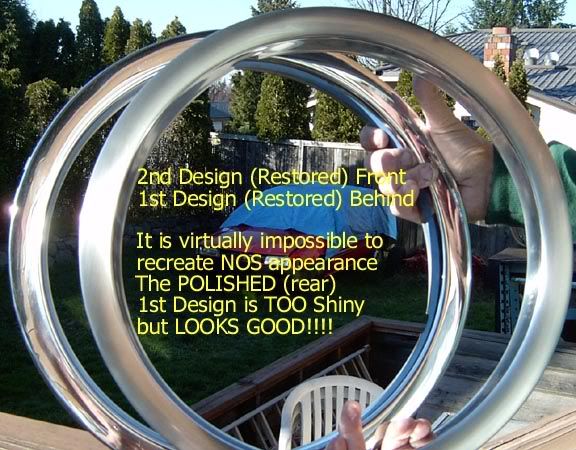

Below I will show misc pics of CORRECT 1st (70-74) Trim Rings and the later 2nd design (77-81) Trim Rings which many people use (incorrectly) on 70-74 Z-28's. There are also different designs of lug nuts and BowTie Center caps.










__________________
Chuck Sharin
CamarosRus@gmail.com
Auburn,WA (30 miles South of Seattle)
70 Camaro R/S Z-28, L-78, R/S SS
69 Camaro COPO "recreation"
Reply With Quote
  #9
Old 09-11-2005, 03:29 PM
70 copo's Avatar
70 copo 70 copo is offline
Yenko Paid Member

Join Date: Oct 2000
Location: chillicothe Ohio 45601
Posts: 2,123
Thanks: 1
Thanked 11 Times in 11 Posts
Default Re: Correct Color for 1970 Z28 Wheels

[ QUOTE ]
Phil, I want to paint them with a HVLP spray gun and its important that the product has a catalyst for durability. I would appreciate it if you could get me the PPG paint code. I tried the Dupont code from nastyZ28.com and my local automotive paint shop didnt recognize that code as a current Dupont number. Thanks.

[/ QUOTE ]


Try this one... PPG DDL32961 - Dark Grey. Spray it on dry. You will need to duplicate the original "pebbled" appearance on the surface of the wheel. If you get it right - the wheel will color shift from a darker grey to a lighter grey depending on how the light reflects off of it.

Others call it "Shadow Grey" for this reason.

Phil
Reply With Quote
  #10
Old 09-11-2005, 05:33 PM
Supercar_Kid Supercar_Kid is offline
Senior Member

Join Date: Mar 2003
Location: Pittsburgh, PA
Posts: 1,216
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: Correct Color for 1970 Z28 Wheels

[ QUOTE ]
--------Couldnt help but notice the extra flashing inside the center hole of your spare, if thats what it is. Interesting that this would make it thru the entire manufacuring, painting, and then tire-mounting process. And then........never get touched by the past owners. Amazing, really!!!................Bill S

[/ QUOTE ]Bill that's not flashing but simply the backside of the one lug recess I think you're seeing.
Reply With Quote
