'65 El Camino, 283/3-sp OD, Clean CA Truck

**scuncio** · #1 10-29-2022, 03:40 AM

Nice '65 - and while it's not a great bargain at the asking price IMO, there's a "make offer" button that should make things more interesting.

Link to 1965 El Camino eBay auction

136805Z147507

**Tracker1** · #2 11-01-2022, 02:38 PM

Anybody out there can enlighten on how this "overdrive" functions?

**WILMASBOYL78** · #3 11-01-2022, 04:32 PM

My understanding is the cable actuates a solenoid that engages the gear reduction in the o/d unit. I have seen a few El Caminos over the years with this option. Pretty rare to see one...

-wilma

**67since67** · #4 11-02-2022, 03:36 PM

Quote:

Originally Posted by Tracker1

Anybody out there can enlighten on how this "overdrive" functions?

Say you are cruising along in 3rd gear... pull the handle out, let off the throttle, it shifts to overdrive. Push the handle in, let off the throttle, it shifts back to straight 1-1 3rd gear. It makes for a sweet interstate cruiser! - Bill W

**67since67** · #5 11-03-2022, 12:18 AM

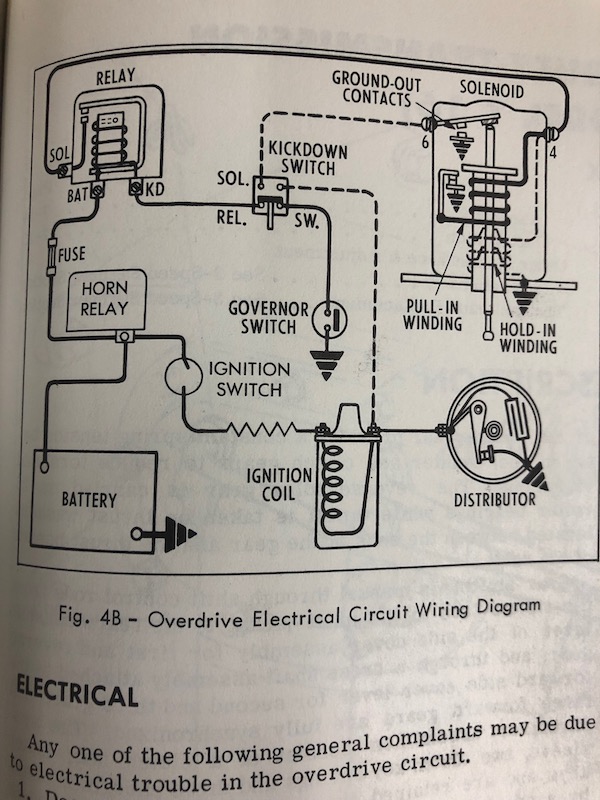

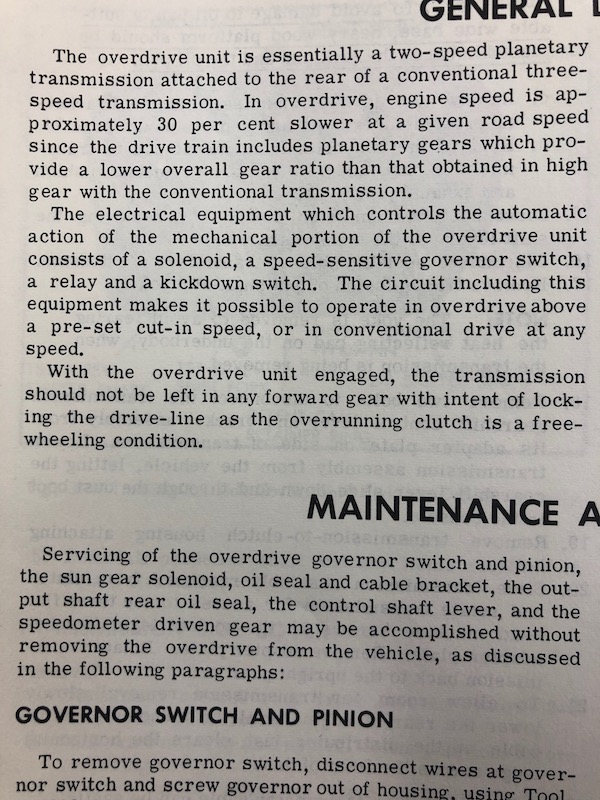

From the '67 Service Manual...

**Too Many Projects** · #6 11-03-2022, 12:57 AM

Quote:

Originally Posted by 67since67

Say you are cruising along in 3rd gear... pull the handle out, let off the throttle, it shifts to overdrive. Push the handle in, let off the throttle, it shifts back to straight 1-1 3rd gear. It makes for a sweet interstate cruiser! - Bill W

Just like shiftin' a Road Ranger, eh Bill...

**Tracker1** · #7 11-03-2022, 02:34 PM

That is some pretty tricky technology for '65 - way cool

**olredalert** · #8 11-03-2022, 03:47 PM

Quote:

Originally Posted by Tracker1

That is some pretty tricky technology for '65 - way cool

----My 1948 Jeepster with the 4-cyl L-head engine has basicly the same electric overdrive trans setup (Borg-Warner). Only difference is a switch under the throttle pedal that activates the standard gear when in overdrive. The overdrive could be activated in any gear. My Dad traded a Maytag washer and dryer for it in 1955 he was (among other things) the Maytag man. I learned to drive in this powerhouse (maximum speed of around 40-45 downhill) when I was twelve. Very few popo's around our area back then. He gave it to me on my fortieth birthday. I suspect he did it to me to get even for the way I tormented the poor jeep until I got something a bit faster.....Bill S

**L78_Nova** · #9 11-01-2022, 05:18 PM

Hot Rod had an article of how to add the 3sp OD assy to a Saginaw 4 speed... way back
search found April 74 but can't find the details.

**L78_Nova** · #10 11-01-2022, 05:28 PM

April 1975

Name: Saggie 5.JPG
Views: 809
Size: 84.6 KB

The Following User Says Thank You to scuncio For This Useful Post:
markinnaples (10-31-2022)

The Following User Says Thank You to WILMASBOYL78 For This Useful Post:
Tracker1 (11-03-2022)

The Following 2 Users Say Thank You to 67since67 For This Useful Post:
flyingn (11-02-2022), Tracker1 (11-03-2022)

The Following 2 Users Say Thank You to 67since67 For This Useful Post:
427.060 (11-03-2022), Tracker1 (11-03-2022)

The Following 2 Users Say Thank You to olredalert For This Useful Post:
67since67 (11-03-2022), Too Many Projects (11-03-2022)

The Following 4 Users Say Thank You to L78_Nova For This Useful Post:
markinnaples (11-02-2022), Tidmack (11-01-2022), Tracker1 (11-03-2022), YenkoYS-199Stinger (11-02-2022)
