69 smog question

**Alss** · #1 01-19-2006, 06:45 AM

WHere does the vacumn from the diverter valve connect to the source..carb?? There is a port but it is used to supply vacumn to the choke poll off. All the pics I have are cars with the air cleaner on. Ready to hook mine up. Thanks

ALbert

**Mr70** · #2 01-19-2006, 07:25 AM

That's the correct vacuum port to use for both the Diverter & the choke pull off.
It should be under the front bowl where it meets the intake.
They used a white 3 way plastic Tee to coordinate all 3 hoses.
In 1970 they added a TCS solenoid,so they used a 4 way Vacuum tee.

**Alss** · #3 01-19-2006, 07:31 AM

[ QUOTE ]
That's the correct vacuum port to use for both the Diverter & the choke pull off.It should be under the front bowl where it meets the intake.
They used a white 3 way plastic Tee to coordinate all 3 hoses.
In 1970 they added a TCS solenoid,so they used a 4 way Vacuum tee.

[/ QUOTE ]

Rick..any source for that "T"??

ALbert

**Mr70** · #4 01-19-2006, 07:32 AM

I have found my local hardware store sells a damn good match to the original.
I have some 3 ways and 4 ways here,if you want I can send you a digital pic later tomorrow?

nuch_ss396 · #5 01-19-2006, 09:49 AM

Anyone got a good clear image of the "T" with the vacuum
lines installed? I see white 3-way T's on eBay from time
to time, but I thought they were 1970 components.

Steve

**Alss** · #6 01-19-2006, 05:03 PM

[ QUOTE ]
I have found my local hardware store sells a damn good match to the original.
I have some 3 ways and 4 ways here,if you want I can send you a digital pic later tomorrow?

[/ QUOTE ]

Rick, that would be great thanks..no real hurry..just wrappimg up loose ends.

ALbert

**Mr70** · #7 01-20-2006, 08:19 AM

The middle store bought is much whiter and has an extra rib at each end,but is the same measurement as the original.

**Mr70** · #8 01-20-2006, 08:20 AM

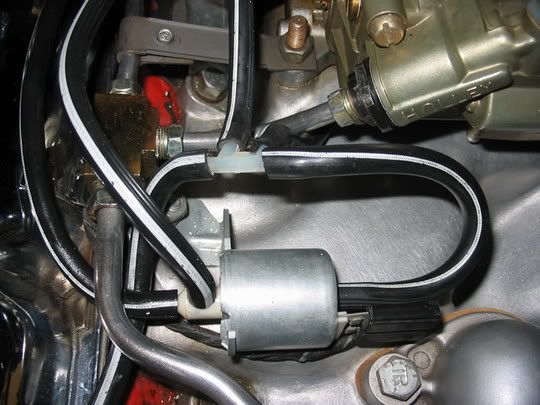

Distributor-> .....Choke pull off--->

------------> <-----Diverter Valve hose w/1970 4way Tee

**Mr70** · #9 01-20-2006, 08:27 AM

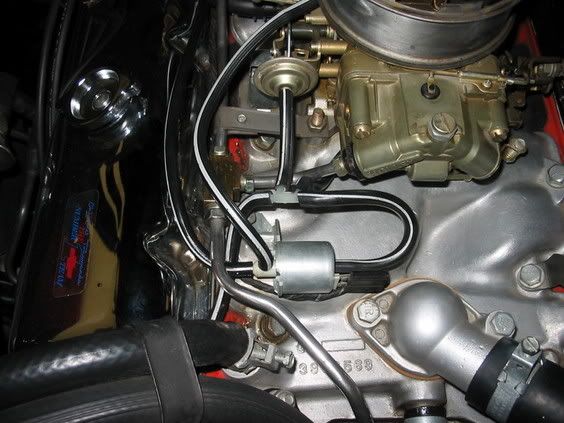

1970 again farther back

**Alss** · #10 01-20-2006, 03:08 PM

Thanks Rick..found the "white" one in the middle at the local store..done deal!.

ALbert
