Used...embossed anti-surge vented gas cap

[enio45]

ok , np problem I know I don't have any chevelle caps - I have not been promoted to owing one of those cars YET!

[69 Post Sedan]

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: Ls6 Ragtop</div><div class="ubbcode-body"> Kurt,
The reason it won't fit is because 69 Chevelles used a non vented cap part # 1376973. 69 Chevelle station wagon and El Camino used a similar vented cap like what you bought but there are a few caps that are vented that are very similar so it would need to be matched up to a tank to be sure. Looks more like the style cap used on 69 Camaro to me but I'm no Camaro expert. As to Pete's suggestion, 70-up California EEC caps were also not vented so it's not that.
Chris </div></div>

Chris....I don't know how but some reason I missed your reply. Thanks for the information....it makes perfect sense now.

Kurt [img]<<GRAEMLIN_URL>>/biggthumpup.gif[/img]

[Donnie]

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: 69 Post Sedan</div><div class="ubbcode-body">

My question is, what exactly is this gas cap for? It doesn't fit my tank although I have been told it was changed at some point.

Thanks, Kurt </div></div>

previous owner must have put a Buick tank in it. [img]<<GRAEMLIN_URL>>/dunno.gif[/img] [img]<<GRAEMLIN_URL>>/biggthumpup.gif[/img]

[Ls6 Ragtop]

Hi Kurt,

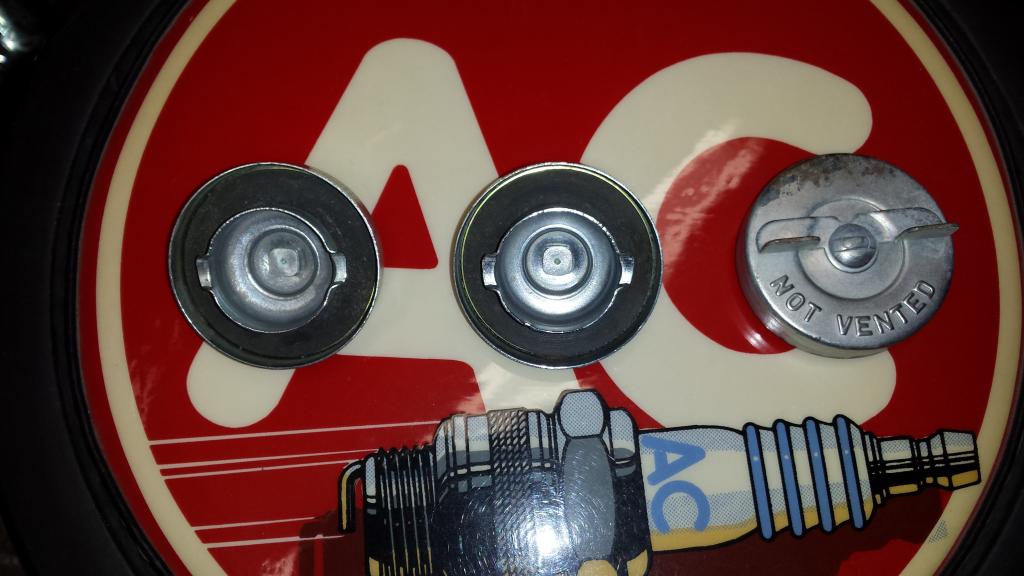

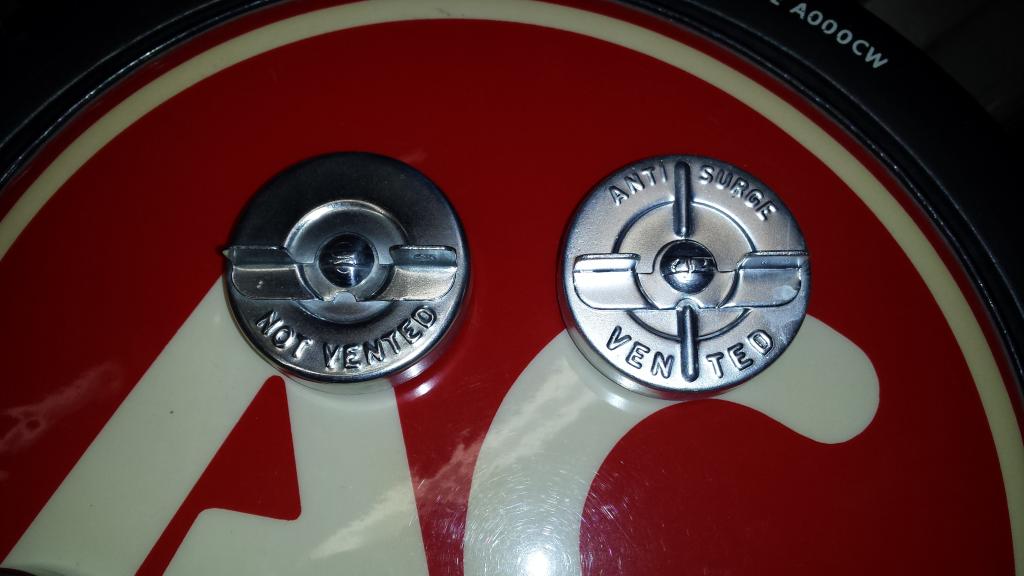

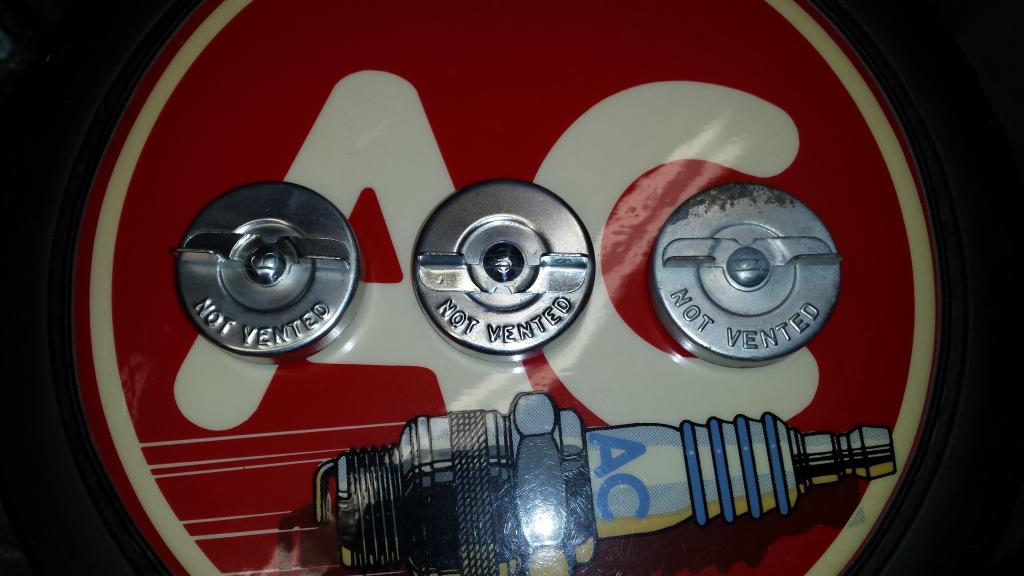

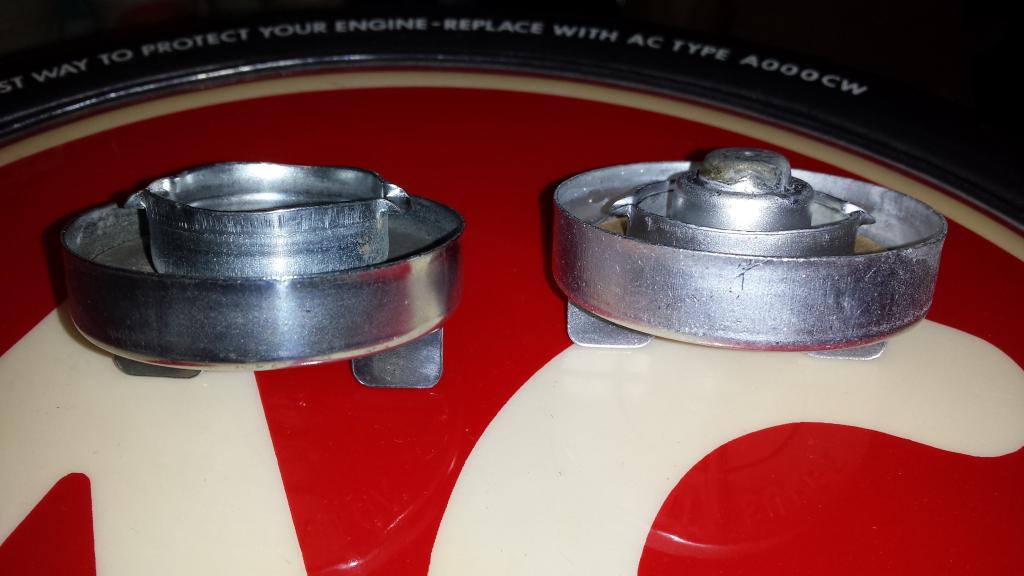

Here's a few pics of the 1376973 part # cap that I believe is correct for 69 Chevelle. I have a few variations regarding the clocking of the lever handle that maybe somebody more versed in 69's can explain but it's definitely a deeper shoulder on the retaining tabs than the vented versions have which should explain why you can't get the vented cap to seal on a 69 tank.
Verne, can't say for sure positively on the El Camino application except that all my reference material 68-69 printing Chevrolet parts catalogs all call out for a vented cap on El Camino and station wagon.
Chris

[m22mike]

Great shots Chris. I also am 100% sure the non vented cap in your picture is correct for the 69 Chevelle car. Easy cap to find in NOS condition, look for Stant G32, Mopar used these too.

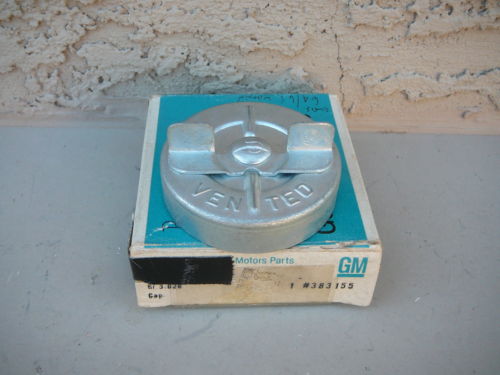

I also understand the wagons and Elky's use a vented cap, what I do not know for sure is weather it had the &quot;Anti Surge feature&quot; like the one in your picture, and the cap Kurt bought. I suspect it may have been this cap in the photo below. &quot;Vented with no anti surge popet&quot; most likley not needed because of the location of the fillere neck on these vehicals



[img]https://www.yenko.net/ubbthreads/pics...here_no_anti_s[/img]

On a side note on the Round no ears anti surge cap Stant G46a, these were used starting around 1962 through at least 1970 across the GM line. Does any one know when the cap with the 2 ears started showing up ?
Chris, I have had several caps with the handle assembled either way, most likley just the way they stacked the parts during assembly ? The tabs still end up on the centerline.

Mike

[69 Post Sedan]

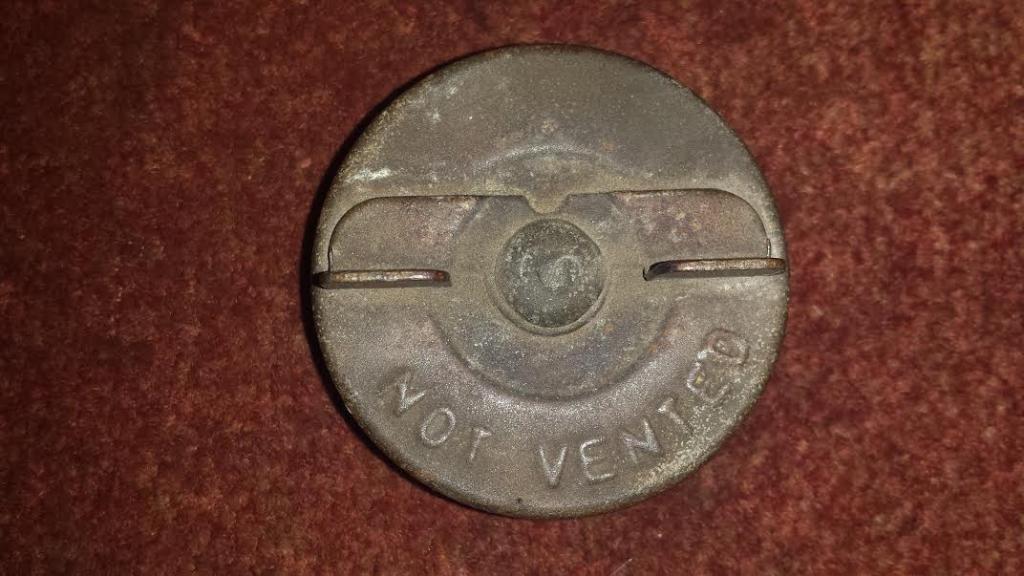

Here are a couple of pictures of Jerry Frailey's original gas cap off his '69 Chevelle.

It appears the tabs are installed two different ways.....they're not typical.

Kurt
