Rear Sway Bar Question

**L78_Nova** · #1 01-15-2022, 08:08 PM

Mocking up a Nova rear sway bar from various parts.
-one NOS sway bar spring perch
-one modded (was NOS) sway bar spring perch. (ran on the mini tubbed Nova for a few years... will rework back to stock configuration)
-several bars all the same

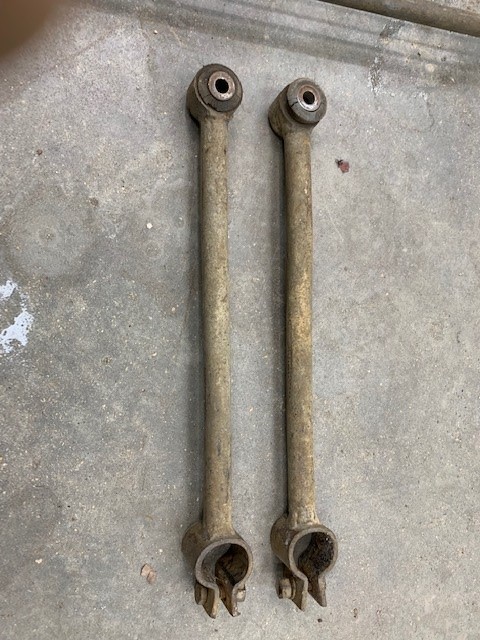

-two different styles of uprights

QUESTION IS;
Which uprights would be correct for 71-72 Nova ??

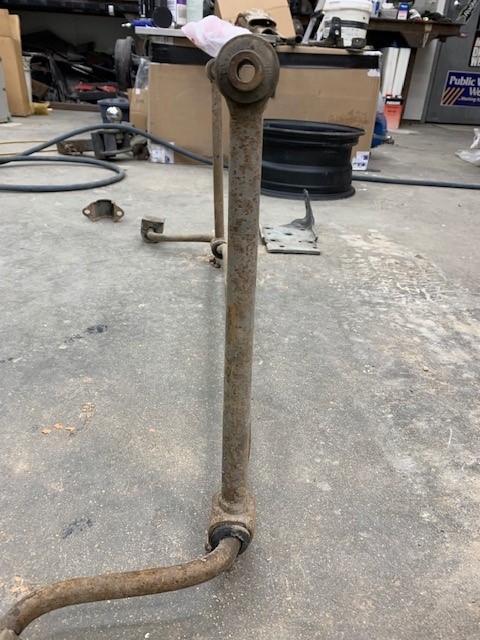

Lower clam shell straight down or 90 degrees
The 90 degree uprights have a little dog leg offset to them.

All dimensions check out
-center pins 43" (matches the diff)
uprights approx. 25-1/2 centers (matches the body)
Name: Sway Bar Mock up 01.jpg
Views: 1293
Size: 128.5 KB

Name: Sway Bar Mock up 01.jpg
Views: 1293
Size: 128.5 KB

Name: Sway bar Mock up 02.jpg
Views: 1278
Size: 111.9 KB

Name: Sway bar upright 01.jpg
Views: 1285
Size: 104.3 KB

Name: Sway bar upright 02.jpg
Views: 1120
Size: 106.1 KB

Name: Sway Bar upright 03.jpg
Views: 1116
Size: 110.0 KB

Name: Sway bar upright 04.jpg
Views: 1133
Size: 127.3 KB

Name: Sway bar upright 05.jpg
Views: 1127
Size: 126.1 KB

Thanks for any input guys !

Gary

**Canuck** · #2 01-15-2022, 08:39 PM

I have a 1978 Nova 9C1. I will check dimensions.

**L78_Nova** · #3 01-15-2022, 10:47 PM

Thanks but 75 up is different...wider.

I just need to know what uprights are correct. My dimensions have been verified against the diff and body.
Gary

**nuts4novas** · #4 01-16-2022, 03:14 AM

Gary: The 90 degree end uprights are correct for 72-75 Nova. Part numbers are 3998667 and 3998668 , Group 7.242 Same as on my 72 Nova.
John

Mr.Nickey Nova · #5 01-16-2022, 01:46 PM

Gary, the slight bend at the bottom of uprights is correct for 72 Nova, mine has it.

The Following User Says Thank You to nuts4novas For This Useful Post:
L78_Nova (01-16-2022)

The Following User Says Thank You to Mr.Nickey Nova For This Useful Post:
L78_Nova (01-24-2022)
