Dist Cap ID ????
What is correct DELCO Distrib Cap for 1970 Z28 ???

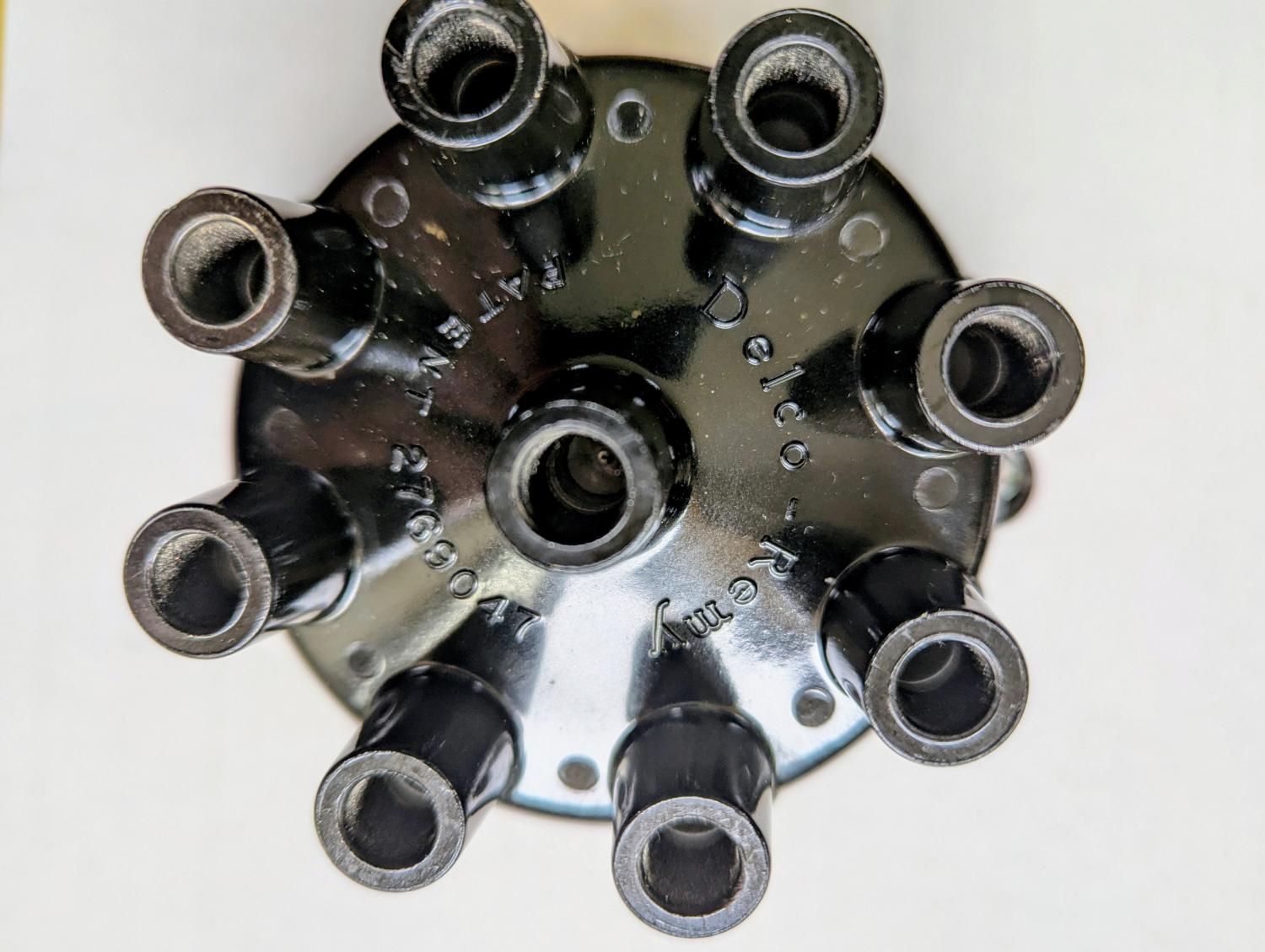

I have this with Delco - Remy R & PATENT 2769047 AND I also have a similar Black Cap with NO LETTERS/NUMBERS
__________________
Chuck Sharin [email protected] Auburn,WA (30 miles South of Seattle) 70 Camaro R/S Z-28, L-78, R/S SS 69 Camaro COPO "recreation"
|
|
#2
05-15-2025, 10:50 PM
|
|||
|
|||
|
The 1970 Z/28 would have had the "Delco Remy" "Patent Pending" R distributor cap from the factory. The "Patent" 2769047 and the cap without letters would be a service replacement cap.
__________________
1966 Corvette Coupe L79 Mossport Green 1969 Camaro Z/28 Hugger Orange NCRS #22211
|
|
#3
05-15-2025, 11:12 PM
|
|||
|
|||
|
mhm1966, So my above pictured cap is NOT Assy Line Correct !!!!!!!!!!!
and there was Two different service replacement caps ?? One like above and 2nd .........without any writing ???????
__________________
Chuck Sharin [email protected] Auburn,WA (30 miles South of Seattle) 70 Camaro R/S Z-28, L-78, R/S SS 69 Camaro COPO "recreation"
|
|
#4
05-16-2025, 01:21 PM
|
|||
|
|||
|
Chuck, the cap you have in the picture is not assembly line correct for a 1970 Z/28. The cap is a later style replacement cap that was used in 1973 production. They made several different versions of this cap. The one you have 2769047 with aluminum contacts, 2769047 R both with aluminum and copper contacts, and some had other letters like T and BH on top of the cap.
__________________
1966 Corvette Coupe L79 Mossport Green 1969 Camaro Z/28 Hugger Orange NCRS #22211
|
|
#5
05-17-2025, 09:56 AM
|
||||
|
||||
|

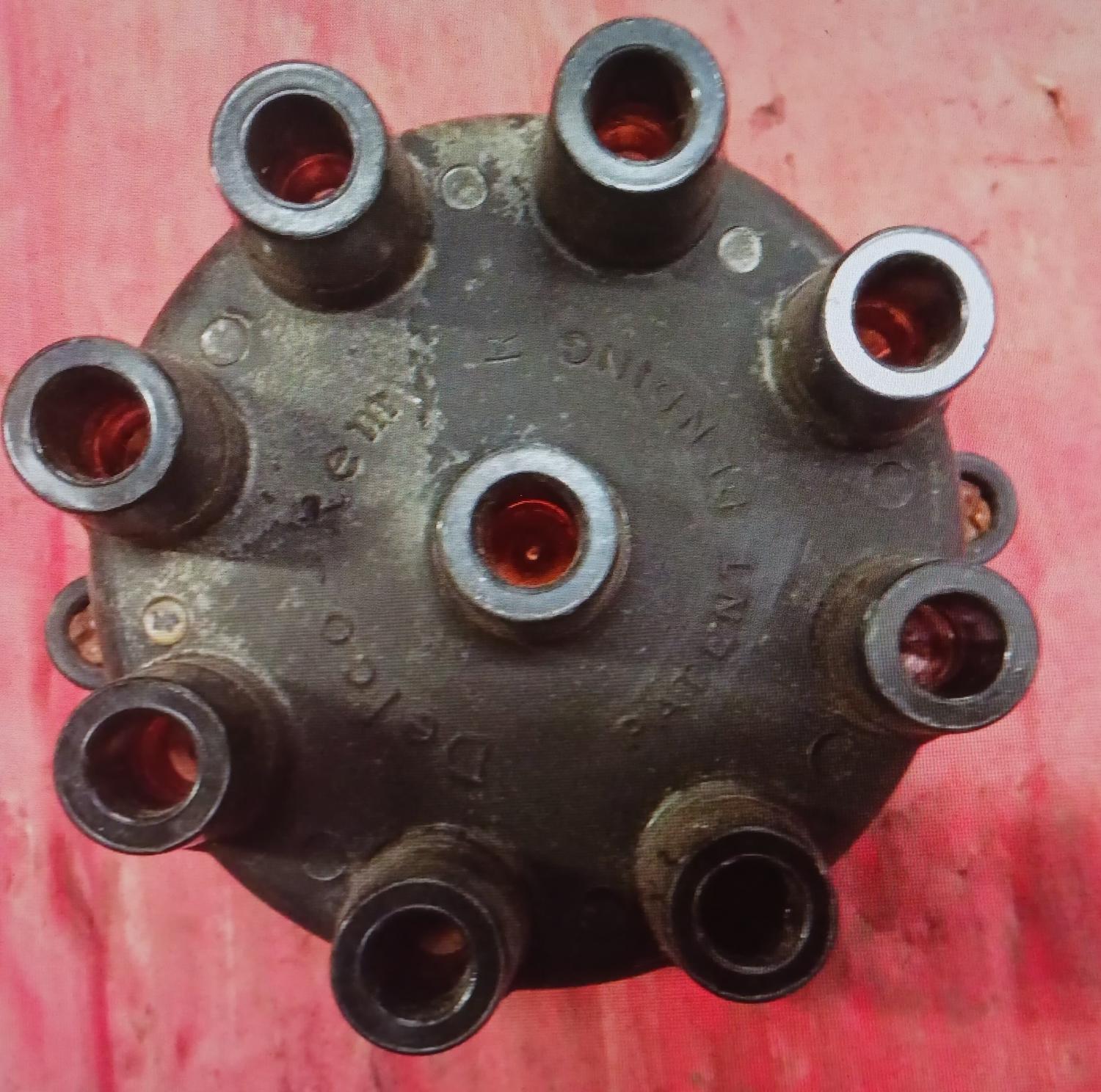

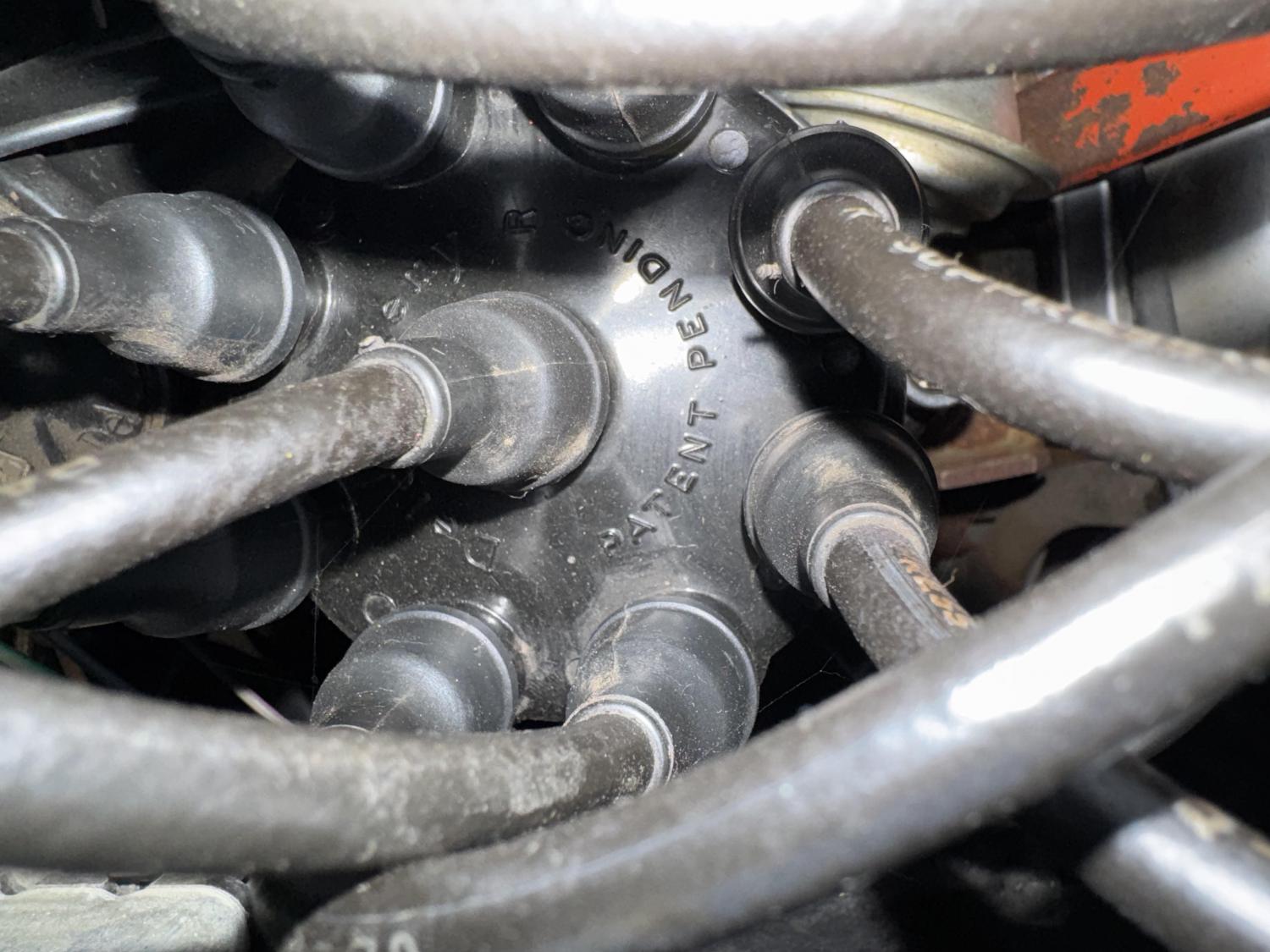

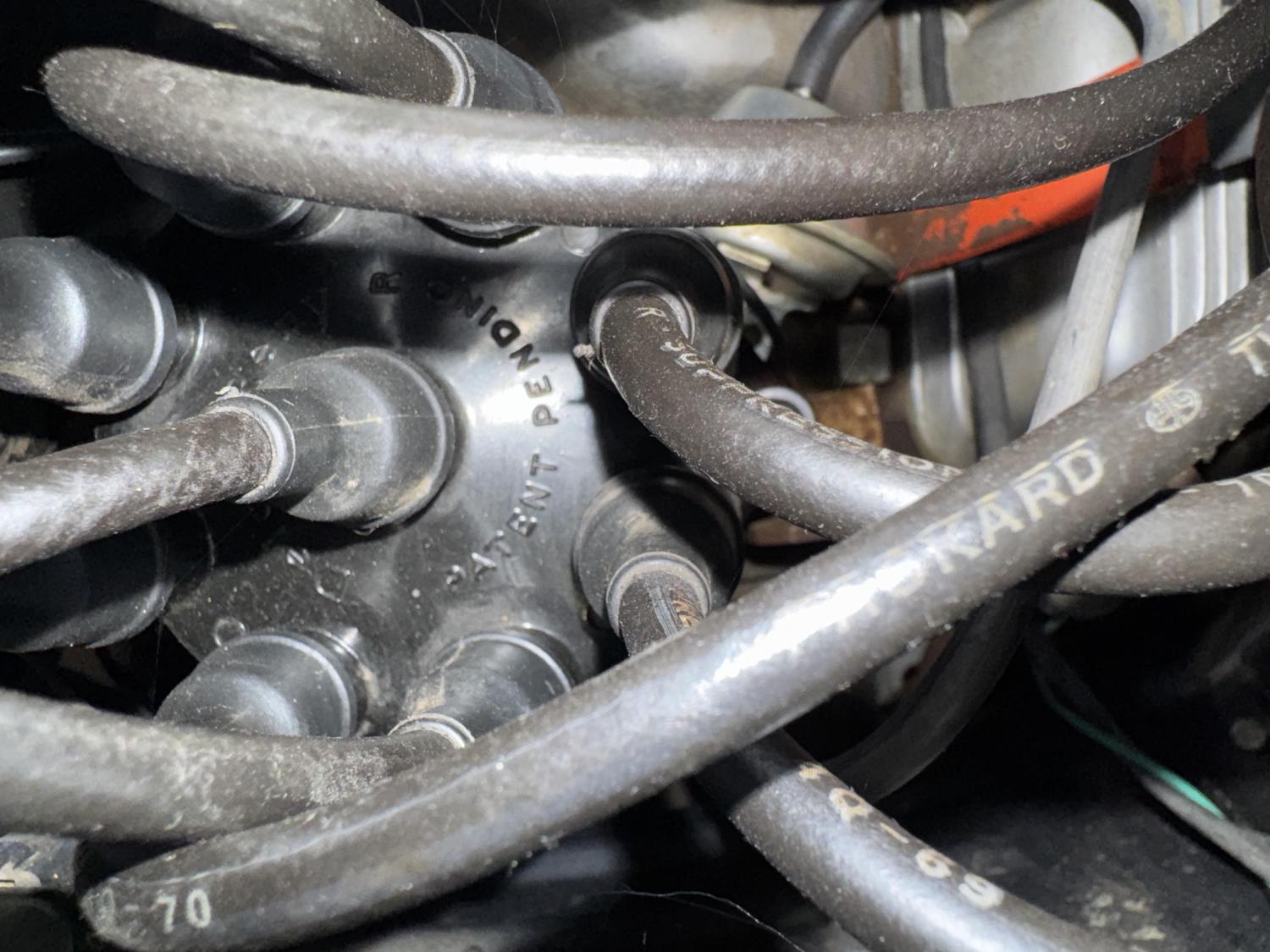

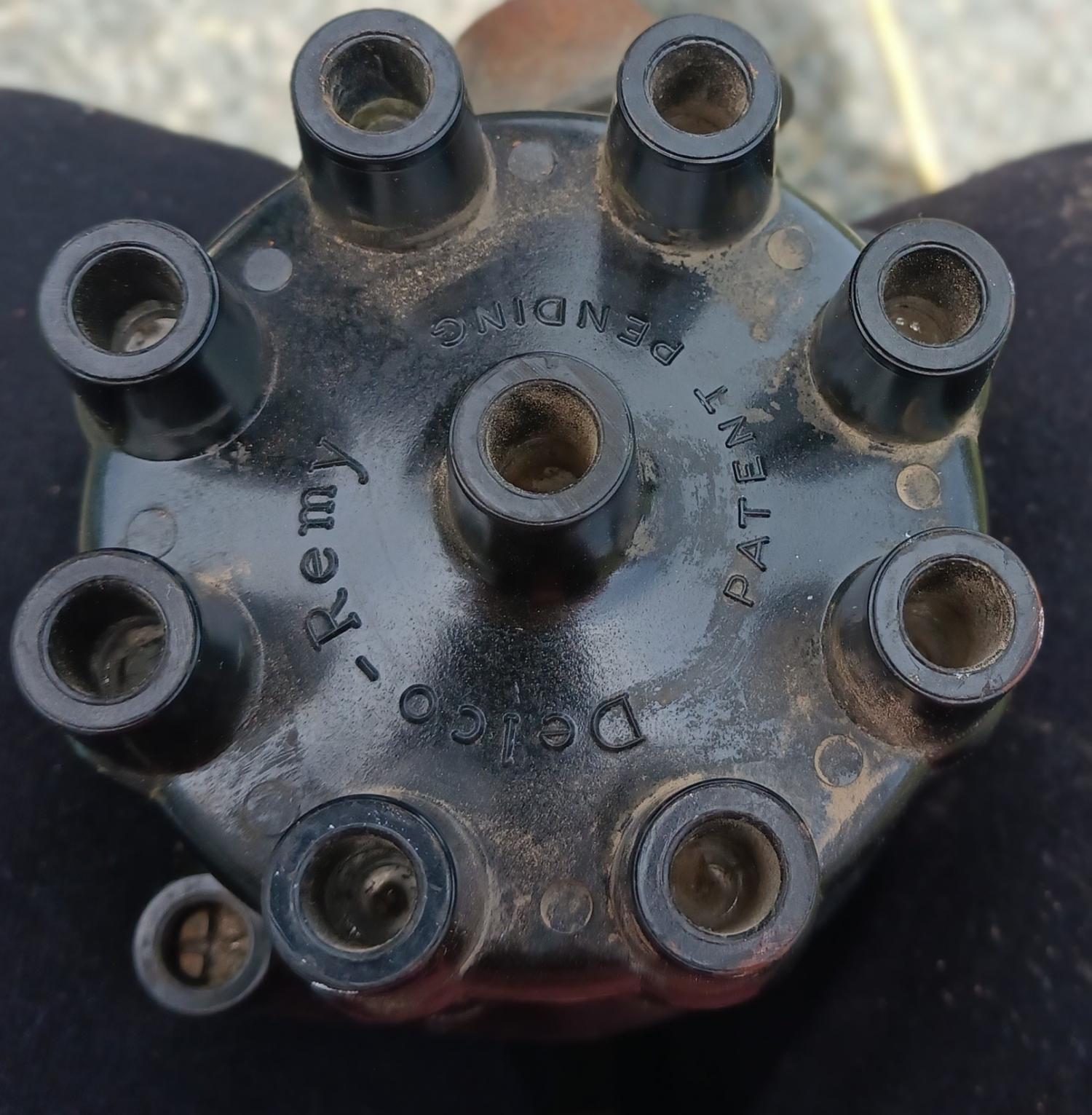

early and late "patent pending" caps.

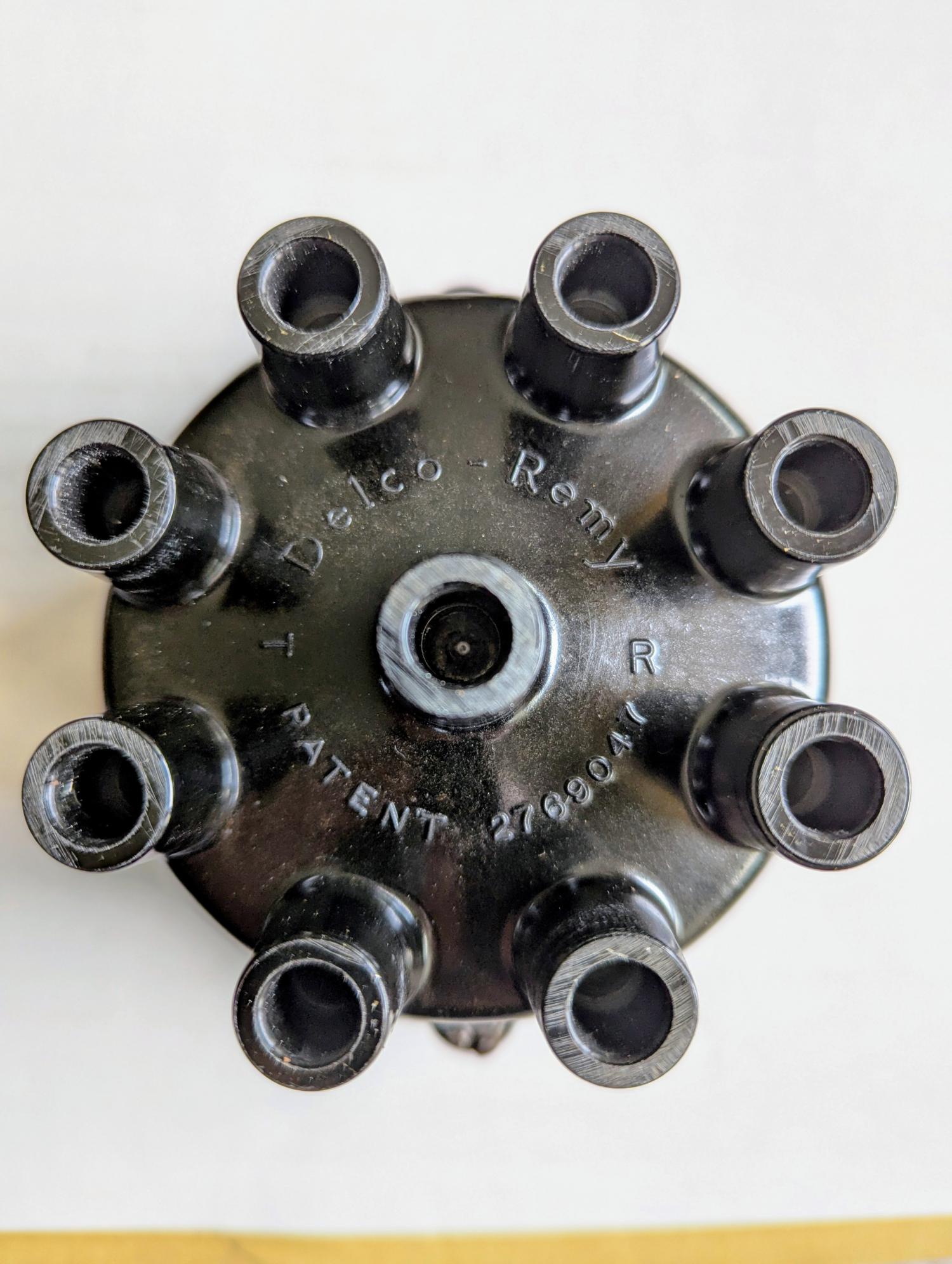

Pic 1 is earlier type. No "R" Pic 2 is later type with "R". They are saying you need bottom type.
|
| The Following User Says Thank You to daveg For This Useful Post: | ||
mhm1966 (05-17-2025) | ||
|
#6
05-17-2025, 03:00 PM
|
|||
|
|||
|
MHM1966, Thank You for your replies...........
Interested to learn what/where is your source of info so as the Camaro Nat'l Judges will "Believe" What 1970 GM V-8 engines during what months received which cap ??? and 1971 etc etc........... Did the " PATENT 2769047 R " not start until 1973 ??? and all 70-72 received the PATENT PENDING....... Thanks for your patience, if you have any left Ive asked Charley Lillard to get a picture of the assy line cap on his former LOW milage 70 Z............
__________________
Chuck Sharin [email protected] Auburn,WA (30 miles South of Seattle) 70 Camaro R/S Z-28, L-78, R/S SS 69 Camaro COPO "recreation"
|
|
#7
05-17-2025, 06:06 PM
|
|||
|
|||
|
Fantastic information here- especially with the pics.
I have some older Delco caps NIB on the shelf, will investigate what they are for fun. thanks guys!
|
|
#8
05-17-2025, 08:22 PM
|
|||
|
|||
|
----Part number 19719244 in a GM restoration box with just Delco-Remy and patent pending would be for what years and vehicle???....Bill S
|
|
#9
05-17-2025, 09:02 PM
|
|||
|
|||
|
"Patent Pending" cap is for 1968 and earlier for all GM models.
__________________
1966 Corvette Coupe L79 Mossport Green 1969 Camaro Z/28 Hugger Orange NCRS #22211
|
| The Following User Says Thank You to mhm1966 For This Useful Post: | ||
olredalert (05-18-2025) | ||
|
#10
05-18-2025, 09:57 AM
|
||||
|
||||
|
Some cap info in this older thread.
Posts 1,2,3,4,7,8,link in 10,14,18,19,46 and 47. 69 themed but may help some. https://www.yenko.net/forum/showthread.php?t=179335
|
 |
|
|
