#1
06-18-2012, 01:30 AM
|
||||
|
||||
Smog tee??
Is this a correct 69-70 smog vacumn tee?? [img]<<GRAEMLIN_URL>>/dunno.gif[/img]
 thanks Albert
__________________
1969 9566AA COPO Chevelle M-22 1969 Malibu 489 ZL-1 T-56/4.56 1969 Beaumont 540 th400 3.70 1969 Chevelle 300 Deluxe 427 ZL-1 M 22W 1970 Olds 442 W 30 2 door post 1969 Ply. GTX 426 hemi auto. Blue. 1940 Dodge pick up Durango 4X4 1968 Camaro ragtop LSA ZL1
|
|
#2
06-18-2012, 01:33 AM
|
||||
|
||||
|
Re: Smog tee??
Al,
My understanding is the 69s have 3 connections and the 70s have 4. I'll see if I can find my connector photo for my 70 Nova.
__________________
Sam...
|
|
#3
06-18-2012, 01:38 AM
|
||||
|
||||
|
Re: Smog tee??
<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: mockingbird812</div><div class="ubbcode-body">Al,

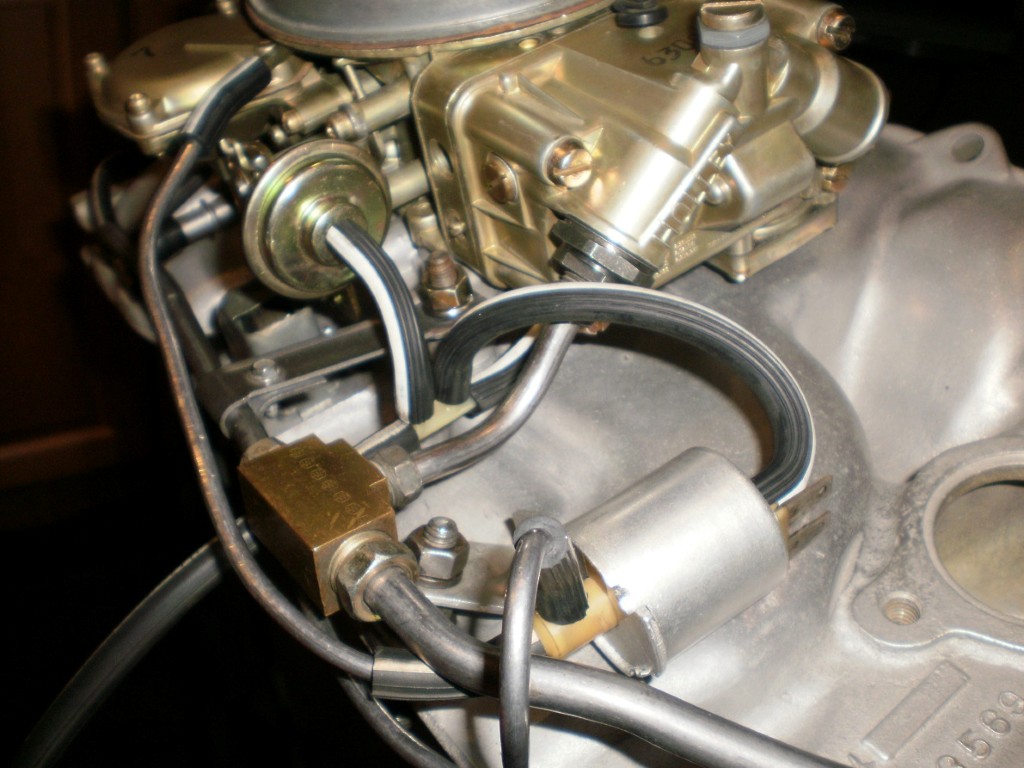

My understanding is the 69s have 3 connections and the 70s have 4. I'll see if I can find my connector photo for my 70 Nova. </div></div> My 70 has 4 so ............... maybe it is a 1969. Here is a photo off my 70
__________________
"NOSTALGIA It takes us to a place were we ache to go again"
|
|
#4
06-18-2012, 01:41 AM
|
||||
|
||||
|
Re: Smog tee??
This the best shot I have available right now.....
 [img]<<GRAEMLIN_URL>>/hmmm.gif[/img] looks like we have a new foto uploading process!!!
__________________
Sam...
|
|
#5
06-18-2012, 02:03 AM
|
||||
|
||||
|
Re: Smog tee??
1969 were 3 ports.
1970 were 4 ports,to accept the new TCS connection. The middle one is store bought & is much whiter and has an extra & different rib configuration at each end,but is the same overall measurement as the pre 70 original.
|
|
#6
06-18-2012, 02:08 AM
|
||||
|
||||
|
Re: Smog tee??
Rats!..was hoping I found a original....the search continues!..
thanks Rick! [img]<<GRAEMLIN_URL>>/biggthumpup.gif[/img]
__________________
1969 9566AA COPO Chevelle M-22 1969 Malibu 489 ZL-1 T-56/4.56 1969 Beaumont 540 th400 3.70 1969 Chevelle 300 Deluxe 427 ZL-1 M 22W 1970 Olds 442 W 30 2 door post 1969 Ply. GTX 426 hemi auto. Blue. 1940 Dodge pick up Durango 4X4 1968 Camaro ragtop LSA ZL1
|
|
#7
06-18-2012, 02:17 AM
|
||||
|
||||
|
Re: Smog tee??
<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: Mr70</div><div class="ubbcode-body">1969 were 3 ports.
1970 were 4 ports,to accept the new TCS connection. The middle one is store bought & is much whiter and has an extra rib at each end,but is the same measurement as the pre 70 original. </div></div>Great Photo Mr70 [img]<<GRAEMLIN_URL>>/biggthumpup.gif[/img]
__________________
"NOSTALGIA It takes us to a place were we ache to go again"
|
|
#8
06-18-2012, 02:23 AM
|
||||
|
||||
|
Re: Smog tee??
Honestly Albert,I've never seen a 1969 tee like yours,but it coulda been one they used.
There were so many different suppliers of the same parts back then,I would imagine at least one of the assembly plants might have had the one you show,in there parts bins during 1969 too. My photo is just for light reference,and not the definitive answer.
|
|
#9
06-18-2012, 02:27 AM
|
||||
|
||||
|
Re: Smog tee??
thats a possibilty...I'll wait and see other posters opinions and go from there.
__________________
1969 9566AA COPO Chevelle M-22 1969 Malibu 489 ZL-1 T-56/4.56 1969 Beaumont 540 th400 3.70 1969 Chevelle 300 Deluxe 427 ZL-1 M 22W 1970 Olds 442 W 30 2 door post 1969 Ply. GTX 426 hemi auto. Blue. 1940 Dodge pick up Durango 4X4 1968 Camaro ragtop LSA ZL1
|
|
#10
06-18-2012, 02:59 PM
|
|||
|
|||
|
Re: Smog tee??
Al, the TEE you show in your picture is for 69 camaros with hedlight washers and 69-71 Corvettes with headlight washers. That TEE is the splitter for each headlighs squirters. They go for 10-40 bucks each.
Rich
|
 |
|
|
