Looking for a few photos of 1969 302 engine bay

[Fast67VelleN2O]

Looking for some detailed photos of where the negative battery cable mounts on a 1969 Z28.

[firstgenaddict]

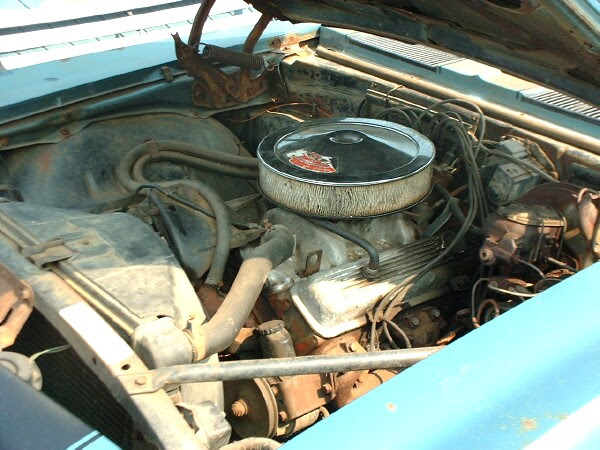

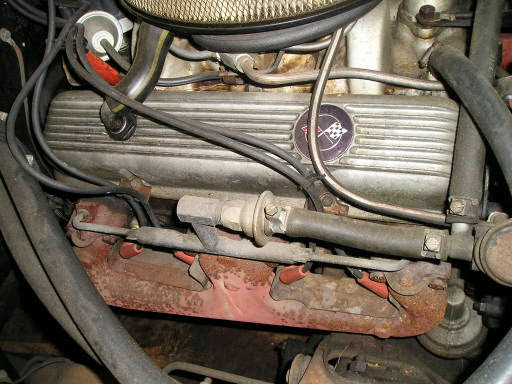

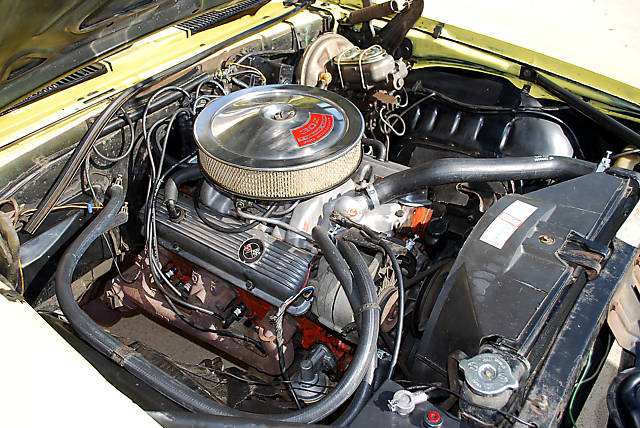

The passenger side of the thermostat gooseneck stud. Here are 3 survivors..

[Lynn]

Goes through a rubber coated clip on top of the upper alt bracket. Attaches to the pass side stud on the t-stat housing.

[Fast67VelleN2O]

Thanks guys!

[miket1]

[img]https://www.yenko.net/ubbthreads/pics...riginal_z28_en[/img]

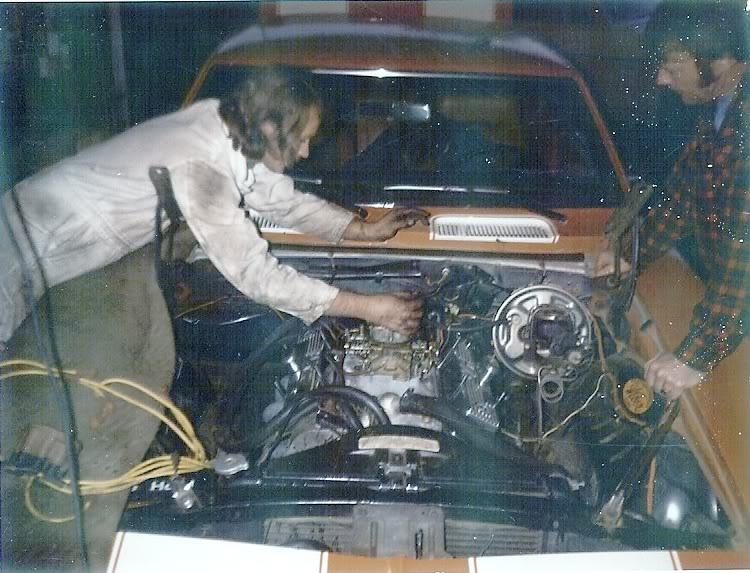

Here is a pic from way back when, note the Timing sticker on the fan shroud, would this be factory original location, or has it been replaced ??

[PeteLeathersac]

[img]<<GRAEMLIN_URL>>/beers.gif[/img]
~ Pete

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: miket1</div><div class="ubbcode-body">Here is a pic from way back when, note the Timing sticker on the fan shroud, would this be factory original location, or has it been replaced ?? </div></div>

[Lynn]

Mike: Most were on the core support. But, that pic you posted is not the only Z to get the sticker on the fan shroud. Fan shroud was the &quot;correct&quot; location for A/C cars because of the rubber seal on the core support. My guess would be that some of the line workers, after placing several on the fan shrouds of A/C cars just put one on a non A/C car from time to time.

[m22mike]

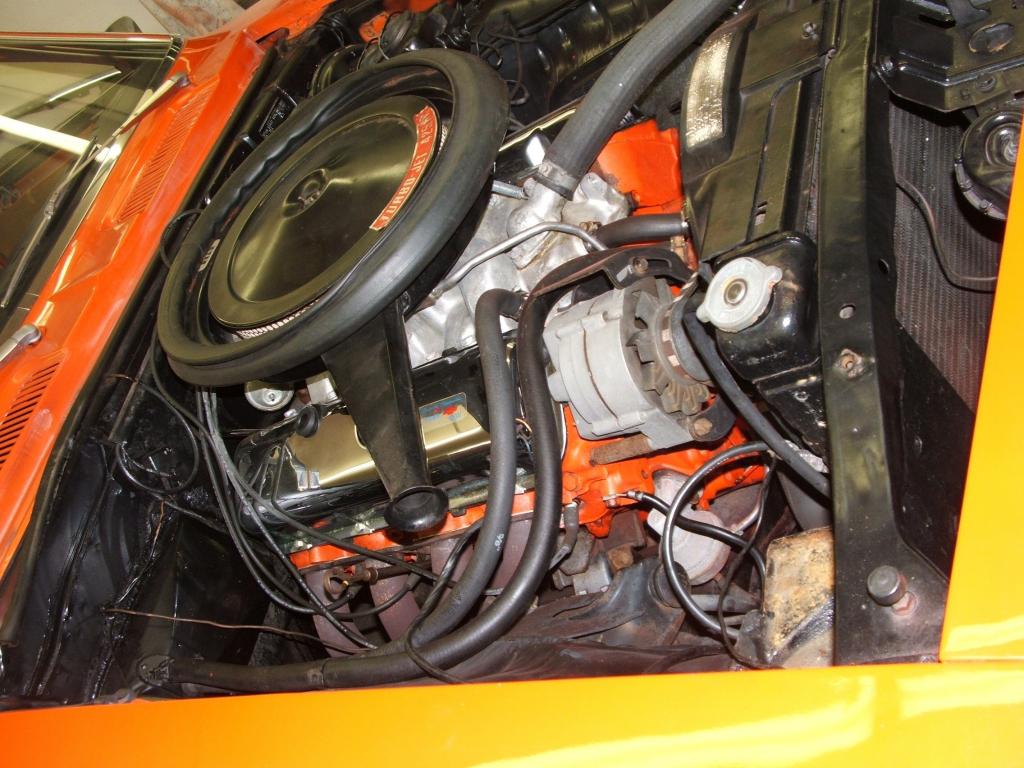

And here is another, not all that uncommon to find. re; 1969 04C COPO Camaro, OE sticker
