Need Help identifying 69 Chevelle Mufflers

[Ls6 Ragtop]

Hi,

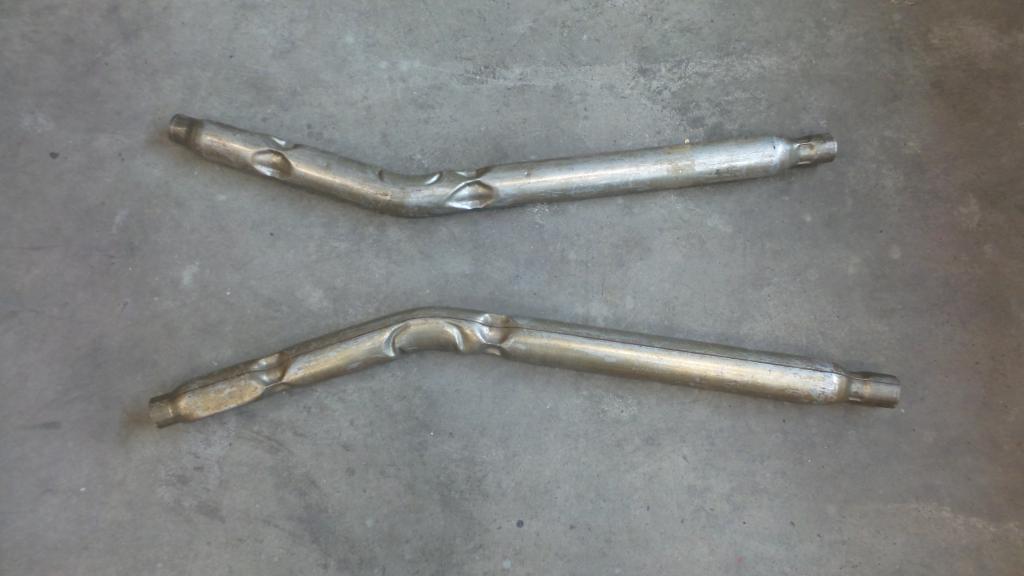

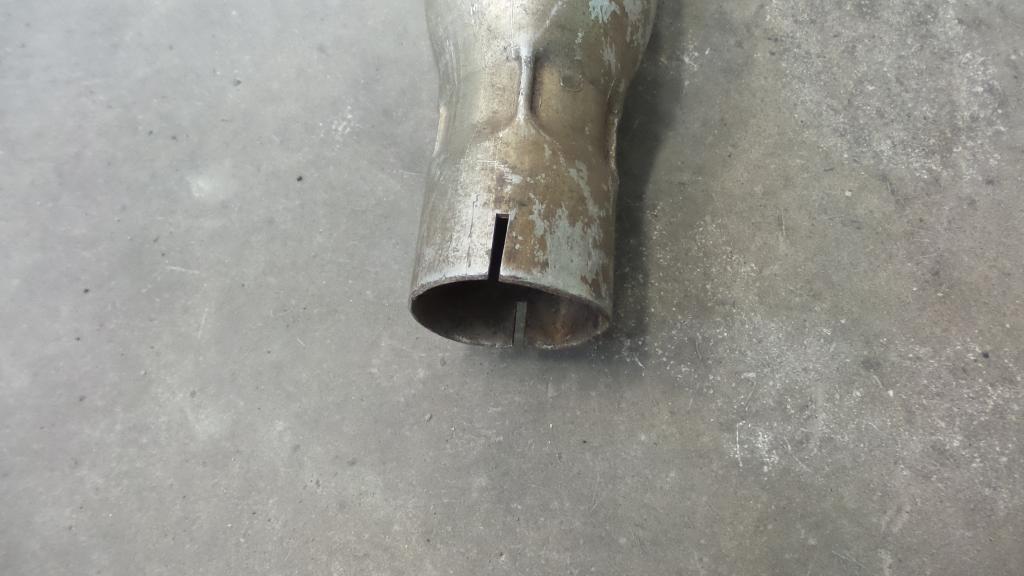

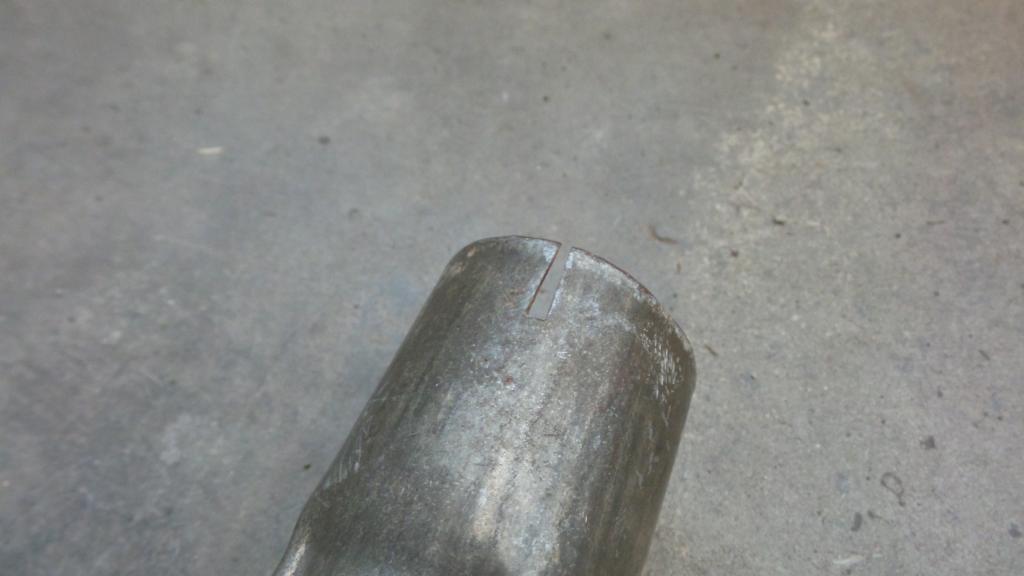

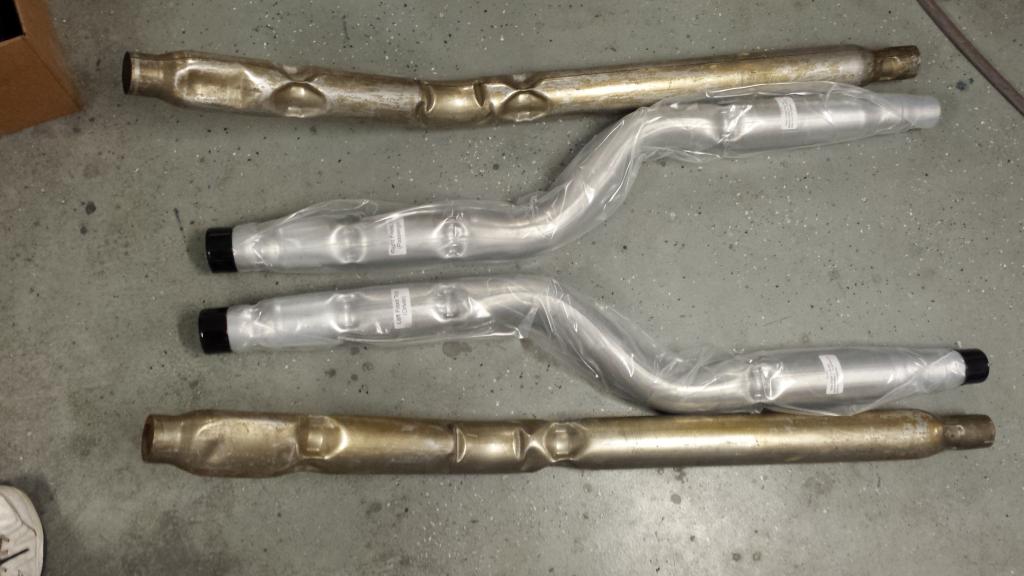

I need help identifying a few 69 Chambered Chevelle Mufflers. I purchased a bunch of exhaust parts from a friend and these mufflers came as a part of the deal. Unfortunately, there's no part number tags or stickers to help easily identify what I have. So I'm hoping with these pictures, someone here can help me identify what I've got. Hopefully we have a pair of factory chambered mufflers. Everything else in the package was GM factory parts.













TIA,
Chris

[SS69chevelle]

Those dont look like 69 chevelle parts, chevelle chambered pieces are more of a s or z than that.

[Ls6 Ragtop]

Thank you Andy for your reply. It appears you are right. I was told these were ordered for a 69 Chevelle and these came with an NOS pair of 70-72 resonator tailpipes so I figured that maybe the 69 correct tailpipes weren't available and they substituted the 70 tailpipes for them.
Could these pipes be Camaro? Wish the part number tags were still there.
I found a pair of Gardner repro Chevelle mufflers and Andy is correct, these sure don't look like Chevelle pipes.
Thanks, Chris

[Day2_69Z]

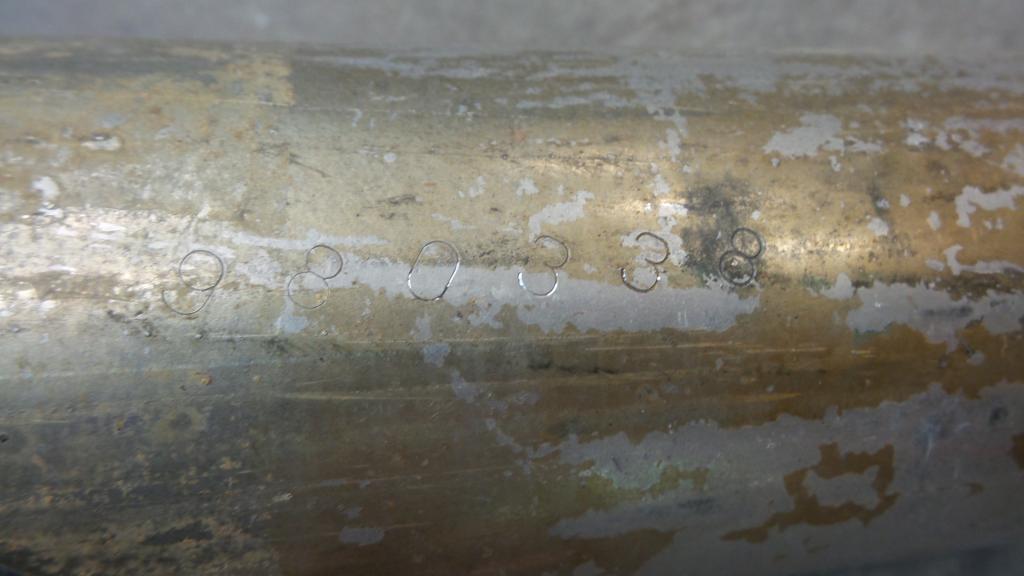

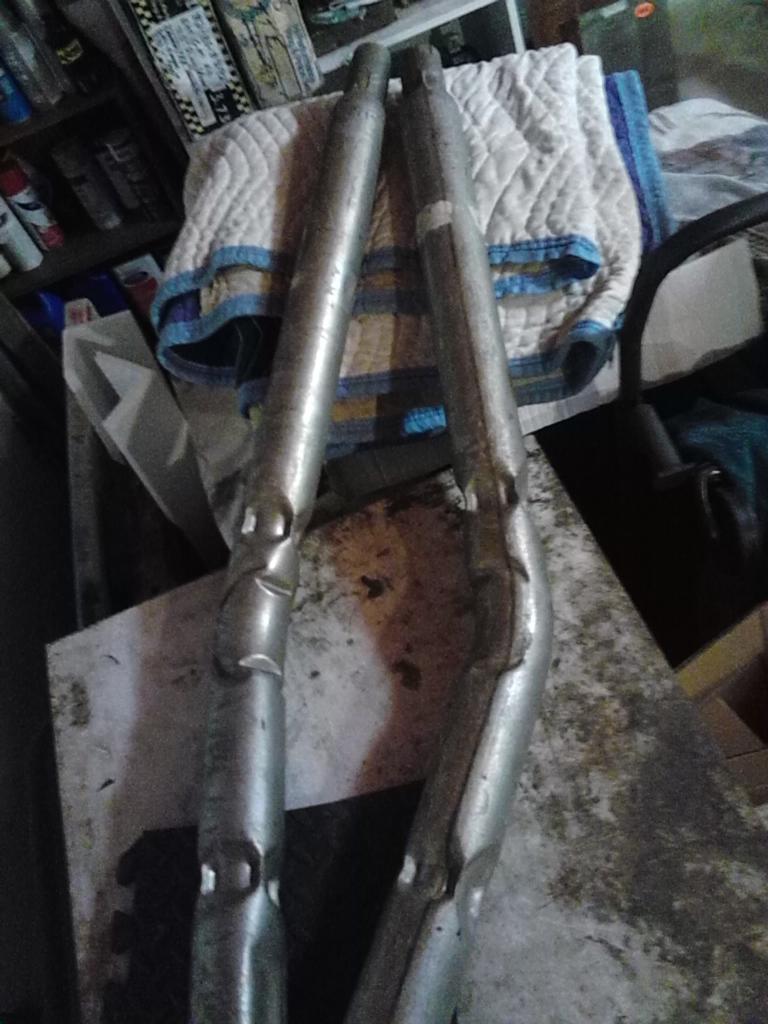

I have this pair..... believed to be Chevelle by WALKER Exhaust Co.one over the axle pipe removed. Will forward # stamping on pipes next.

[John Brown]

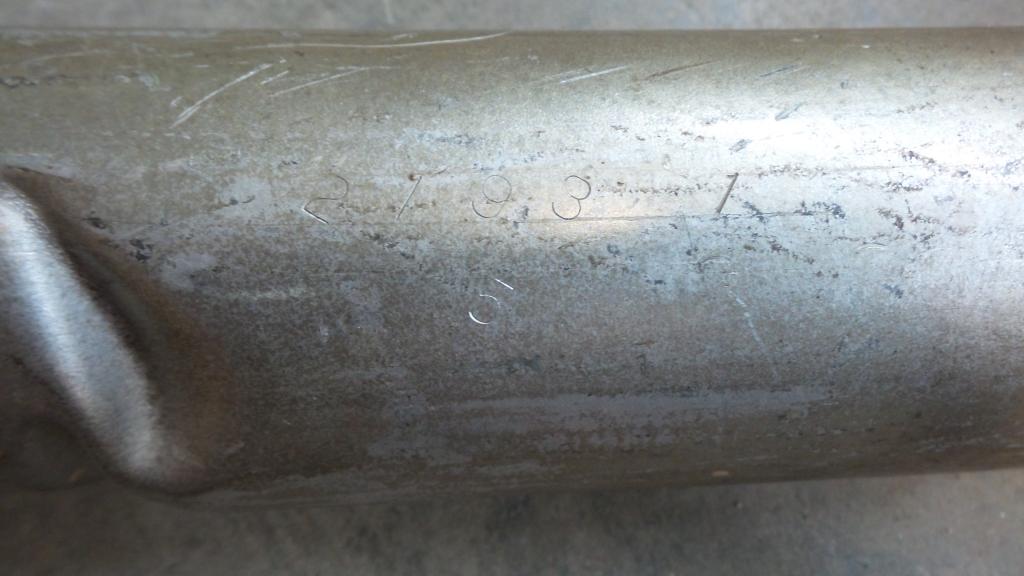

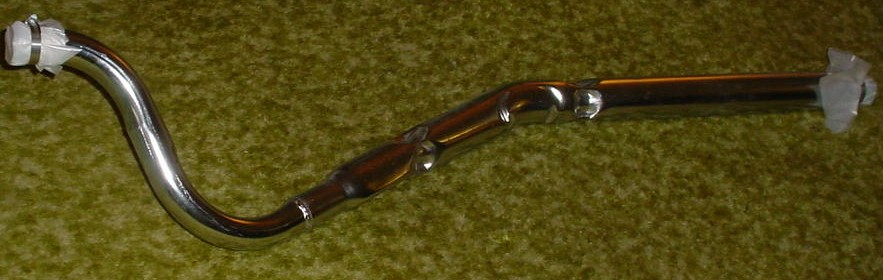

I have a NOS Walker chambered pipe stamped with the 2193 1 with a 5 below it. That pipe is from a Walker display they gave to auto parts stores in 1964. This particular pipe is the rear half for a chambered conversion set-up made for 1960 thru 1963 full size Fords, with all engines, six cylinder thru 352 (except convertible and station wagon. There is no mention whether or not it will fit a 390. Walker sold this pipe under their number CP2-5.

[John Brown]

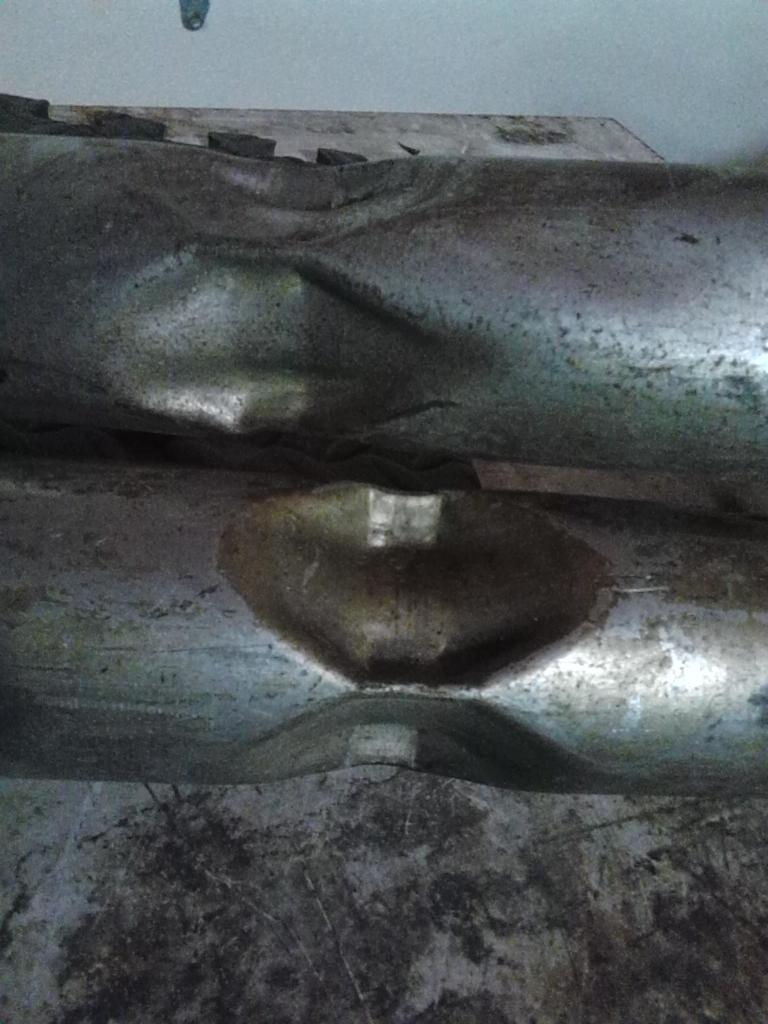

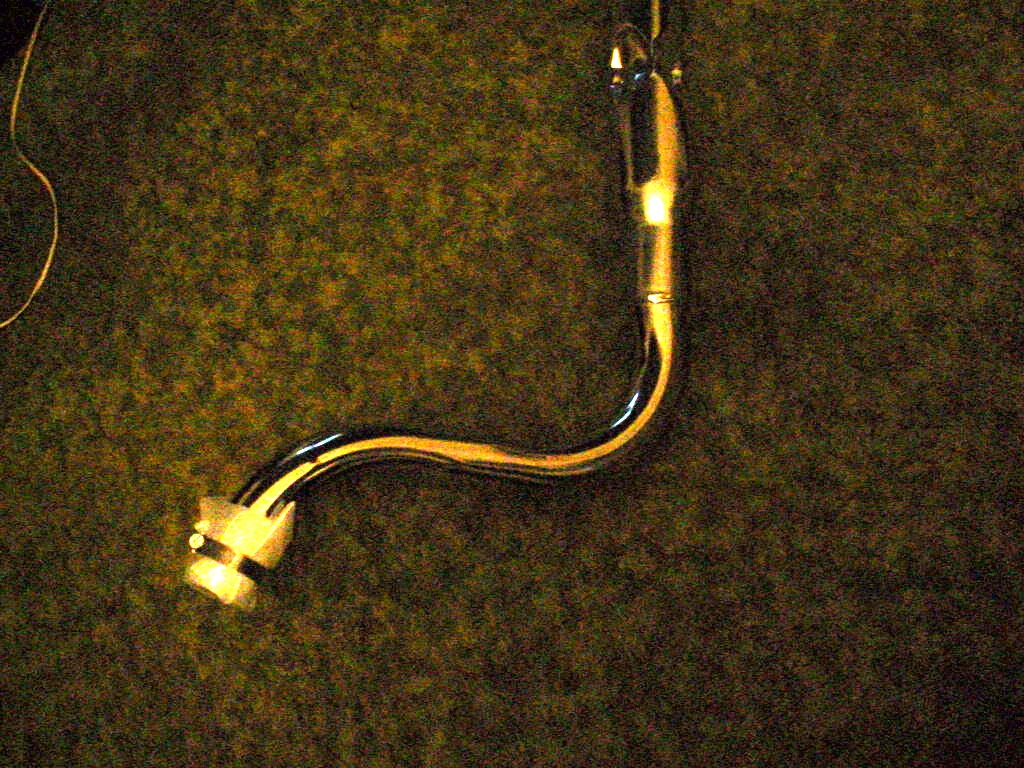

picture 2

[John Brown]

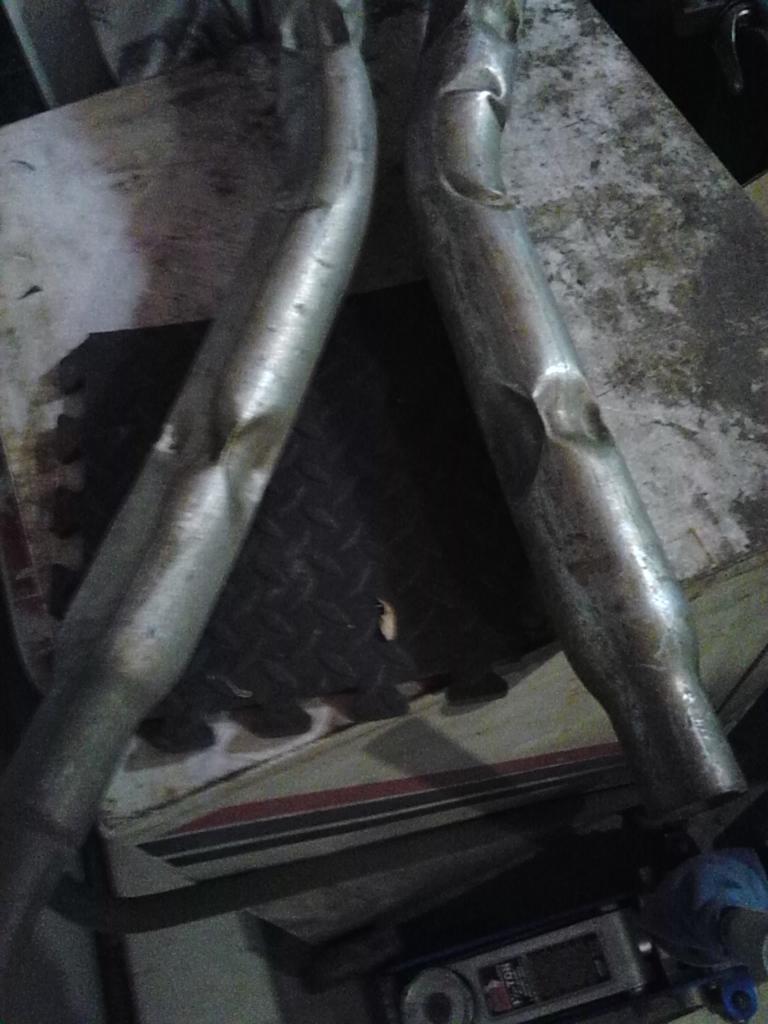

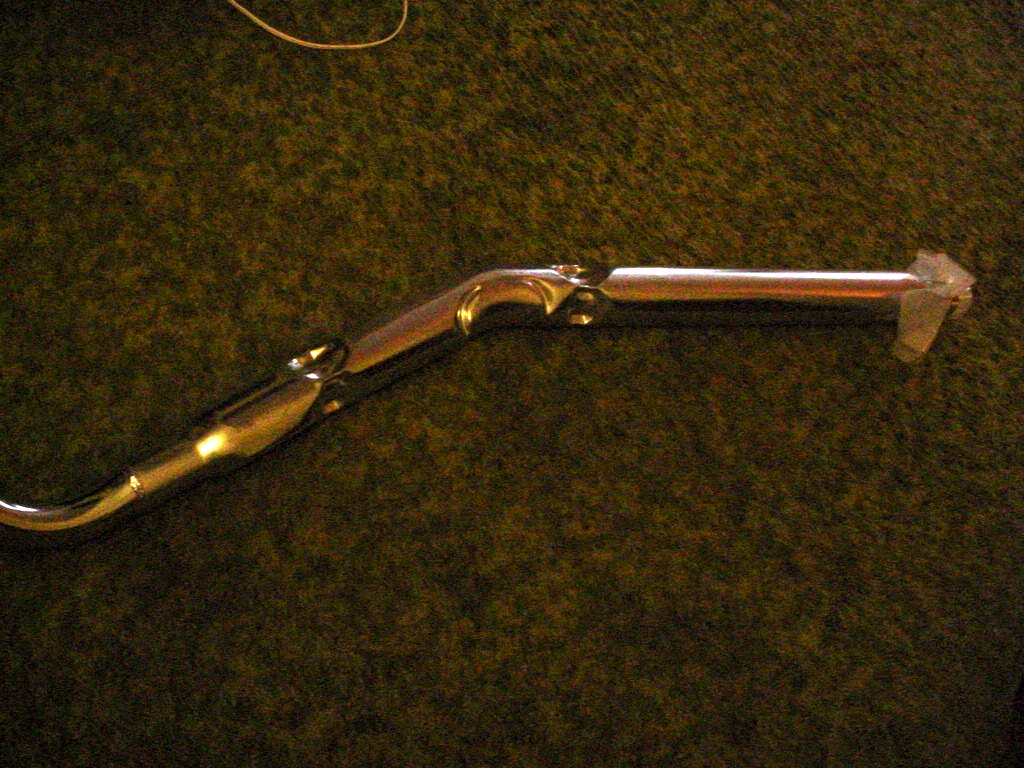

another

[John Brown]

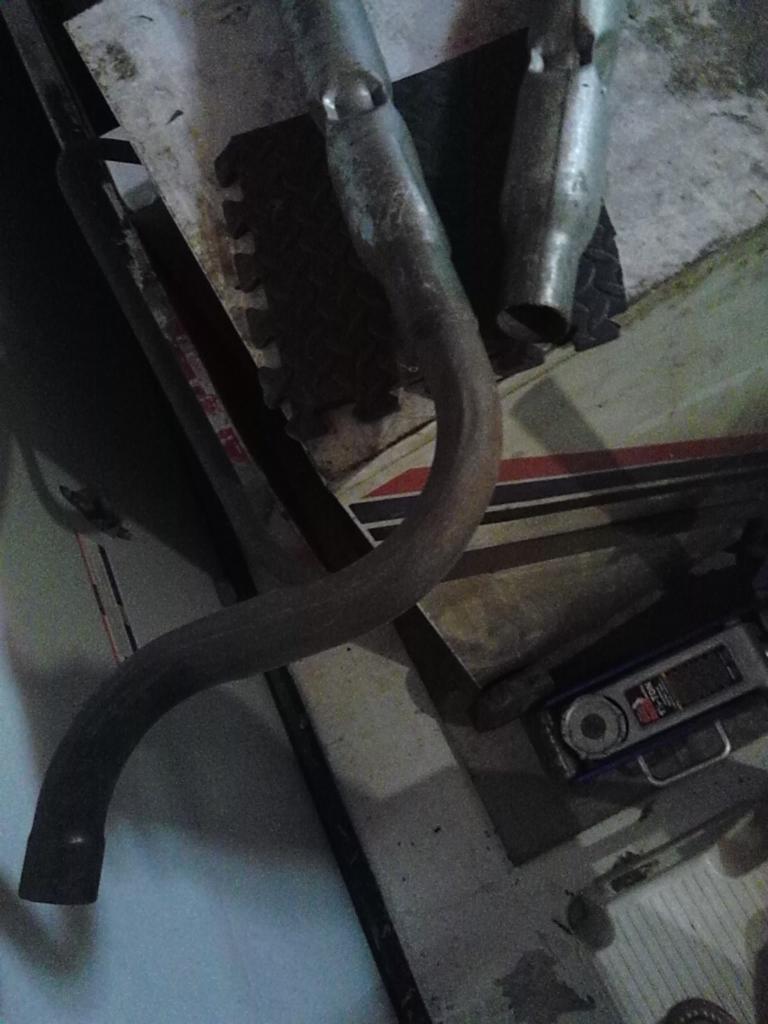

Final picture. This is in approximately the same position as the picture above that shows the over the axle pipe attached.

[Ls6 Ragtop]

Awesome info guys! Looks like I have some Walker pipes here.
Application is possibly still Chevelle ?
Everyone's insight is greatly appreciated. I'd love to find a new home for these pipes but without knowing what they fit makes it tough to advertise them.
Thanks, Chris

[SS69chevelle]

Based on the info provided above by John Brown you have Walker chambered exhaust pipes for 1960 thru 1963 full size Fords, with all engines, six cylinder thru 352 (except convertible and station wagon) part number CP2-5. You just don't have the pipe attached to his for over the axle. I did a google search for the part number and found nothing, maybe you could locate a vintage walker catalog and it might have more info that would help with application and description. I'm sure you could use them on many applications as long as you have the space under the car and depending on the angles of the pipe. good luck with them.
