day2 tunnel ram fuel line

[musclcar]

how was the fuel lines routed/plumbed on a early 70's dual quad tunnel ram.i just got done installing sideways mount adapters to my holley 660's .i'm running only one fuel line to each carb i'm not sure about dual feed bowls yet.so does anyone have pics on how they plumbed the fuel lines.did they run aluminum fuel blocks or hardline anywhere??

[Salvatore]

Check out Frank Arones. Looks correct.

[396L35]

Nice choice in carbs, but as for the plumbing I havent got a clue on the side mount. Im going to run mine in-line and I think Calebs car is the same way. Here a picture of my twin 660's.. Mark

[musclcar]

[ QUOTE ]
Nice choice in carbs, but as for the plumbing I havent got a clue on the side mount. Im going to run mine in-line and I think Calebs car is the same way. Here a picture of my twin 660's.. Mark

[/ QUOTE ]i'm running the offenhauser side mount linkage on my tunnel ram and that is a push/pull style linkage. the rear carb has the primary bowl facing over #5 and #7 cylinders and the front carbs primary bowl over #2 and #4 cylinders.

[396L35]

Here are two pictures I took of Calebs car at the reunion this year. His carbs are in-line like mine and you can see how he plumbed the fuel line.

[copojoe]

..........Man those look nice!

[JoeG]

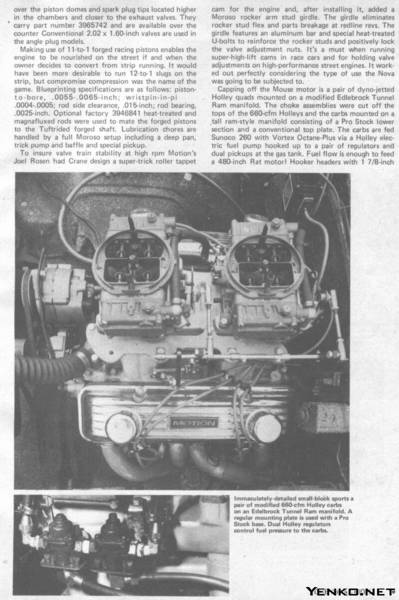

This photo is in the B/M photo gallery--you can enlarge it--

[musclcar]

that motion small block pic is almost like my set-up i'm running the offenhauser push/pull linkage for side mounted holley 660's.i also have the holley heat shields under both carbs just like in the pic.i finally found a older moroso cool can that i'm going to mount were the battery used to be.from there i'm running 3/8th fuel line to a moroso fuel block then split to each carb.i'm going to just drape the fuel line like the yellow day 2 69 camaro
