Default 1967 Camaro Sleeper Build

I originally asked you all for help on the direction to take my project here

https://www.yenko.net/forum/showthread.php?t=160471

I've made a decision and decided to continue the journey with all of your help on this thread because I didn't want to hijack the Technical and Restoration Section. I have a zero mile 350/autogear 4 speed that will be in the car FOR NOW until I find the big block transplant for the car. However I have a lot of parts to sell to keep an eye on the classifieds.
Update: Engine Sold

I've decided to build a period correct super sleeper that will I believe satisfy all the requirements I wanted in the car. I call it a super sleeper since the car will have the original exterior base 6cyl appearance including 230 fender badges. Since the car had z21 trim, it was I believe the most "pleasant" looking paint/trim package you could get, all feeding into the sleeper identity.

I'm happy with my decision because the requirements I wanted would be met which is to:
-Have period correct identity.
-Be a fun driver to take to shows etc
-Be Unique
-Authentic (Depending on your definition)
-"Affordable" to build (No more pro touring expensive bells and whistles, not too picky on '66-'67 date codes etc)
-Be COOL!

When I first purchased my car, the owner said that the car belonged to a family in which their yanked out the 6cyl/ 3 on the tree and replaced with a v8/muncie as evidenced by the terrible job hacking up the trans tunnel and v8 frame brackets that were on the car.


Must have's on my car


Completely original style paint Bolero Red/Z21 Trim white pinstripe extending the length of the car

Retain Standard Factory Badges including L6 230 Fender emblems (Or maybe no engine size emblems?)

Stock Red interior (yes I decided against the black after-all)

Nothing newer than 1971?? I think I will bite the bullet on a '66 or '67 427 4 bolt block. Scratch that after advice from Anthony and Jason, a nice 454 would still be super cool, period correct, cheap, and more realistic to the theme of the build. Definitely want to run winters heads and intake
-I opened the window of time here not only to save money and avoid the Corvette and Chevelle guys (thanks Jason), but I'm sure the car was driven with the original powertrain at least a few years before the first swap happened.

-Big Block 454 not 427 after all.

-Period Correct aftermarket parts Early 70's or older)

-Retain STOCK Hood (no SS hood, no Cowl hood, I want to sneakily squeeze a big block under that hood)

-Use factory 14x5" wheels with 67 Dog Dish Caps all the way around in street trim, drag wheels and tires on the rear for track trim
Update: I have a set of 14x6's and a set of 14x7's and 15x10's for the rear

-Retain original column shift column with handle removed (it's how I bought the car) to go with the theme/identity

Notes/Questions (Please feel free to reply with your ideas/thoughts/advice)

-Will 1969 350 motor mounts the engine will actually sit low enough to clear a stock hood, will have to figure out the header situation
Update: I will use all Factory '67 Big block mounts, etc. I can still use flat hood.

-I have some 4 pistons on the way, I can always have them sleeved to prevent leaking. I have drums too.
Update: Using dated '69 brakes instead, it's what we would have pulled at the junkyard.

-Guldstrand mod for suspension (please make recommendation on springs/shocks for big block)
Update: No Guldstrand mod

-Brake/Fuel Lines ( I have brand new stainless sets, was stainless available back then? if not I can sell these too)
Update: Using stock steel lines, stainless is difficult to seat

-Would it be cooler to run a manual disc/drum master cylinder? (going to run power brakes, just aquired the master cylinder thanks Anthony)

Needed Parts List (Please inform me of anything I'm missing!)

-Complete running big block preferably with accessories still attached
(Snowflake heads a must)
Update: Big Block being built, NOS 077 Heads



-Front springs and shocks
(Still need recommendation)



Please reply with your thoughts/ideas etc. Thanks!
__________________
Jose

1967 Camaro 454/M22 Build in Progress

Go A's!

Last edited by jbtech; 11-02-2020 at 06:43 PM. Reason: updated
Reply With Quote

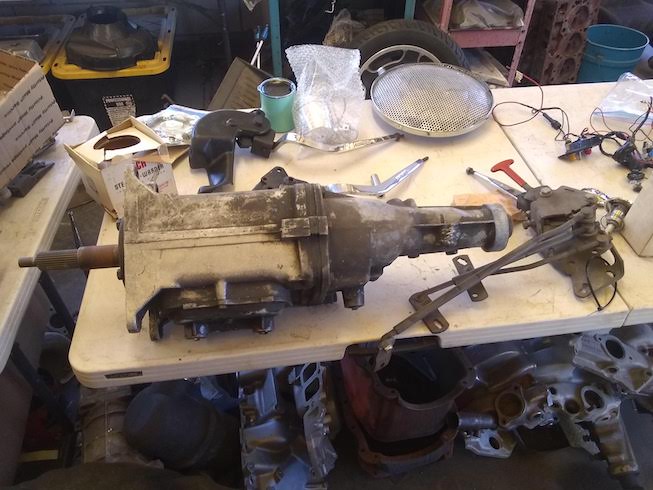

Attachments - The Supercar Registry valvecovertop.jpg valvecoverafter.jpg TwoLaneBlacktop.jpg TransShifter.jpg
Click here to view all the pictures posted in this thread...
  #2
Old 04-11-2020, 02:30 PM
Lynn Lynn is offline
Yenko Paid Member

Join Date: Feb 2005
Location: Oklahoma
Posts: 4,972
Thanks: 1
Thanked 628 Times in 374 Posts
Default

Only thing I would change is the heater core. After i traded my first Z/28 to my brother in 1972 or 73 he put a 427 in it. The MT valve cover actually touched the heater hose fitting.

Frankly, if you have a SB heater cover, you already have the right cover. Just punch two holes for the BB heater core. Just not worth the head ache.

I have never had a BB Camaro, so no spring recommendations; but my favorite shock for first gens is adjustable Konis. I have them on my Z.
__________________
Don't believe everything you read on the internet ... Ben Franklin
Reply With Quote
  #3
Old 04-12-2020, 09:09 PM
jbtech's Avatar
jbtech jbtech is online now
Yenko Paid Member

Join Date: Apr 2020
Location: San Jose, CA
Posts: 241
Thanks: 111
Thanked 80 Times in 52 Posts
Default

Quote:
Originally Posted by Lynn View Post
Only thing I would change is the heater core. After i traded my first Z/28 to my brother in 1972 or 73 he put a 427 in it. The MT valve cover actually touched the heater hose fitting.

Frankly, if you have a SB heater cover, you already have the right cover. Just punch two holes for the BB heater core. Just not worth the head ache.

I have never had a BB Camaro, so no spring recommendations; but my favorite shock for first gens is adjustable Konis. I have them on my Z.

Thanks Lynn Will do I appreciate your advice! Hopefully I can unload everything I'm selling to get this going.

-Jose
__________________
Jose

1967 Camaro 454/M22 Build in Progress

Go A's!
Reply With Quote
  #4
Old 04-14-2020, 08:24 PM
Chuck_Burg's Avatar
Chuck_Burg Chuck_Burg is offline
Yenko Paid Member

Join Date: Feb 2019
Location: Long Beach, CA
Posts: 191
Thanks: 111
Thanked 177 Times in 75 Posts
Default

wow pretty cool Van Nuys body number 70.
Reply With Quote
  #5
Old 04-14-2020, 08:50 PM
scuncio's Avatar
scuncio scuncio is online now
Yenko Paid Member

Join Date: Oct 2000
Location: Michigan
Posts: 9,948
Thanks: 871
Thanked 2,063 Times in 1,290 Posts
Default

That is a WAY early car.
Reply With Quote
  #6
Old 04-14-2020, 09:17 PM
jerry455 jerry455 is offline
Yenko Paid Member

Join Date: Oct 2016
Location: ca. USA
Posts: 177
Thanks: 191
Thanked 64 Times in 43 Posts
Default

This is a pretty good summary of going BBC in first Gen Camaro-
https://stevescamaroparts.blogspot.c...-block-to.html
This is really cool build-I like your approach and there are a lot of good guys on here with valuable experience, parts & insights.
I'm in San Jose too- small world!
Jerry
Reply With Quote
The Following User Says Thank You to jerry455 For This Useful Post:
jbtech (04-15-2020)
  #7
Old 04-15-2020, 01:07 AM
jbtech's Avatar
jbtech jbtech is online now
Yenko Paid Member

Join Date: Apr 2020
Location: San Jose, CA
Posts: 241
Thanks: 111
Thanked 80 Times in 52 Posts
Default

Quote:
Originally Posted by jerry455 View Post
This is a pretty good summary of going BBC in first Gen Camaro-
https://stevescamaroparts.blogspot.c...-block-to.html
This is really cool build-I like your approach and there are a lot of good guys on here with valuable experience, parts & insights.
I'm in San Jose too- small world!
Jerry
Jerry thanks for the link! Definitely a small world we should get together sometime! Buy some of my stuff! Just Kidding.

-Jose
__________________
Jose

1967 Camaro 454/M22 Build in Progress

Go A's!
Reply With Quote
  #8
Old 04-15-2020, 09:20 PM
jbtech's Avatar
jbtech jbtech is online now
Yenko Paid Member

Join Date: Apr 2020
Location: San Jose, CA
Posts: 241
Thanks: 111
Thanked 80 Times in 52 Posts
Default

Update:

The last 48 hours have been great. I sold some parts and acquired some much needed parts.

I just picked up my spare pre October '66 frame from being straightened

Picked up a bunch of needed parts many from AnthonyS Thanks!

-4 Piston front calipers
-Wheels
-BB Clutch Fan
-BB Pulleys
-Dist Cap
-Battery Topper
-Front Manifold Lift Bracket
-Flywheel
-T3 Headlights
-163 Intake Square Port
-Valve Covers
-Rear Drum backing plates+drums
-Power Master Cylinder
__________________
Jose

1967 Camaro 454/M22 Build in Progress

Go A's!

Last edited by jbtech; 06-26-2020 at 05:28 AM. Reason: parts needed removed
Reply With Quote
The Following User Says Thank You to jbtech For This Useful Post:
AnthonyS (04-15-2020)
  #9
Old 04-15-2020, 09:31 PM
Xplantdad's Avatar
Xplantdad Xplantdad is offline
Moderator

Join Date: Sep 2004
Location: AZ
Posts: 30,913
Thanks: 3,005
Thanked 1,588 Times in 826 Posts
Default

Anthony is good people!!
__________________
Bruce
Choose Life-Donate!
Reply With Quote
The Following User Says Thank You to Xplantdad For This Useful Post:
AnthonyS (04-15-2020)
  #10
Old 04-15-2020, 09:42 PM
AnthonyS's Avatar
AnthonyS AnthonyS is offline
Yenko Paid Member

Join Date: Dec 2017
Location: SoCal
Posts: 1,492
Thanks: 11
Thanked 172 Times in 121 Posts
Default

Quote:
Originally Posted by Xplantdad View Post
Anthony is good people!!
aw shucks, kicks a can... thanks guys!
Reply With Quote
The Following User Says Thank You to AnthonyS For This Useful Post:
jerry455 (04-22-2020)
